Manufacturer Part No.
1034615
Schukat Part No.

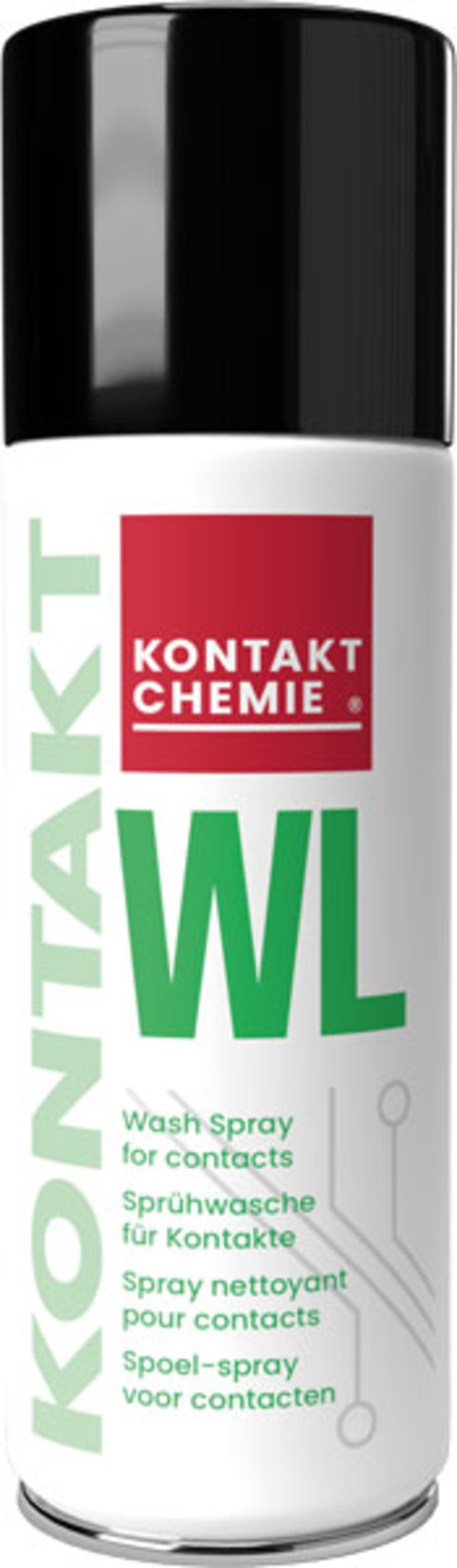

KWL-200-M18
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

17 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Spray Cleaner
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • CRC
Type
  • Spray Cleaner
Series
  • KONTAKT WL
Product group
  • R2261 CRC Electronic Sprays: Universal Cleaner
Application
  • Cleaning and dirt removal

Packaging (ml)
  • 200 ml
Features
  • - Universal spray wash the entire electronics
    - The solvent mixture removed a wide range of dirt such as oil, grease, soot or nicotine residues from electrical equipment, plugs, motors, or fine mechanical transmissions.
    - High solvency power, good material compatibility with conventional electronic components
    - Dries quickly and leaves no residue
    - Drying time: drys in minutes, approx. evaporation rate 10 (ether = 1)
    -Flammability: flash point at less  0°C, highly flammable
    - KWL-_-M18: documents in 18 languages

Notice
  • Use biocidal products with care. Always read the label and product information before use.

Safety/Certifications

Directions
  • KONTAKT WL is best used from an aerosol can. For precision cleaning/dosing, please use
    the extension tube. The aerosol can be used upside down (360° valve) for hard to reach
    spots or parts. Carbon dioxide is used as propellant allowing a filling level of active
    ingredients equal to ±97%.
    Spray KONTAKT WL generously. If possible, use a cloth to absorb any liquid which runs off.
    The type of materials in the neighbourhood of electrical contacts are not endangered by
    the liquid run-off, but washed-off dirt can cause malfunctions elsewhere in a piece of
    electrical equipment. If the cleaned contacts are readily accessible, the cleaning can be
    optimized by wiping, for example with a fluff-free, clean paper tissue.
    Most currently used materials in the production of electronic parts, housings and
    equipment, are compatible with KONTAKT WL. However, plastics sensitive to solvents (e.g.
    polystyrene, polycarbonate) or rubber should be tested on forehand.
    Electrical contacts and surfaces cleaned from corrosion dirt should be protected following
    the cleaning. For contacts we do recommend anti-corrosion protective oil KONTAKT 61.
    The product contains easily flammable solvents hence all sources of ignition should be
    removed while working with the product. Do not spray on energized equipment.
    A safety data sheet (MSDS) according to EU directive 91/155/EEC and amendments is
    available for all CRC products.

Hazardous Substances/Goods

UN number
  • 1950 - Pressurised gas pack

Documents

KONTAKT WL - Kontakt chemie - Europe-sds_germany-German-3-BDS000542AE.pdf
KONTAKT WL - Kontakt chemie - Europe-sds_germany-German-3-BDS000542AE.pdf
