HomeProductsTools & ConsumablesElectro ChemicalsKONTAKT 611034479

1034479

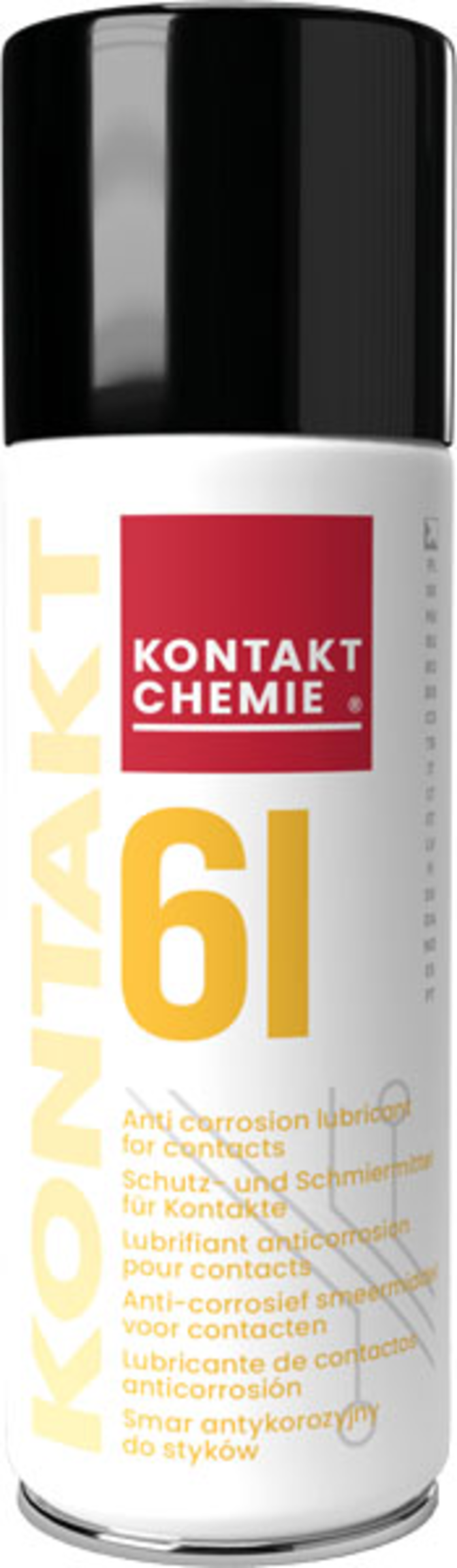

CRC Corrosion Inhibitor 200ml

Manufacturer Part No.
1034479
Schukat Part No.
K61-200-M18
Manufacturer
CRC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

17 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Corrosion Inhibitor
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • CRC
Type
  • Corrosion Inhibitor
Series
  • KONTAKT 61
Product group
  • R2265 CRC Electronic Sprays: Contact Cleaner
Application

  • Clean, lubricate and protect

Packaging (ml)
  • 200 ml
Features

  • - Moisture displacing protective oil for electrical contacts of all kinds
    - Forms on the contact surface of a wafer-thin, non-conductive oil film which displaces Feuchtigkeitkeit, avoids short circuits and protects against corrosion
    - Increases the operating life of old and new contacts, increases the functional safety of plugs, switches and controls especially under influence of weather
    - Material compatibility: good with all contact materials, check for rubber compatability
    - Documents in 18 languages

Safety/Certifications

Directions

  • The easiest way to apply KONTAKT 61 is from an aerosol can. An extension tube is
    also provided. Spray liberally to clean contact surfaces. However to form a
    lubricating and protective film, a few droplets on each pair of contacts are
    sufficient. The cleaning action from KONTAKT 61 can be improved by mechanical means as there are e.g. actuate the switch a few times, push the plug in and out. For
    extremely dirty or corroded contacts we do recommend our special contact
    cleaner KONTAKT 60. KONTAKT 61 displaces moisture and forms a micron thin lubricating and protective film. Under normal circumstances, this film does not affect the electrical conductivity. However at very low voltages of e.g. <1 volt, it is possible that the field force is insufficient to break through the oil film. In these cases individual testing is needed. To reduce the wear and tear of soft noble metal (coated) contacts, we do recommend the use of our synthetic contact lubricant KONTAKT GOLD 2000. When using KONTAKT 61 , all source of ignition should be removed. Do not spray on energized equipment. A safety data sheet (SDS) according to EU directive 91/155/EEC and amendments is available for all CRC products.

Hazardous Substances/Goods

UN number
  • 1950 - Pressurised gas pack

Documents

KONTAKT 61 - Kontakt chemie - Europe-sds_germany-German-1-BDS000555AE.pdf
Download (pdf, 235 KB)
KONTAKT 61 - Kontakt chemie - Europe-sds_germany-German-1-BDS000555AE.pdf
Download (pdf, 235 KB)
