Manufacturer Part No.
1034472
Schukat Part No.
K60-400-M18
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

29 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Contact Cleaner
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • CRC
Type
  • Contact Cleaner
Series

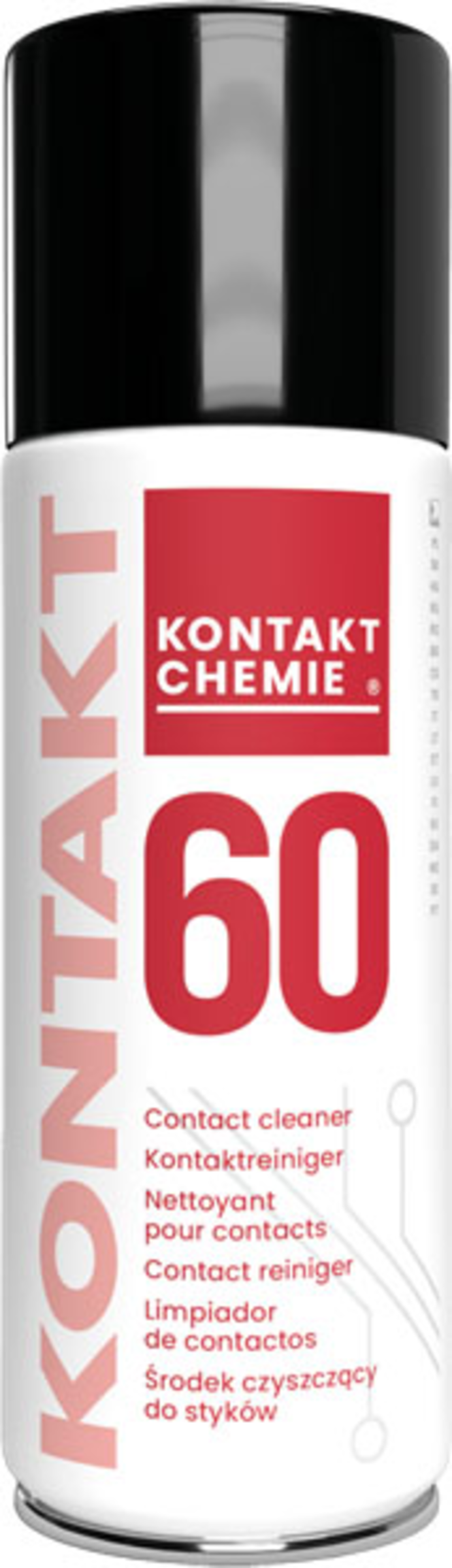

  • KONTAKT 60
Product group
  • R2265 CRC Electronic Sprays: Contact Cleaner
Application
  • Cleaning and loosening

Packaging (ml)
  • 400 ml
Features
  • - Strong, oxidereleasing Contact Cleaner
    - Highly effective for cleaning oil contacts of all types
    - Dissolves even stubborn oxide, reduced contact resistance
    - Ideally suited for quick repair at faults in systems and equipment, as well as preventive maintenance of fault-prone modules, connectors, switches, tuners, potentiometers, etc.
    - K60-_-M18: documents in 18 languages

Safety/Certifications

Directions
  • The easiest way to apply KONTAKT CHEMIE Kontakt 60 is to use the aerosol. A few droplets for each pair of contacts is generally sufficient. The cleaning and oxide-dissolving action can be improved by mechanical support. If switching or connector contacts are readily accessible, they can be carefully wiped, for
    example, using cellulose, leather or cotton swabs. If it is impossible to provide mechanical support, allow KONTAKT CHEMIE Kontakt 60 some
    10 to 15 minutes to penetrate. Dissolved dirt and corrosion products must then be rinsed off with KONTAKT CHEMIE Kontakt WL. After that, KONTAKT CHEMIE Kontakt 61 is applied as a protective film. KONTAKT CHEMIE Kontakt 60 works in many cases even without after-treatment. However this increases the risk that corrosion damage will appear again after a short time. Contacts of fairly large plug connectors and robust relays can also be sprayed with KONTAKT CHEMIE Kontakt 40 to give them protection from corrosion. If you are certain that a contact is malfunctioning only because of contamination, resinification etc. and not due
    to corrosion, KONTAKT CHEMIE 61 can also be used directly without further pre-treatment. When very large quantities of KONTAKT CHEMIE Kontakt 60 are being consumed, the use of the concentrate may be economic. It is diluted in accordance with the instructions. When Kontakt 60 is used in serial production, plastics compatibility should be tested. Particular attention should be paid to plastics susceptible to stress-cracking (e.g. polycarbonate and polystyrene) and parts subjected to heavy mechanical loads. Diluted solutions of KONTAKT CHEMIE Kontakt 60 and the aerosol spray contain flammable solvents. Therefore the liquids must not be sprayed onto energised equipment. The solvent must be completely evaporated before the equipment is started up again. A period of at least 15 minutes is to be allowed for this. Local conditions may require a longer drying time,
    particularly when there is an insufficient flow of fresh air to the places being treated.
    Further information on safety can be found in the safety datasheet.

Hazardous Substances/Goods

UN number
  • 1950 - Pressurised gas pack
