19401232

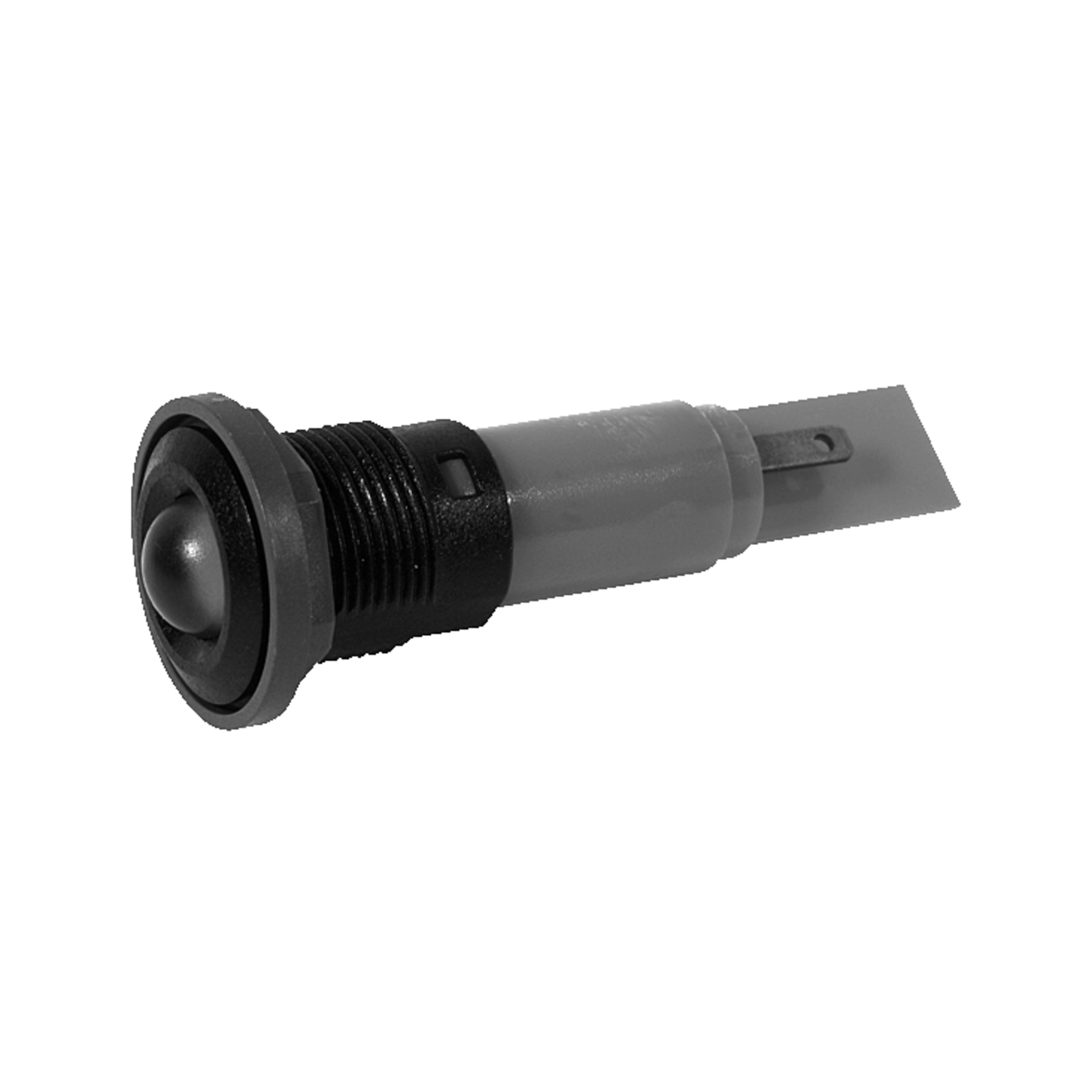

CML Innovative Technologies LED with Holder 230V 200mcd 18,3mm 16mm
Manufacturer Part No.
19401232
Schukat Part No.
CML19401232
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
35 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LED with Holder
- Rated current
- 3 mA
- Rated Voltage
- 230 V
- LED colour
- yellow
- LED size
- 16 mm
- Reflector shape
- External Reflector
- Termination Style
- Flat plug
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 60 °C
- Storage Temperature Min.
- -25 °C
- Storage Temperature Max.
- 80 °C
Electrical features
- Rated Voltage
- 230 V
- Voltage tolerance
- 10 %
- Rated current
- 3 mA
- Light Intensity
- 200 mcd
Safety/Certifications
- Protection Class IP
- IP67
- Standards
- DIN EN 60529
