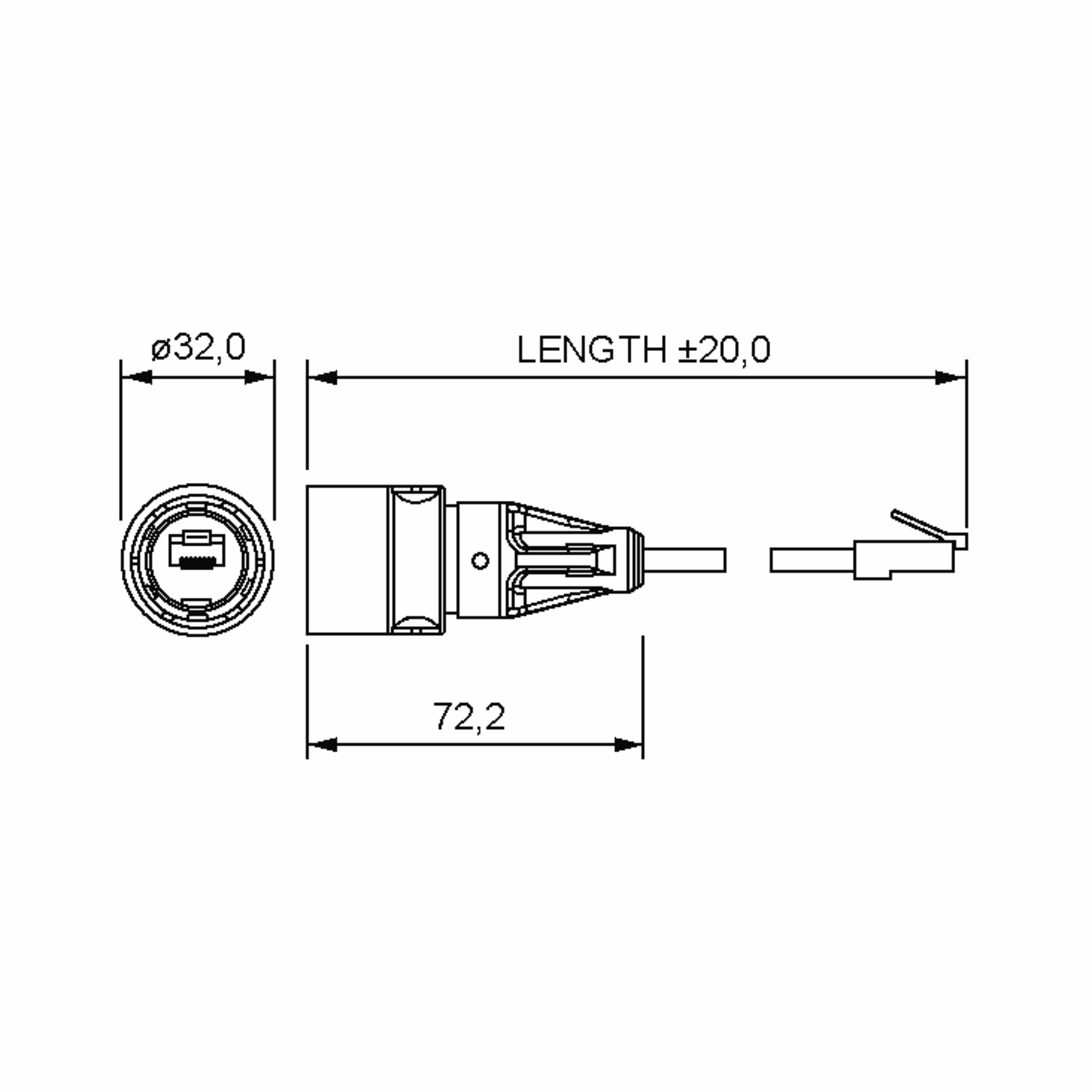

PXP6037/5M00

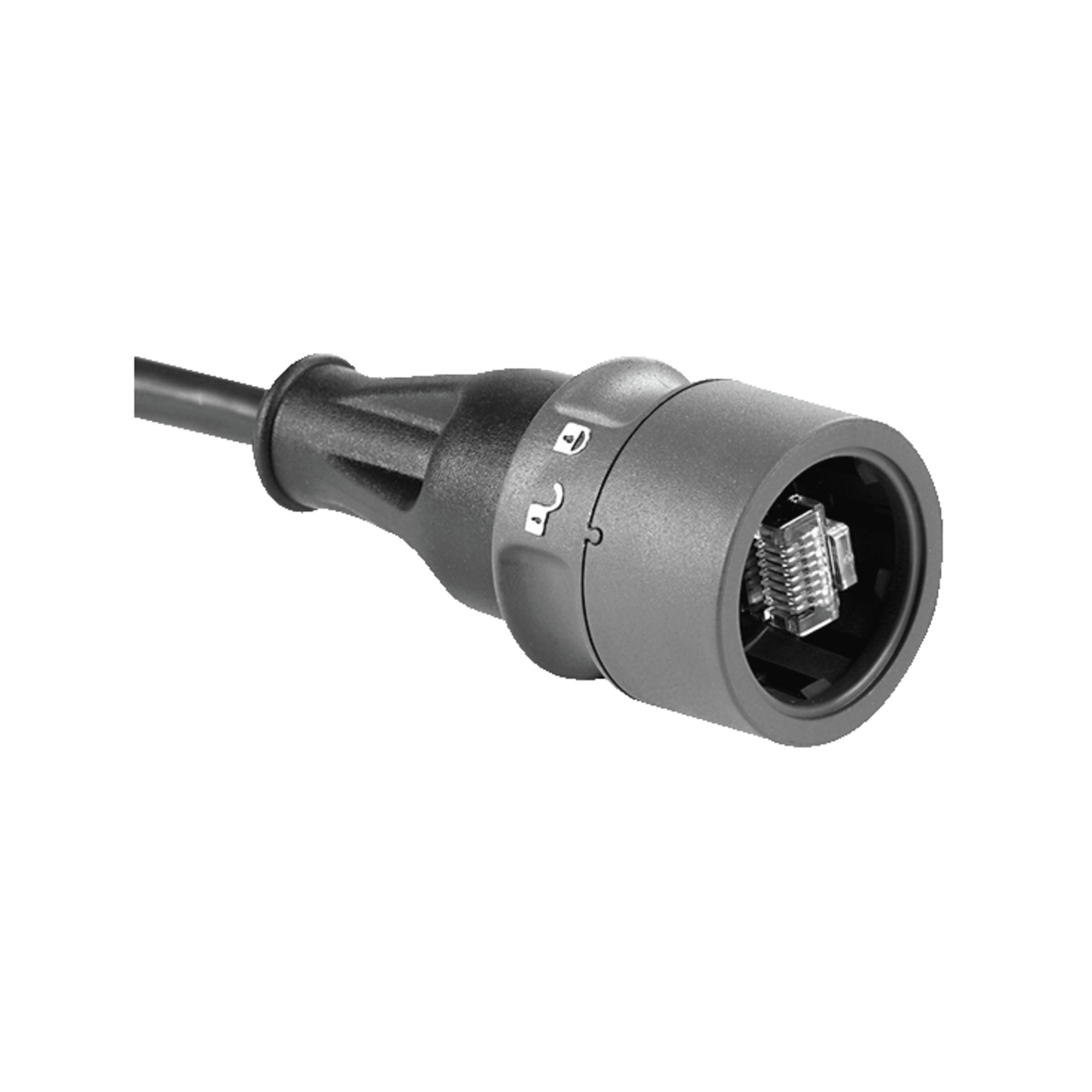

Bulgin Ltd. Cable connector housing 6000 vernickelt 1A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Cable connector housing
- Series
- 6000
- Housing material
- Polybutylenterephthalat (PBT)
Polycarbonat (PC) - Cable diameter, max.
- 10 mm
- Class of Inflammability
- UL 94 V-0
- Operating Temperature Max.
- 70 °C
- Rated current
- 1 A
- Operating Temperature Min.
- 0 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Cable diameter, min.
- 4 mm
- Cable diameter, max.
- 10 mm
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated current
- 1 A
- Performance
- Contact resistance
- 30 mOhm
Mechanical Features
- Durability
- 1,000
- Housing material
- Polybutylenterephthalat (PBT)
- Polycarbonat (PC)
- Contact Surface Input
- vernickelt
- Gasket
- silicone
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
- Label
- Polarisation und visuelle Ausrichtungsmerkmale
Documents
6000Series-ethernet-wiring.pdf
