PXP6012/16P/CR

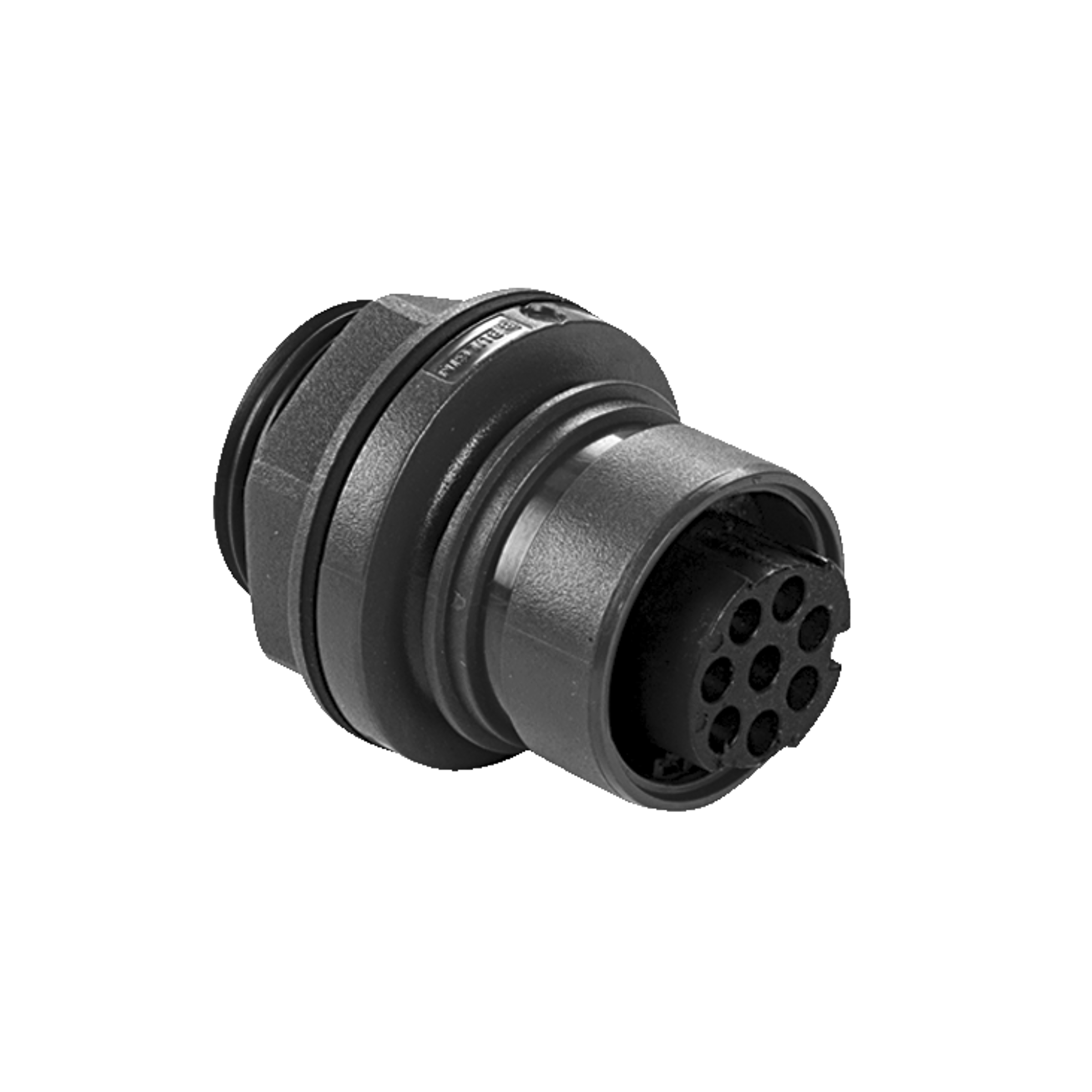

Bulgin Ltd. Cable connector housing PXP6012 Plug 16 Pole vernickelt 3A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 30 or multiple of 30)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Cable connector housing
- Series
- PXP6012
- Housing material
- Polybutylenterephthalat (PBT)
Polycarbonat (PC) - Cable diameter, max.
- 10 mm
- Number of poles
- 16
- Class of Inflammability
- UL 94 V-0
- Operating Temperature Max.
- 120 °C
- Rated current
- 3 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

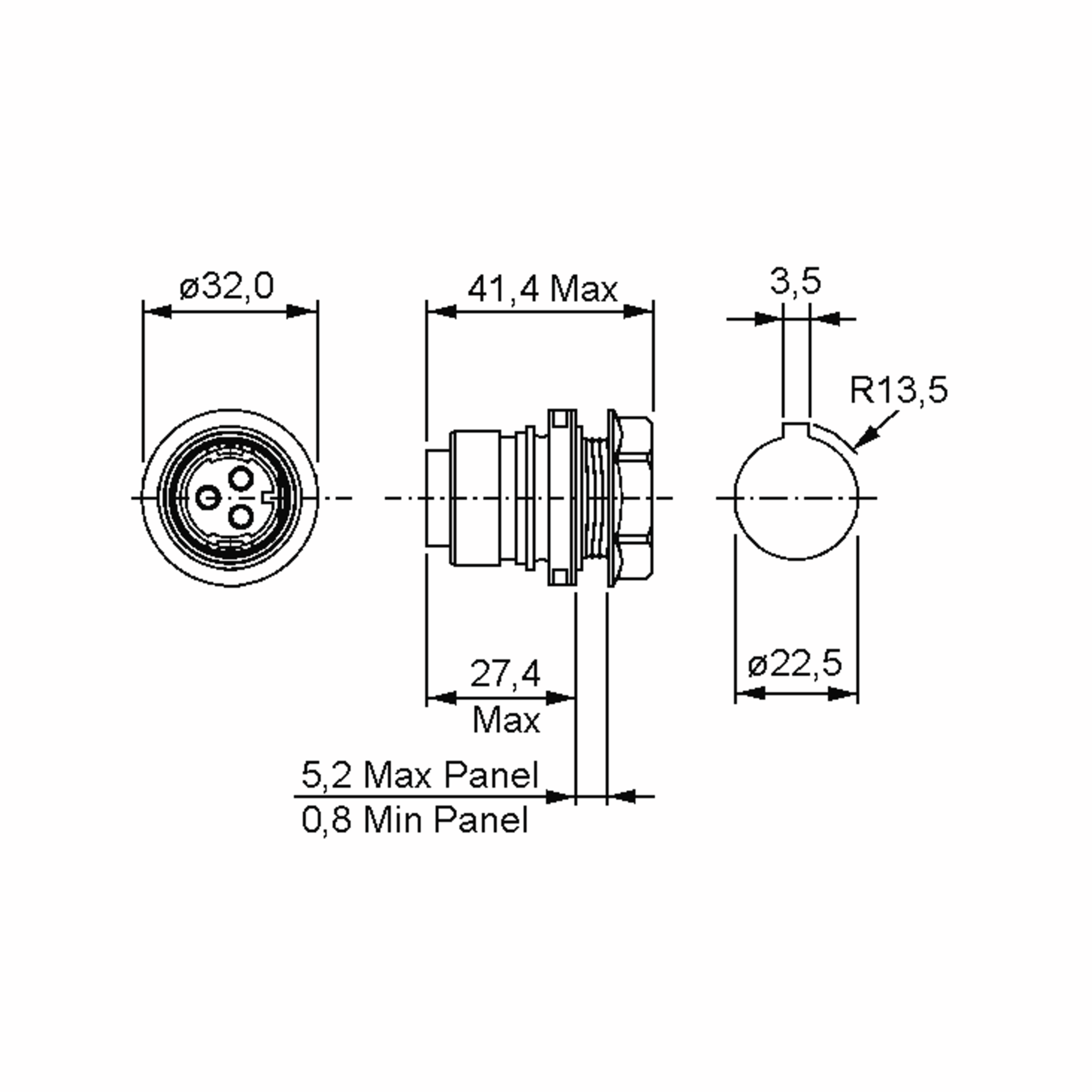

Dimensions and Weights
- Dimension: Height
- 41.4 mm
- Diameter
- 32 mm
- Cable diameter, min.
- 4 mm
- Cable diameter, max.
- 10 mm
- Board Strength min.
- 0.8 mm
- Board Strength max.
- 5.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 120 °C
Technical Features
- Rated current
- 3 A
- Breakdown voltage
- 5,000 V RMS / min.
- Insulation resistance
- 10^6 mOhm
- Contact resistance
- 10 mOhm
Mechanical Features
- Drilling Dimensions
- 22.5 mm
- Housing material
- Polybutylenterephthalat (PBT)
- Polycarbonat (PC)
- Contact Surface Input
- vernickelt
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
- Label
- Polarisation und visuelle Ausrichtungsmerkmale
Documents
6000Series-power-metal-wiring.pdf
6000Series-power-plastic-wiring.pdf
