PXP6010/08P/CR/0709

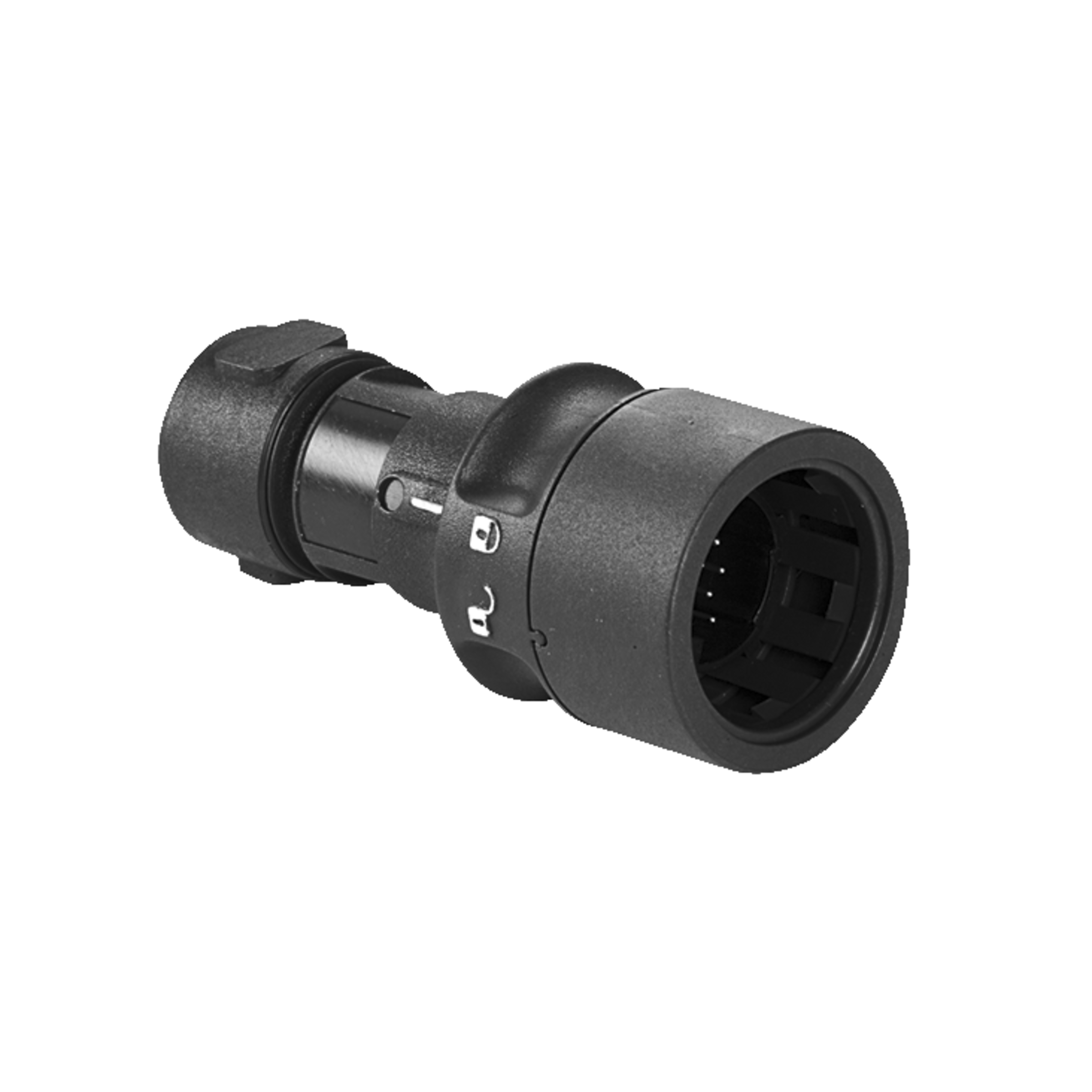

Bulgin Ltd. Buccaneer 6000 8pol.
Manufacturer Part No.
PXP6010/08P/CR/0709
Schukat Part No.
PXP6010-08PCR-0709
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 21.12.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- PXP6010
- Labeling or description
- Buccaneer 6000
- Number of poles
- 8
- Dimension: Length
- 78.4 mm
- Rated current
- 10 A
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 120 °C
- RoHS-Conform
Specifications
Open all

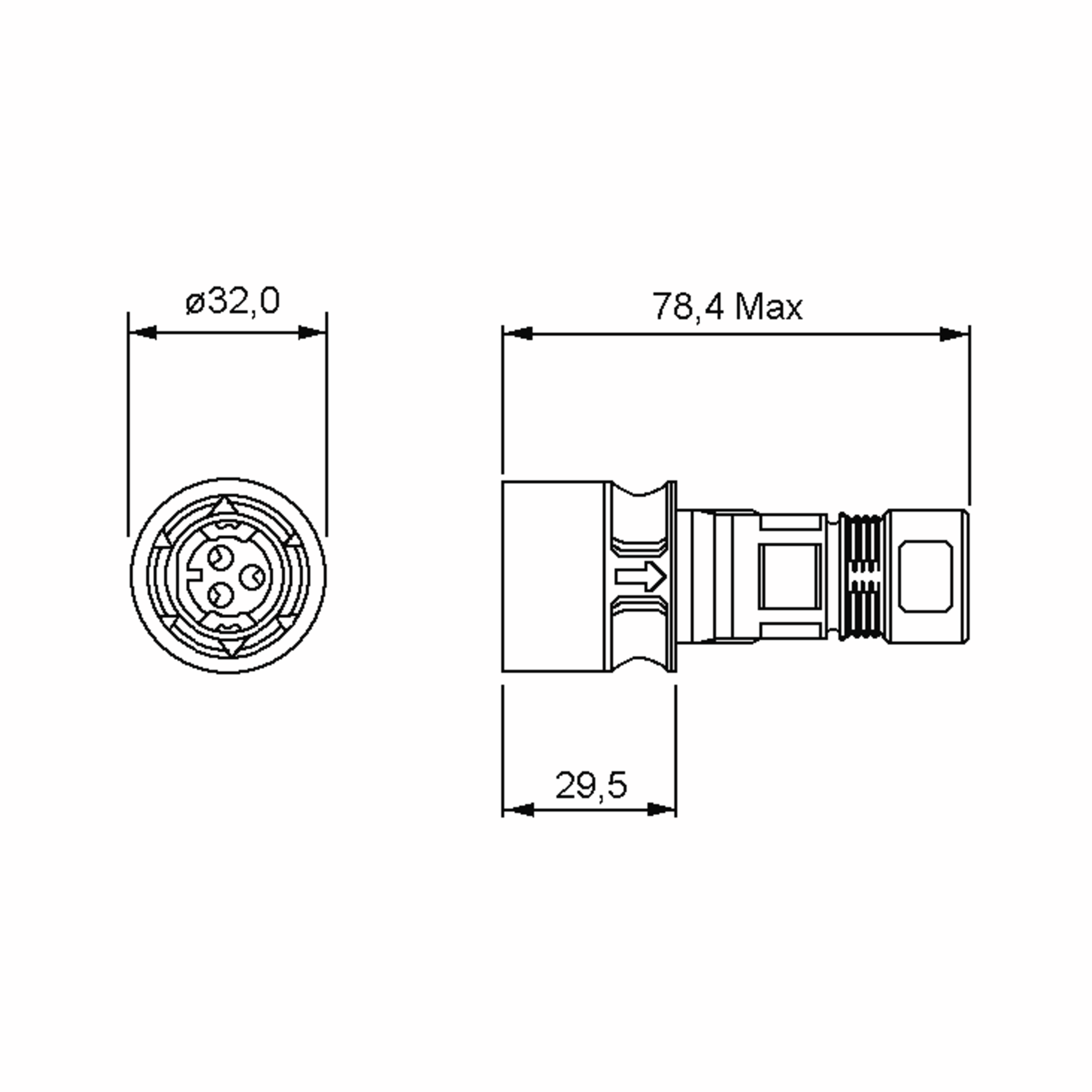

Dimensions and weights
- Dimension: Length
- 78.4 mm
- Diameter
- 32 mm
- Cable diameter, min.
- 4 mm
- Cable diameter, max.
- 10 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 120 °C
Technical features
- Rated current
- 10 A
- Breakdown voltage
- 5,000 V RMS / min.
- Insulation resistance
- 10^6 mOhm
- Contact resistance
- 10 mOhm
Mechanical features
- Kontaktbeschichtung Eingang
- vernickelt
Safety/Certifications
- Label
- Polarisation und visuelle Ausrichtungsmerkmale
