PX0921/05/S

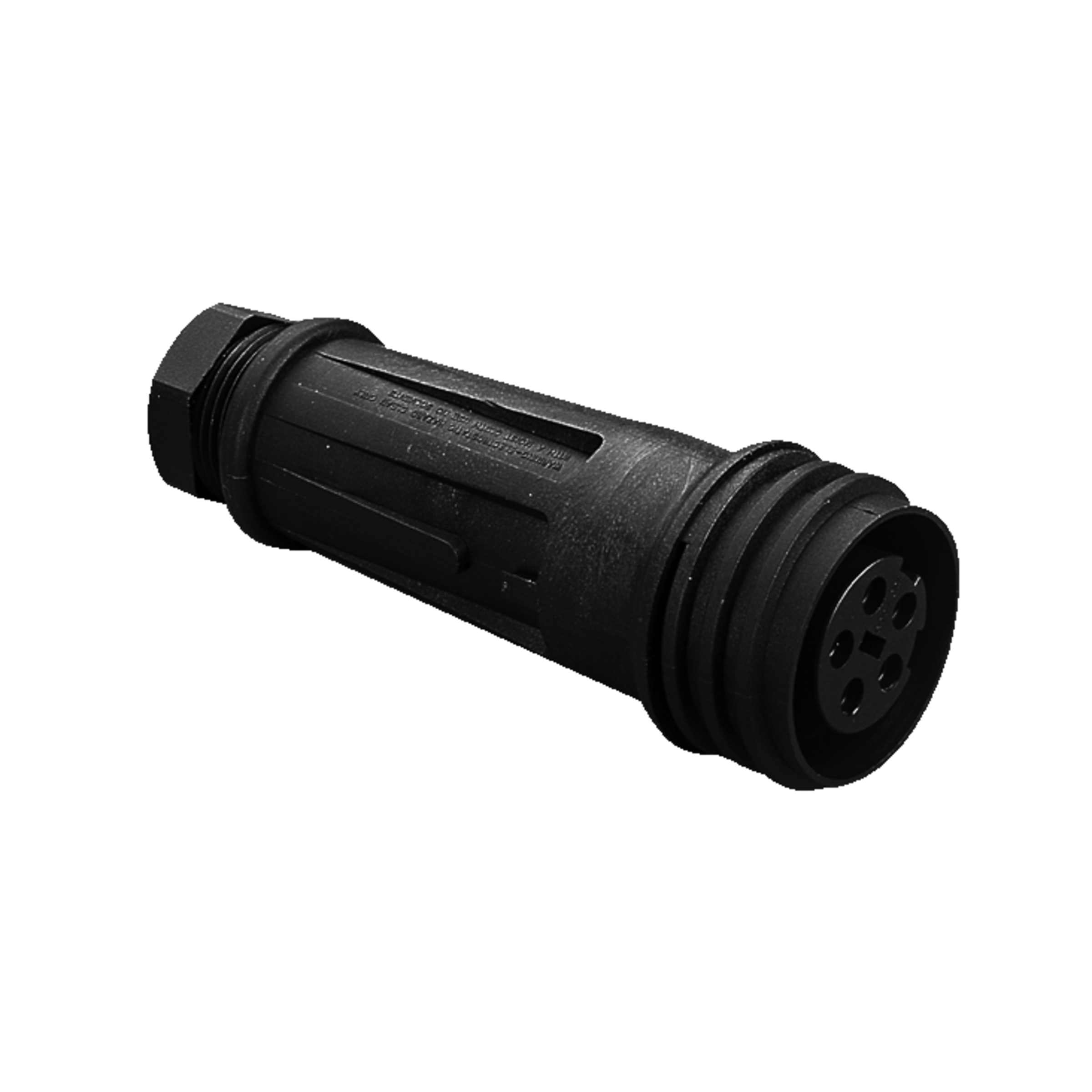

Bulgin Ltd. Buccaneer 900 5pol.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
24 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 900
- Labeling or description
- Buccaneer 900
- Number of poles
- 5
- Dimension: Length
- 127 mm
- Rated current
- 32 A
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

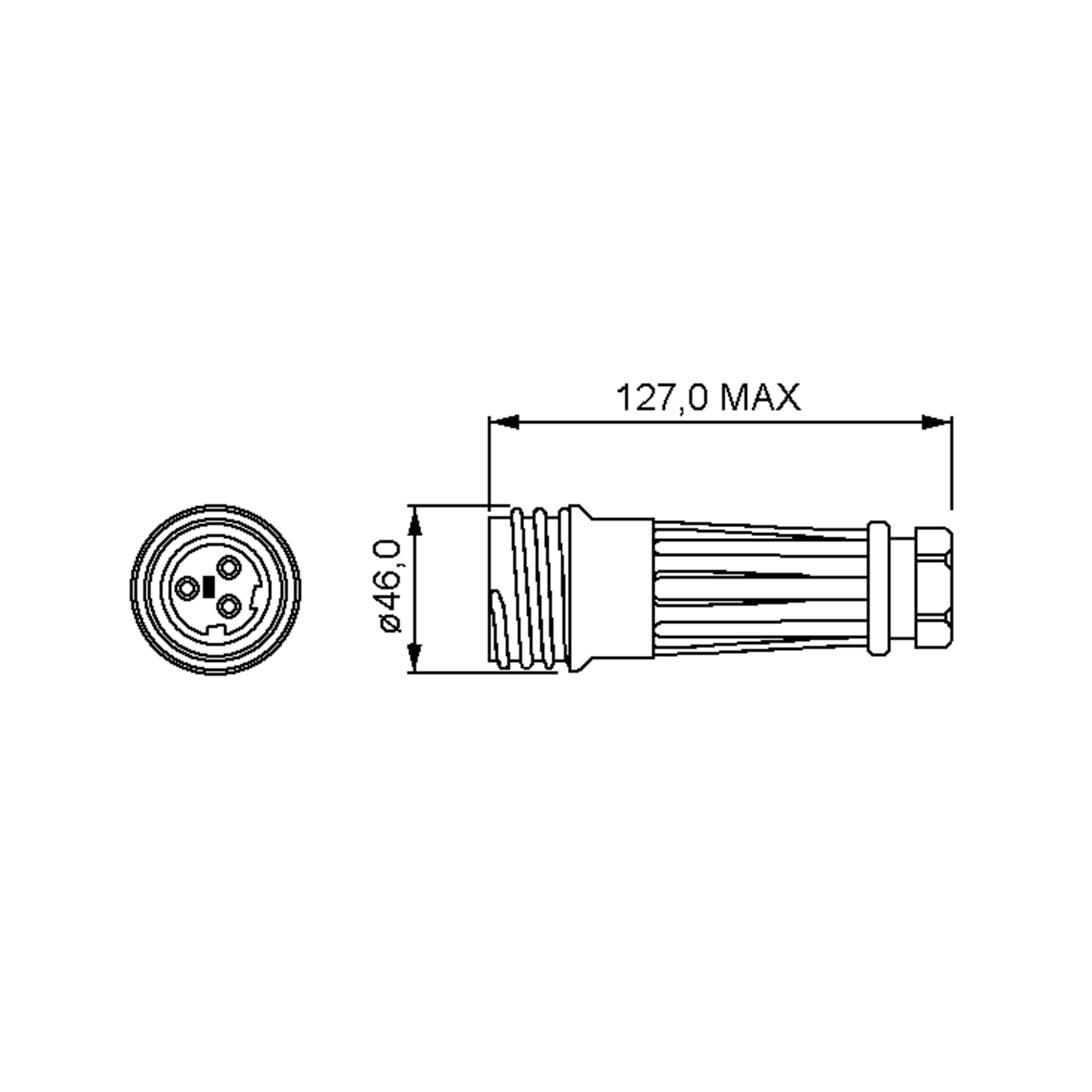

Dimensions and weights
- Dimension: Length
- 127 mm
- Diameter
- 46 mm
- Cable diameter, min.
- 13 mm
- Cable diameter, max.
- 15 mm
- Conductor cross-section (AWG), min.
- 13 AWG
- Conductor cross-section, min.
- 2.5 mm²
- Conductor cross-section (AWG), max.
- 10 AWG
- Conductor cross-section, max.
- 4 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated current
- 32 A
- Breakdown voltage
- 2,200 V RMS / min.
- Insulation resistance
- 10^6 mOhm
- Contact resistance
- 10 mOhm
Mechanical features
- Kontaktbeschichtung Eingang
- vernickelt
