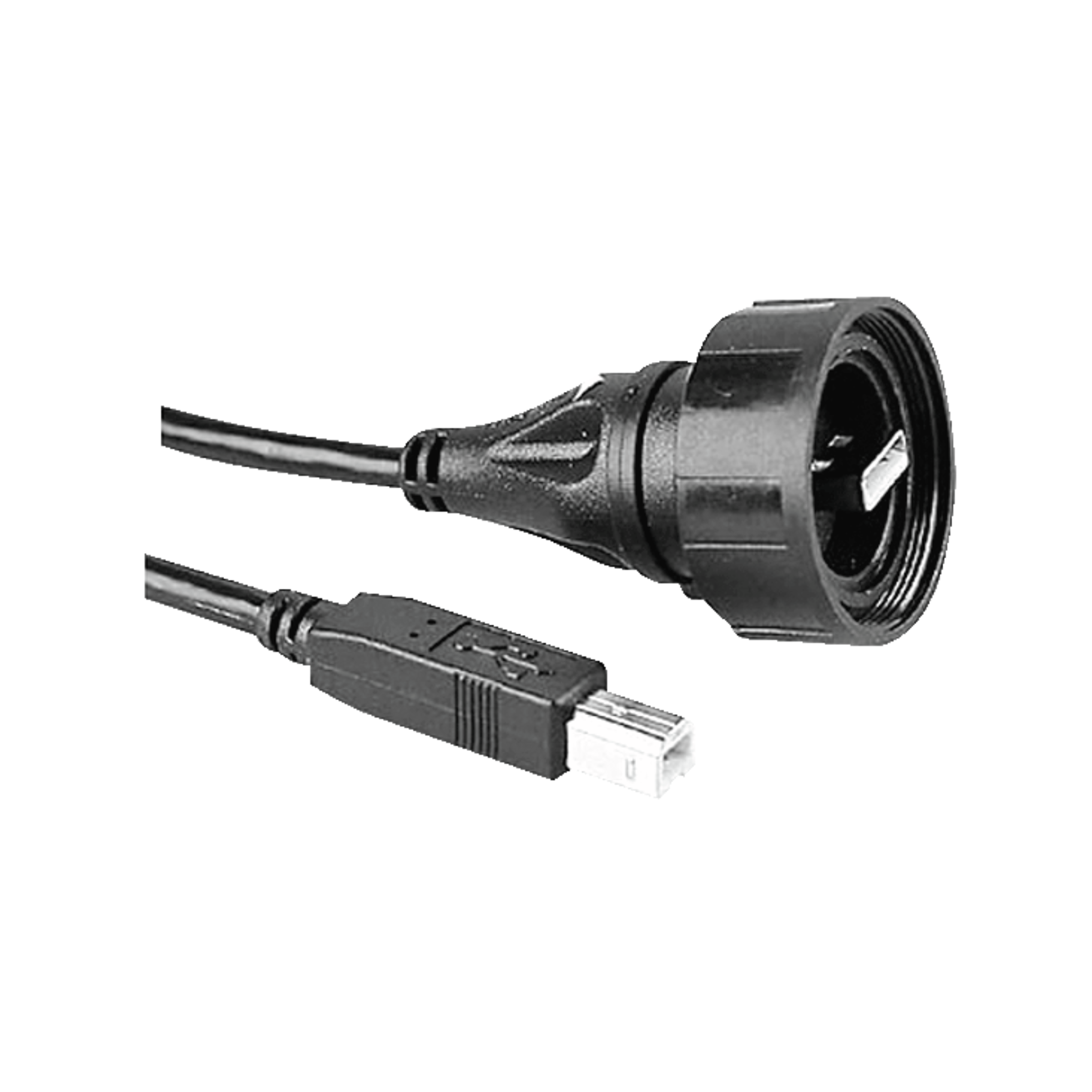

PX0840/A/5M00
Bulgin Ltd. Buccaneer USB
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 21.12.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 13 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Connector Contact
- Screw
USB B - Series
- PX0840/A
- Housing material
- Polycarbonat (PC)
- Housing
- round
- Design
- Cable
- Cable diameter, max.
- 5.2 mm
- Contact Type
- USB A
- Locking
- yes
- IP Protection Class Front Side
- IP68
- Locking Type
- Screw
- Cable length
- 500 cm
- Operating Temperature Max.
- 70 °C
- Rated current
- 1 A
- Rated voltage DC
- 30 V DC
- Operating Temperature Min.
- 0 °C
- RoHS-Conform
Specifications
Open all

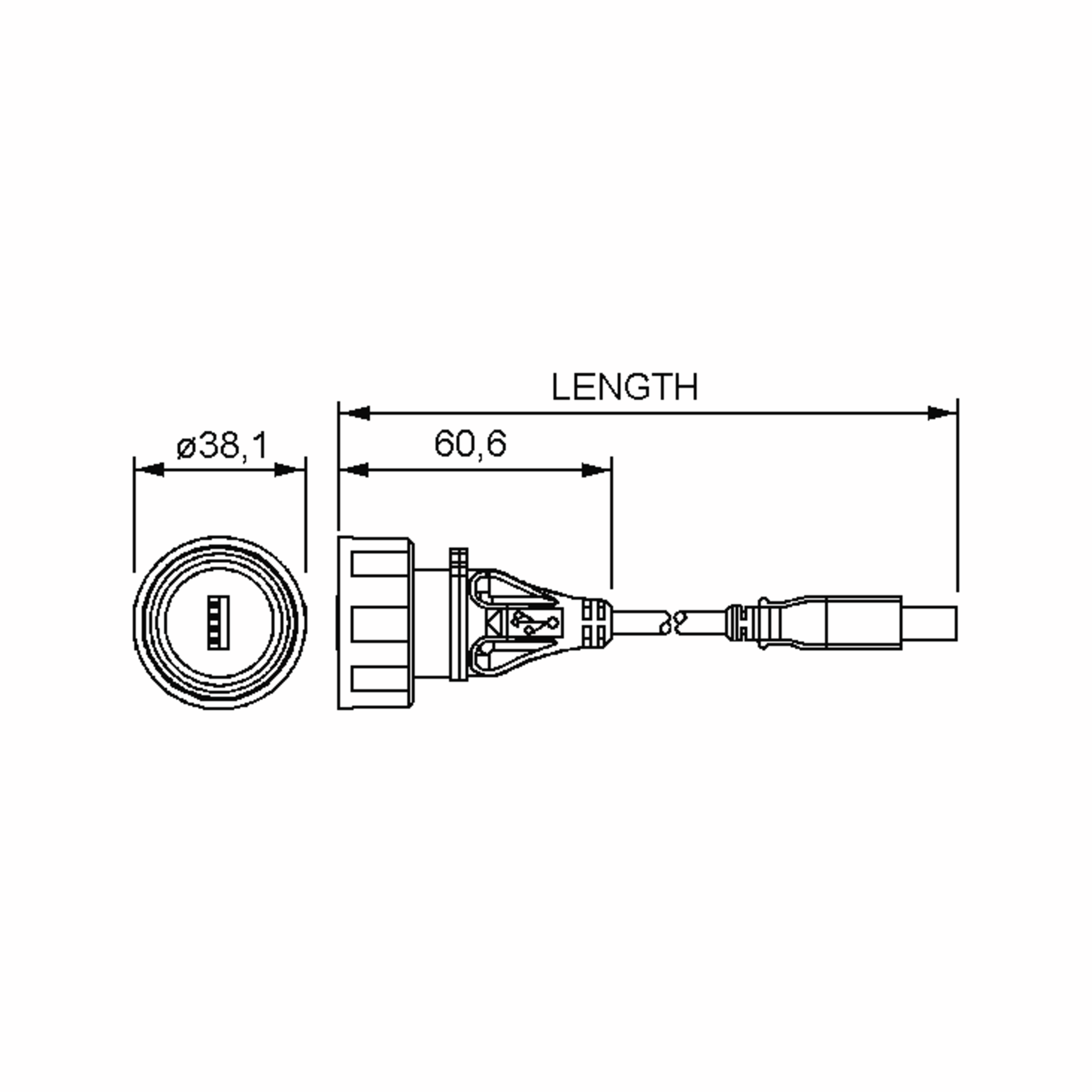

Dimensions and Weights
- Dimension: Length
- 60.6 mm
- Diameter
- 38.1 mm
- Cable diameter, max.
- 5.2 mm
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated current
- 1 A
- Rated voltage DC
- 30 V DC
- Contact resistance
- 30 mOhm
Mechanical Features
- Housing material
- Polycarbonat (PC)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Approvals
- CSA
- UL
- VDE
- IP Protection Class Front Side
- IP68
