PX0834/B

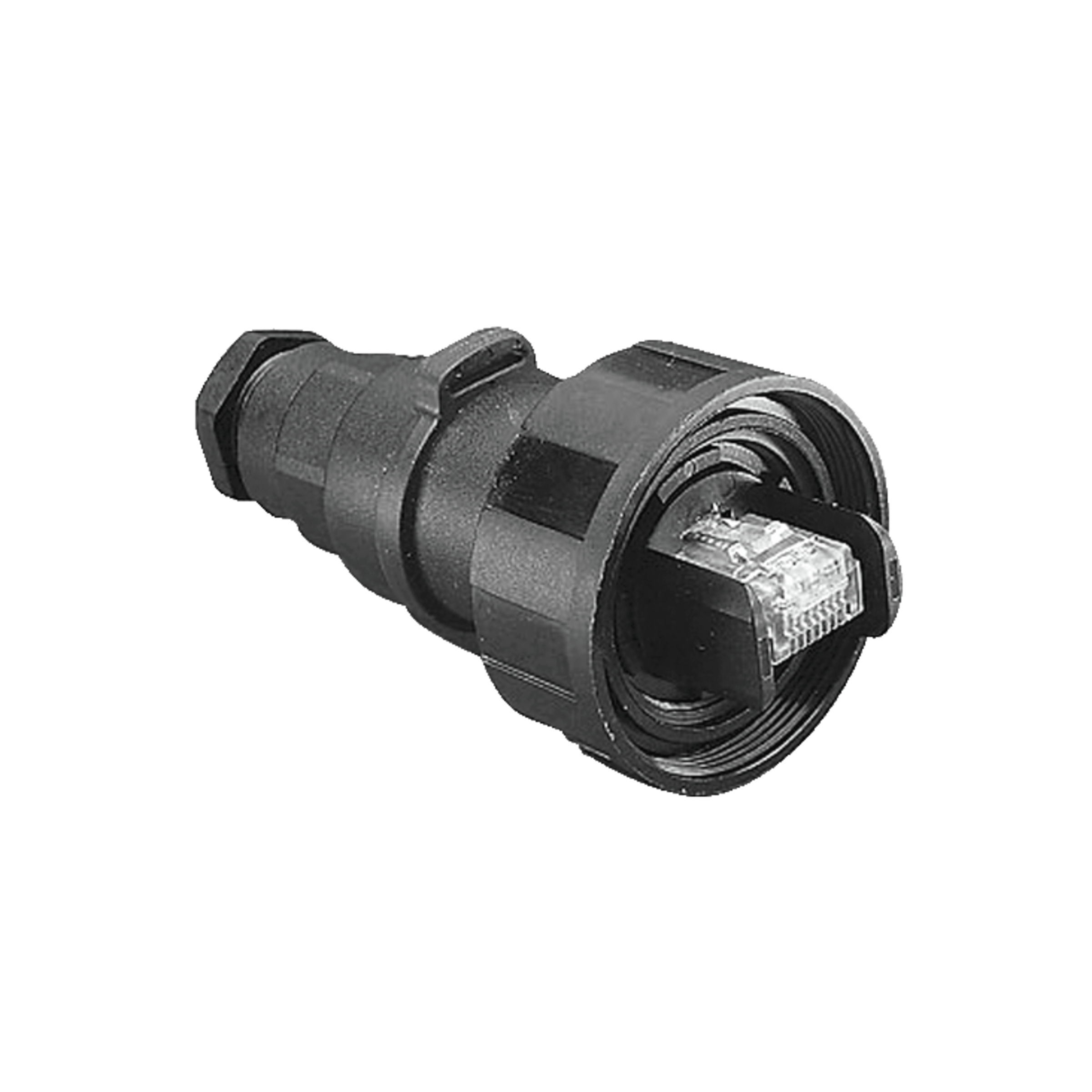

Bulgin Ltd. Cable plug PX0834/B Cable Plug Screw round straight IP68 Polyester (PES) Plug in Ethernet 77,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Cable plug
- Connector Contact
- Plug in
- Series
- PX0834/B
- Colour
- black
- Housing material
- Polyester (PES)
- Housing
- round
- Design
- Cable
- Cable diameter, max.
- 8 mm
- Contact Type
- RJ45
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- IP Protection Class Front Side
- IP68
- Locking Type
- Screw
- Operating Temperature Max.
- 70 °C
- Rated current
- 1.5 A
- Rated voltage DC
- 42 V DC
- Operating Temperature Min.
- -20 °C
- RoHS-Conform
Specifications
Open all

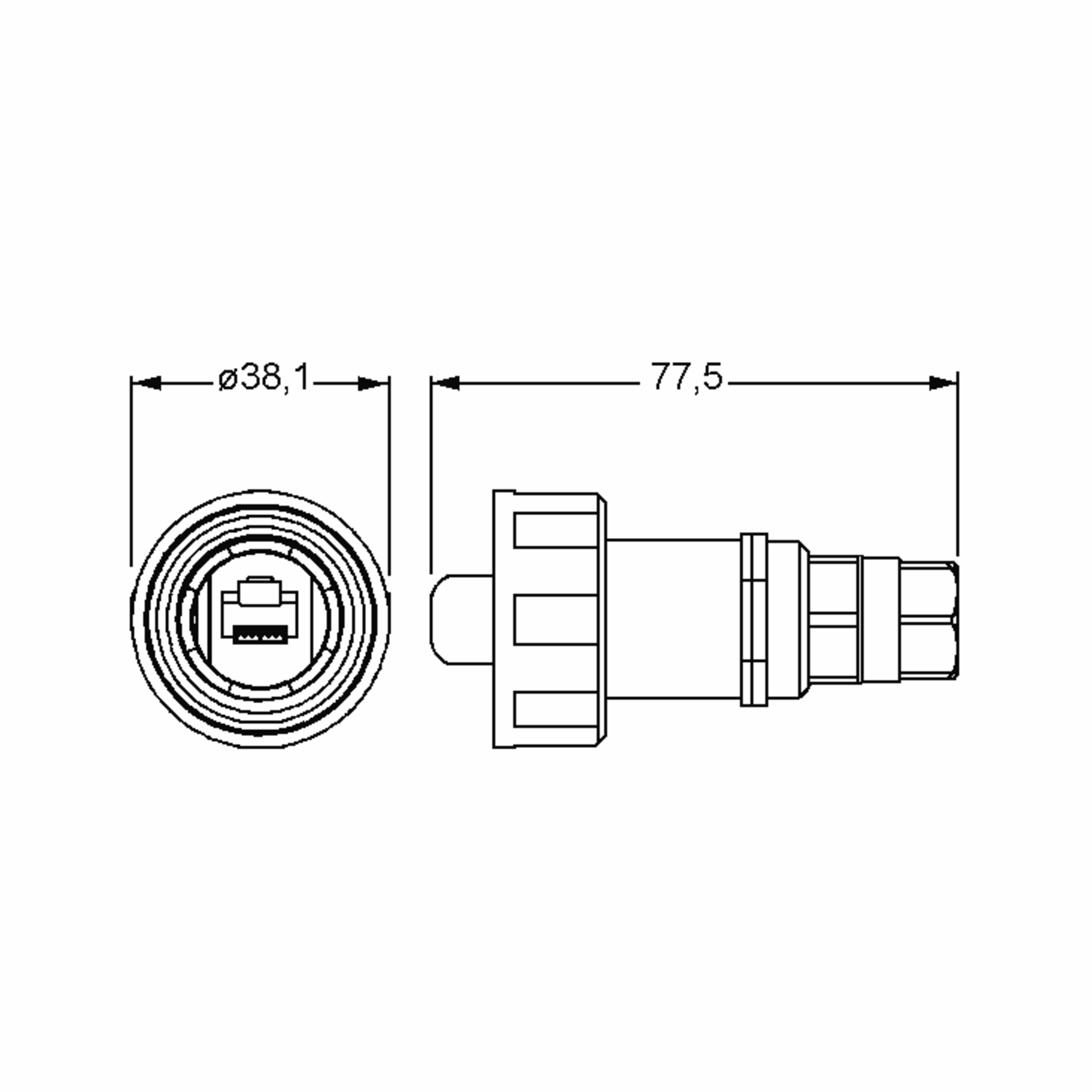

Dimensions and Weights
- Dimension: Length
- 77.5 mm
- Diameter
- 38.1 mm
- Cable diameter, min.
- 3.5 mm
- Cable diameter, max.
- 8 mm
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated current
- 1.5 A
- Rated voltage DC
- 42 V DC
- Performance
- Ethernet
Mechanical Features
- Drilling Dimensions
- 27.7 mm
- Housing material
- Polyester (PES)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP68
Documents
Ethernet-Series-Wiring.pdf
