H8350RPAAA

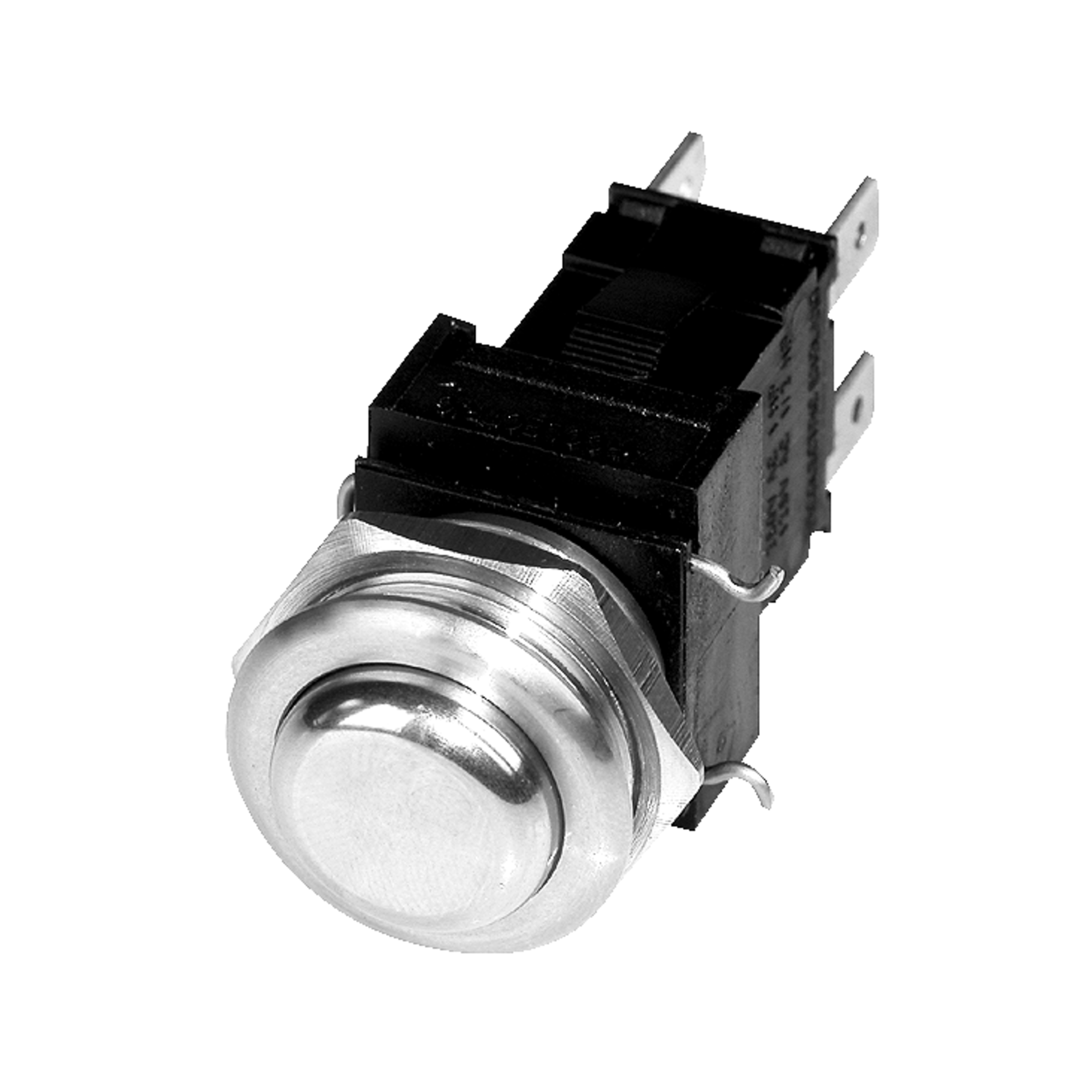

Bulgin Ltd. Pushbutton switch 8300 2x0-E Push-in connector black 250VAC 16A unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 49/2024
5 Pcs.
5 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pushbutton switch
- Series
- 8300
- Body colour
- black
- contacts
- 2xNO
- Type of actuator
- Push button
- Function
- 2x0-E
- Actuator colour
- silver
- Number of poles
- 2
- illumination
- unlit
- Switching current, max.
- 16 A
- Panel cut out
- Ø19,2mm
- Operating temperature range, max.
- 85 °C
- Approvals
- ENEC
cCSA - Flammability
- UL94V2
- Protection class
- IP66
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Panel cut out
- Ø19,2mm
Operating conditions
- Operating temperature range, max.
- 85 °C
Technical features
- Switching voltage
- 250 V AC
- Switching current, max.
- 16 A
- Contact resistance, max.
- 100 mOhm
- Insulation resistance, min.
- 20 MOhm
- Material: Body
- Nylon 6.6
- Material: Actuator
- Stainless steel
- Material: Terminals
- silver, plated
Mechanical properties
- Connection
- Push-in connector
- Number of poles
- 2
Safety/Certifications
- Approvals
- ENEC
- cCSA
- Flammability
- UL94V2
- Protection class
- IP66
