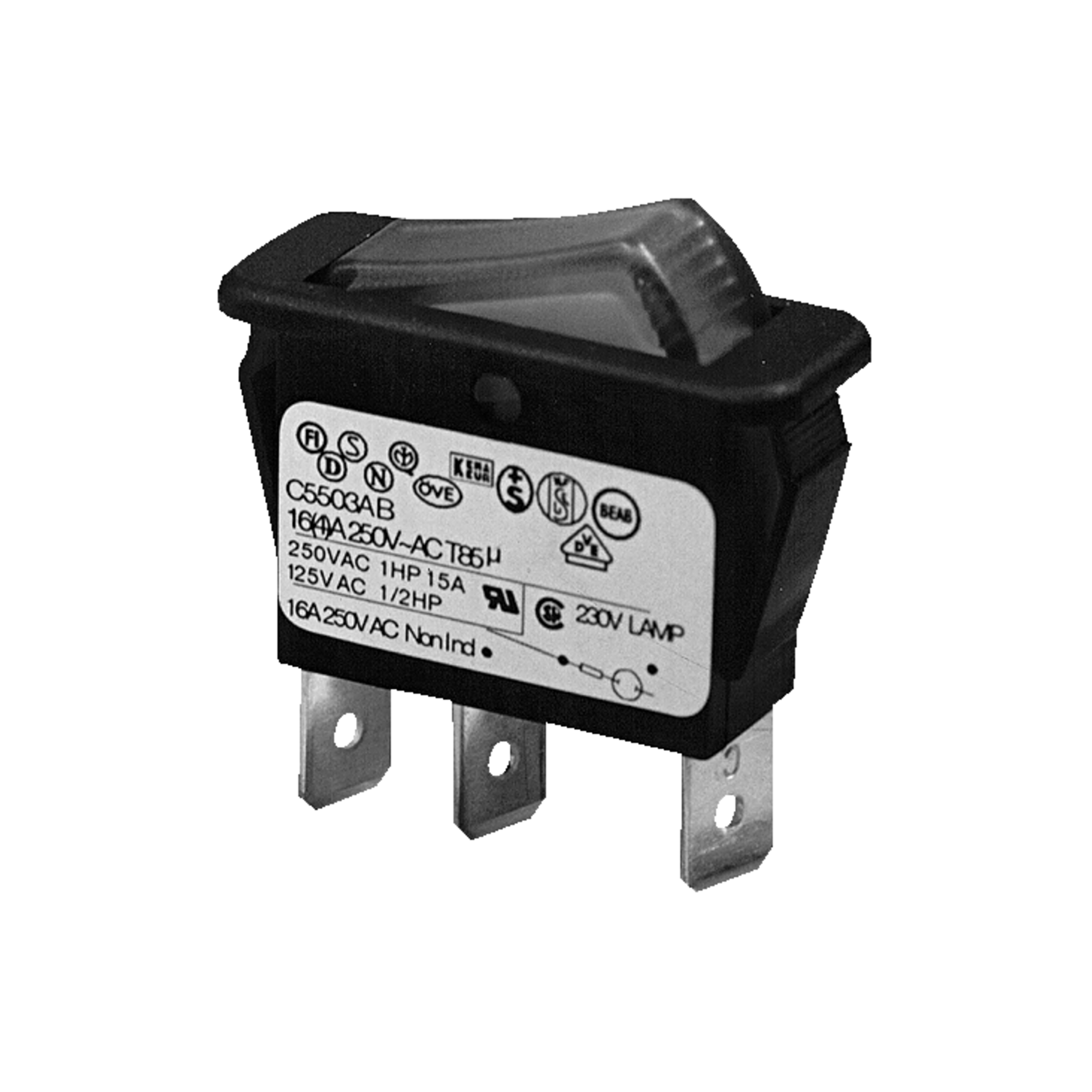

C5503PLLAA
Bulgin Ltd. Rocker Switches 5503 black 11x30mm 250VAC 16A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
640 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rocker Switches
- Series
- 5503
- Body colour
- black

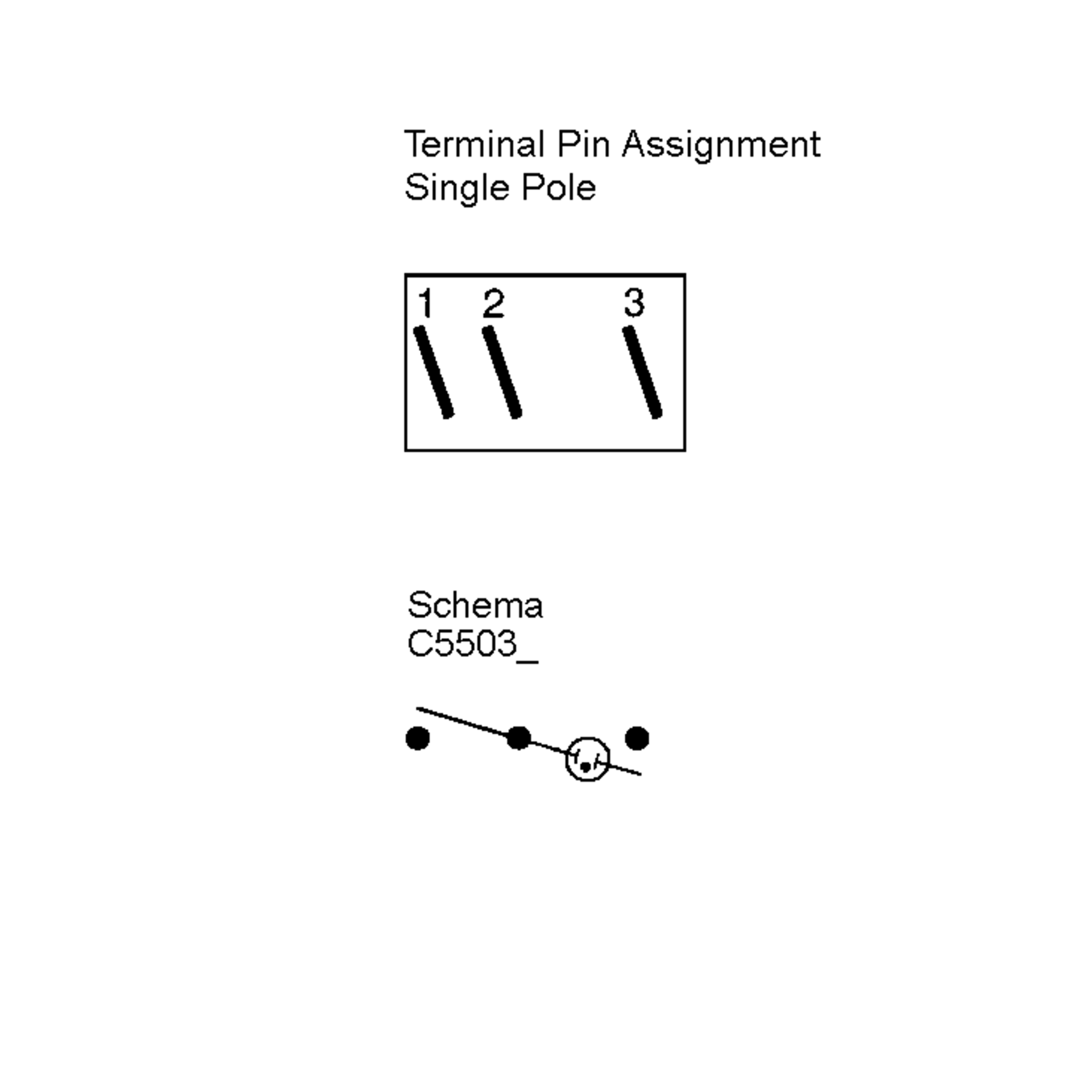

- contacts
- 1xNO
- Type of actuator
- Rocker
- Actuator colour
- black
- illumination
- true
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 16 A
- Panel cut out
- 11x30mm
- Operating temperature range, max.
- 85 °C
- Soldering temperature and duration, max.
- 350°C / 6s
- Approvals
- CE
ENEC15
UL
cCSA - Flammability
- UL94V2
- RoHS-Conform
Specifications
Open all

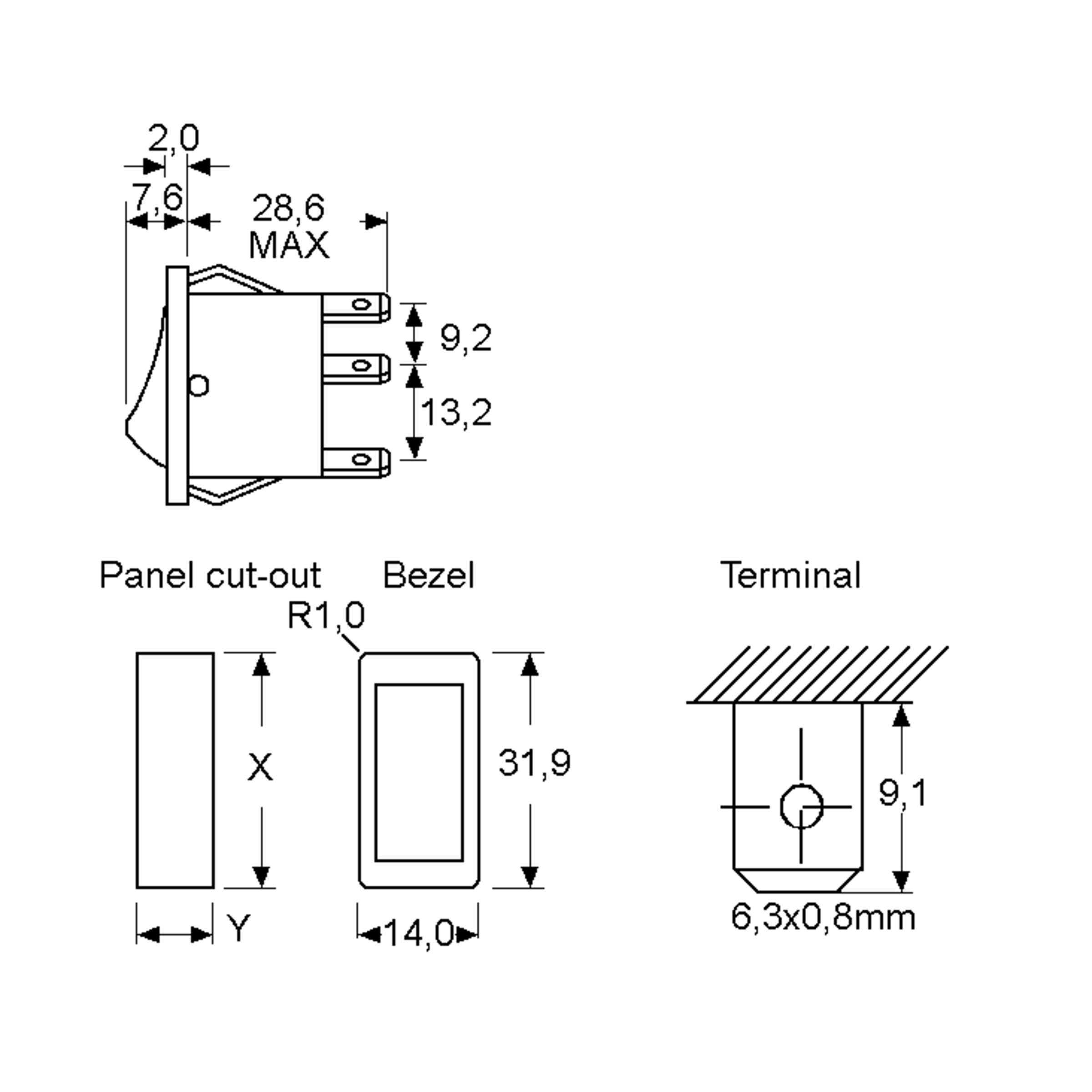

Dimensions and weights
- Dimension: Length
- 31.9 mm
- Dimension: Width
- 14 mm
- Panel cut out
- 11x30mm
Operating conditions
- Operating temperature range, max.
- 85 °C
- Soldering temperature and duration, max.
- 350°C / 6s
Technical features
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 16 A
- Switching current with inductive load, max.
- 4 A
- Contact resistance, max.
- 100 mOhm
- Insulation resistance, min.
- 20 MOhm
- Material: Body
- Nylon 6.6
- Material: Actuator
- Polycarbonate
- Material: Terminals
- silver, plated
- Material: live parts
- Copper alloy
Safety/Certifications
- Approvals
- CE
- ENEC15
- UL
- cCSA
- Flammability
- UL94V2
