Bulgin Ltd. 3972 Toggle Switches 2x(E)-0-(E) Rocker arm silver 250VAC 10A Ø12,7mm

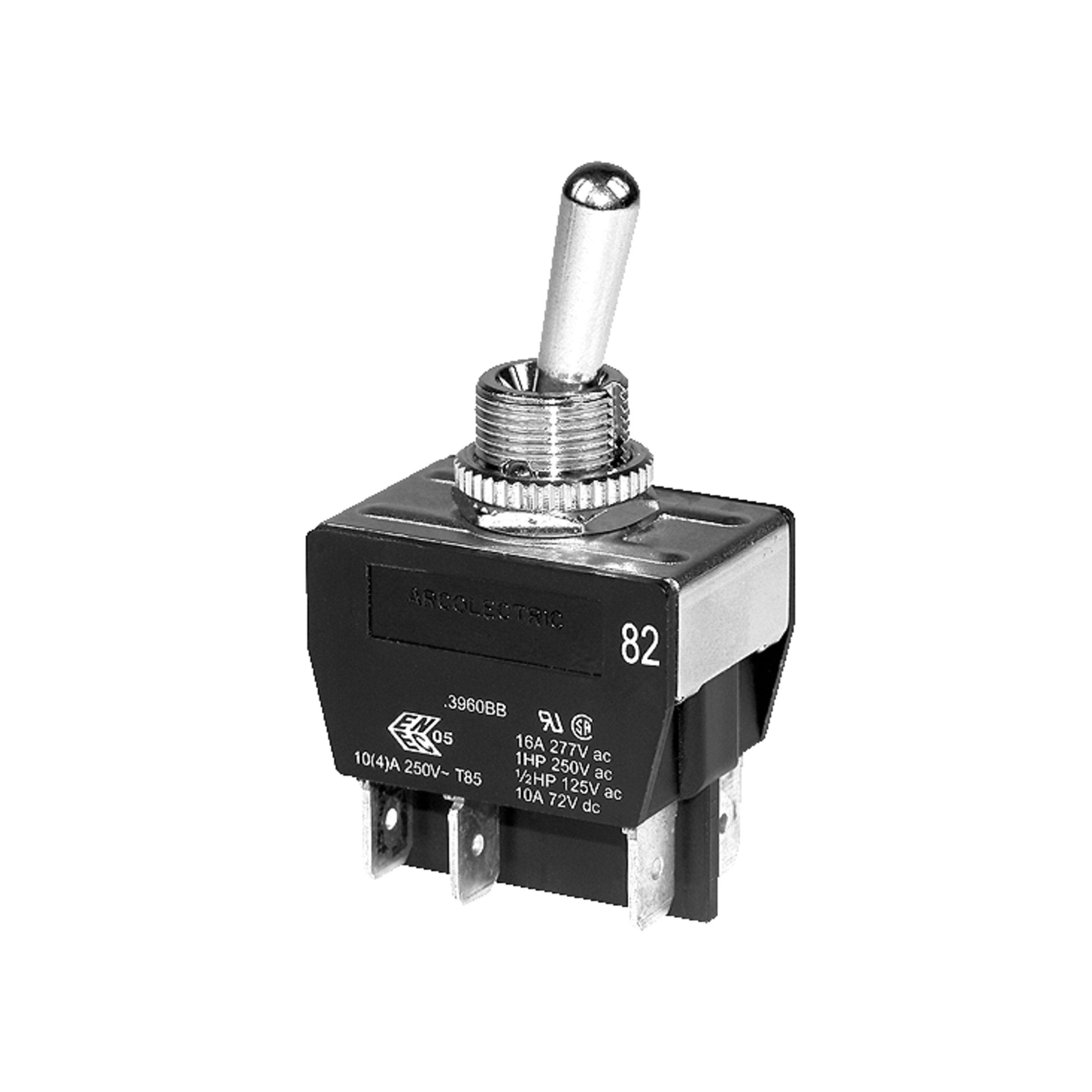

Image similar
Manufacturer Part No.
C3972BBAAA
Schukat Part No.
C3972BBAAA
Manufacturer
Bulgin Ltd.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

40 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Toggle Switches
Series
3972
Body colour
black
contacts
2xCO
Type of actuator
Rocker arm

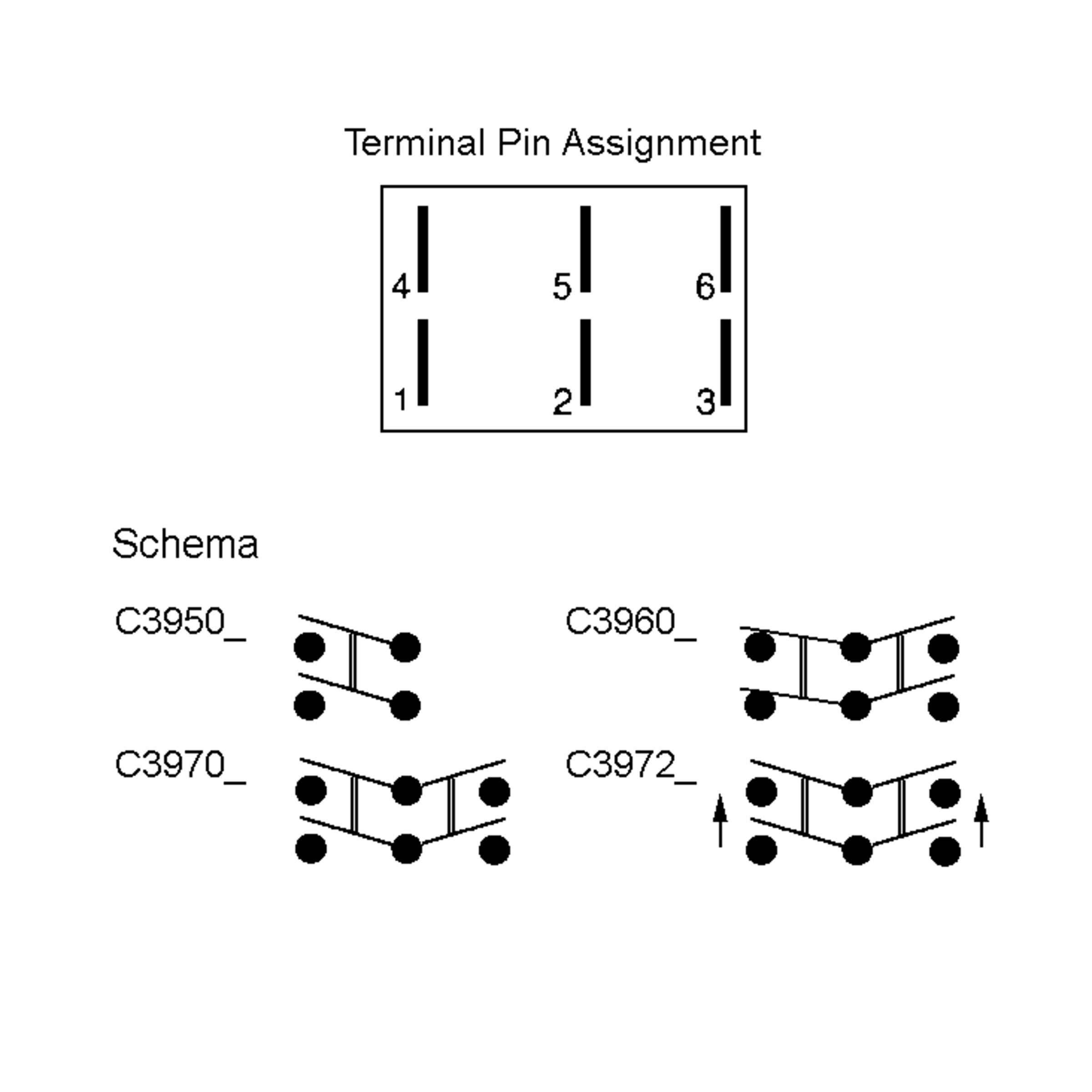

Function
2x(E)-0-(E)
Actuator colour
silver
Diameter
12.2 mm
Number of poles
2
illumination
unlit
Operating voltage AC
250 V AC
Switching current, max.
10 A
Panel cut out
Ø12,7mm
Operating temperature range, max.
85 °C
Inrush current peak (EN61058-1)
36 A
Soldering temperature and duration, max.
350°C / 6s
Approvals
ENEC15
UL
cCSA
Flammability
UL94V2
Protection class
IP67
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Bulgin Ltd.
Series
  • 3972
Product group
  • E2315 Arcolectric Toggle Switches Metal Lever
Type
  • Toggle Switches
contacts
  • 2xCO
Function
  • 2x(E)-0-(E)
Body colour
  • black
Type of actuator
  • Rocker arm
Actuator colour
  • silver
illumination
  • unlit
Features

  • - For central mounting
    - Metal rocker arm
    - Approved up to 250V/10A

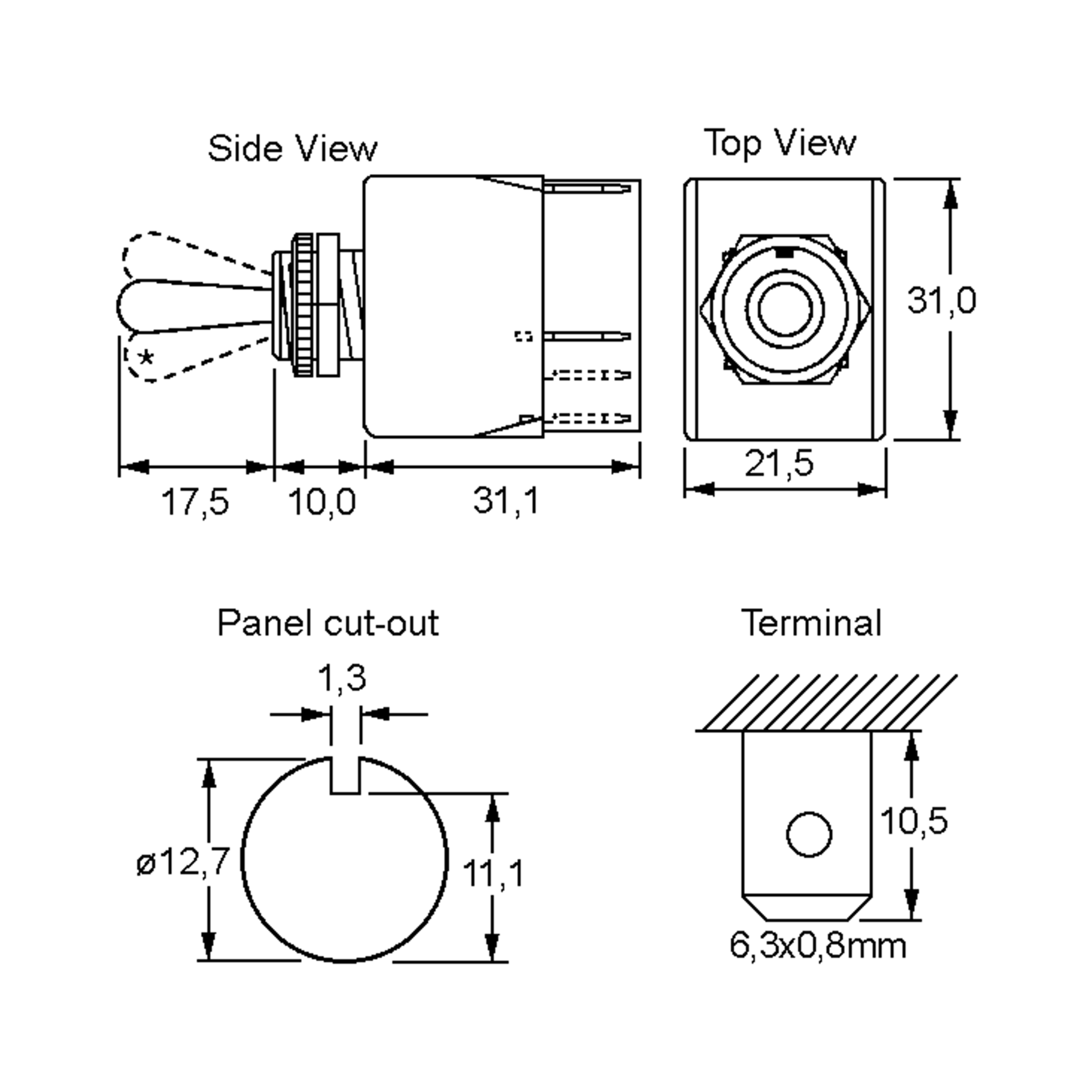

Dimensions and weights

Dimension: Length
  • 31 mm
Dimension: Width
  • 21.5 mm
Diameter
  • 12.2 mm
Panel cut out
  • Ø12,7mm

Operating conditions

Operating temperature range, max.
  • 85 °C
Soldering temperature and duration, max.
  • 350°C / 6s

Technical features

Operating voltage AC
  • 250 V AC
Switching current, max.
  • 10 A
Switching current with inductive load, max.
  • 4 A
Inrush current peak (EN61058-1)
  • 36 A
Contact resistance, max.
  • 100 mOhm
Insulation resistance, min.
  • 20 MOhm
Material: Body
  • Nylon 6.6
Material: Actuator
  • Brass, nickel plated
Material: Terminals
  • silver, plated
Material: live parts
  • Copper alloy

Mechanical properties

Number of poles
  • 2

Safety/Certifications

Approvals
  • ENEC15
  • UL
  • cCSA
Flammability
  • UL94V2
Protection class
  • IP67
