C3910BEAAA

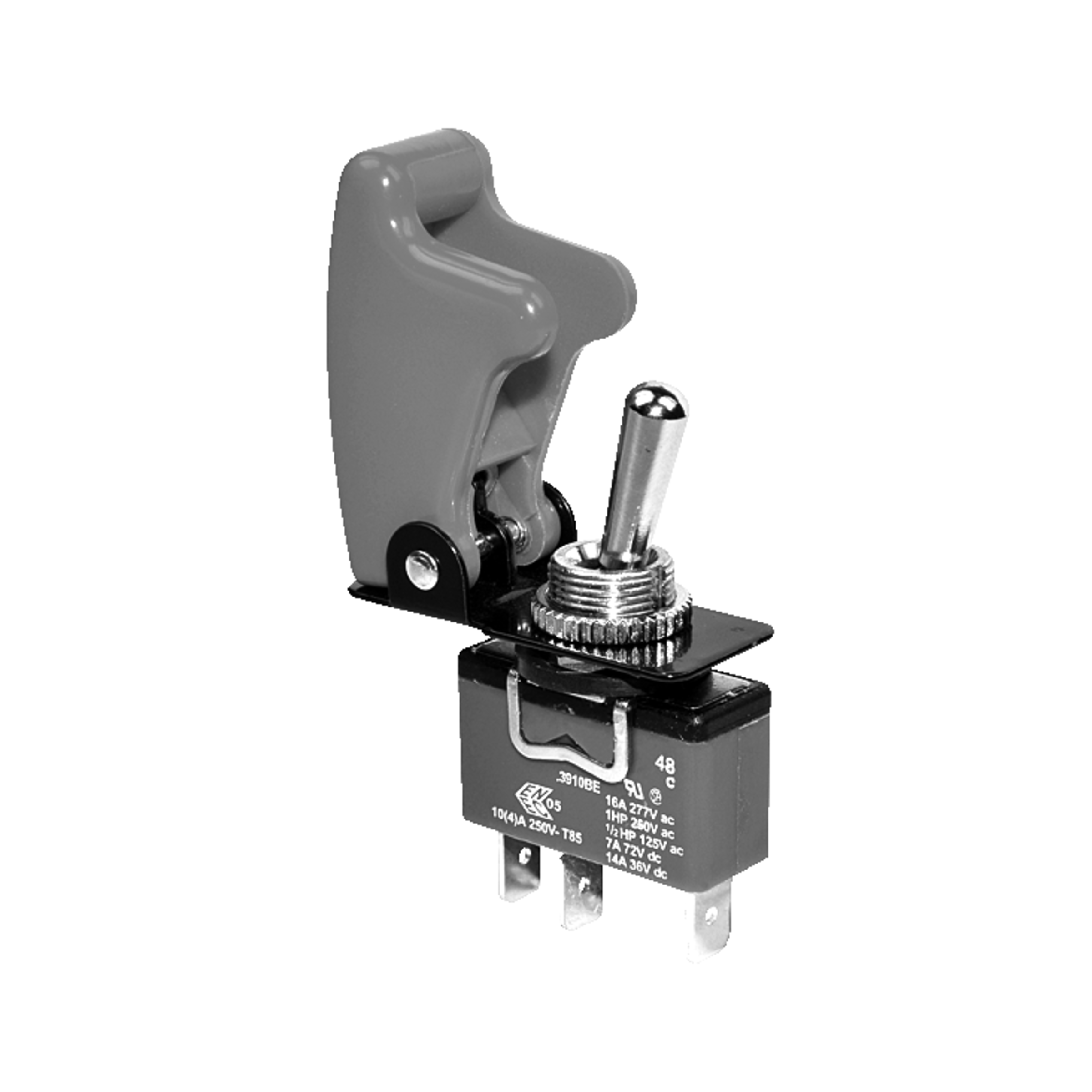

Bulgin Ltd. 3910 Toggle Switches 1xCO Rocker arm silver 250VAC 10A Ø10,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
25 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.10.2025
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Toggle Switches
- Series
- 3910
- Body colour
- black

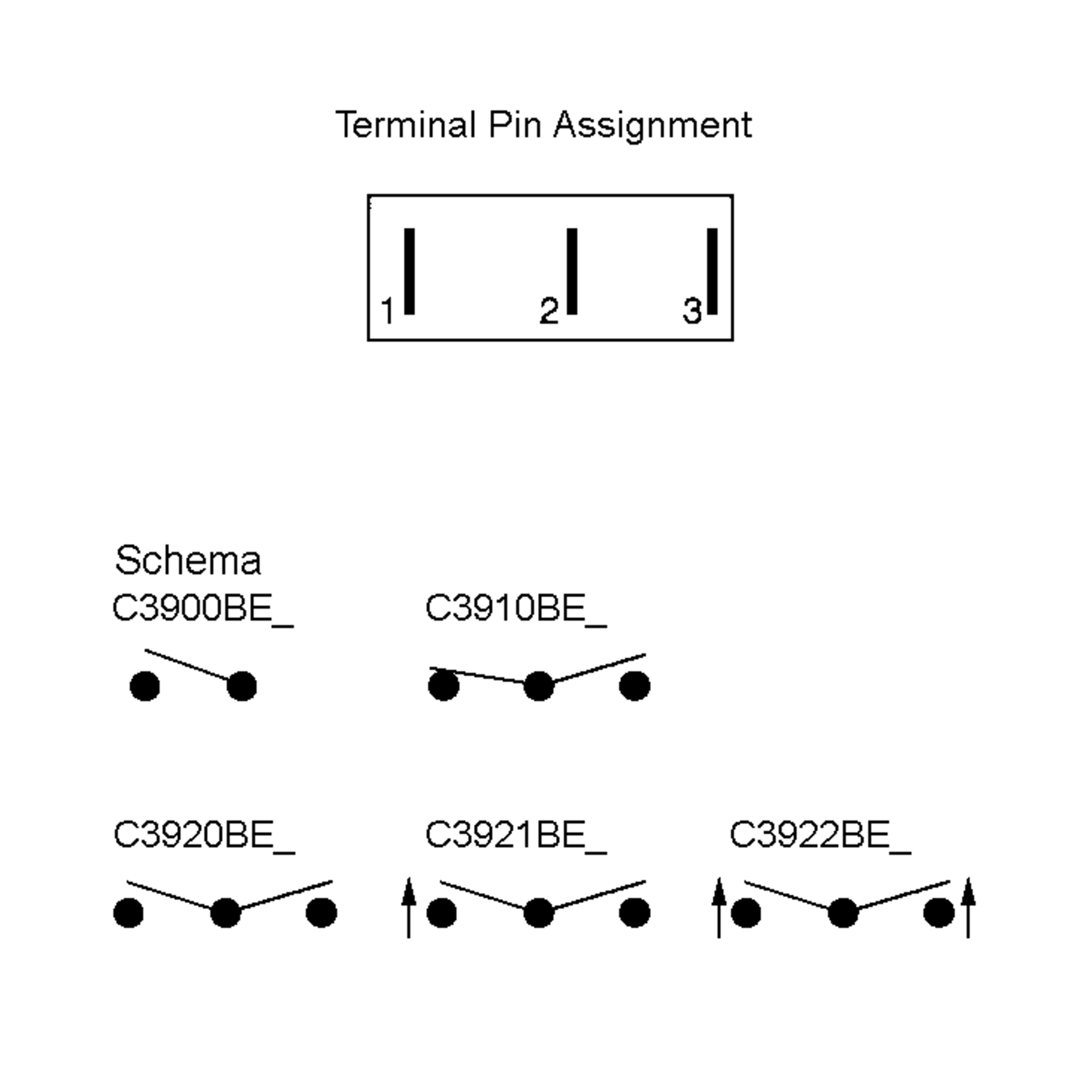

- contacts
- 1xCO
- Type of actuator
- Rocker arm
- Function
- 1xCO
- Actuator colour
- silver
- Diameter
- 12.2 mm
- Number of poles
- 1
- illumination
- unlit
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 10 A

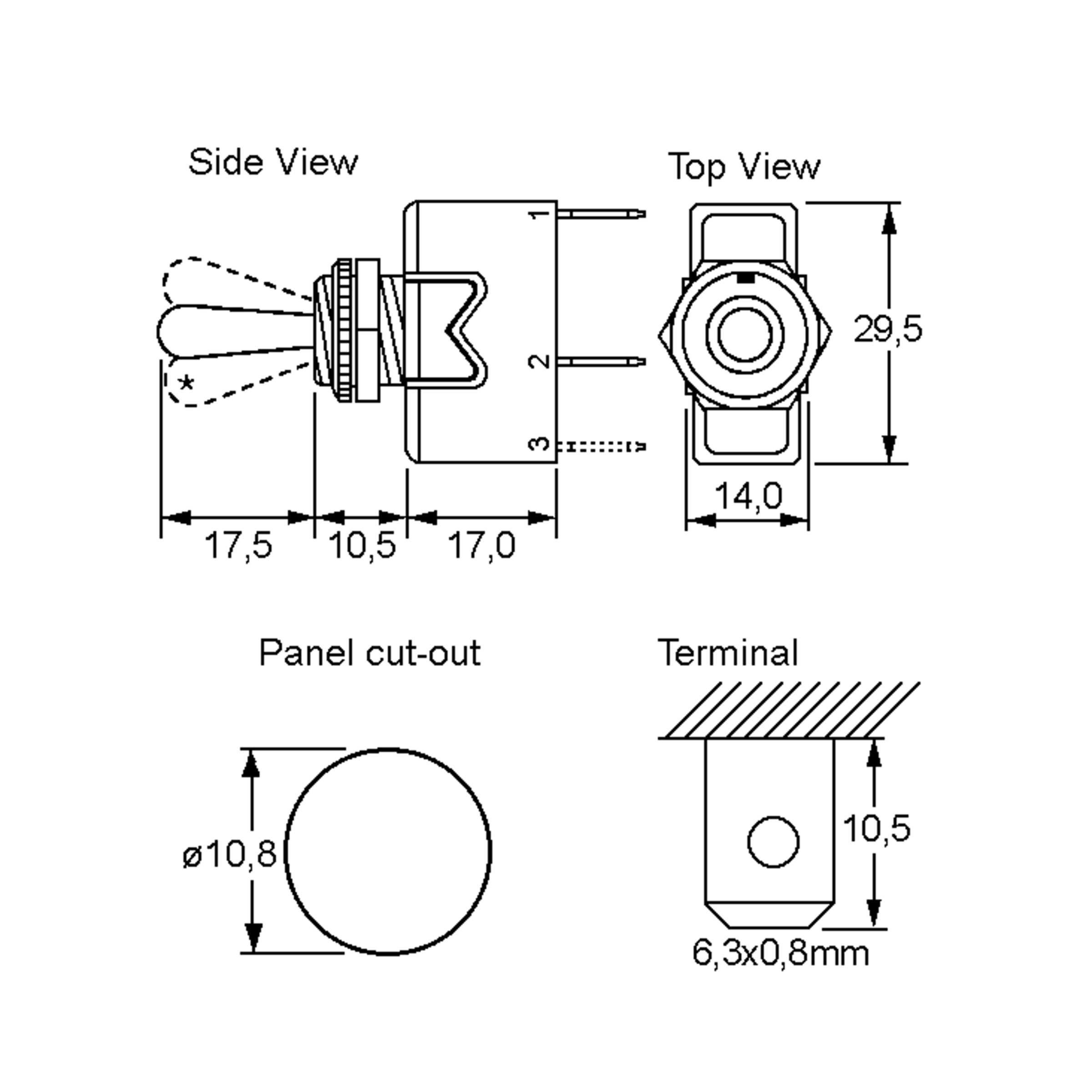

- Panel cut out
- Ø10,8mm
- Operating temperature range, max.
- 85 °C
- Inrush current peak (EN61058-1)
- 10 A
- Soldering temperature and duration, max.
- 350°C / 6s
- Approvals
- ENEC15
UL
cCSA - Flammability
- UL94V2
- Protection class
- IP67
- RoHS-Conform
