C3900BEAAA

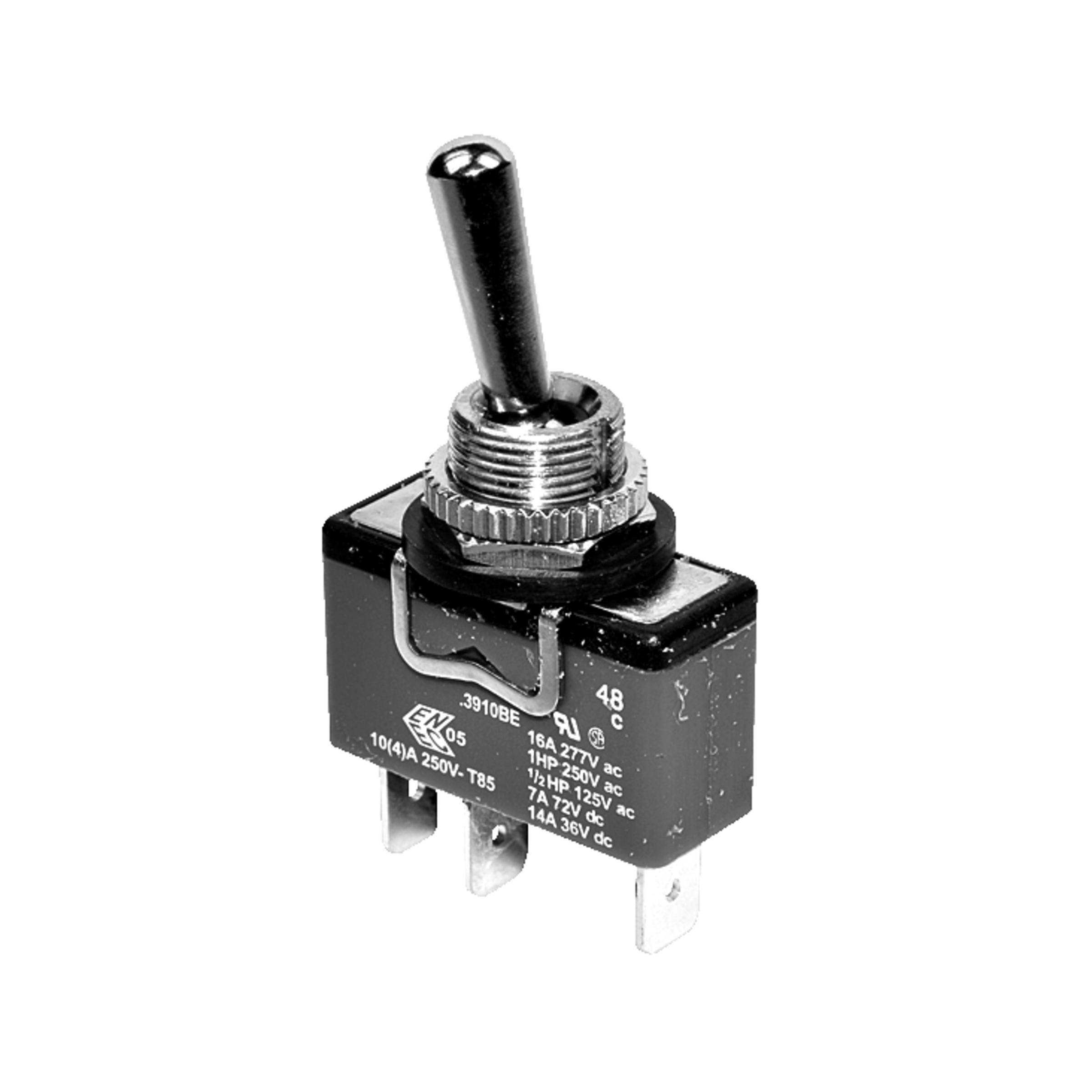

Bulgin Ltd. 3900 Toggle Switches 1x0-E Rocker arm silver 250VAC 16A Ø10,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
120 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Toggle Switches
- Series
- 3900
- Body colour
- black

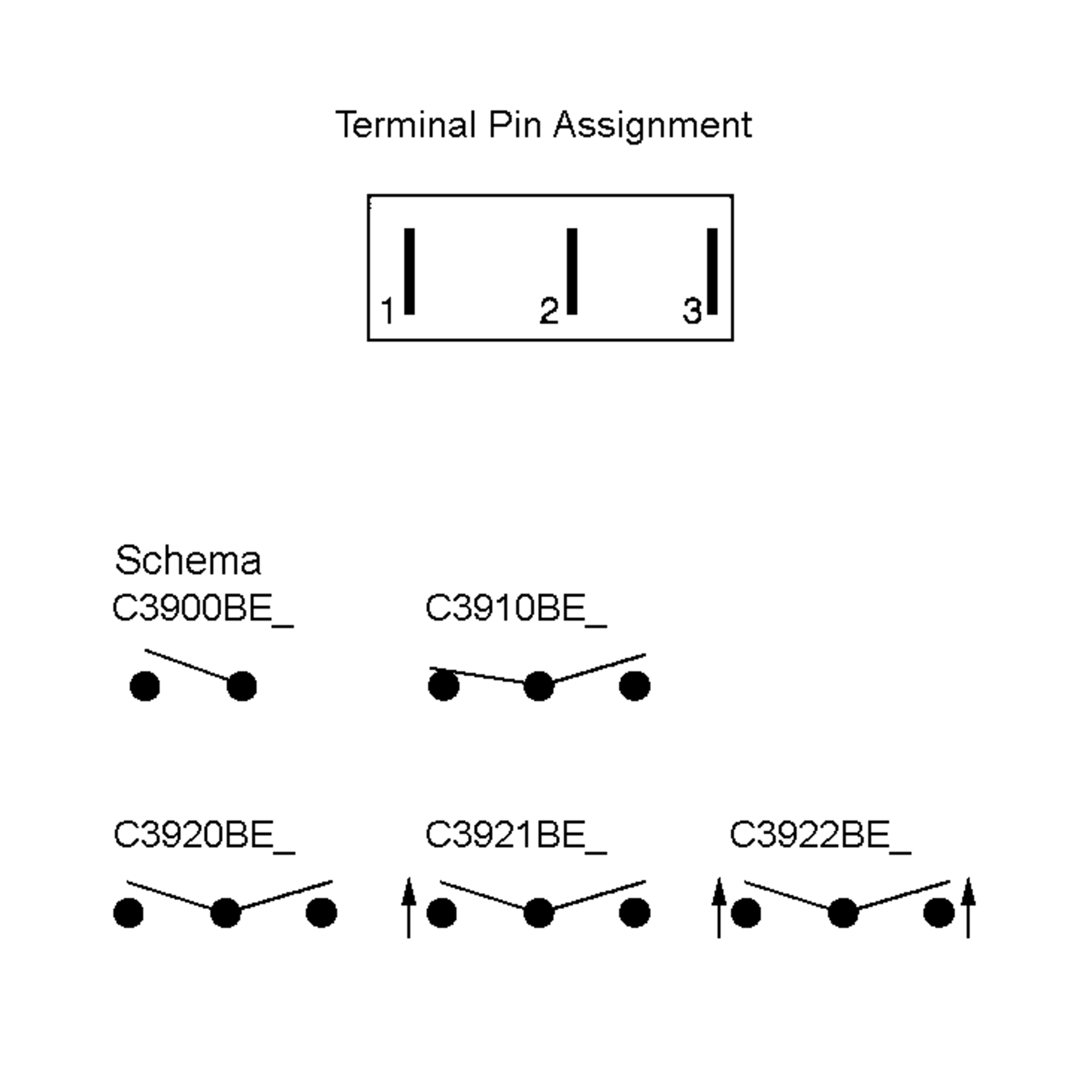

- contacts
- 1xNO
- Type of actuator
- Rocker arm
- Function
- 1x0-E
- Actuator colour
- silver
- Diameter
- 12.2 mm
- Number of poles
- 1
- illumination
- unlit
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 16 A
- Panel cut out
- Ø10,8mm
- Operating temperature range, max.
- 85 °C
- Inrush current peak (EN61058-1)
- 16 A
- Soldering temperature and duration, max.
- 350°C / 6s
- Approvals
- ENEC15
UL
cCSA - Flammability
- UL94V2
- Protection class
- IP67
- RoHS-Conform
Specifications
Open all

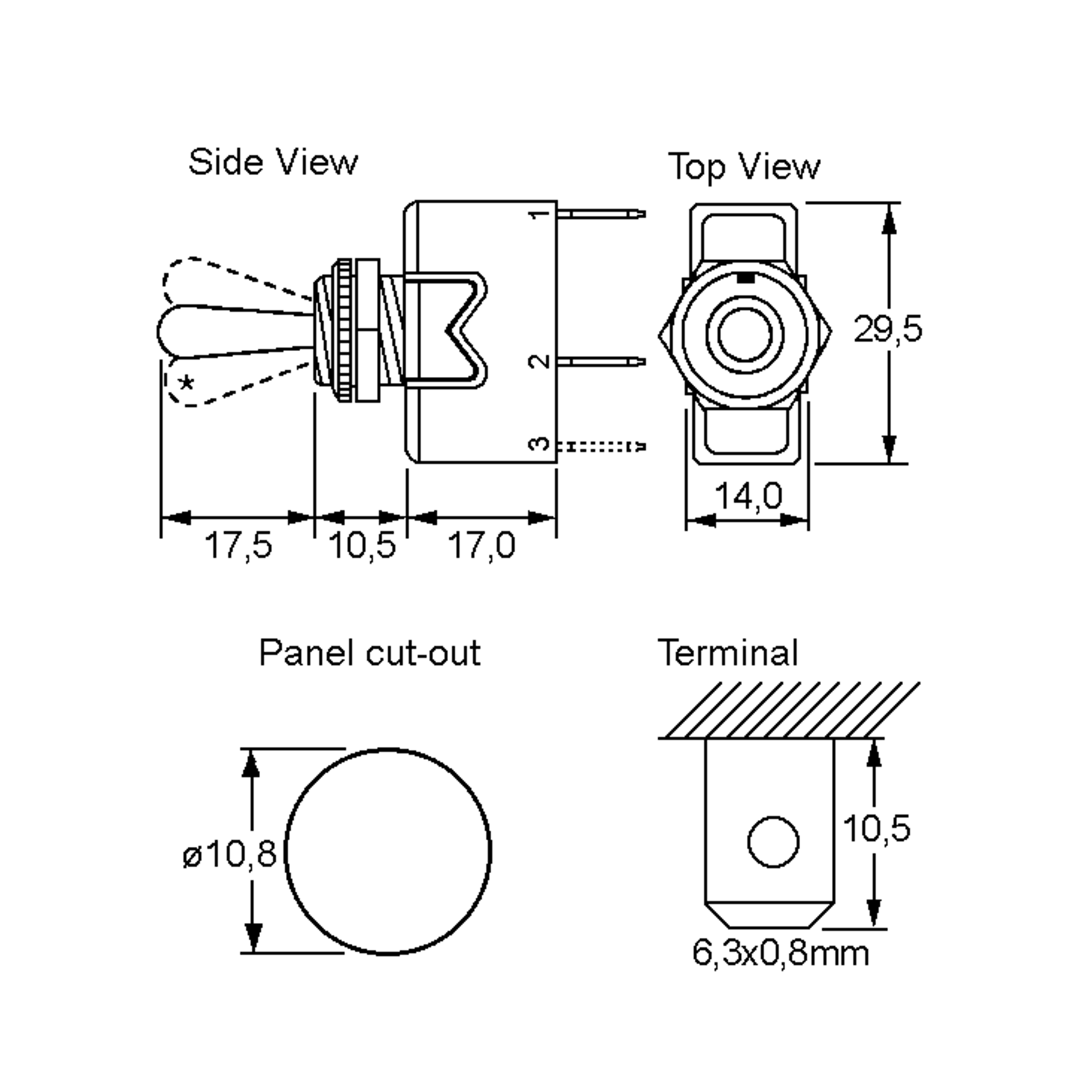

Dimensions and weights
- Dimension: Length
- 29.5 mm
- Dimension: Width
- 14 mm
- Diameter
- 12.2 mm
- Panel cut out
- Ø10,8mm
Operating conditions
- Operating temperature range, max.
- 85 °C
- Soldering temperature and duration, max.
- 350°C / 6s
Technical features
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 16 A
- Switching current with inductive load, max.
- 4 A
- Inrush current peak (EN61058-1)
- 16 A
- Contact resistance, max.
- 100 mOhm
- Insulation resistance, min.
- 20 MOhm
- Material: Body
- Nylon 6.6
- Material: Actuator
- Brass, nickel plated
- Material: Terminals
- silver, plated
- Material: live parts
- Copper alloy
Mechanical properties
- Number of poles
- 1
Safety/Certifications
- Approvals
- ENEC15
- UL
- cCSA
- Flammability
- UL94V2
- Protection class
- IP67
