C1710HOAAA

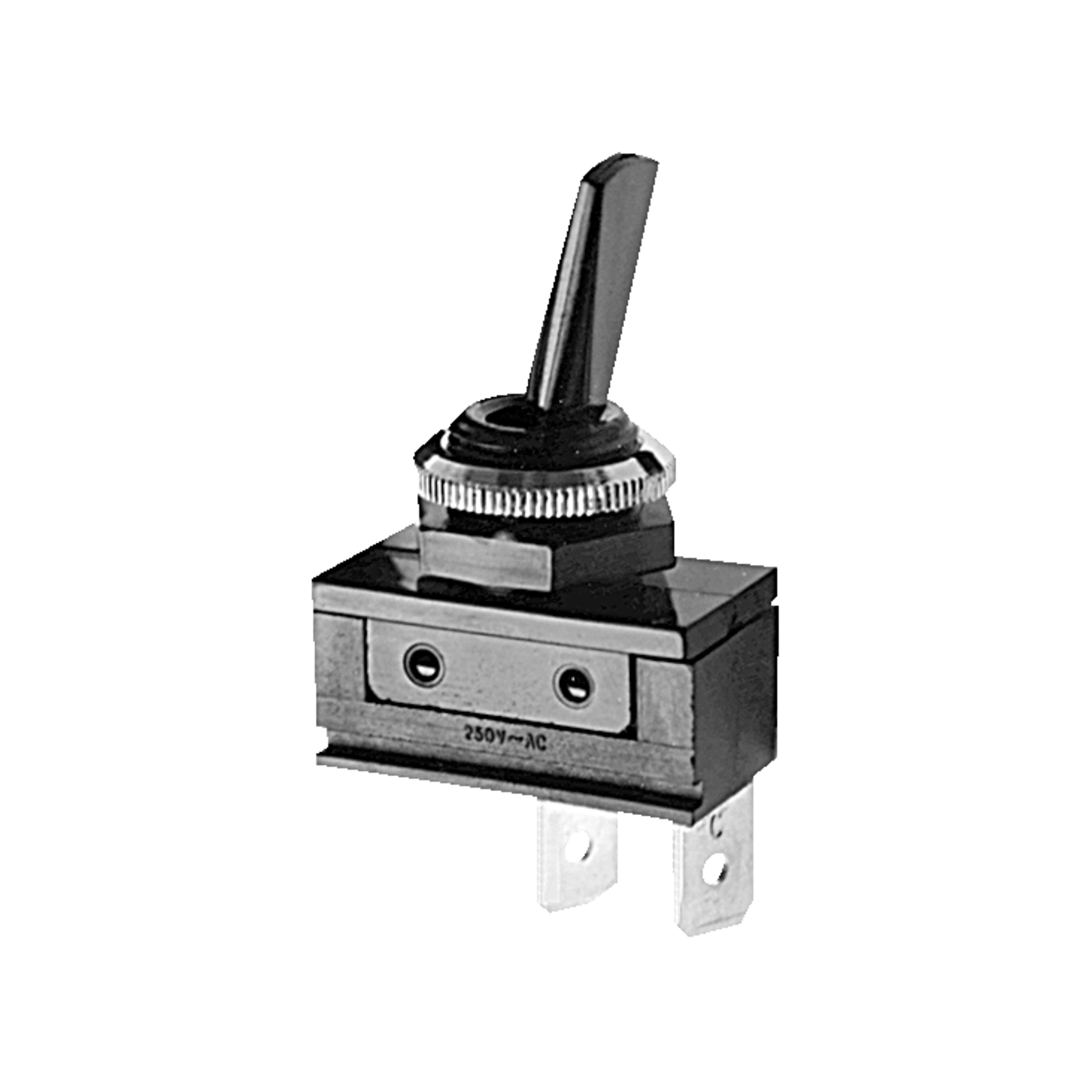

Bulgin Ltd. 1710 Toggle Switches Rocker arm black 250VAC 16A

Image similar
Manufacturer Part No.
C1710HOAAA
Schukat Part No.
C1710HOSW
Manufacturer
Bulgin Ltd.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

270 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 710 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Toggle Switches
Series
1710
Body colour
black

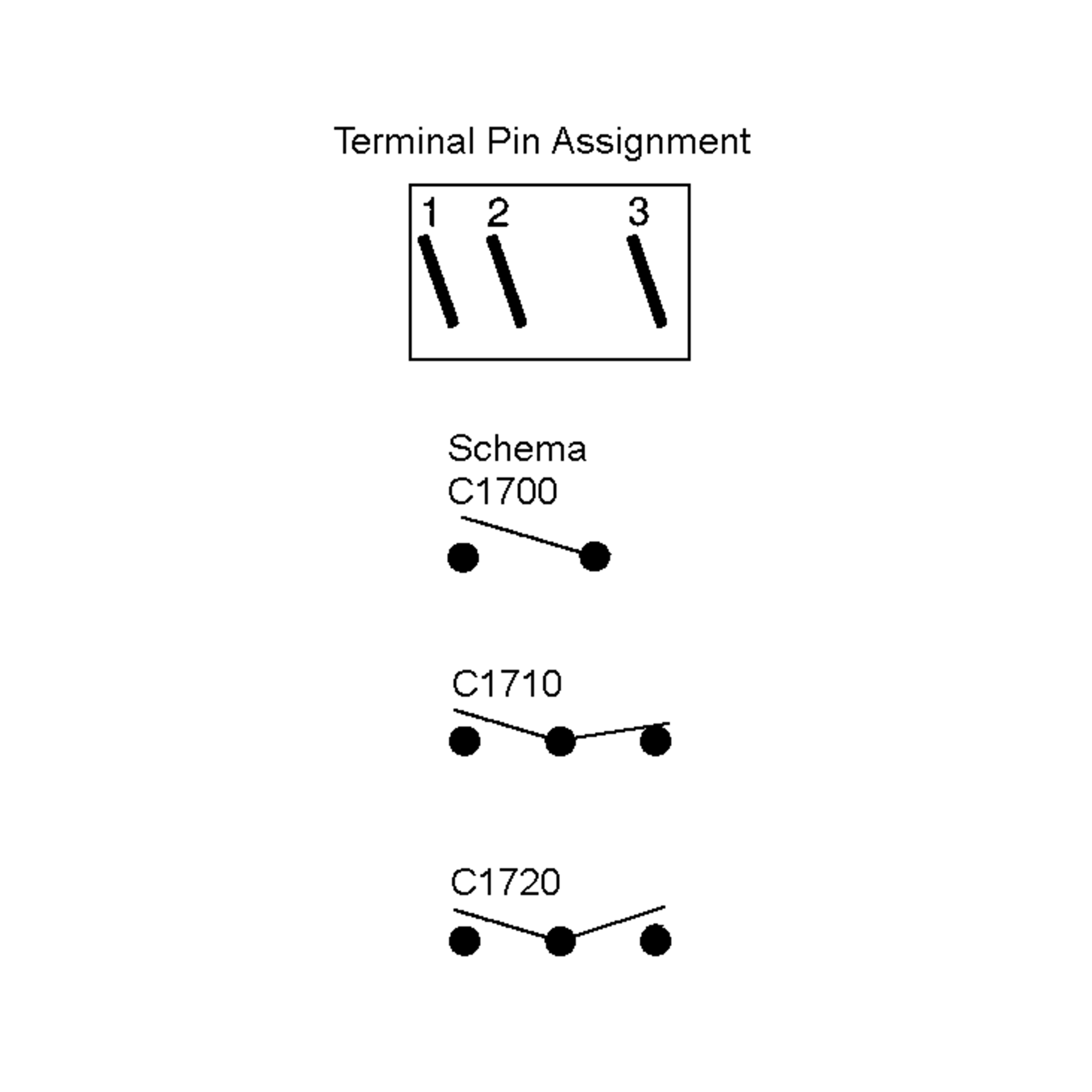

contacts
1xCO
Type of actuator
Rocker arm
Actuator colour
black
Diameter
12.2 mm
Number of poles
1
illumination
false
Operating voltage AC
250 V AC
Switching current, max.
16 A
Panel cut out
Ø12,7mm
Operating temperature range, max.
85 °C
Inrush current peak (EN61058-1)
36 A
Soldering temperature and duration, max.
350°C / 6s
Approvals
ENEC15
UL
cCSA
Flammability
UL94V2
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Bulgin Ltd.
Series
  • 1710
Type
  • Toggle Switches
contacts
  • 1xCO
Body colour
  • black
Type of actuator
  • Rocker arm
Actuator colour
  • black
illumination
Features

  • - For central mounting
    - Black plastic rocker arm
    - Approved up to 250V/16A

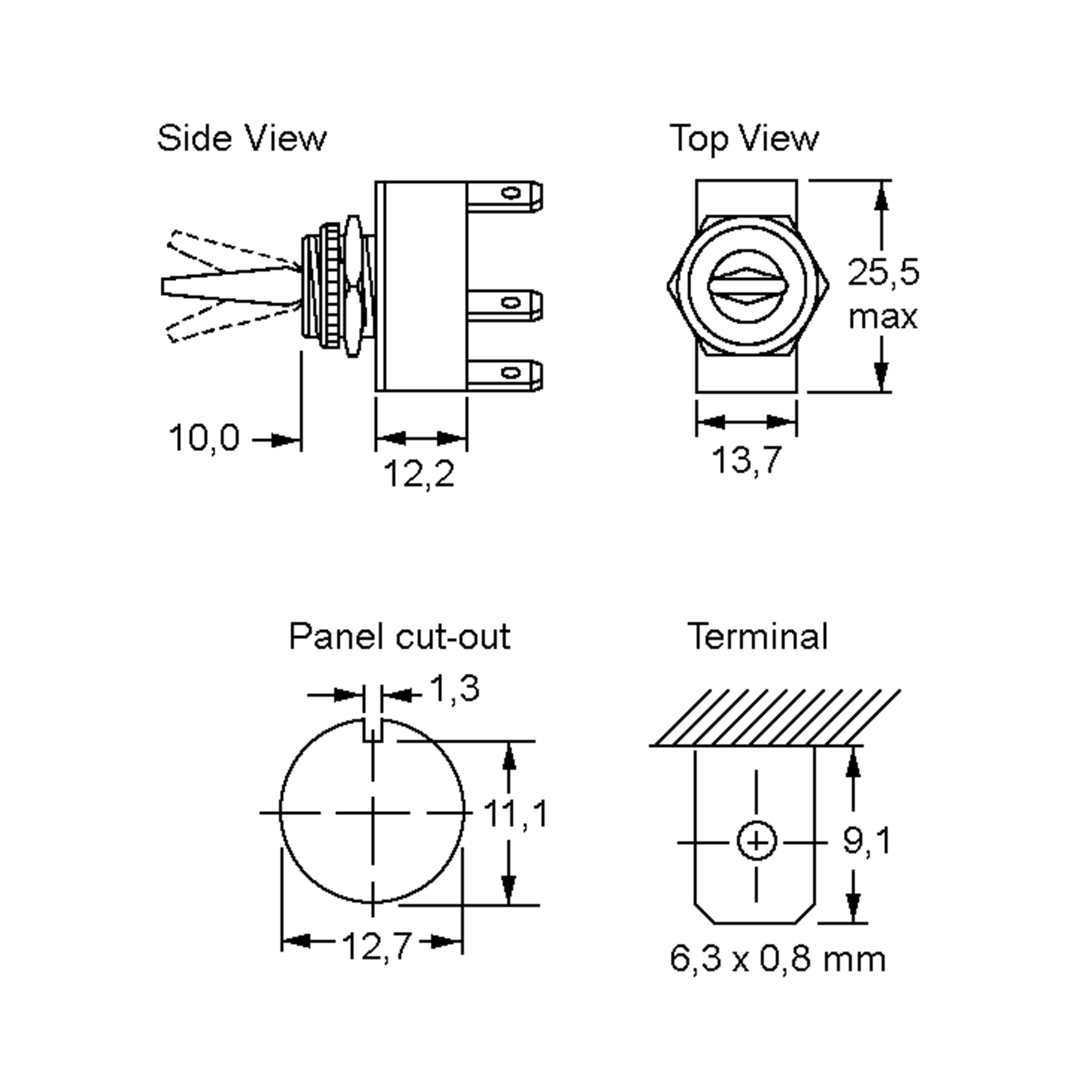

Dimensions and weights

Dimension: Length
  • 25.5 mm
Dimension: Width
  • 13.7 mm
Diameter
  • 12.2 mm
Panel cut out
  • Ø12,7mm

Operating conditions

Operating temperature range, max.
  • 85 °C
Soldering temperature and duration, max.
  • 350°C / 6s

Technical features

Operating voltage AC
  • 250 V AC
Switching current, max.
  • 16 A
Switching current with inductive load, max.
  • 4 A
Inrush current peak (EN61058-1)
  • 36 A
Contact resistance, max.
  • 100 mOhm
Insulation resistance, min.
  • 20 MOhm
Material: Body
  • Nylon 6.6
Material: Actuator
  • Nylon 6.6
Material: Terminals
  • silver, plated
Material: live parts
  • Copper alloy

Mechanical properties

Number of poles
  • 1

Safety/Certifications

Approvals
  • ENEC15
  • UL
  • cCSA
Flammability
  • UL94V2
