C1560ABAAA

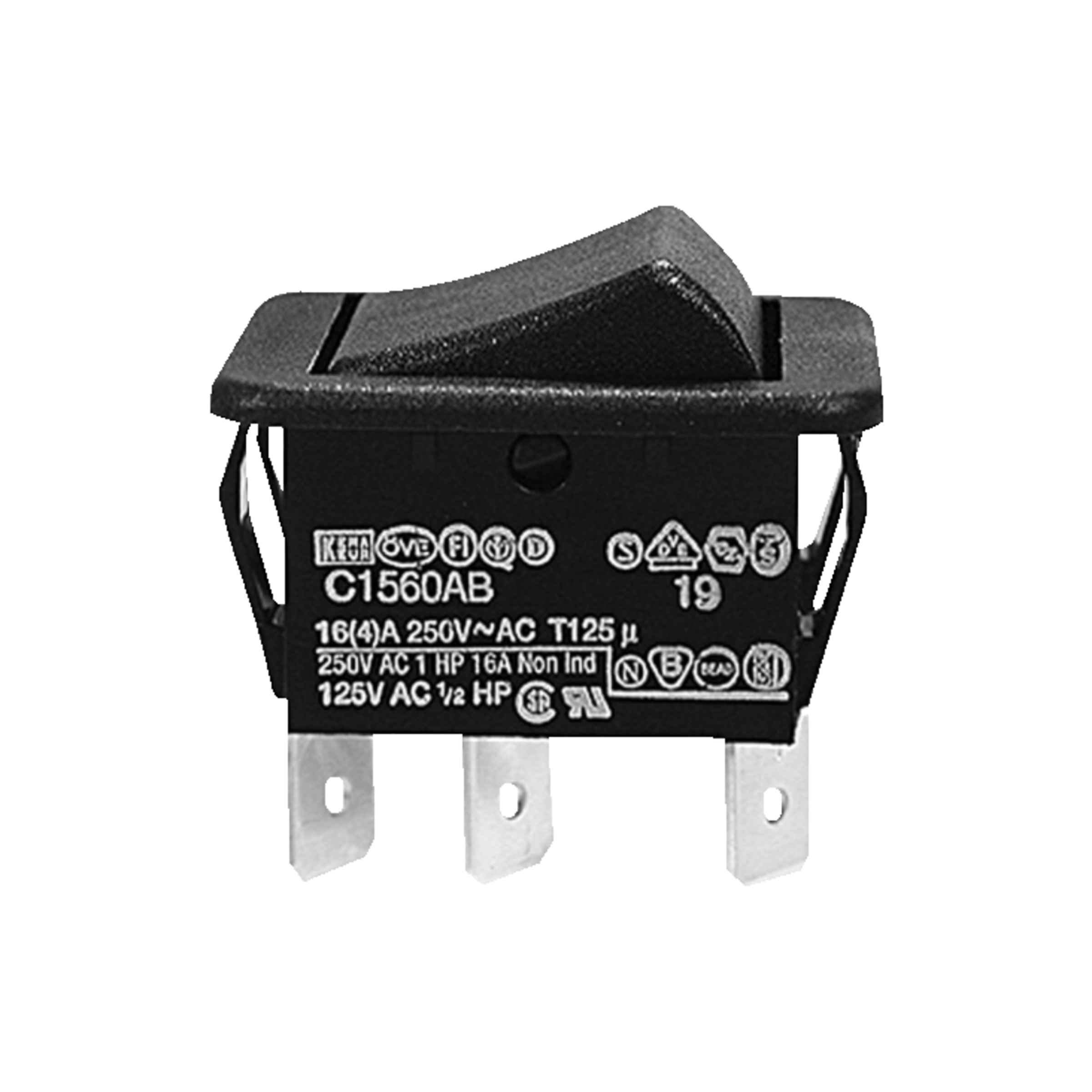

Bulgin Ltd. Rocker Switches 1560 2xCO black 22x30mm 250VAC 16A 150A unlit

C1560ABC1560ABC1560AB
Manufacturer Part No.
C1560ABAAA
Schukat Part No.
C1560AB
Manufacturer
Bulgin Ltd.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Rocker Switches
Series
1560
Body colour
black
contacts
2xCO
Type of actuator
Rocker
Function
2xCO
Actuator colour
black
illumination
unlit
Operating voltage AC
250 V AC
Switching current, max.
16 A
Panel cut out
22x30mm
Operating temperature range, max.
85 °C
Inrush current peak (EN61058-1)
150 A
Soldering temperature and duration, max.
350°C / 6s
Approvals
CE
UL
cCSA
Flammability
UL94V2
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Bulgin Ltd.
Series
  • 1560
Product group
  • E2137
Type
  • Rocker Switches
contacts
  • 2xCO
Function
  • 2xCO
Body colour
  • black
Type of actuator
  • Rocker
Actuator colour
  • black
illumination
  • unlit
Features

  • - For 22x30mm panel cut-outs
    - 2-pole version
    - With connector 6,3x0,8mm

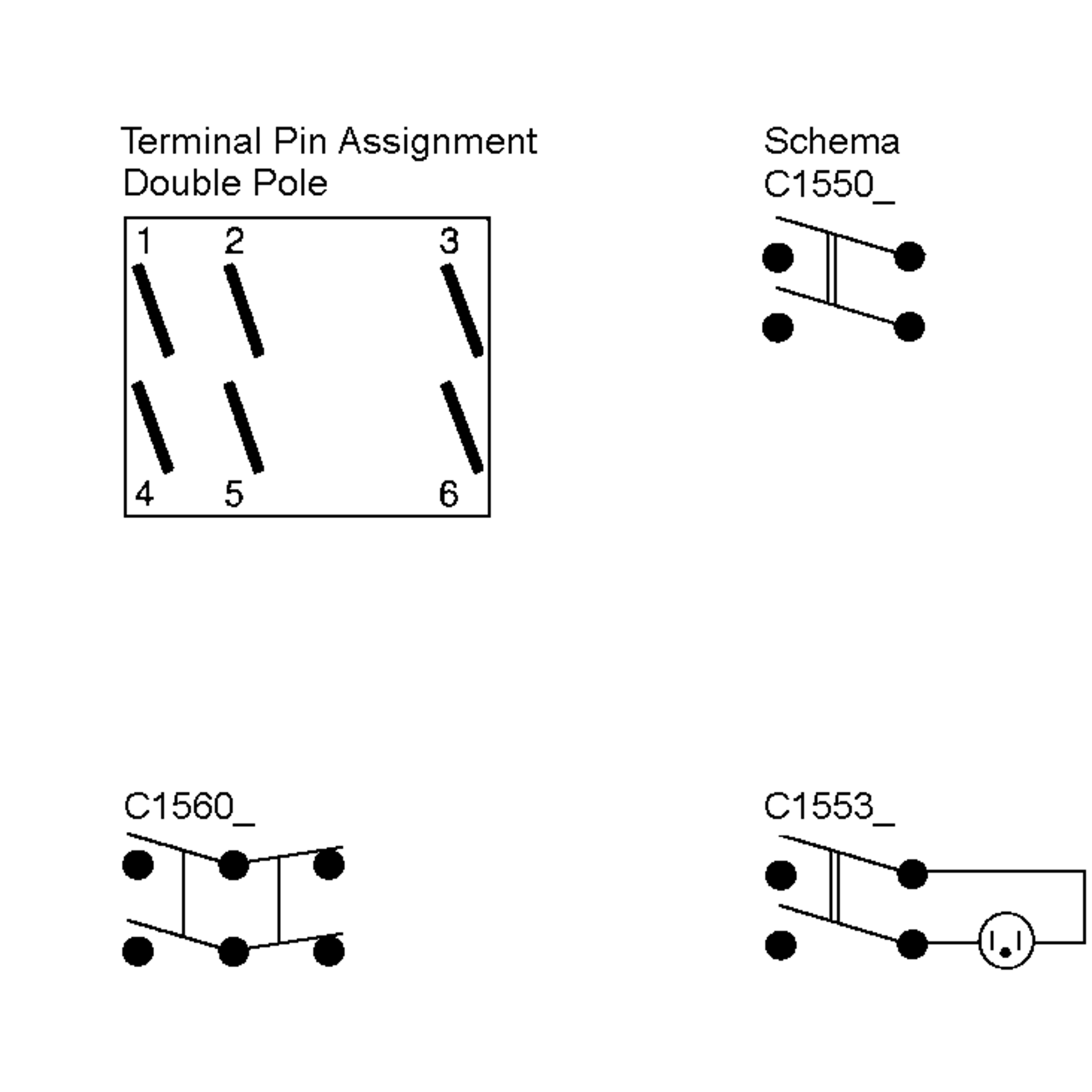

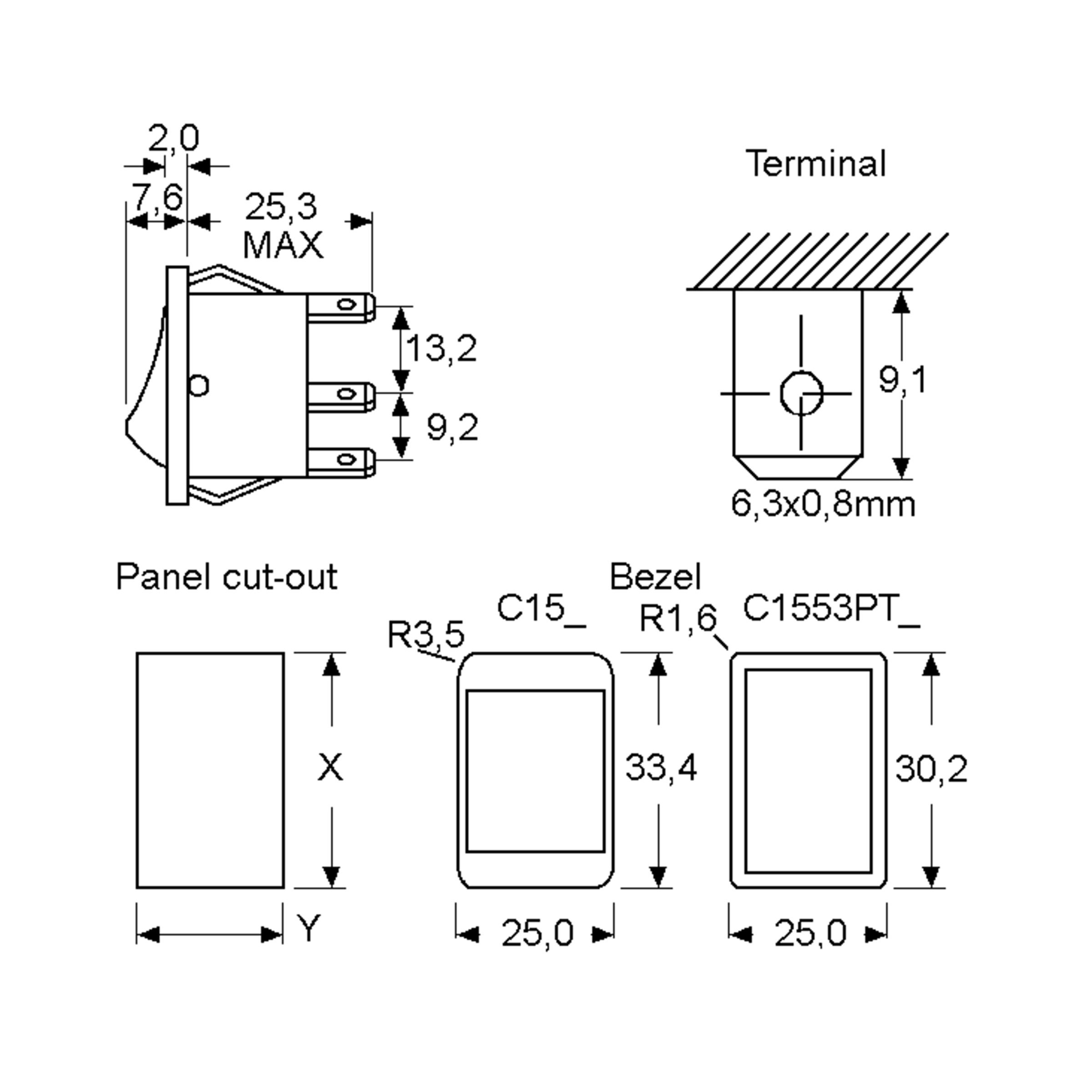

Dimensions and Weights

Dimension: Length
  • 33.4 mm
Dimension: Width
  • 25 mm
Panel cut out
  • 22x30mm

Operating conditions

Operating temperature range, max.
  • 85 °C
Soldering temperature and duration, max.
  • 350°C / 6s

Technical Features

Operating voltage AC
  • 250 V AC
Switching current, max.
  • 16 A
Switching current with inductive load, max.
  • 4 A
Inrush current peak (EN61058-1)
  • 150 A
Contact resistance, max.
  • 100 mOhm
Insulation resistance, min.
  • 20 MOhm
Material: Body
  • Nylon 6.6
Material: Actuator
  • Nylon 6.6
Material: Terminals
  • silver, plated
Material: live parts
  • Copper alloy

Safety/Certifications

Approvals
  • CE
  • UL
  • cCSA
Flammability
  • UL94V2
