C1550ABAAF

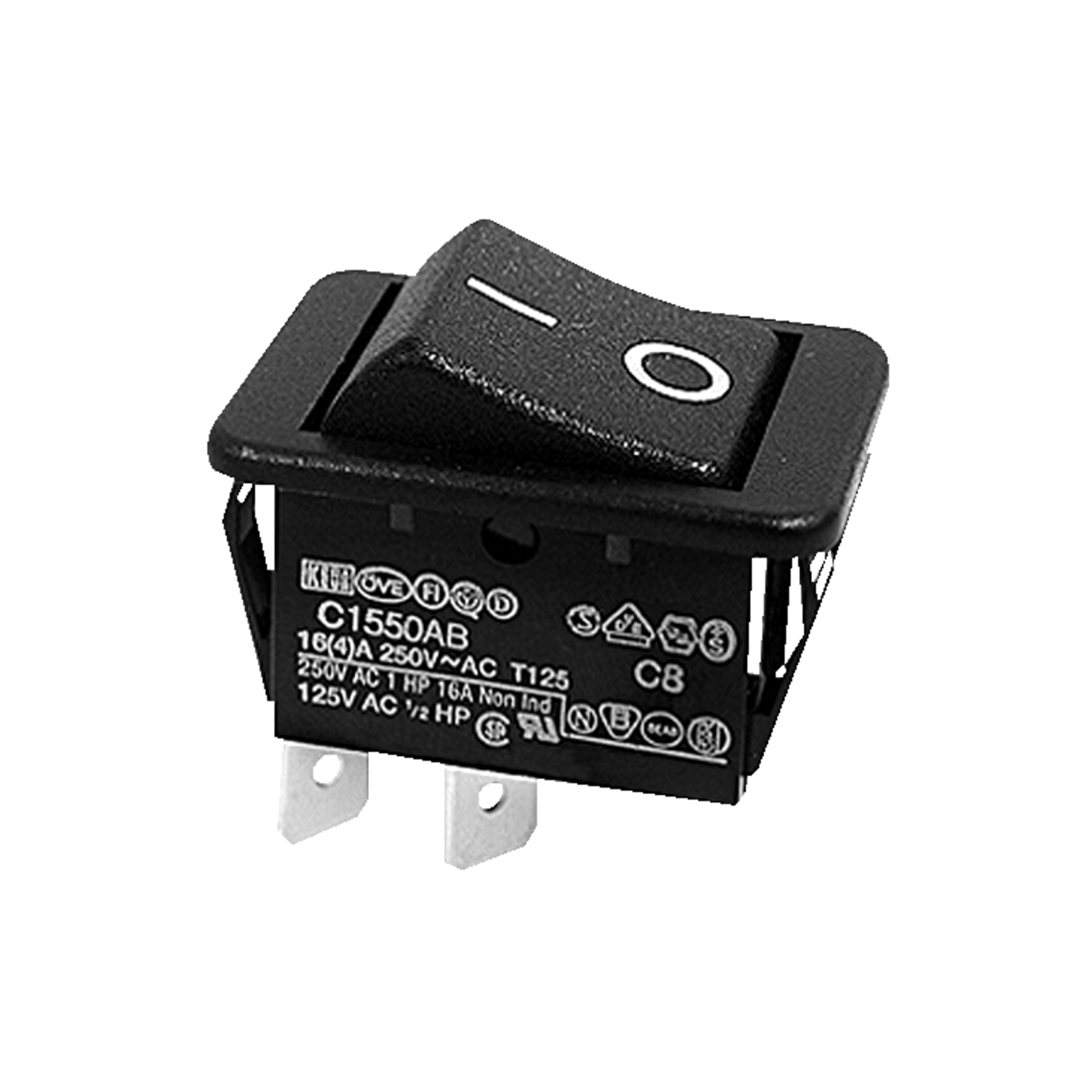

Bulgin Ltd. Rocker Switches 1550 2x0-E black I/O 22x30mm 250VAC 16A 150A unlit

TOP
Manufacturer Part No.
C1550ABAAF
Schukat Part No.
C1550AB01
Manufacturer
Bulgin Ltd.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

4.383 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Rocker Switches
Series
1550
Body colour
black
contacts
2xNO
Type of actuator
Rocker
Function
2x0-E
Imprint
I/O
Actuator colour
black
illumination
unlit
Operating voltage AC
250 V AC
Switching current, max.
16 A
Panel cut out
22x30mm
Operating temperature range, max.
85 °C
Inrush current peak (EN61058-1)
150 A
Soldering temperature and duration, max.
350°C / 6s
Approvals
CE
UL
cCSA
Flammability
UL94V2
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Bulgin Ltd.
Series
  • 1550
Product group
  • E2137 Arcolectric Rocker Switches 22x30mm
Type
  • Rocker Switches

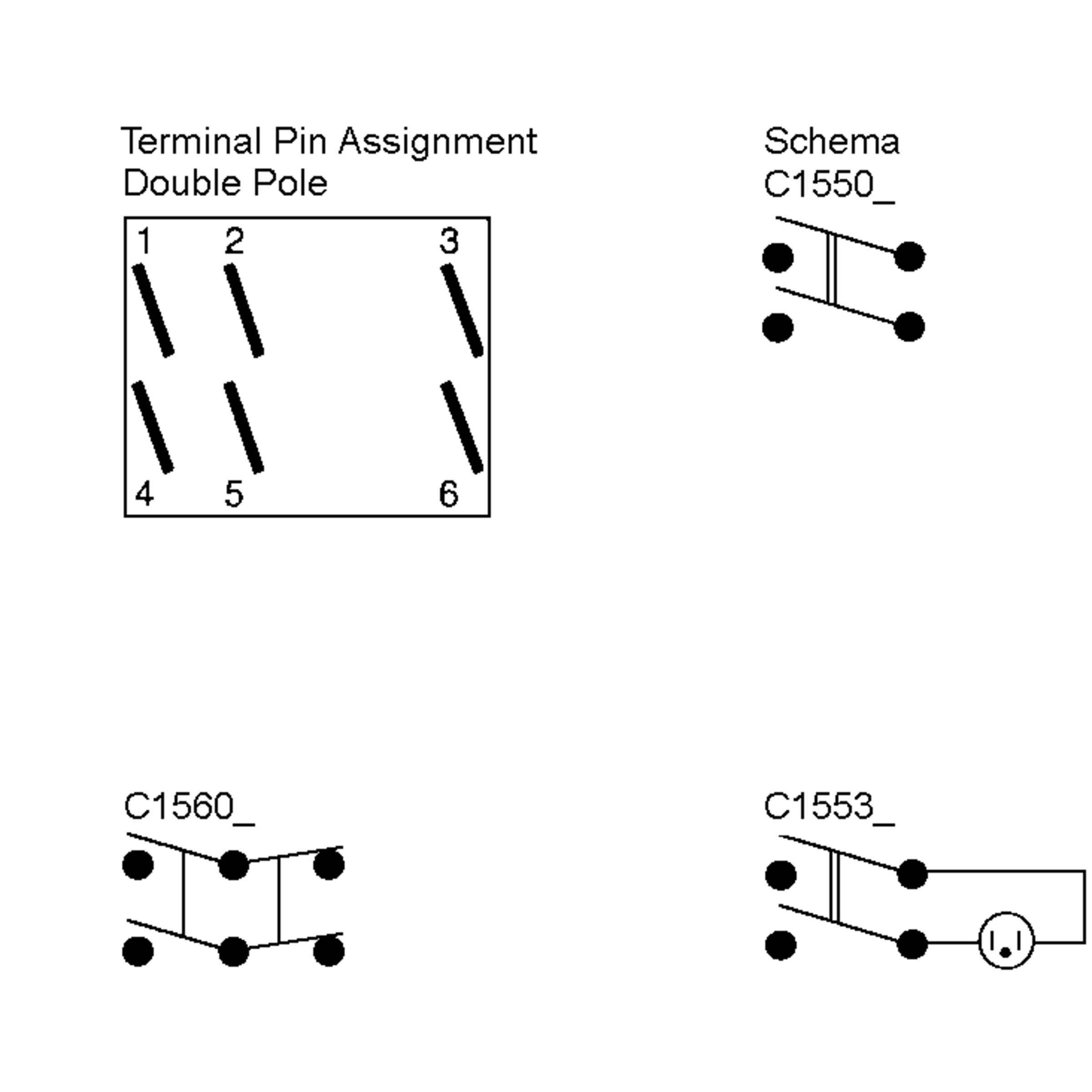

contacts
  • 2xNO
Function
  • 2x0-E
Body colour
  • black
Type of actuator
  • Rocker
Actuator colour
  • black
Imprint
  • I/O
illumination
  • unlit
Features

  • - For 22x30mm panel cut-outs
    - 2-pole version
    - With connector 6,3x0,8mm

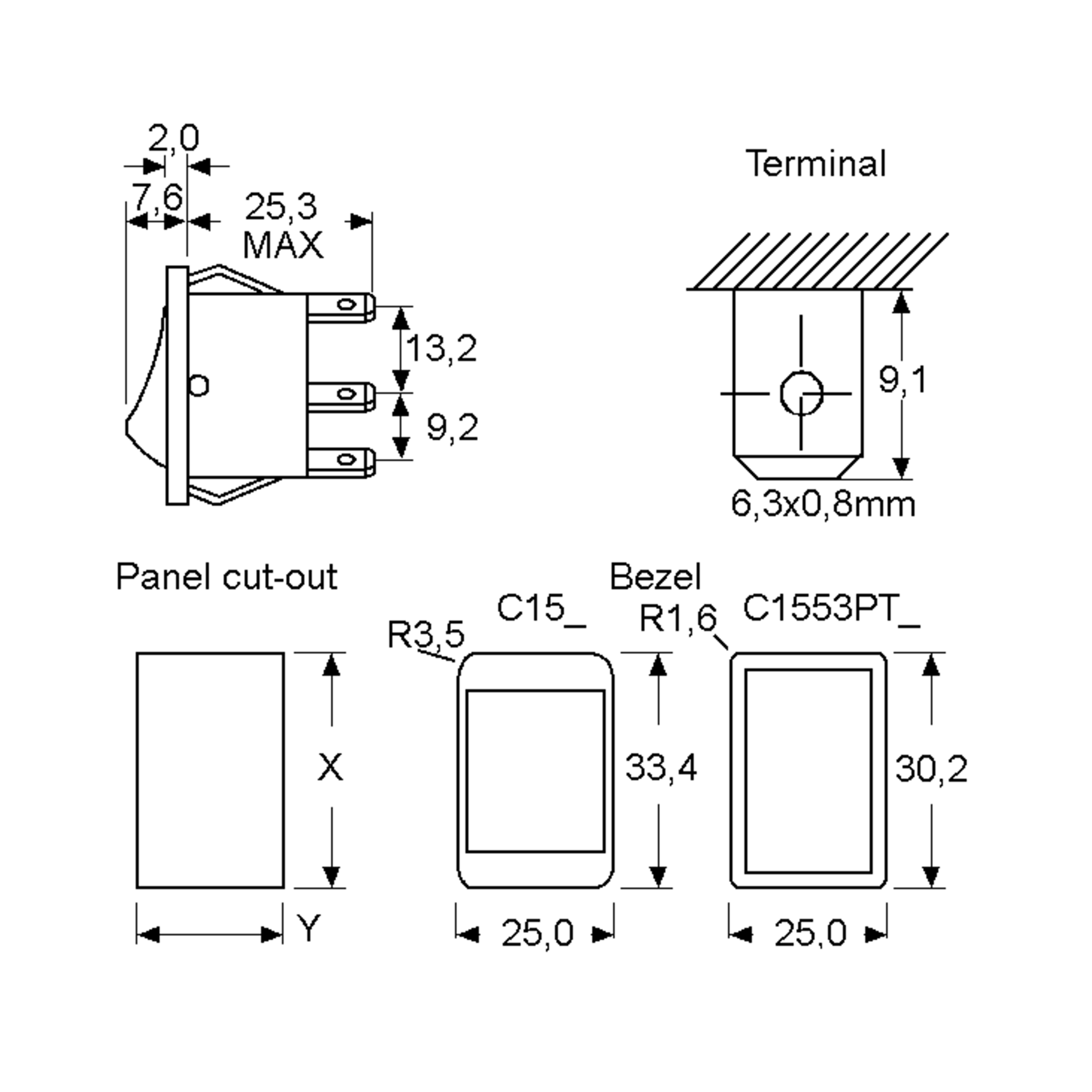

Dimensions and weights

Dimension: Length
  • 33.4 mm
Dimension: Width
  • 25 mm
Panel cut out
  • 22x30mm

Operating conditions

Operating temperature range, max.
  • 85 °C
Soldering temperature and duration, max.
  • 350°C / 6s

Technical features

Operating voltage AC
  • 250 V AC
Switching current, max.
  • 16 A
Switching current with inductive load, max.
  • 4 A
Inrush current peak (EN61058-1)
  • 150 A
Contact resistance, max.
  • 100 mOhm
Insulation resistance, min.
  • 20 MOhm
Material: Body
  • Nylon 6.6
Material: Actuator
  • Nylon 6.6
Material: Terminals
  • silver, plated
Material: live parts
  • Copper alloy

Safety/Certifications

Approvals
  • CE
  • UL
  • cCSA
Flammability
  • UL94V2
