Results (220)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Manufacturer Package | (Uf) Forward Voltage | (If) Forward Current | (Urms) RMS Voltage | (Urrm) Peak Recurrent Reverse Voltage Max. | (Ir) Reverse Current | Packaging | Barrier Layer temperature, min. (TJ) | Barrier Layer Temperature, max. (TJ) | Approvals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51 |  | Manufacturers Part No. KBU604(KBU604) Continental Device India THT Bridge Rectifier 6A 280V 400V 1,0V KBU | Customer Part No. Customer Project No. | 5.200 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | KBU | 1.0 V | 6.0 A | 280.0 V | 400.0 V | 5.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
52 | | Manufacturers Part No. DBL106G(DBL106G) Taiwan Semiconductor THT Bridge Rectifier 1A 560V 800V 1,1V DBL | Customer Part No. Customer Project No. | 5.675 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.1 V | 1.0 A | 560.0 V | 800.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||
53 | | Manufacturers Part No. GBU405(GBU405) Taiwan Semiconductor THT Bridge Rectifier 4A 420V 600V 1,1V GBU | Customer Part No. Customer Project No. | 1.790 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | GBU | 1.1 V | 4.0 A | 420.0 V | 600.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
54 | | Manufacturers Part No. DBL207G(DBL207G) Taiwan Semiconductor THT Bridge Rectifier 2A 700V 1.000V 1,15V DBL | Customer Part No. Customer Project No. | 1.545 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.15 V | 2.0 A | 700.0 V | 1000.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||
55 | | Manufacturers Part No. TS15P06G(TS15P06G) Taiwan Semiconductor THT Bridge Rectifier 15A 560V 800V 1,1V TS-6P | Customer Part No. Customer Project No. | 2.190 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 15 or mul. of 15) | Bridge Rectifier | Taiwan Semiconductor | THT | TS-6P | 1.1 V | 15.0 A | 560.0 V | 800.0 V | 10.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
56 | | Manufacturers Part No. GBU402(GBU402) Taiwan Semiconductor THT Bridge Rectifier 4A 70V 100V 1,1V GBU | Customer Part No. Customer Project No. | 470 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | GBU | 1.1 V | 4.0 A | 70.0 V | 100.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
57 | | Manufacturers Part No. GBU1007(GBU1007) Taiwan Semiconductor THT Bridge Rectifier 10A 700V 1.000V 1,1V GBU | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 26 Weeks Available on order | (at least 1000 or mul. of 1000) | Bridge Rectifier | Taiwan Semiconductor | THT | GBU | 1.1 V | 10.0 A | 700.0 V | 1000.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
58 | | Manufacturers Part No. TS40P06G(TS40P06G) Taiwan Semiconductor THT Bridge Rectifier 40A 560V 800V 1,1V TS-6P | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 26 Weeks Available on order | (at least 1200 or mul. of 15) | Bridge Rectifier | Taiwan Semiconductor | THT | TS-6P | 1.1 V | 40.0 A | 560.0 V | 800.0 V | 10.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||

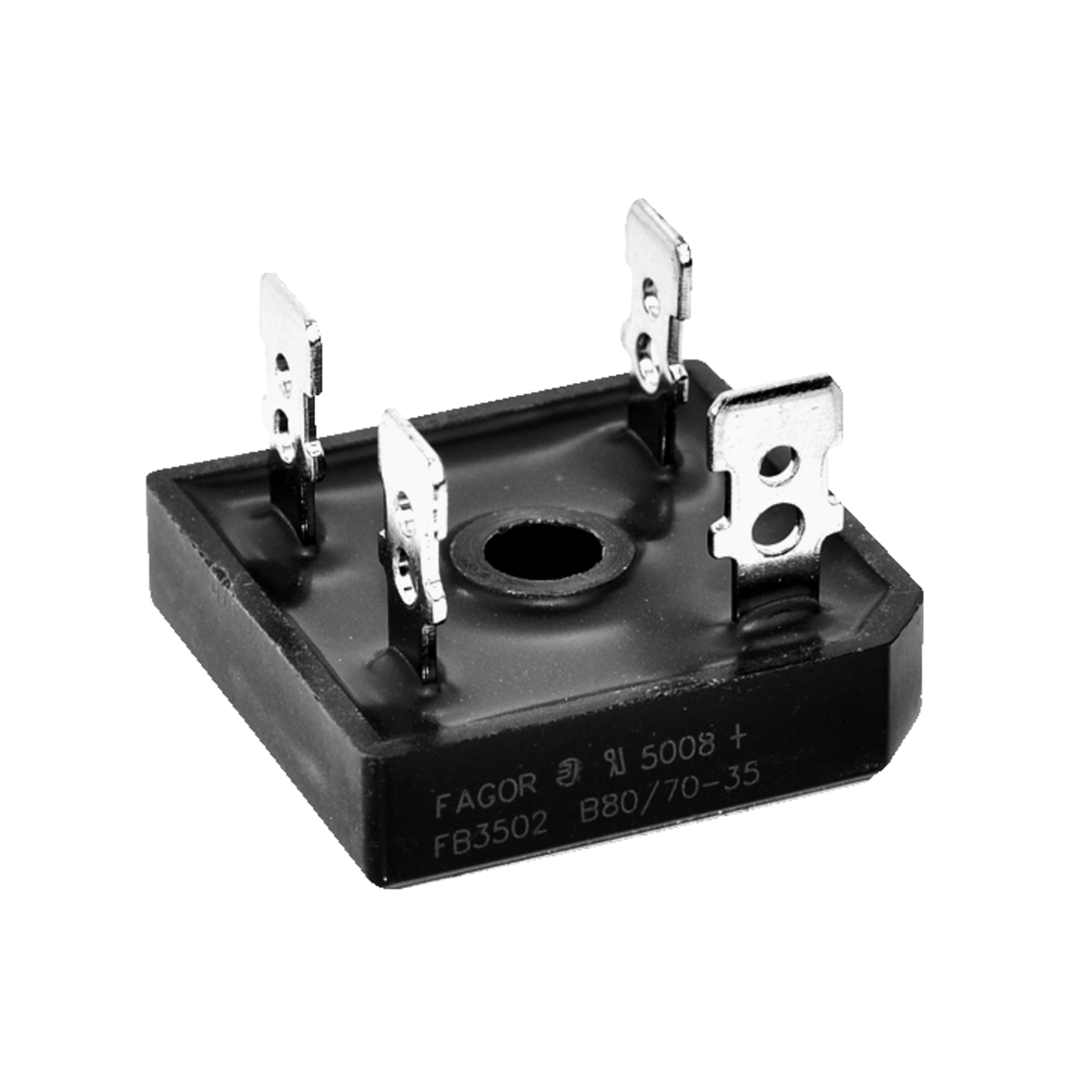

59 | | Manufacturers Part No. FB3510(FB3510) Fagor Electronica Screw Mount Power Bridge Rectifier 35A 700V 1.000V 1,1V Power | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order | (at least 500 or mul. of 500) | Power Bridge Rectifier | Fagor Electronica | Screw Mount | Power | 1.1 V | 35.0 A | 700.0 V | 1000.0 V | 5.0 µA | Boxed | -55.0 °C | 150.0 °C | UL | |||||
60 | | Manufacturers Part No. TS50P05G(TS50P05G) Taiwan Semiconductor THT Bridge Rectifier 50A 420V 600V 1,1V TS-6P | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 26 Weeks Available on order | (at least 1200 or mul. of 15) | Bridge Rectifier | Taiwan Semiconductor | THT | TS-6P | 1.1 V | 50.0 A | 420.0 V | 600.0 V | 10.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
61 | | Manufacturers Part No. FB5002(FB5002) Fagor Electronica Screw Mount Power Bridge Rectifier 50A 140V 200V 1,1V Power | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order | (at least 500 or mul. of 500) | Power Bridge Rectifier | Fagor Electronica | Screw Mount | Power | 1.1 V | 50.0 A | 140.0 V | 200.0 V | 5.0 µA | Boxed | -55.0 °C | 150.0 °C | UL | |||||
62 | | Manufacturers Part No. TS6P02G(TS6P02G) Taiwan Semiconductor THT Bridge Rectifier 6A 70V 100V 1,1V TS-6P | Customer Part No. Customer Project No. | 250 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 15 or mul. of 15) | Bridge Rectifier | Taiwan Semiconductor | THT | TS-6P | 1.1 V | 6.0 A | 70.0 V | 100.0 V | 10.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
63 | | Manufacturers Part No. KBP204(KBP204) Continental Device India THT Bridge Rectifier 2A 280V 400V 1,1V KBP | Customer Part No. Customer Project No. | 1.100 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | KBP | 1.1 V | 2.0 A | 280.0 V | 400.0 V | 10.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
64 | | Manufacturers Part No. FB3501L(FB3501L) Fagor Electronica THT Power Bridge Rectifier 35A 70V 100V 1,1V Power L | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order | (at least 500 or mul. of 500) | Power Bridge Rectifier | Fagor Electronica | THT | Power L | 1.1 V | 35.0 A | 70.0 V | 100.0 V | 5.0 µA | Boxed | -55.0 °C | 150.0 °C | UL | |||||
65 | | Manufacturers Part No. KBP206(KBP206) Continental Device India THT Bridge Rectifier 2A 420V 600V 1,1V KBP | Customer Part No. Customer Project No. | 5.700 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | KBP | 1.1 V | 2.0 A | 420.0 V | 600.0 V | 10.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
66 | | Manufacturers Part No. KBP208(KBP208) Continental Device India THT Bridge Rectifier 2A 560V 800V 1,1V KBP | Customer Part No. Customer Project No. | 1.200 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | KBP | 1.1 V | 2.0 A | 560.0 V | 800.0 V | 10.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
67 | | Manufacturers Part No. GBPC2502(GBPC2502) Taiwan Semiconductor Screw Mount Power Bridge Rectifier 25A 140V 200V 1,1V GBPC | Customer Part No. Customer Project No. | 760 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Power Bridge Rectifier | Taiwan Semiconductor | Screw Mount | GBPC | 1.1 V | 25.0 A | 140.0 V | 200.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
68 | | Manufacturers Part No. TS6P05G(TS6P05G) Taiwan Semiconductor THT Bridge Rectifier 6A 420V 600V 1,1V TS-6P | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 15 or mul. of 15) | Bridge Rectifier | Taiwan Semiconductor | THT | TS-6P | 1.1 V | 6.0 A | 420.0 V | 600.0 V | 10.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
69 | | Manufacturers Part No. KBP306(KBP306) Continental Device India THT Bridge Rectifier 3A 420V 600V 1,1V KBP | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | KBP | 1.1 V | 3.0 A | 420.0 V | 600.0 V | 10.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
70 | | Manufacturers Part No. GBPC2506(GBPC2506) Taiwan Semiconductor Screw Mount Power Bridge Rectifier 25A 420V 600V 1,1V GBPC | Customer Part No. Customer Project No. | 45 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Power Bridge Rectifier | Taiwan Semiconductor | Screw Mount | GBPC | 1.1 V | 25.0 A | 420.0 V | 600.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
71 | | Manufacturers Part No. KBU601(KBU601) Continental Device India THT Bridge Rectifier 6A 70V 100V 1,0V KBU | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 12 Weeks Available on order | (at least 1000 or mul. of 1000) | Bridge Rectifier | Continental Device India | THT | KBU | 1.0 V | 6.0 A | 70.0 V | 100.0 V | 5.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
72 | | Manufacturers Part No. GBPC2508W(GBPC2508W) Taiwan Semiconductor THT Power Bridge Rectifier 25A 560V 800V 1,1V GBPC-W | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Power Bridge Rectifier | Taiwan Semiconductor | THT | GBPC-W | 1.1 V | 25.0 A | 560.0 V | 800.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
73 | | Manufacturers Part No. GBPC5001(GBPC5001) Taiwan Semiconductor Screw Mount Power Bridge Rectifier 50A 70V 100V 1,1V GBPC-4 | Customer Part No. Customer Project No. | 25 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Power Bridge Rectifier | Taiwan Semiconductor | Screw Mount | GBPC-4 | 1.1 V | 50.0 A | 70.0 V | 100.0 V | 10.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
74 | | Manufacturers Part No. MBS2(MBS2) Taiwan Semiconductor SMD/SMT Bridge Rectifier 0,5A 140V 200V 1,0V MBS-4 | Customer Part No. Customer Project No. | 2.300 Pcs. Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Taiwan Semiconductor | SMD/SMT | MBS-4 | 1.0 V | 0.5 A | 140.0 V | 200.0 V | 5.0 µA | Reel | -55.0 °C | 150.0 °C | ||||||
75 | | Manufacturers Part No. GBPC3504W(GBPC3504W) Taiwan Semiconductor THT Power Bridge Rectifier 35A 280V 400V 1,1V GBPC-W | Customer Part No. Customer Project No. | 355 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 5 or mul. of 5) | Power Bridge Rectifier | Taiwan Semiconductor | THT | GBPC-W | 1.1 V | 35.0 A | 280.0 V | 400.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | UL |
