82603124

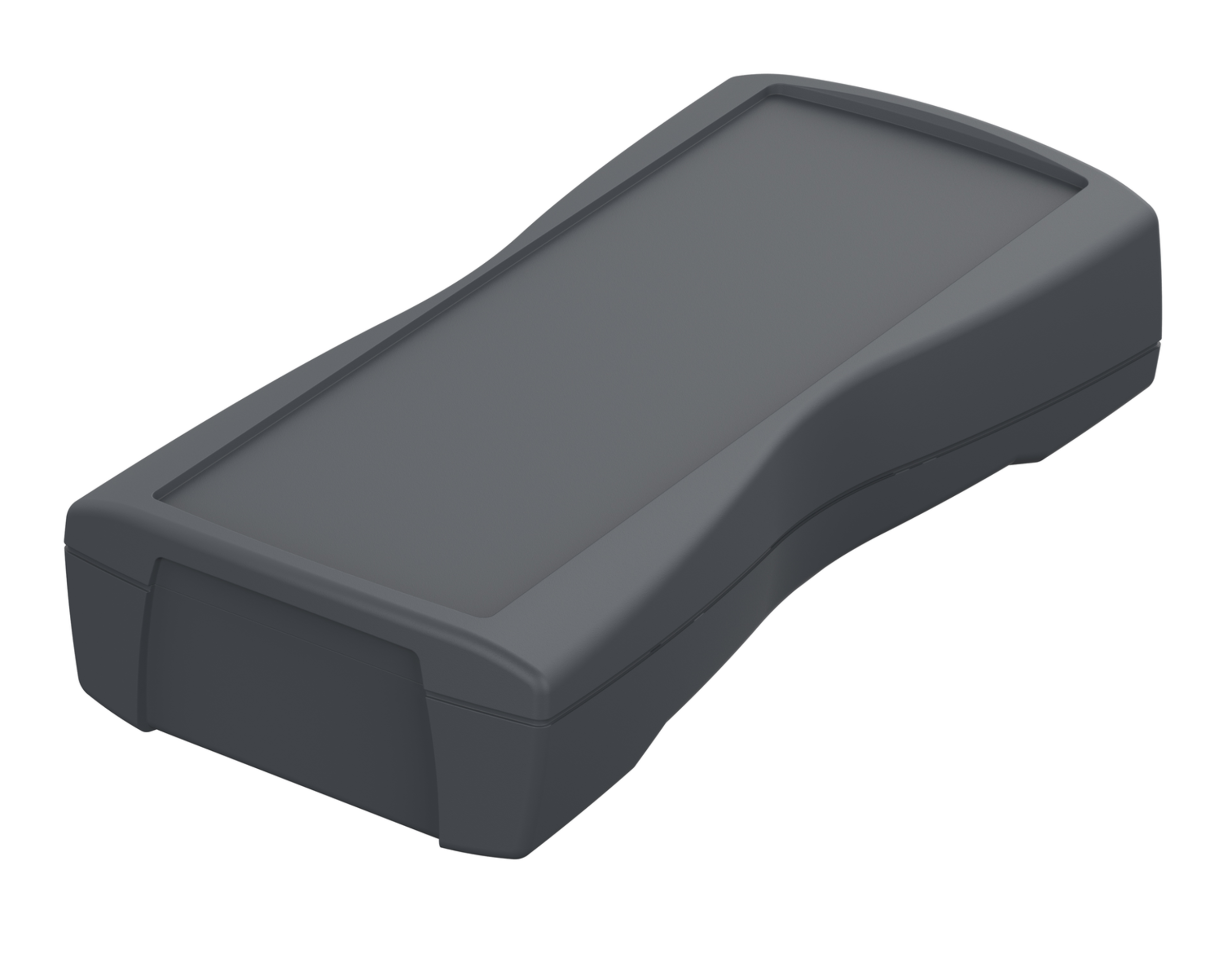

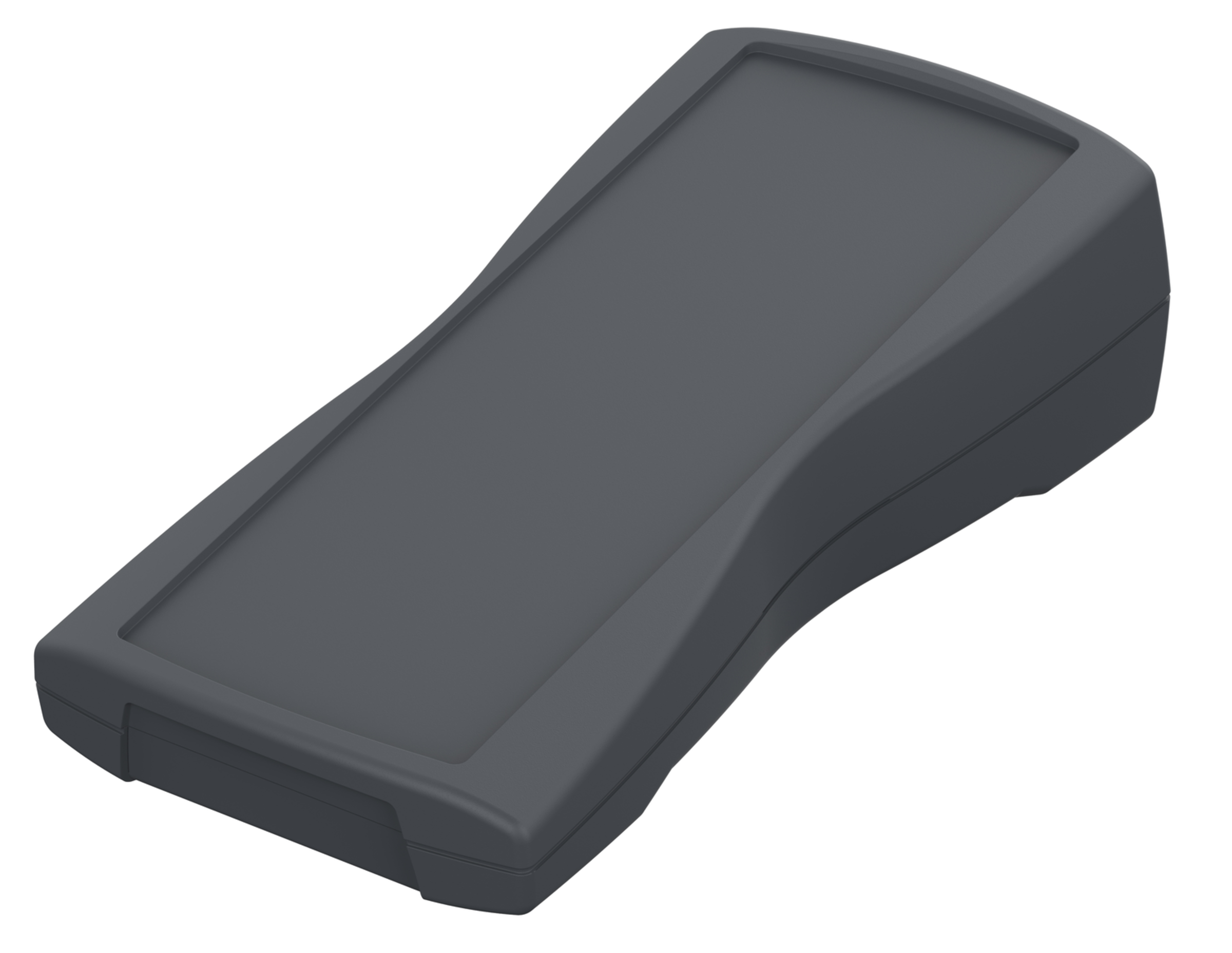

Bopla BOS Streamline Plastic Enclosure ABS (acrylonitrile butadiene styrene) 159,4mmx77,9mmx33,5mm gray IP40

BS603F-7024BS603F-7024BS603F-7024BS603F-7024BS603F-7024
Manufacturer Part No.
82603124
Schukat Part No.
BS603F-7024
Manufacturer
Bopla
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Plastic Enclosure
Dimension: Length
159.4 mm
Dimension: Width
77.9 mm
Dimension: Height
33.5 mm
Specifications
Battery compartment
recessed area
Colour
gray
Colour: lid/panel/handle
gray
Material
ABS (acrylonitrile butadiene styrene)
Protection Class IP
IP40
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Bopla
Series
  • BOS Streamline
Alternative Part Number
  • BS 603 F-7024
Product group
  • G4157
Material
  • ABS (acrylonitrile butadiene styrene)
Colour
  • gray
Type
  • Plastic Enclosure
Colour: lid/panel/handle
  • gray
Type of Mounting
  • Screw
Specifications
  • Battery compartment
  • recessed area
Scope of delivery

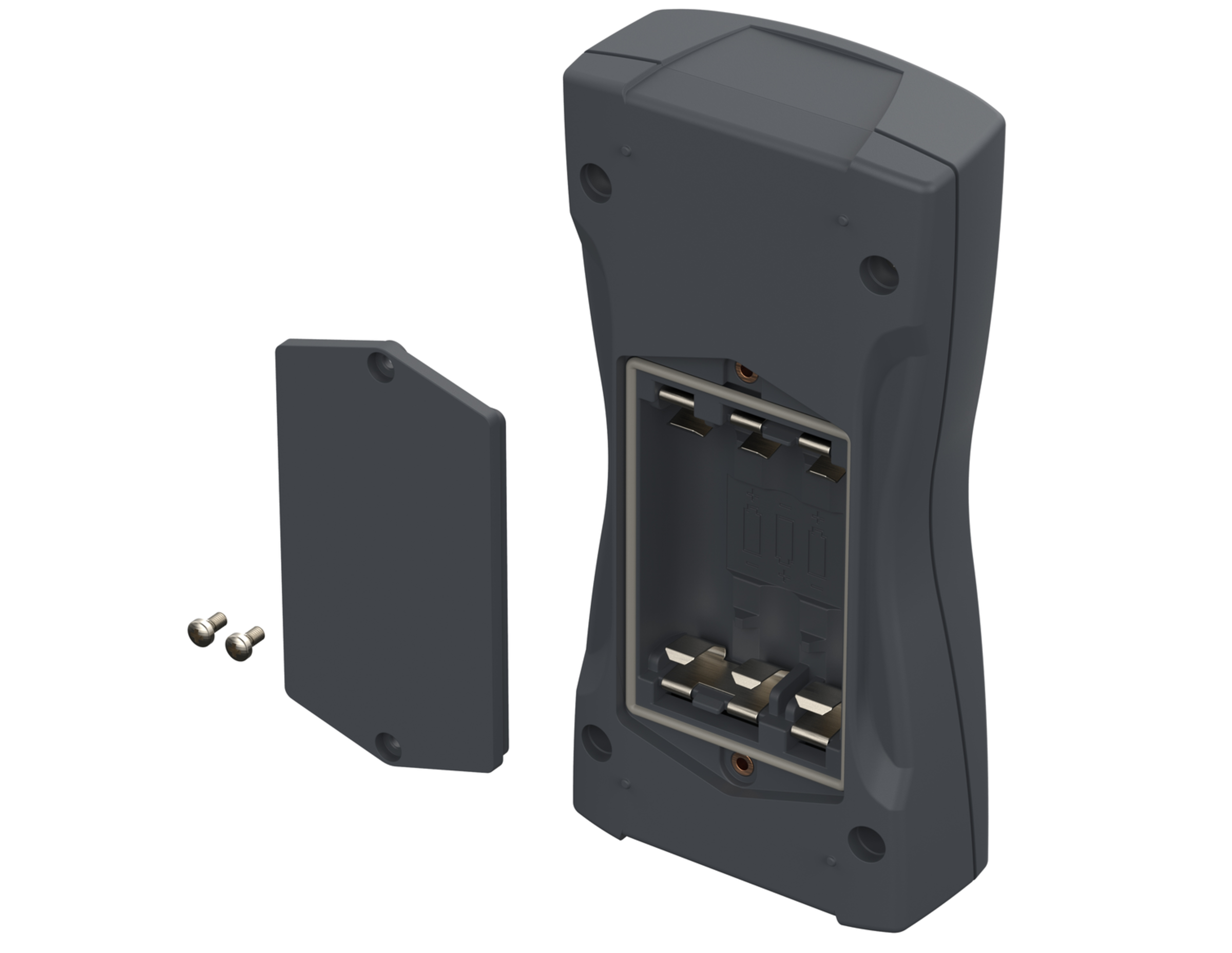

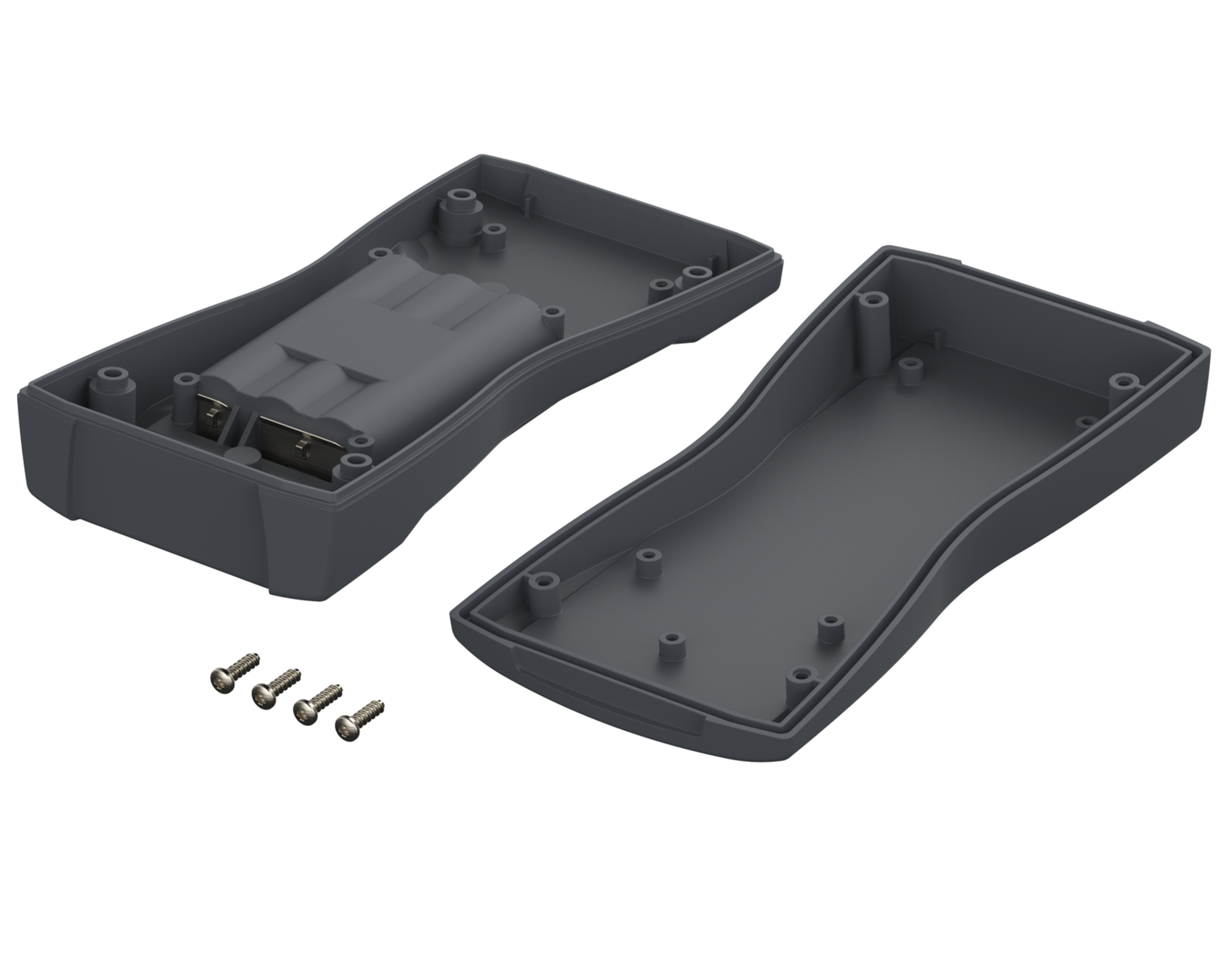

  • Upper and lower part, 4 screws, battery compartment cover, battery compartment seal, battery contacts

Product description
  • Ergonomic ABS hand-held housing with optional impact-resistant seal. Fitting the decorative seal increases the protection rating to IP65. The housing features a recessed membrane keypad area. The optional decorative seal ensures a high protection rating, protects the housing in the event of a fall and offers colour customisation options. By rotating the upper section 180° against the lower section, desk-mounted variants can also be created.
Features

  • - Ergonomic design
    - Choice of parallel or console-type arrangement of the enclosure half-shells
    - With battery compartment for 3 AA batteries

Notice

Dimensions and Weights

Dimension: Length
  • 159.4 mm
Dimension: Width
  • 77.9 mm
Dimension: Height
  • 33.5 mm

Safety/Certifications

Protection Class IP
  • IP40

Documents

BOS-Streamline_DE.pdf
Download (pdf, 2.102 KB)

Other Products

All Products of the Series
Loading...
82400124
Bopla

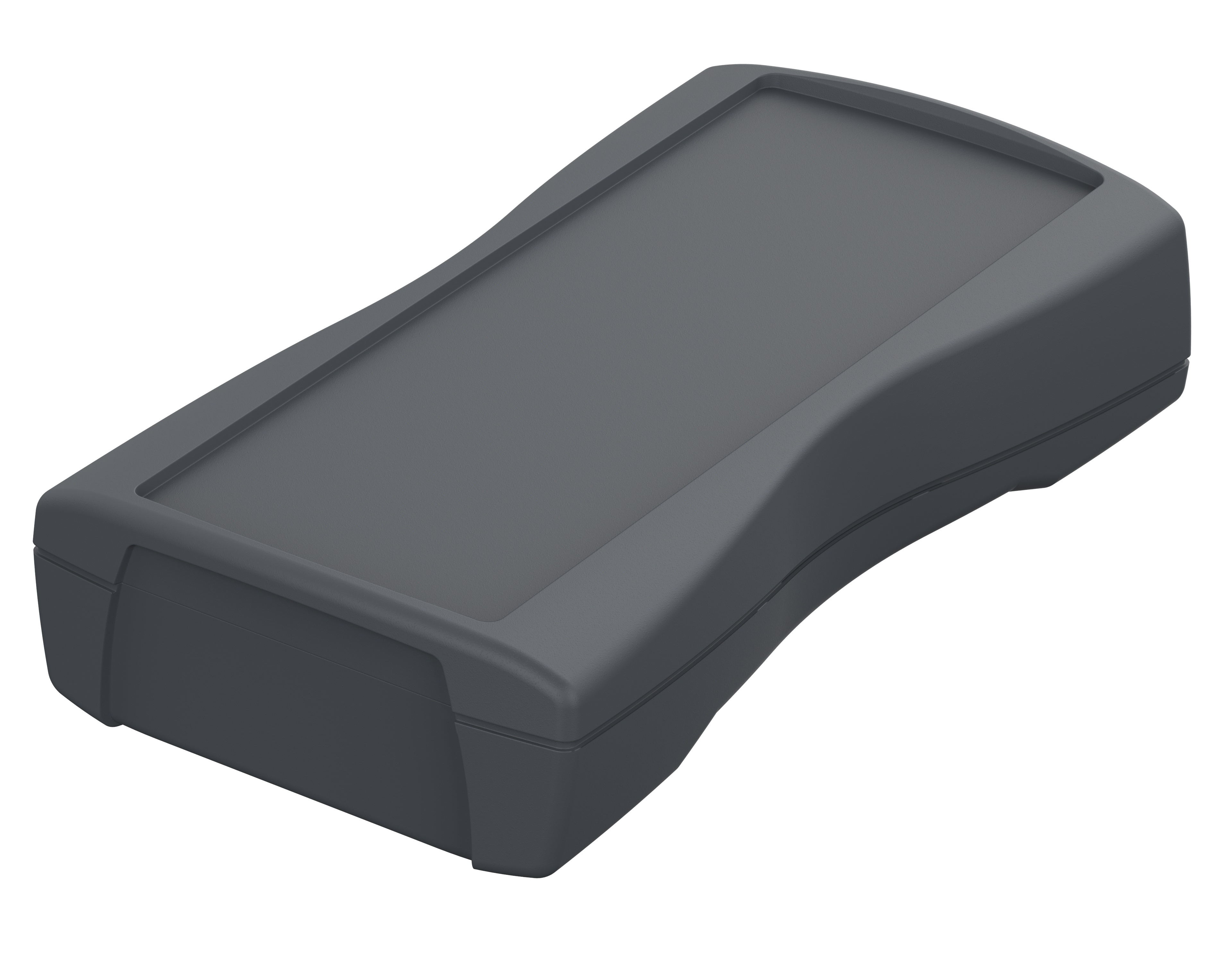

BOS Streamline Plastic Enclosure ABS (acrylonitrile butadiene styrene) 119,3mmx64,9mmx26,5mm gray IP40
