HomeProductsEnclosuresEnclosuresCombiNorm-Classic65007010

65007010

Bopla CombiNorm-Classic DIN Rail Enclosure ABS (acrylonitrile butadiene styrene) 70mmx64,5mmx72mm gray

CN70AKCN70AKCN70AKCN70AK
Manufacturer Part No.
65007010
Schukat Part No.
CN70AK
Manufacturer
Bopla
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

77 Pcs. in stock

Next Stock Receipt
Week 44/2026
40 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
DIN Rail Enclosure
Assembly Type
DIN rail mounting
Dimension: Length
70 mm
Dimension: Width
64.5 mm
Dimension: Height
72 mm
Colour
gray
Colour: lid/panel/handle
gray
Material
ABS (acrylonitrile butadiene styrene)
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Bopla
Series
  • CombiNorm-Classic
Alternative Part Number
  • CN 70 AK
Product group
  • G4711
Material
  • ABS (acrylonitrile butadiene styrene)
Colour
  • gray
Type
  • DIN Rail Enclosure
Colour: lid/panel/handle
  • gray
Assembly Type
  • DIN rail mounting
Scope of delivery

  • Cover, lower part with latching bolt (mounted)

Product description
  • This small plastic control enclosure system offers a wide range of possible applications, but is particularly suitable for horizontal and vertical PCB mounting with connection terminals that can be contacted quickly and easily. The upper and lower sections are attached using snap-on fasteners. No screws are required as all parts are snap-fitted. The housing can be mounted on a TS 35 top-hat rail using a new type of snap-on foot or directly on the wall without visible screws. (For wall mounting, simply turn the snap-on foot round). There is also a recess in the upper part of the enclosure for attaching membrane keypads and the connection terminals are for horizontally inserted PCBs.
Features

  • - ABS enclosure with snap-on mechanism for control cabinet mounting
    - For DIN rails meeting DIN EN 50022
    - For wall mounting
    - Enclosure base and lid latch together
    - Enclosure sections can be released at the lock notch with a screwdriver
    - Connection of inputs and outputs via terminal blocks
    - Blind plates available to cover unused terminal locations

Notice

Dimensions and Weights

Dimension: Length
  • 70 mm
Dimension: Width
  • 64.5 mm
Dimension: Height
  • 72 mm

Documents

CombiNorm-Classic_DE.pdf
Download (pdf, 840 KB)

Other Products

All Products of the Series
Loading...
65004510
Bopla

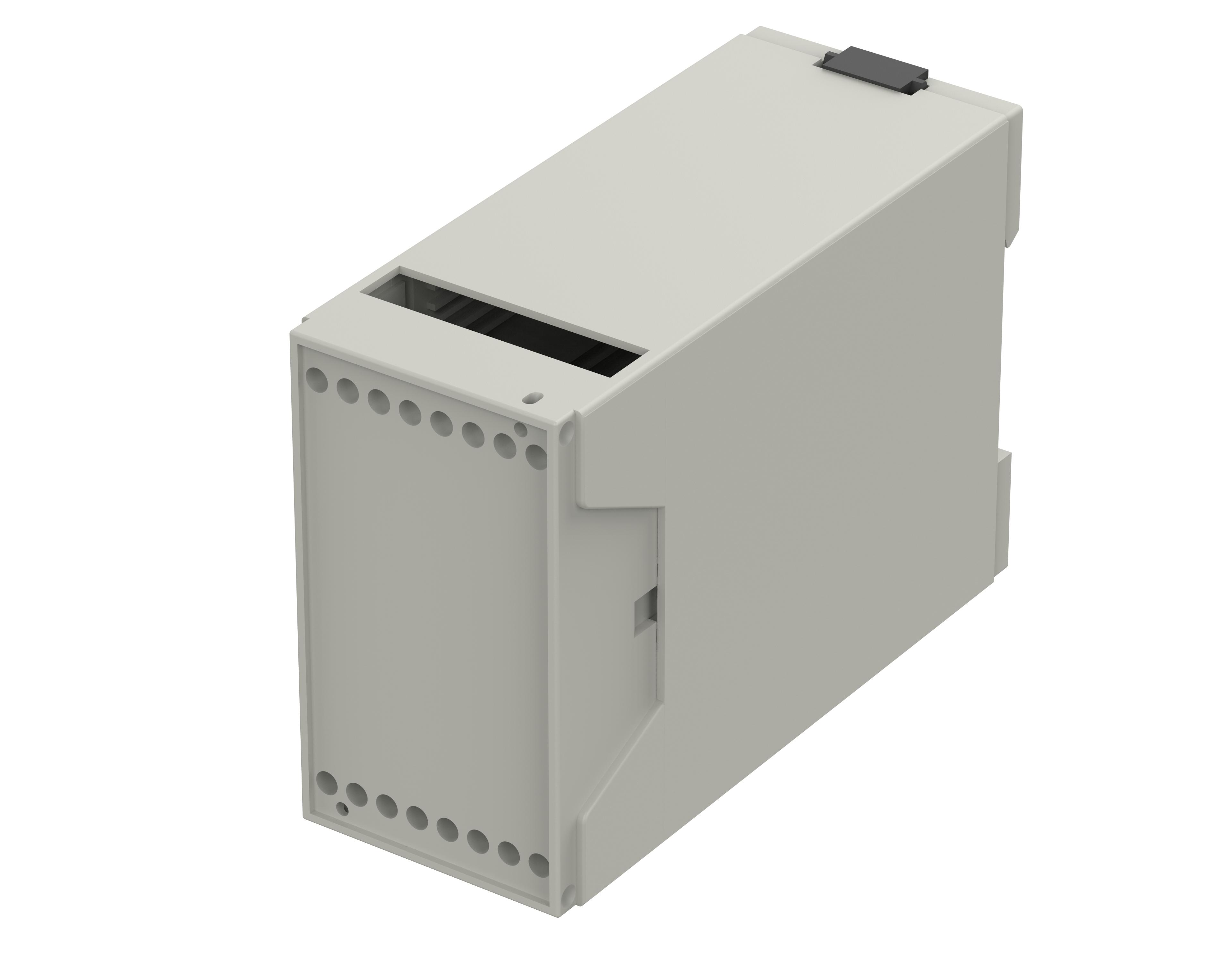

CombiNorm-Classic DIN Rail Enclosure ABS (acrylonitrile butadiene styrene) 45mmx39,5mmx72mm gray
from 7,36 €
Loading...
65005510
Bopla

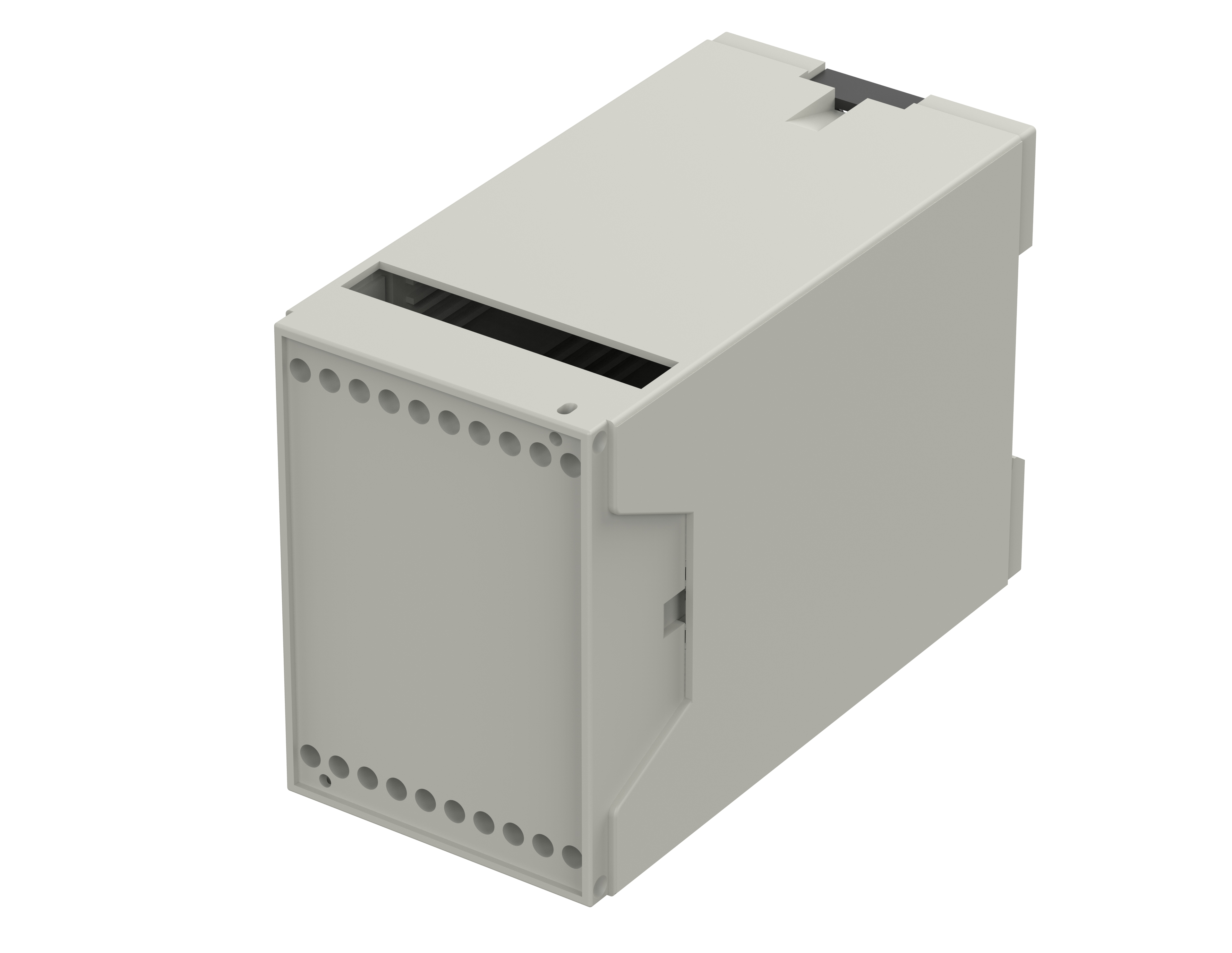

CombiNorm-Classic DIN Rail Enclosure ABS (acrylonitrile butadiene styrene) 55mmx49,5mmx72mm gray
from 7,82 €
Loading...
65010010
Bopla

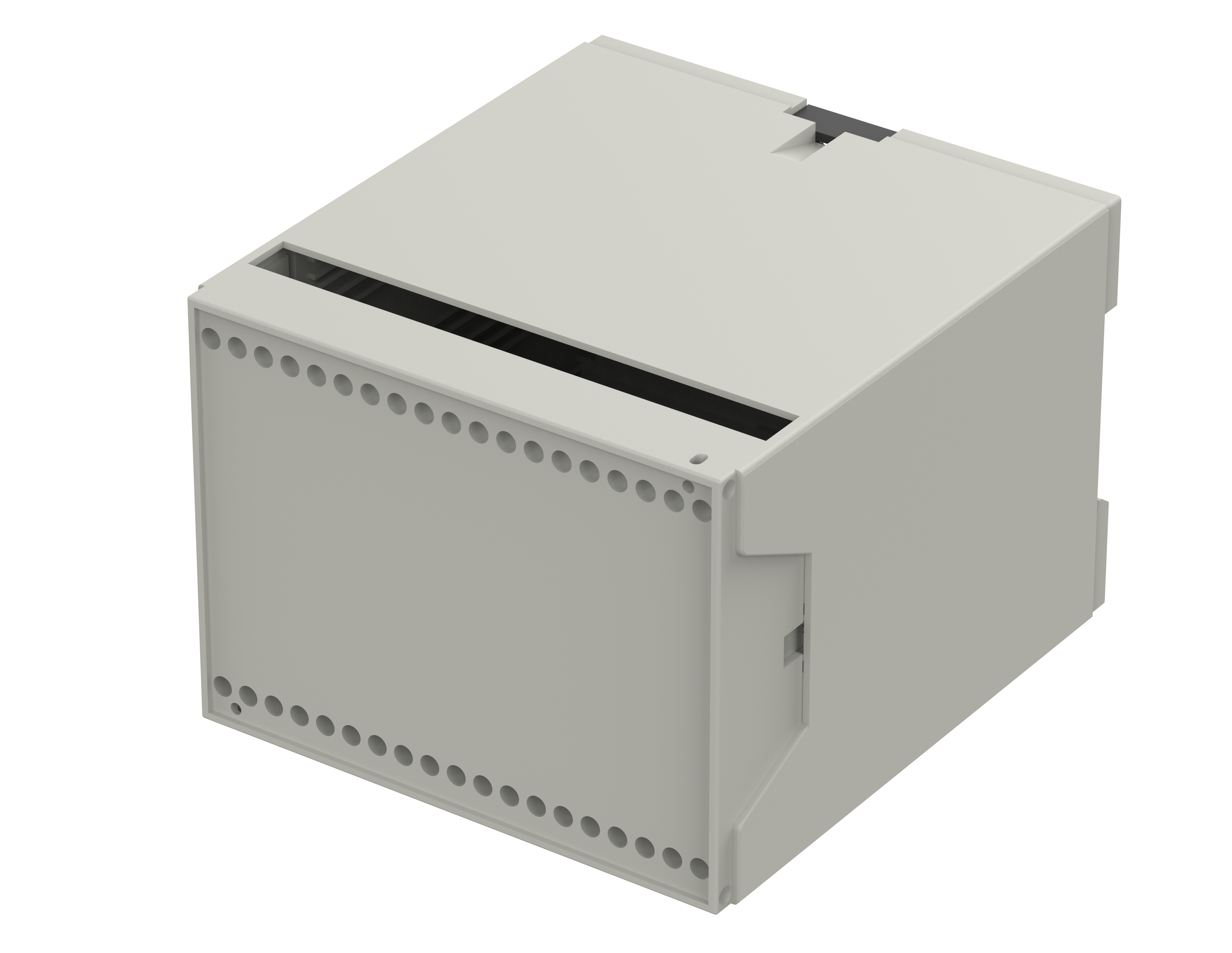

CombiNorm-Classic DIN Rail Enclosure ABS (acrylonitrile butadiene styrene) 100mmx94,5mmx72mm gray
