HomeProductsEnclosuresEnclosuresEUROMAS01125000

01125000

Bopla EUROMAS Small housing 160mm x 160mm x 91mm silver IP66

Image similar
Manufacturer Part No.
01125000
Schukat Part No.
ETA125
Manufacturer
Bopla
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

11 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Small housing
Assembly Type
Screw mounting

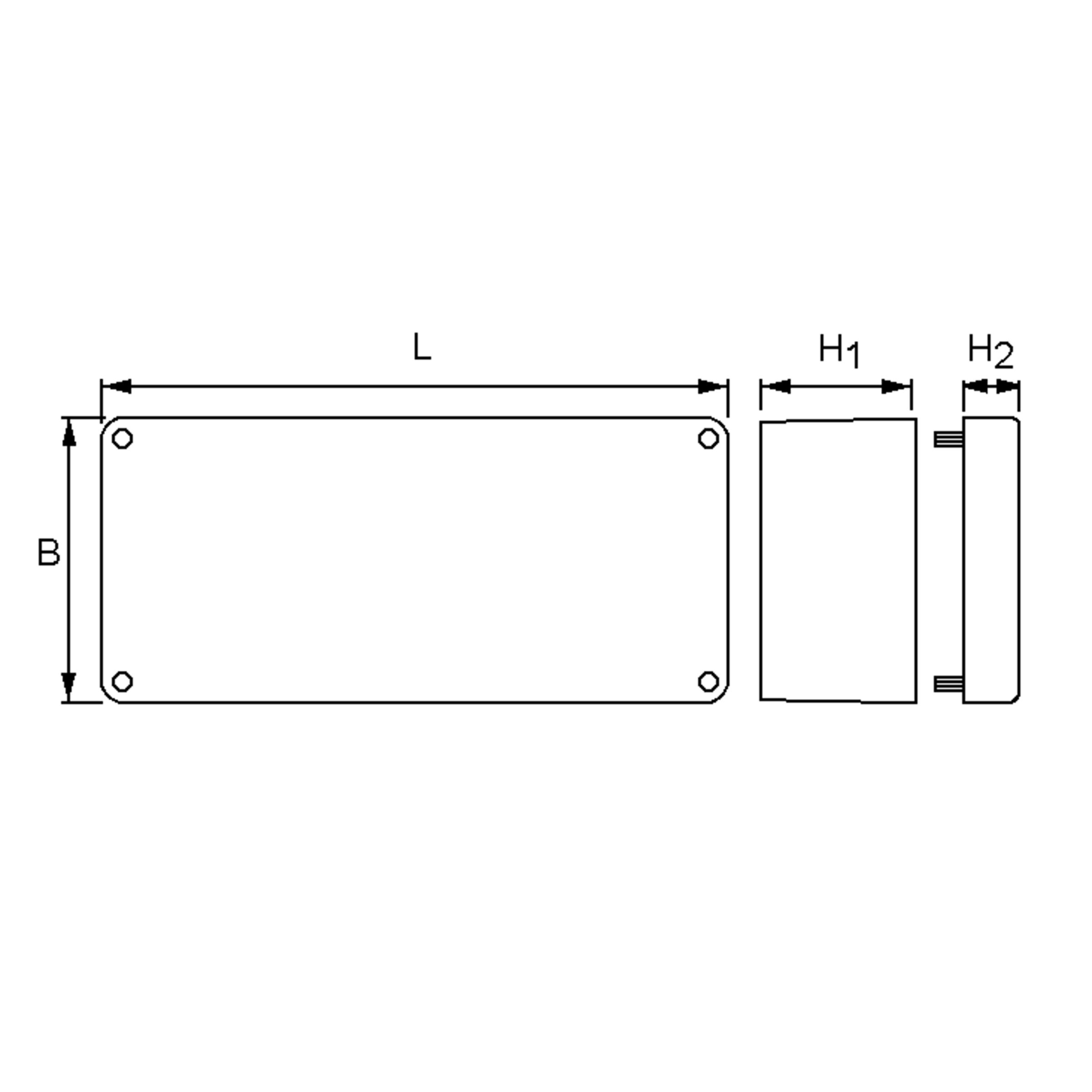

Dimension: Length
160 mm
Dimension: Width
160 mm
Dimension: Height
91 mm
Type ( axial, radial )
Seal
Colour
silver
Material
Aluminum
Protection Class IP
IP66
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Bopla
Series
  • EUROMAS
Material
  • Aluminum
Colour
  • silver
Type
  • Small housing
Assembly Type
  • Screw mounting
Type ( axial, radial )
  • Seal
Features

  • - Dust proof, jet water-protected aluminum die-cast metal enclosure

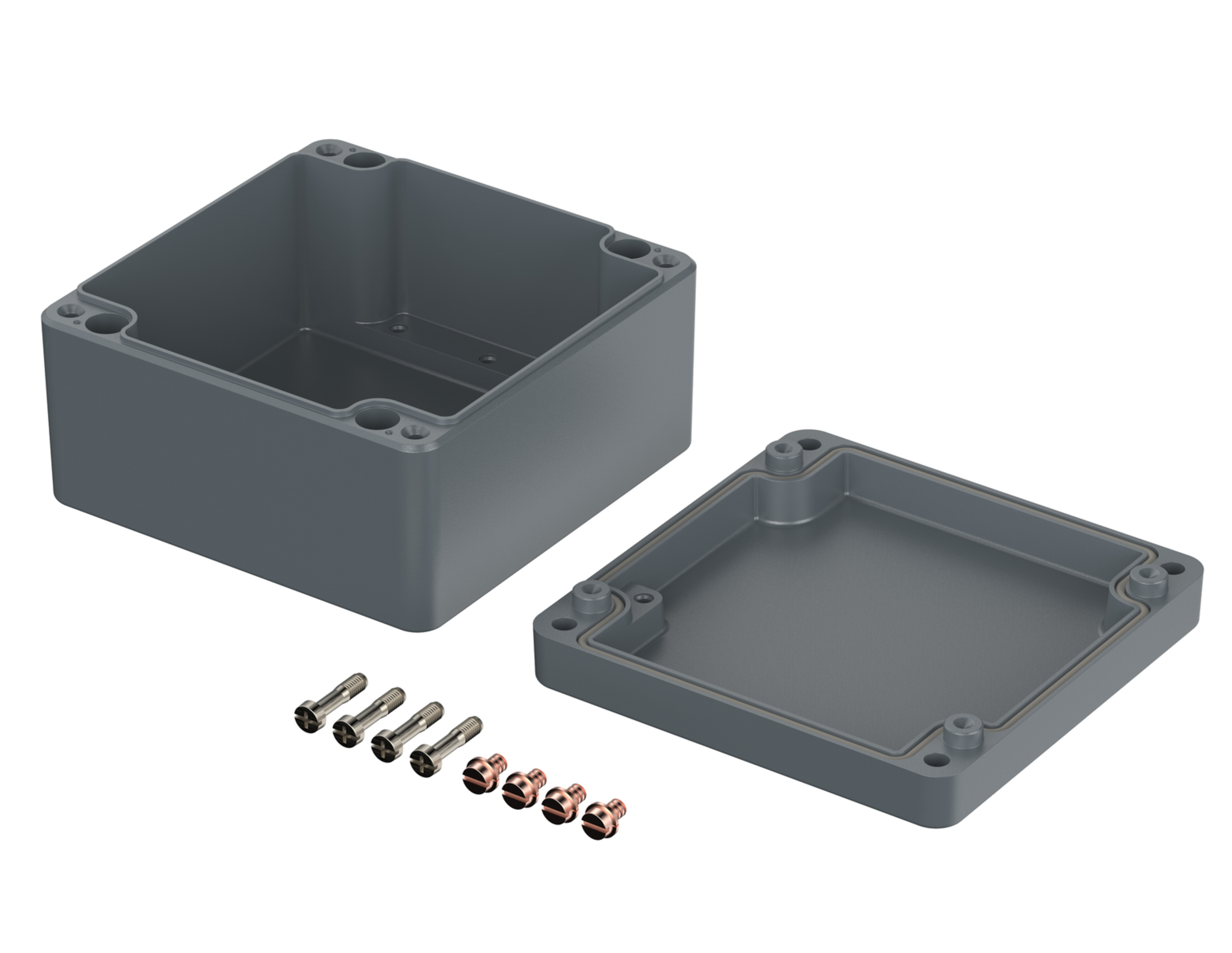

    - With integrated sealed cover and stainless steel countersunk screws
    - Recommended for all regular clamping types and also as clamping enclosures due to the assembly of cams in the lower surface of the enclosure.
    - Offset assembly cams make the attachment of plates without pre-drilling possible.
    - Cams with lateral mounting rails contribute to a secure levitation rail attachment.
    - Cams are additionally attached to the inner surface of the cover.
    - All assembly cams are appropriate for machine screws.
    - Also suitable for wall assembly

Dimensions and weights

Dimension: Length
  • 160 mm
Dimension: Width
  • 160 mm
Dimension: Height
  • 91 mm

Safety/Certifications

Protection Class IP
  • IP66

Documents

Euromas_Aluminium_F05_DE.pdf
Download (pdf, 304 KB)
Euromas_Aluminium_F05_DE.pdf
Download (pdf, 304 KB)

Other Products

All Products of the Series

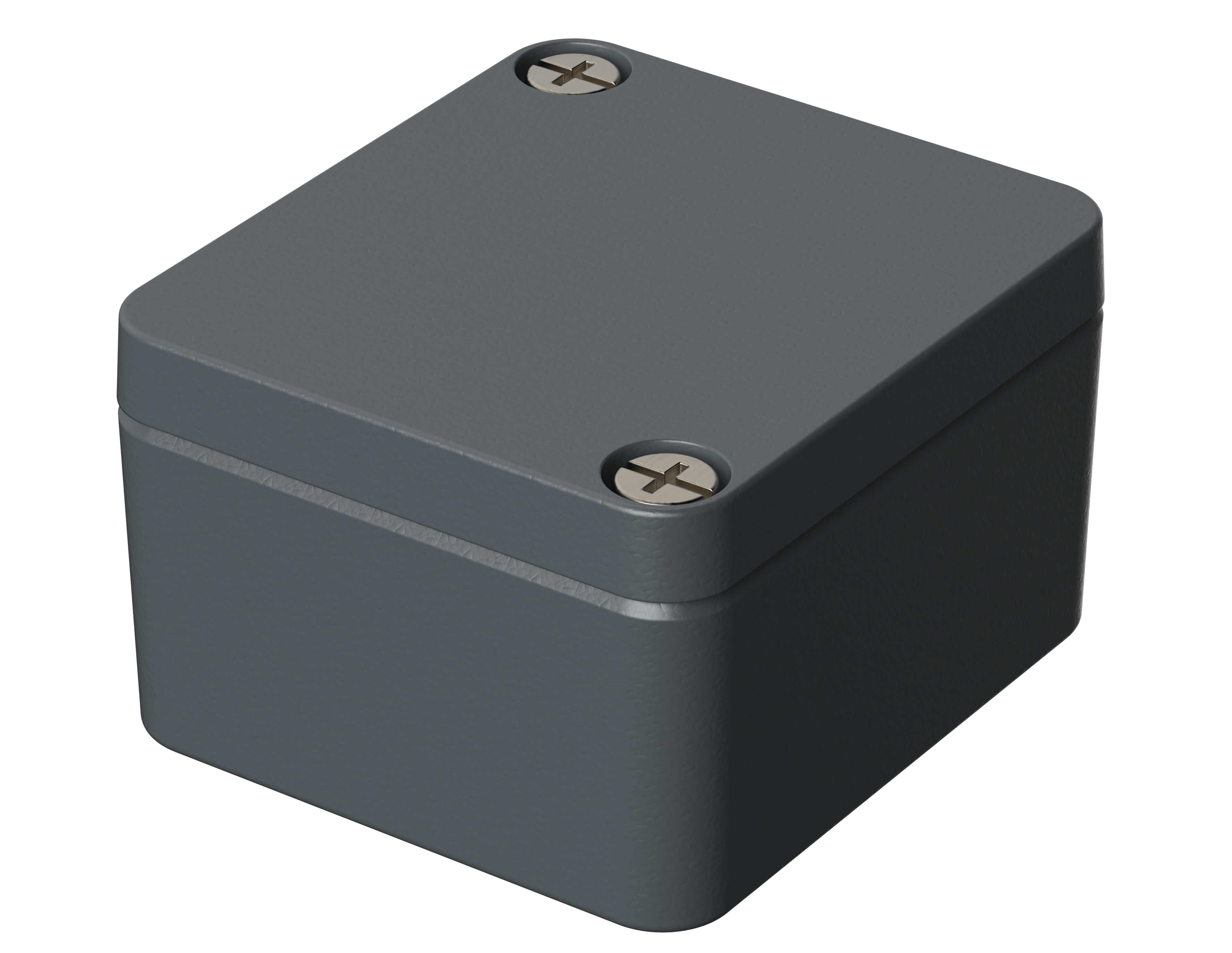

01100000
Bopla
EUROMAS Small housing 50mm x 45mm x 30mm silver IP66
from €8.42
TOP

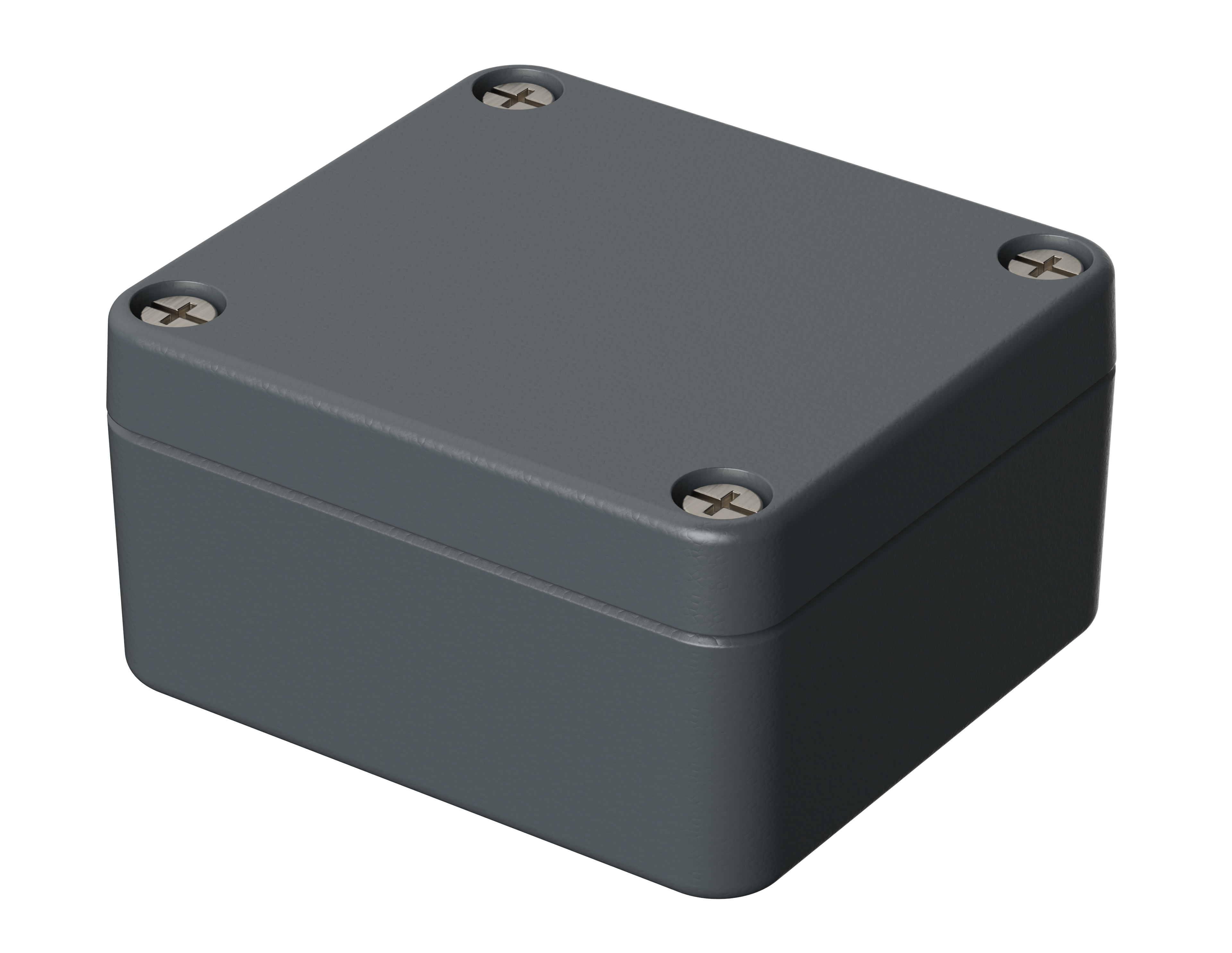

01101000
Bopla

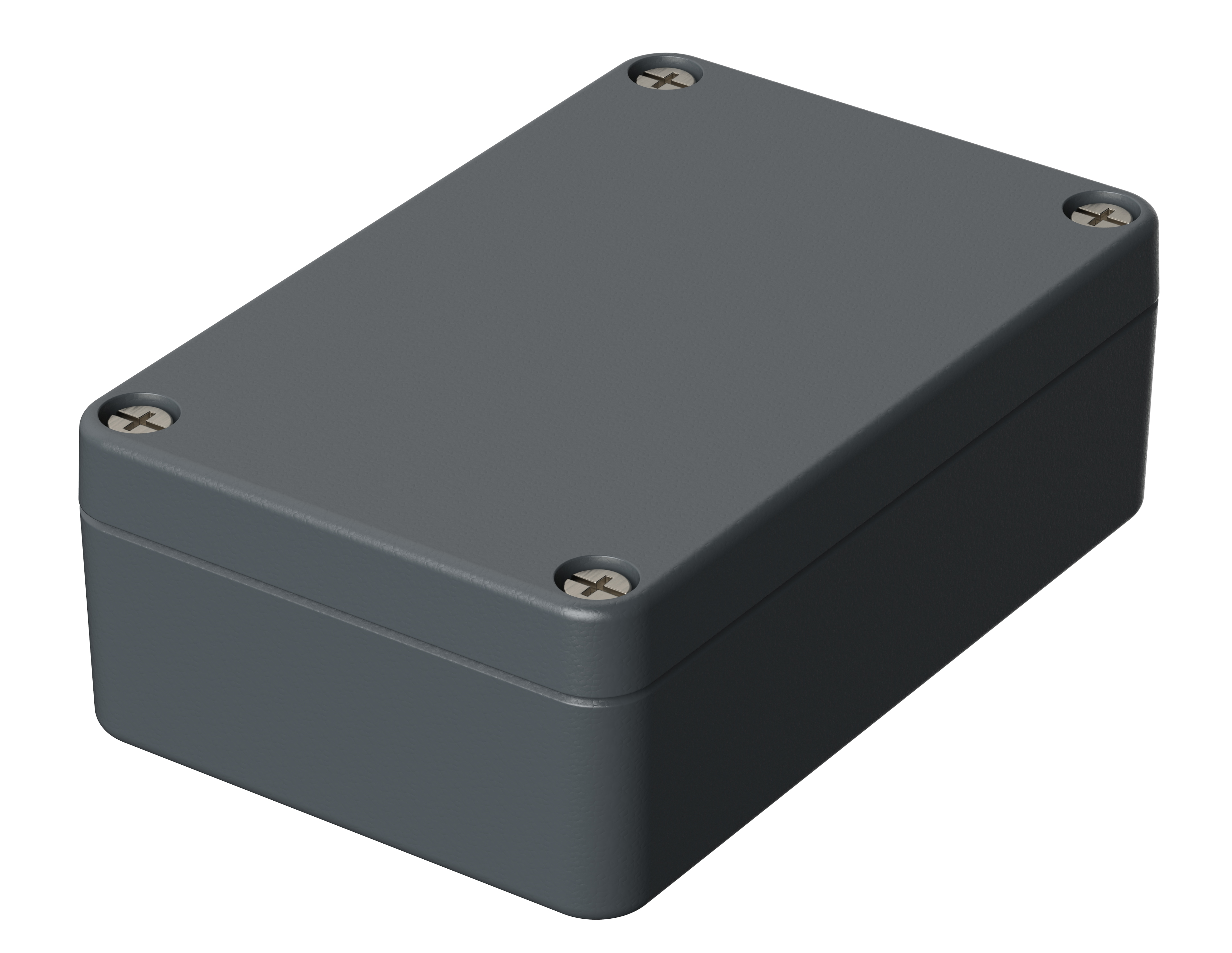

EUROMAS Small housing 58mm x 64mm x 34mm silver IP66
from €11.97
01102000
Bopla
EUROMAS Small housing 98mm x 64mm x 34mm silver IP66
from €14.03

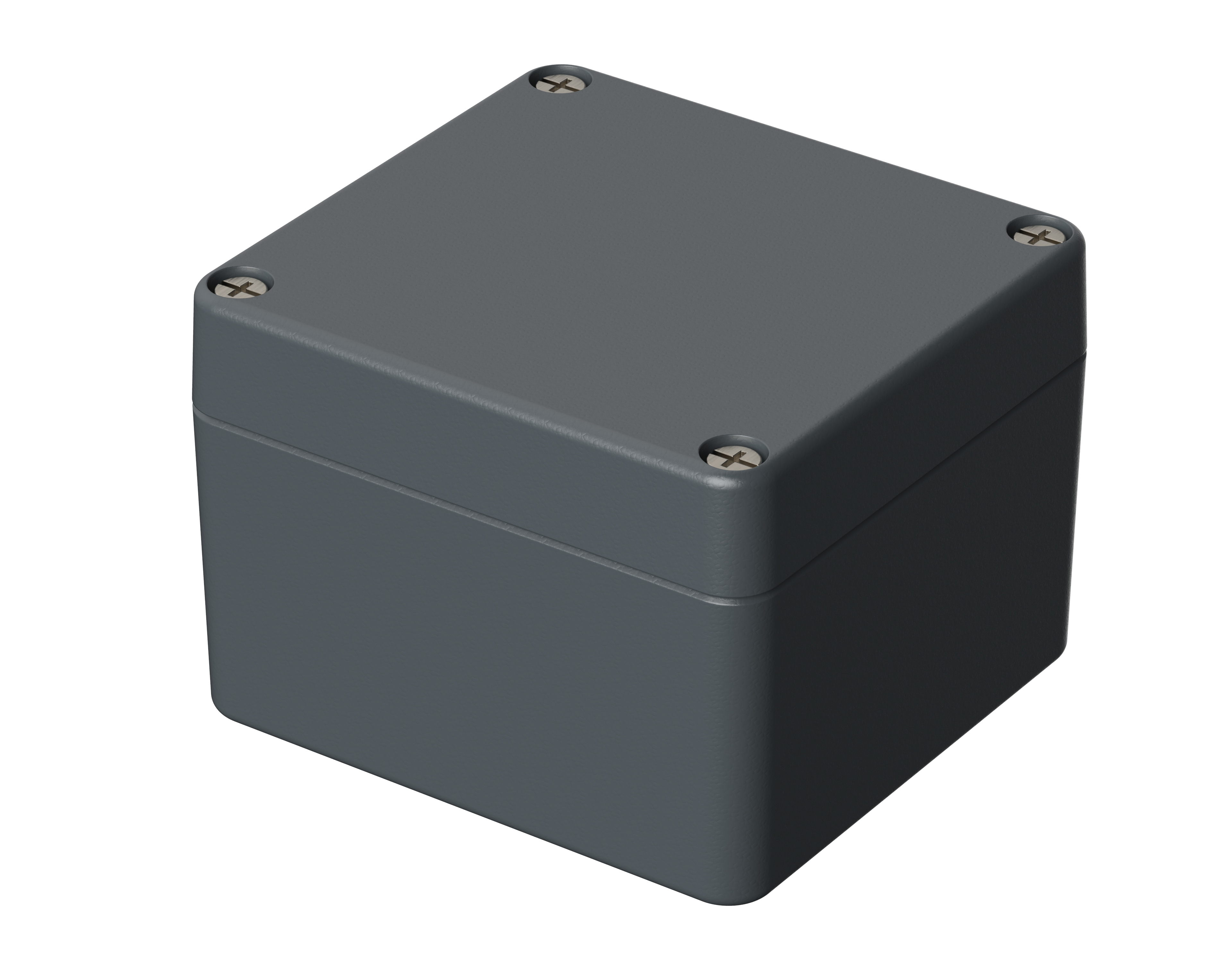

01105000
Bopla
EUROMAS Small housing 75mm x 80mm x 57mm silver IP66
from €15.42

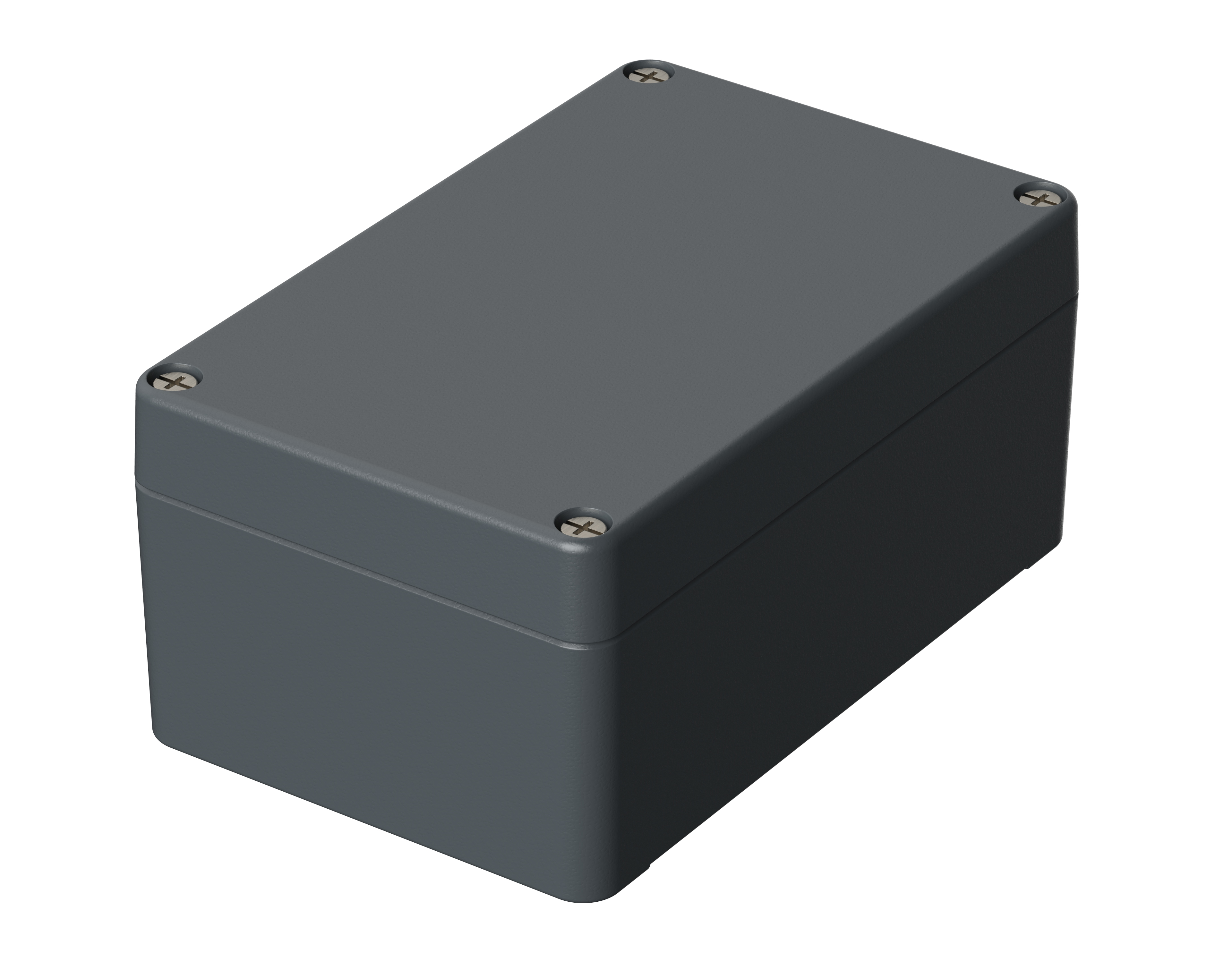

01110000
Bopla
EUROMAS Small housing 125mm x 80mm x 57mm silver IP66
from €22.15

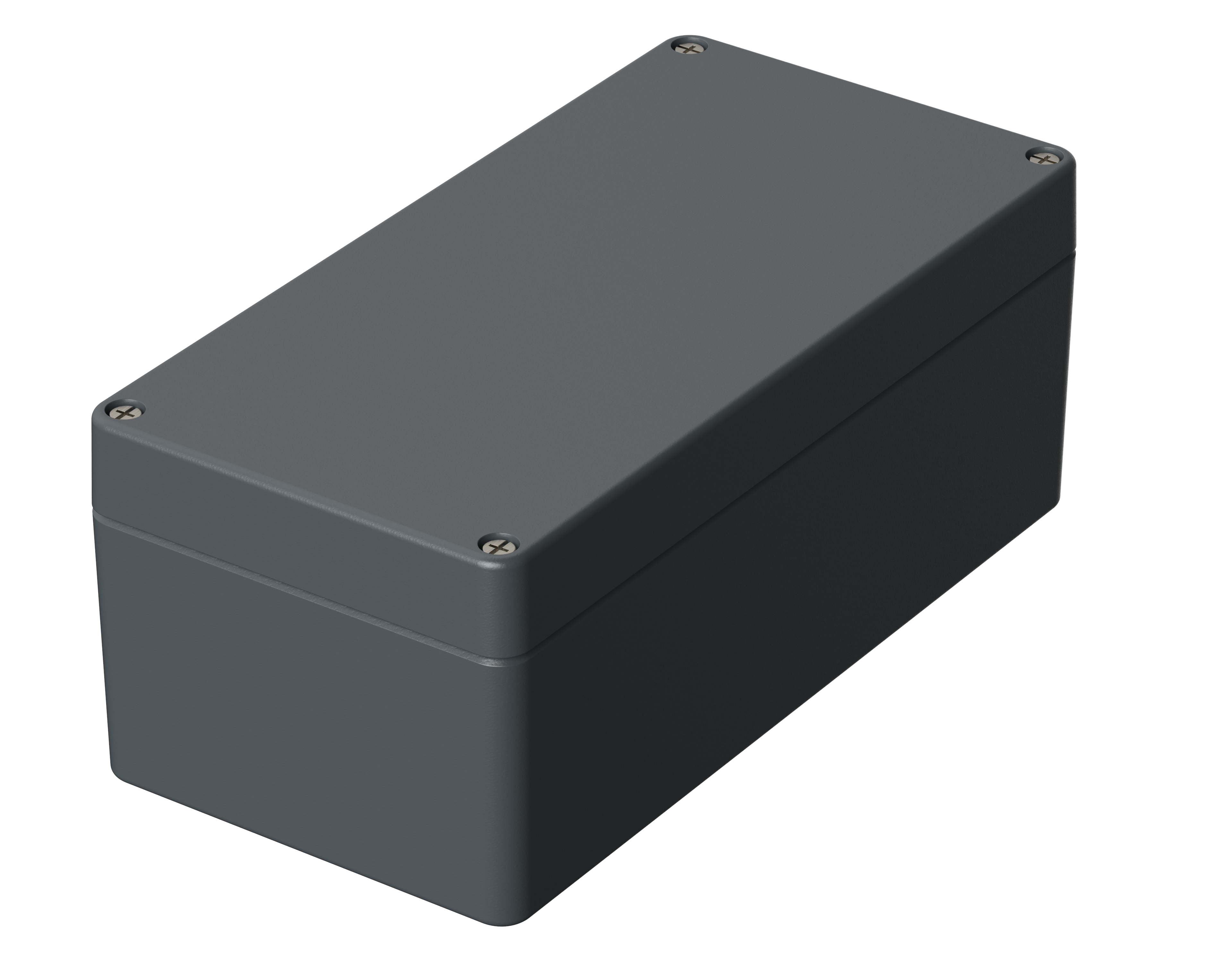

01114000
Bopla
EUROMAS Small housing 200mm x 100mm x 81mm silver IP66
from €39.15
01115000
Bopla

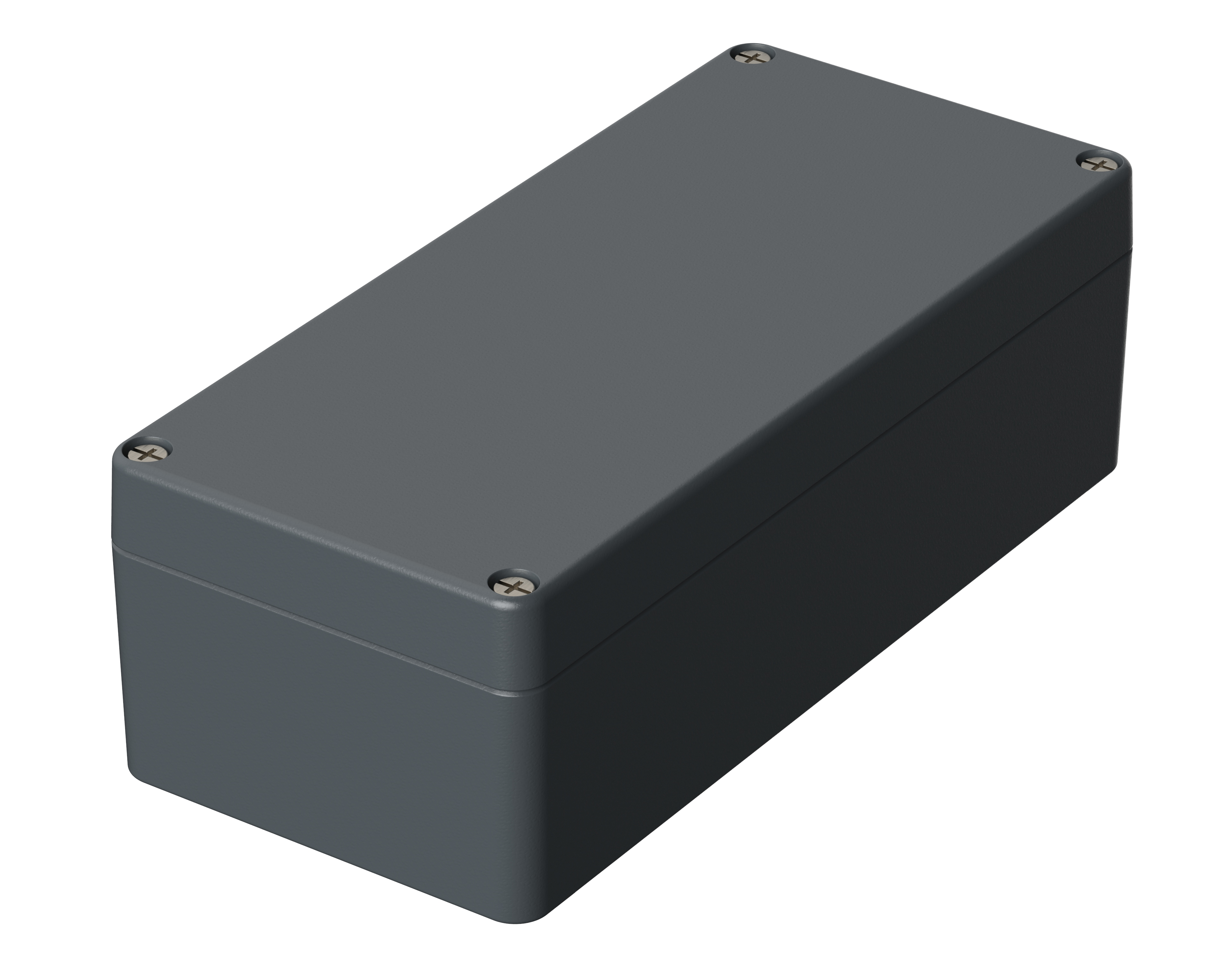

EUROMAS Small housing 175mm x 80mm x 57mm silver IP66
from €25.71
01118000
Bopla

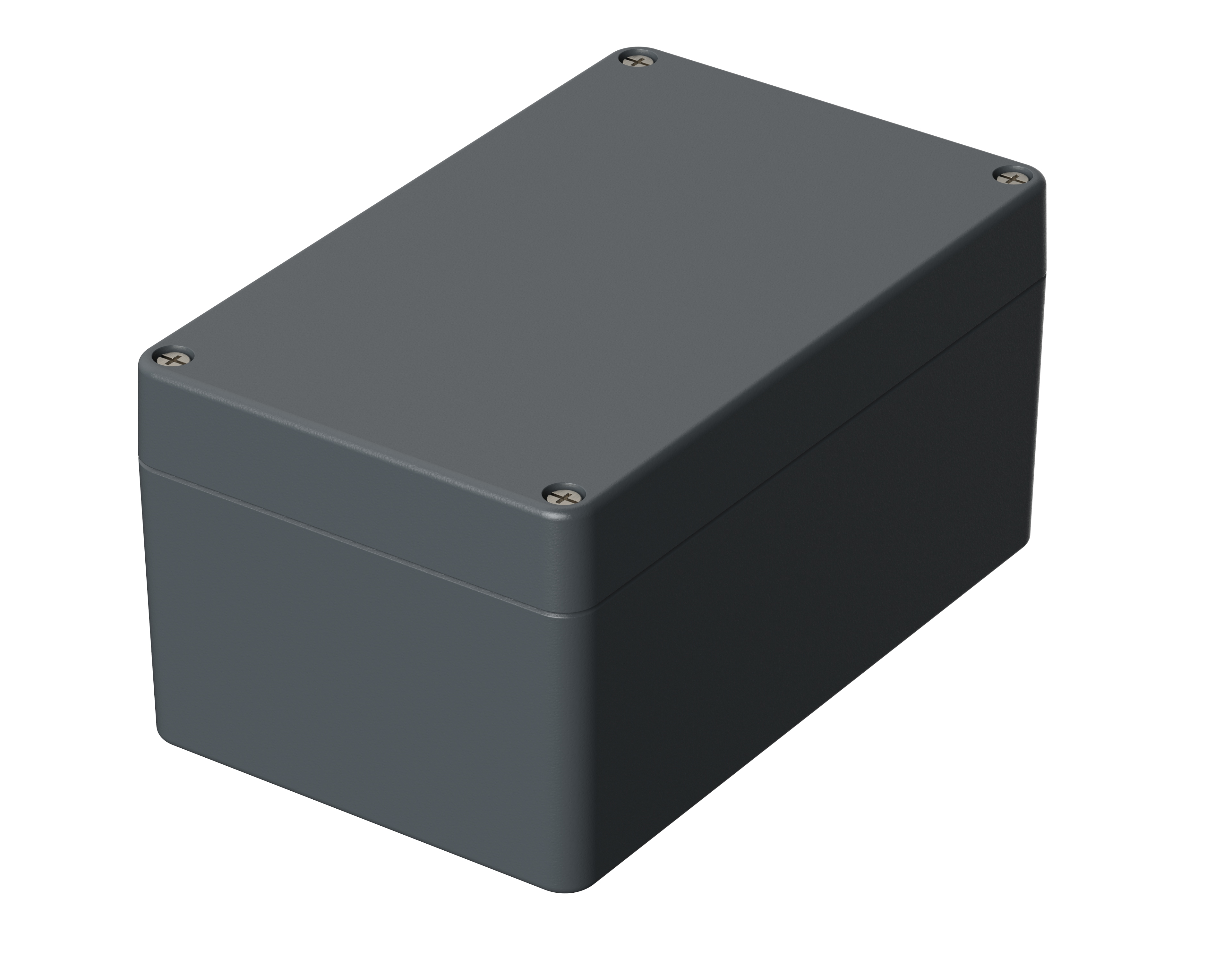

EUROMAS Small housing 160mm x 100mm x 81mm silver IP66
