99 0437 24 05

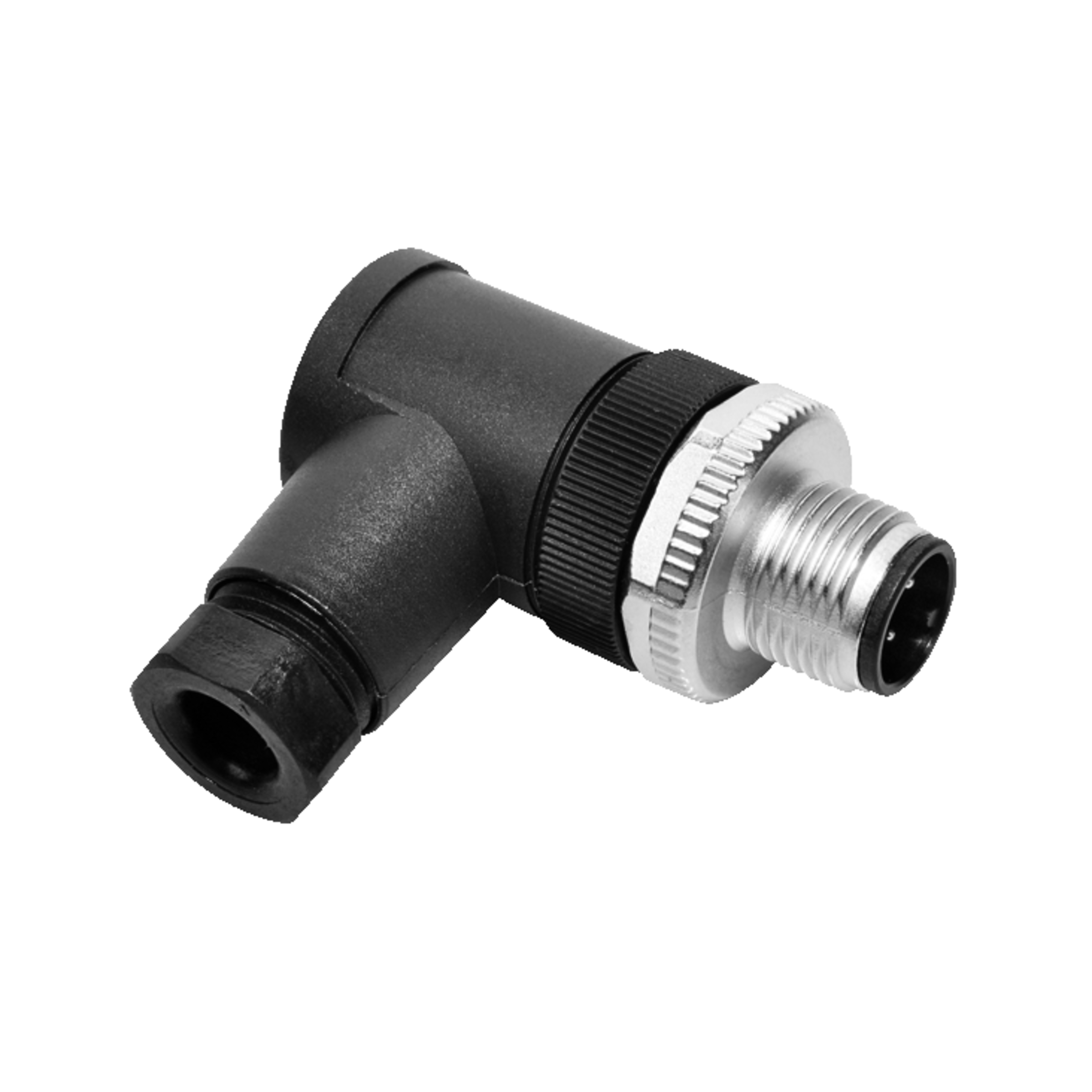

Binder M12 713 5pol.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 713
- Labeling or description
- M12 713
- Colour
- black
- Number of poles
- 5
- Dimension: Length
- 41 mm
- Rated current
- 4 A
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

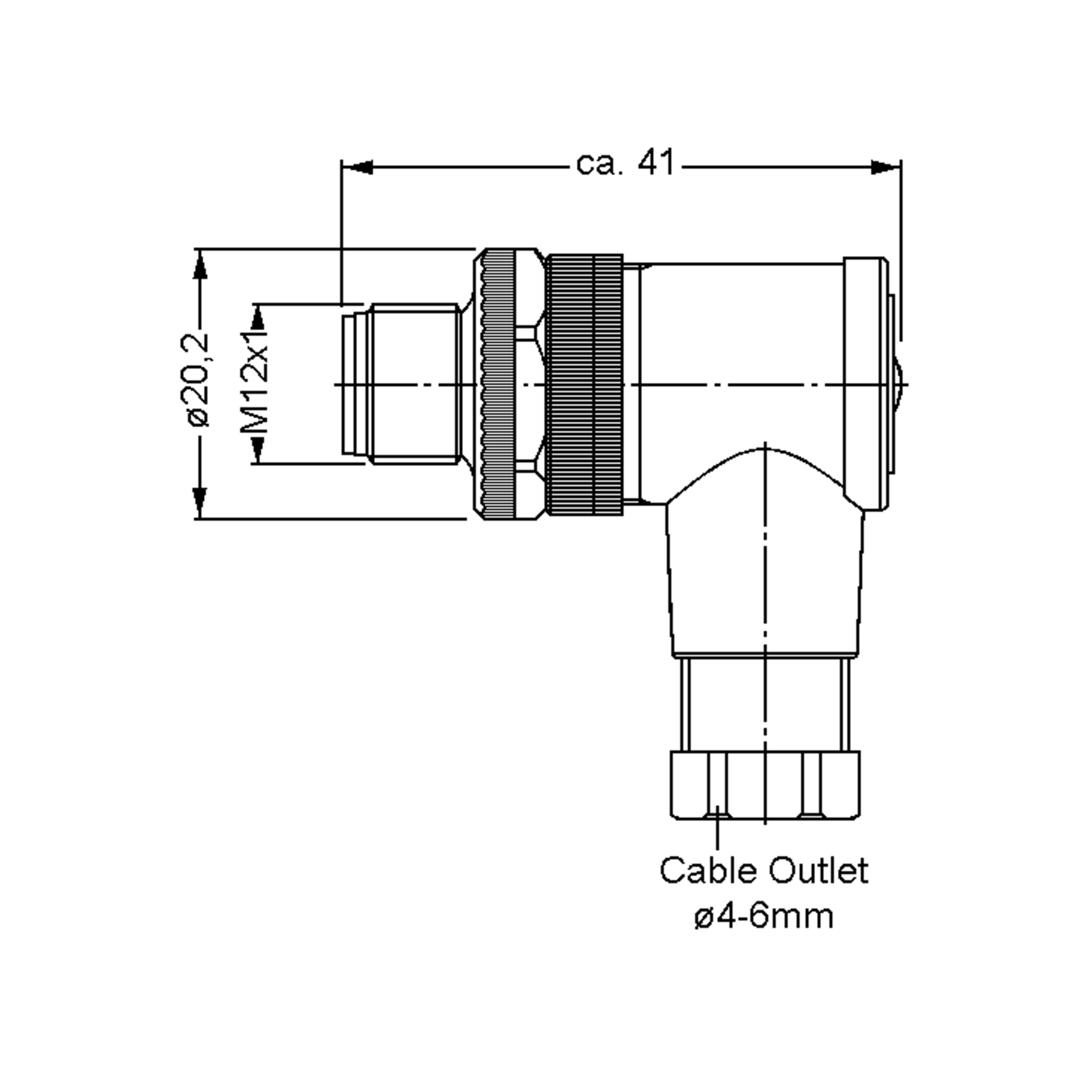

Dimensions and weights
- Dimension: Length
- 41 mm
- Diameter
- 20.2 mm
- Cable diameter, min.
- 4 mm
- Cable diameter, max.
- 6 mm
- Conductor cross-section (AWG), max.
- 18 AWG
- Conductor cross-section, max.
- 0.75 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated current
- 4 A
- Breakdown voltage
- 1,500 V RMS / min.
- Contact resistance
- 8 MOhm
Mechanical features
- Durability
- 50
- Insulating body
- PA
- Kontaktbeschichtung Eingang
- CuSnZn (Optalloy)
