09 0132 00 12

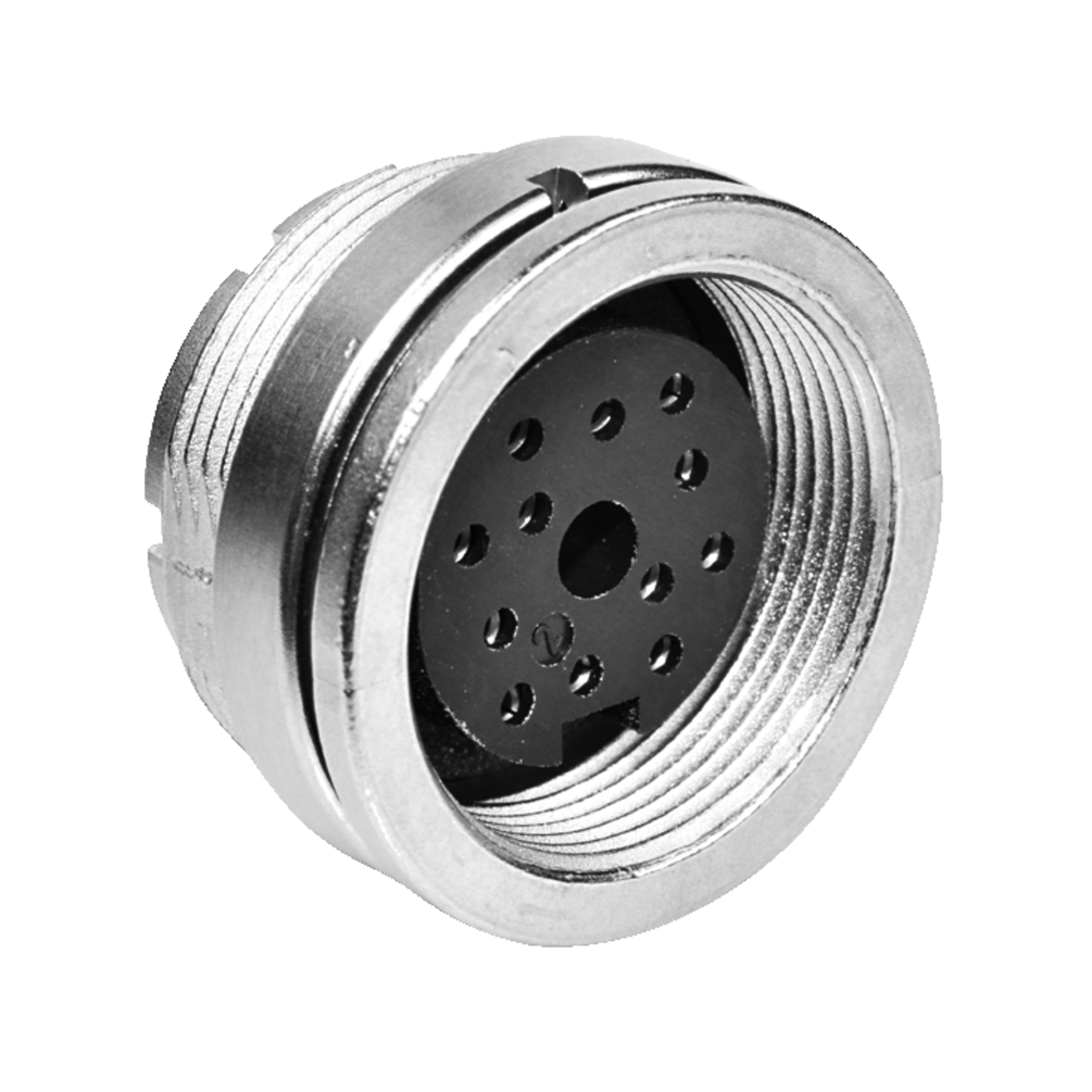

Binder M16 plug connector 723 Panel M16 Screw round straight 12 Pole Solder shielded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- M16 plug connector
- Connector Contact
- Solder
- Series
- 723
- Housing material
- Zinc Die-Cast, nickel-plated
- Housing
- round
- Design
- Panel
- Insulating body
- Polybutylenterephthalat (PBT)
- Number of poles
- 12
- Standards
- DIN EN 61076-2-106
- Contact Type
- M16
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- IP Protection Class Front Side
- IP67
- Locking Type
- Screw
- Operating Temperature Max.
- 95 °C
- Rated voltage AC
- 60 V AC
- Rated current
- 3 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

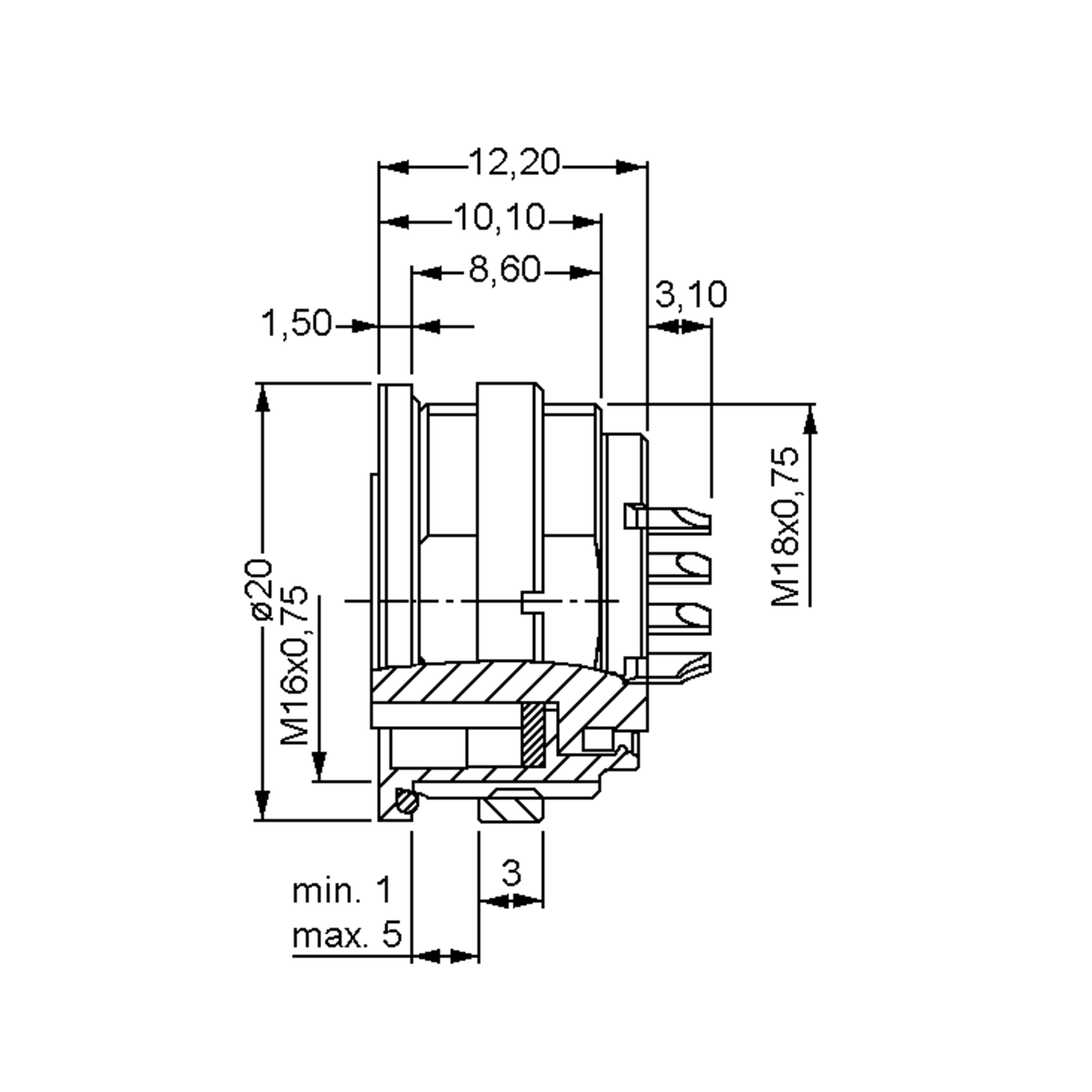

Dimensions and Weights
- Dimension: Length
- 11.7 mm
- Diameter
- 20 mm
- Conductor cross-section (AWG), max.
- 24 AWG
- Conductor cross-section, max.
- 0.25 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 95 °C
Technical Features
- Rated current
- 3 A
- Rated voltage AC
- 60 V AC
- Breakdown voltage
- 500 V RMS / min.
- Contact resistance
- 5 MOhm
Mechanical Features
- Durability
- 500
- Housing material
- Zinc Die-Cast, nickel-plated
- Insulating body
- Polybutylenterephthalat (PBT)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Approvals
- UL
- Standards
- DIN EN 61076-2-106
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP67
- IP Class Connection Side
- IP67
