906-2-008-X-KS0A09

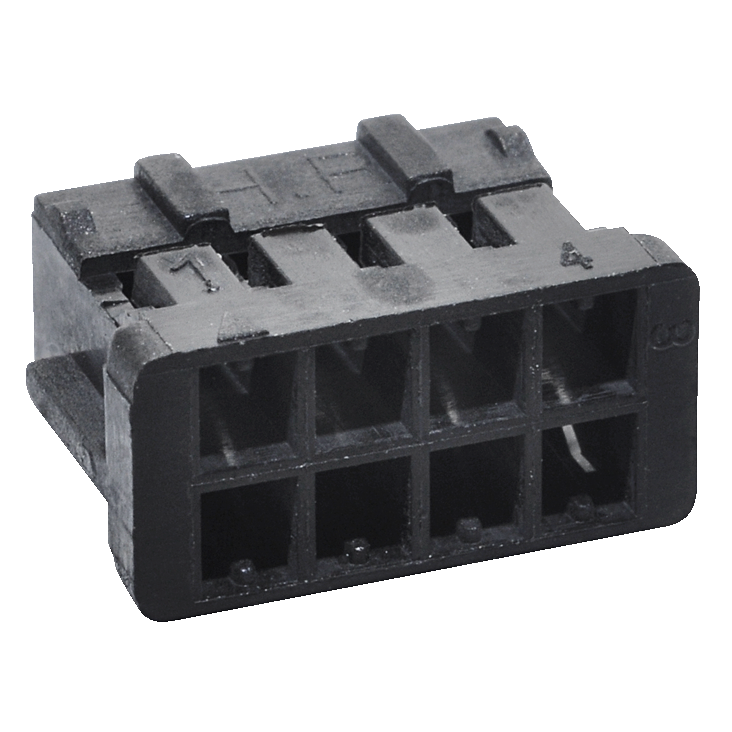

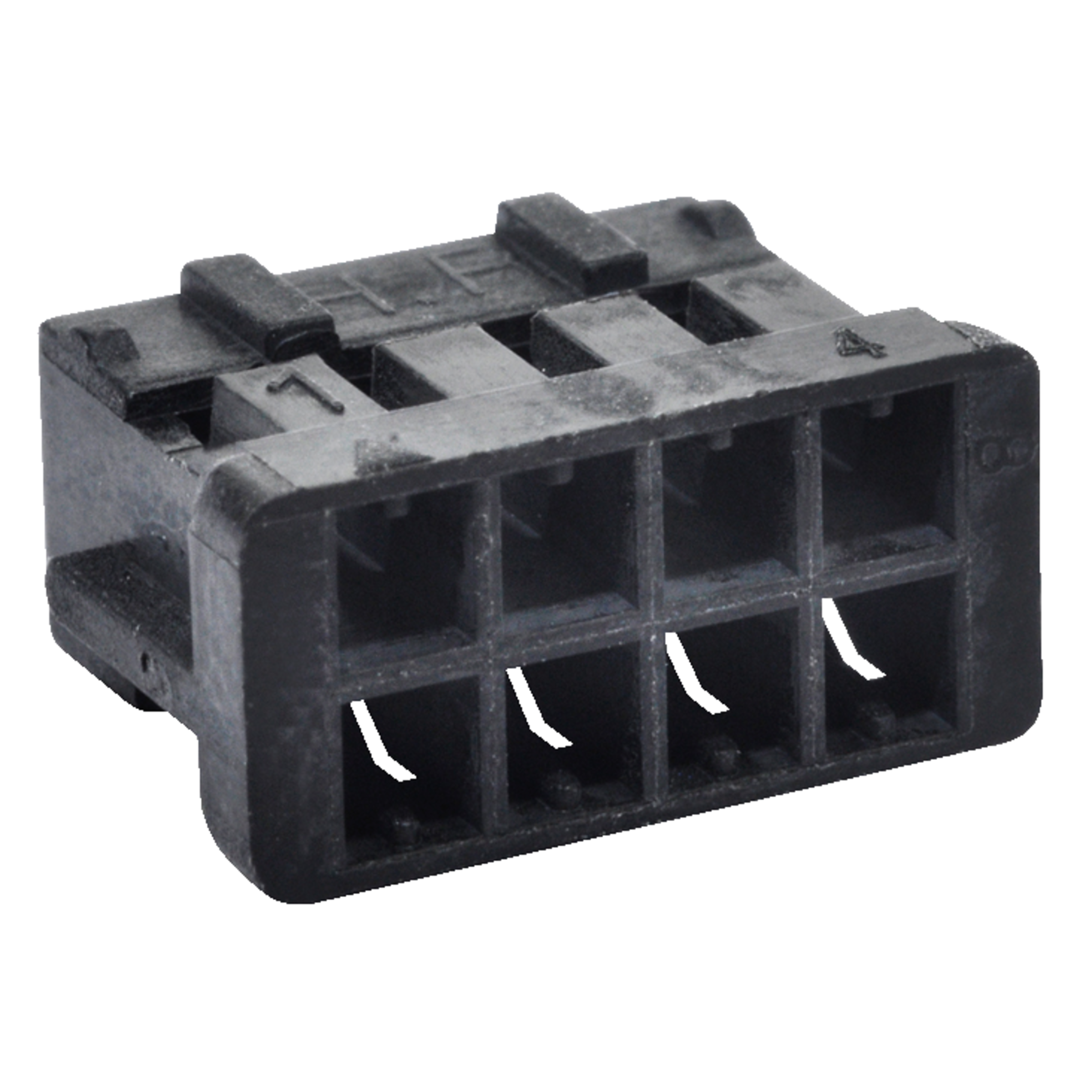

Binder MPE Socket housing BLC22 906 Latching lug 2-row 8 Pole Pitch2mm UL 94 V-0 verzinnt Crimp
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.500 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 06.06.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket housing
- Connector Contact
- Crimp
- Series
- BLC22
- Housing material
- Thermoplast (TP)
- Housing
- 2-row
- Design
- Housing
- Number of poles
- 8
- Pitch
- 2 mm
- Class of Inflammability
- UL 94 V-0
- Locking Type
- Latching lug
- Operating Temperature Max.
- 105 °C
- Rated current
- 1.5 A
- Rated voltage DC
- 150 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Pitch
- 2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 1.5 A
- Rated voltage DC
- 150 V DC
Mechanical Features
- Housing material
- Thermoplast (TP)
- Contact Surface Input
- verzinnt
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
