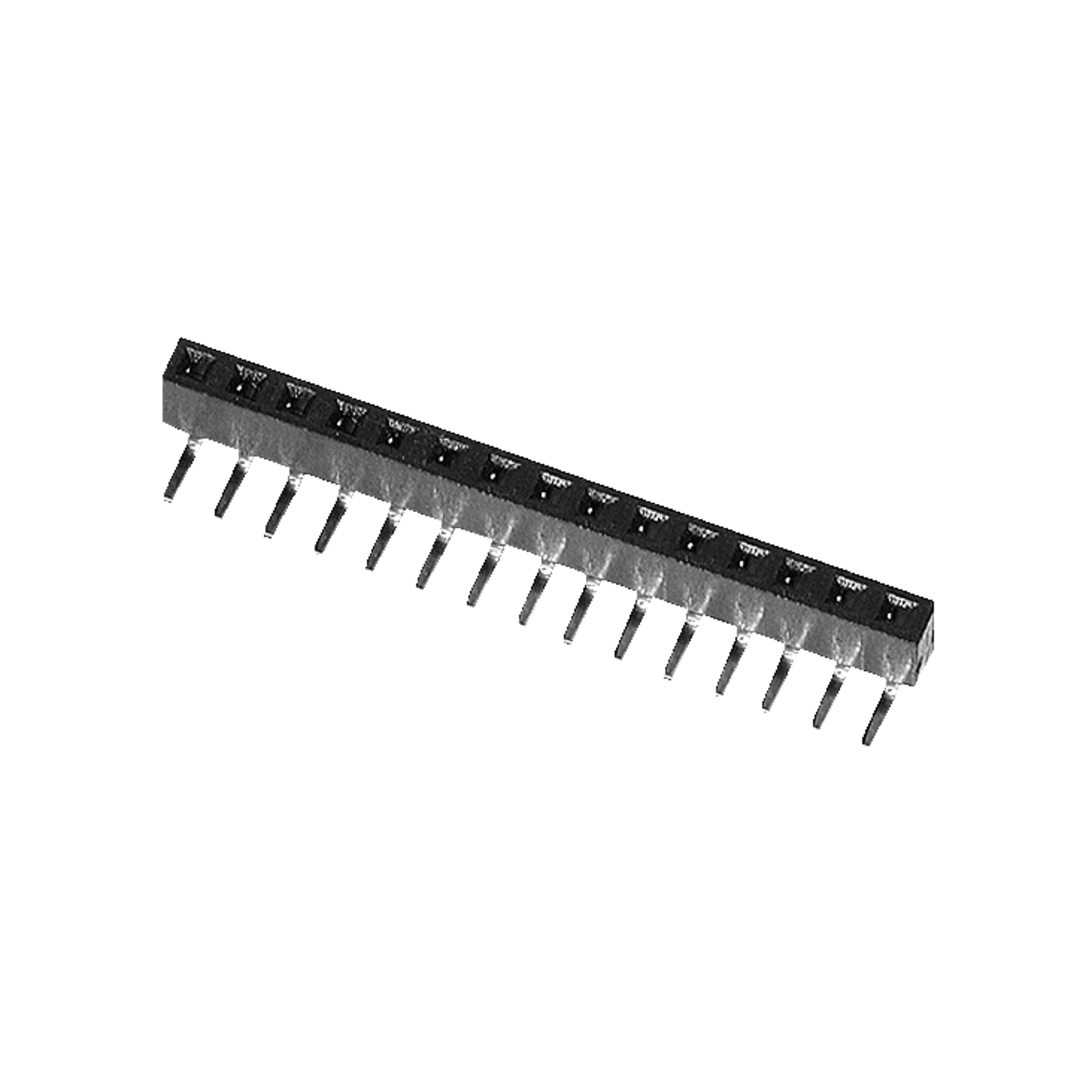

Binder MPE Socket connector 904-1 Socket Header 1-row 90° 5 Pole Pitch2,54mm black vergoldet
Manufacturer Part No.
904-1-005-0-NFX-XS0-0-0-0-0A06
Schukat Part No.
BLW5005G
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.468 Pcs. in stock
Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 48 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 8 or multiple of 8)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket connector
- Series
- 904-1
- Colour
- black
- Housing material
- High Temperature Thermoplast (TP)
- Housing
- 1-row
- Design
- Header
- Number of poles
- 5
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- 90°
- Operating Temperature Max.
- 105 °C
- Rated current
- 3 A
- Rated voltage DC
- 150 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

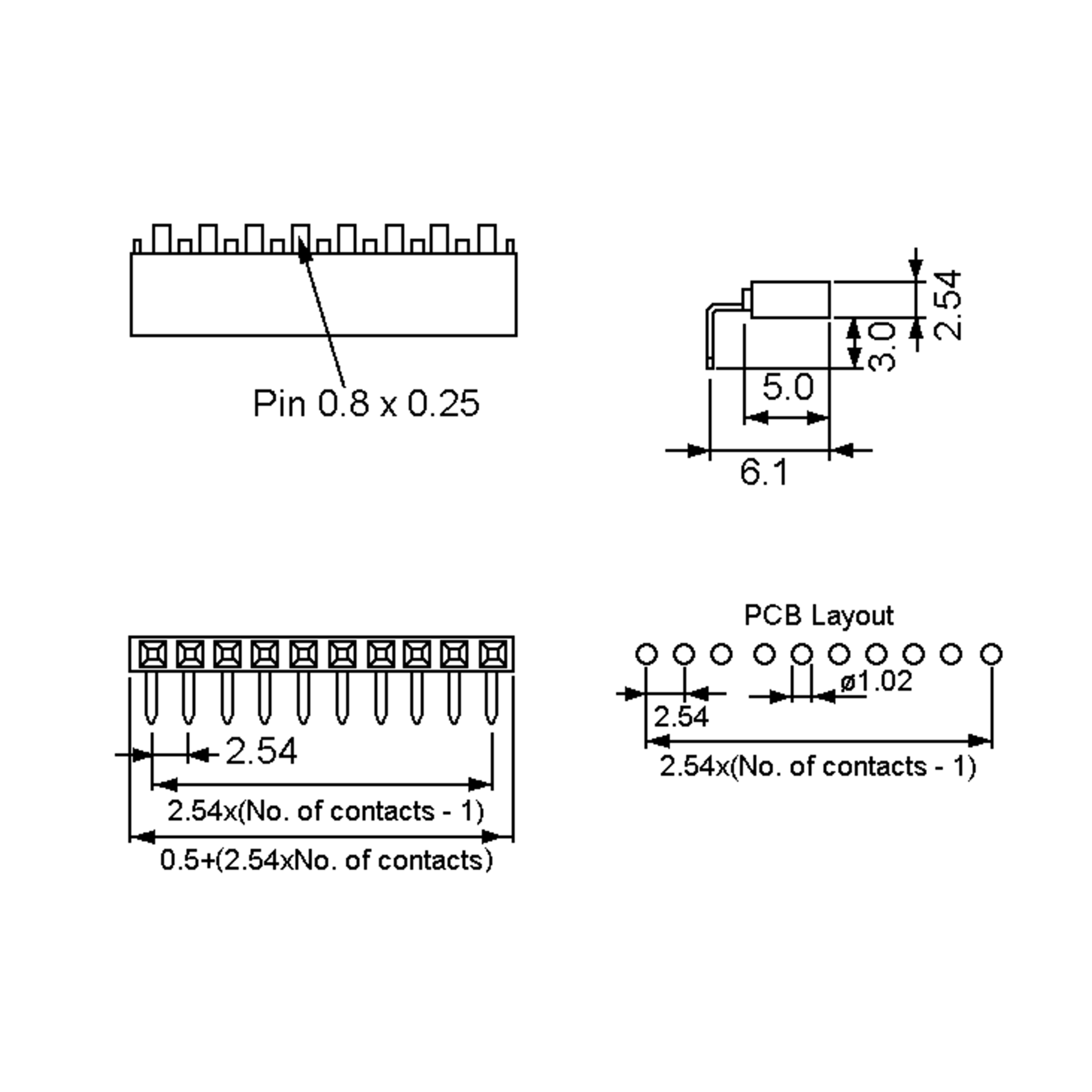

Dimensions and Weights
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 5.54 mm
- Dimension: Depth
- 6.1 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 3 A
- Rated voltage DC
- 150 V DC
- Solderability
- 260 °C / 10 s °C / s
- Dielectric strength
- 500 V RMS
Mechanical Features
- Housing material
- High Temperature Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0

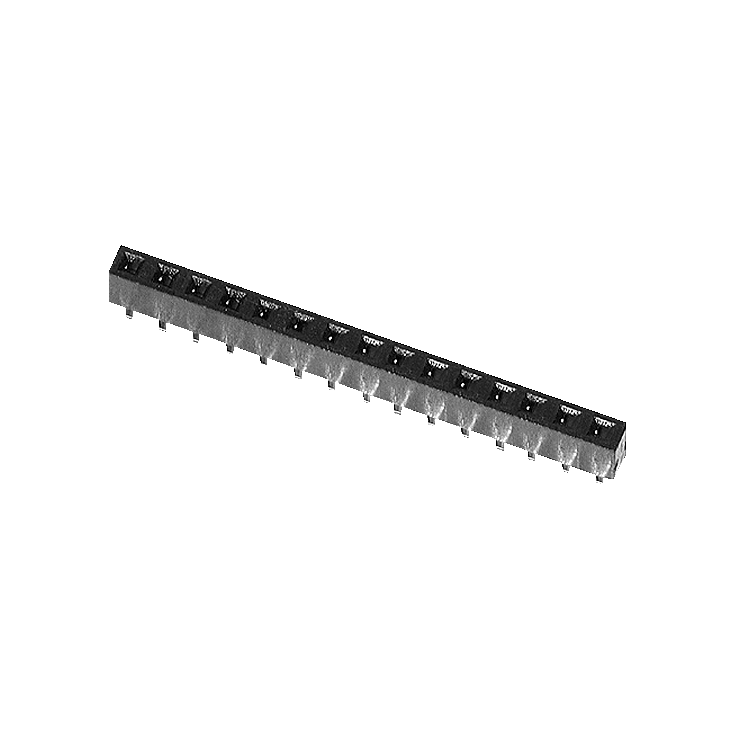

Other Products
