719-4-S-XR0

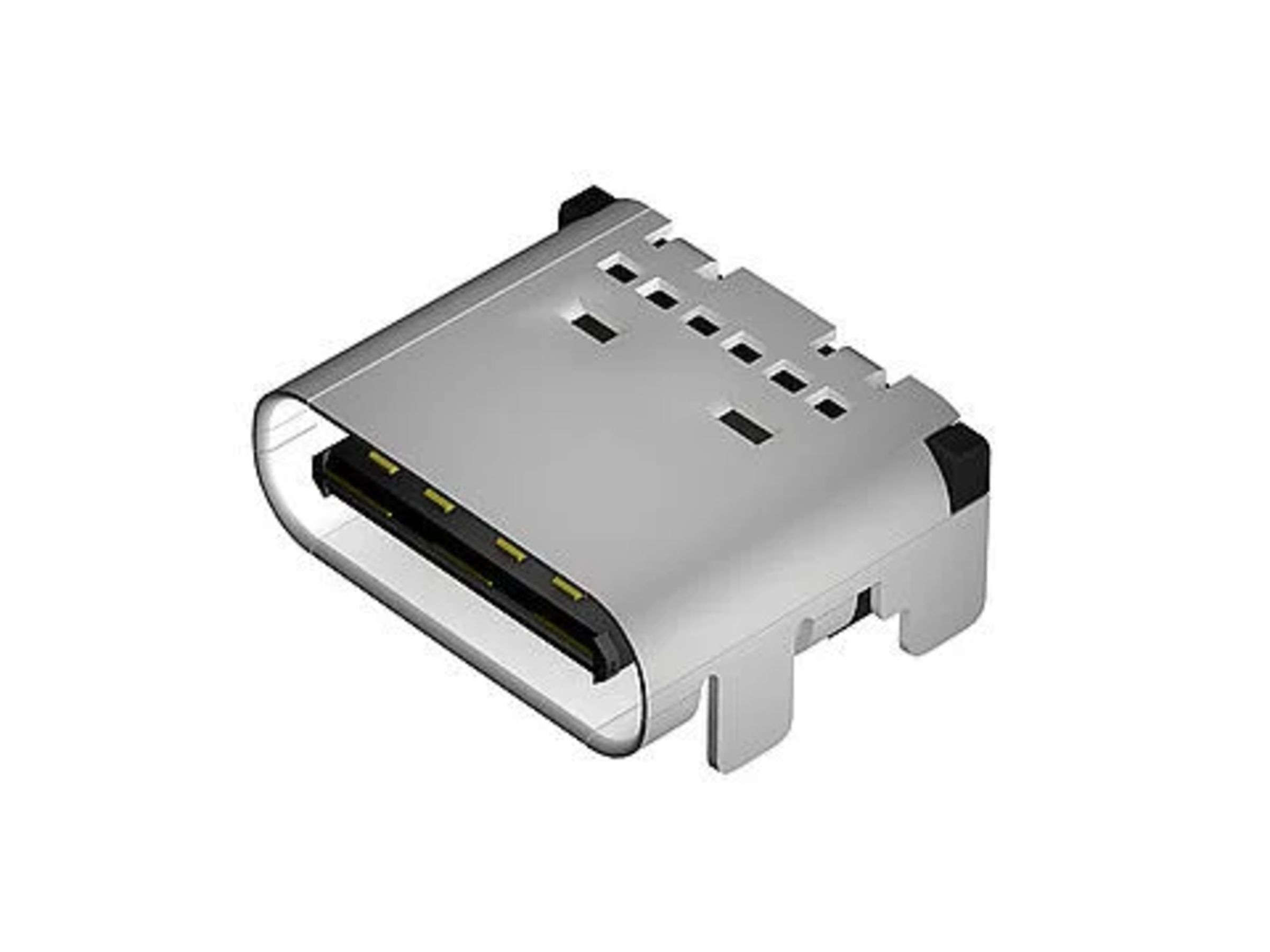

Binder MPE Plug 719-4 PCB Plug rectangular 90° Solder USB 3.1 8,94mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 900 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10800 or multiple of 10800)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Plug
- Connector Contact
- Solder
- Series
- 719-4
- Housing
- rectangular
- Design
- PCB
- Insulating body
- High Temperature Thermoplast (TP)
- Contact Type
- USB C
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- 90°
- Operating Temperature Max.
- 85 °C
- Rated current
- 5 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

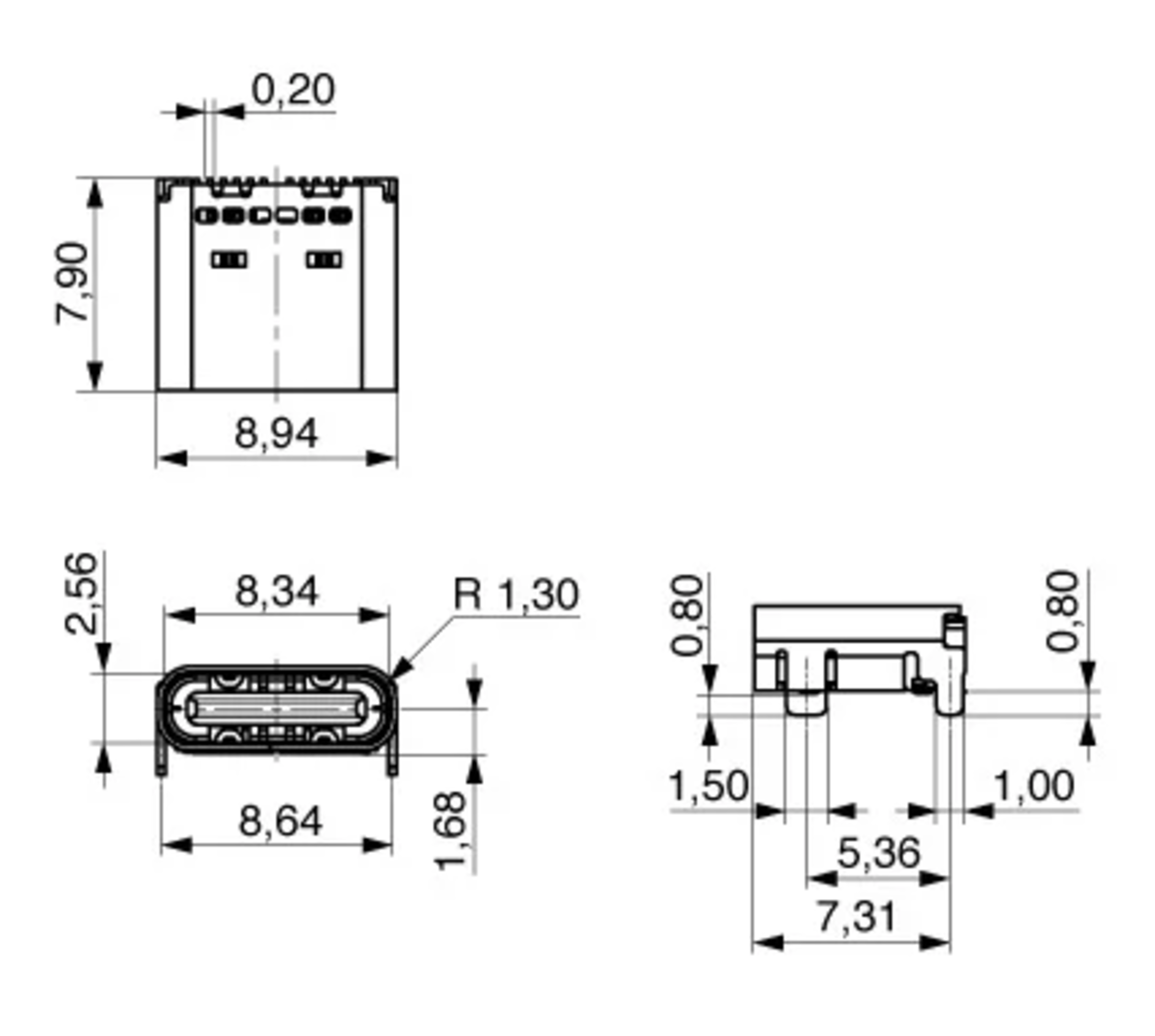

Dimensions and Weights
- Dimension: Length
- 8.94 mm
- Dimension: Width
- 7.9 mm
- Dimension: Height
- 3.46 mm
- Height (incl. pins)
- 4.26 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 5 A
- Breakdown voltage
- 100 V RMS / min.
- Solderability
- 260 °C / 10 s °C / s
- Performance
- USB 3.1
- Insulation resistance
- 100 mOhm
Mechanical Features
- Durability
- 10,000
- Insertion force per contact, max.
- 20 N
- Insertion force per contact, min.
- 5 N
- Pulling force per contact, min.
- 8 N
- Pulling force per contact, max.
- 20 N
- Insulating body
- High Temperature Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
