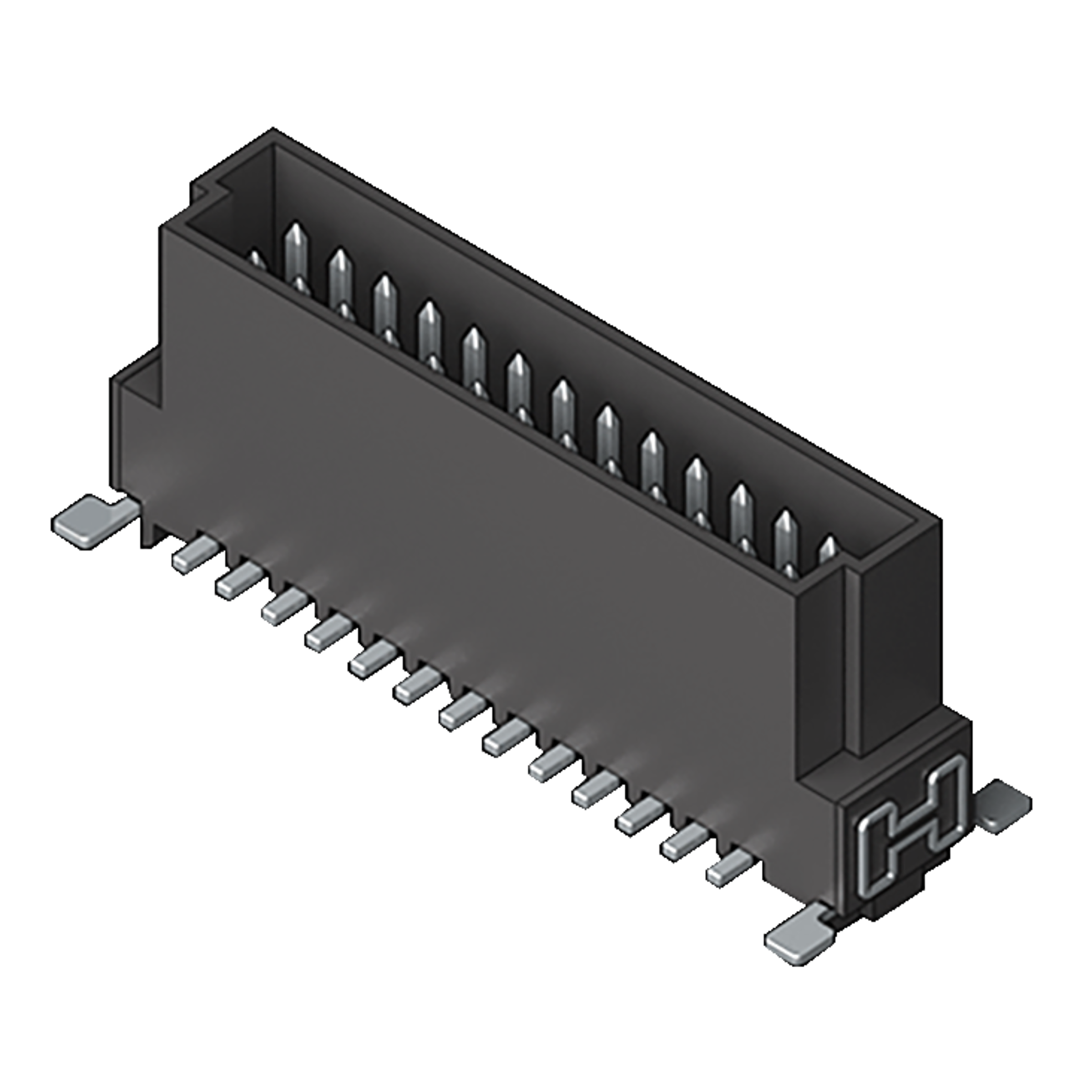

714-2-016-1-S-YT1
Binder MPE Pin header 714-2 Pin Header 2-row straight 16 Pole Pitch1,27mm black vergoldet
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
280 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 13.07.2022
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Pin header
- Connector Contact
- SMD
- Series
- 714-2
- Colour
- black
- Housing material
- High Temperature Thermoplast (TP)
- Housing
- 2-row
- Design
- Header
- Number of poles
- 16
- Pitch
- 1.27 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- Locking Type
- Latching lug
- Operating Temperature Max.
- 125 °C
- Rated current
- 1.6 A
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 15.24 mm
- Dimension: Height
- 9 mm
- Dimension: Depth
- 4.2 mm
- Pitch
- 1.27 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Rated current
- 1.6 A
- Solderability
- 260 °C / 10 s °C / s
- Dielectric strength
- 500 V RMS
Mechanical Features
- Housing material
- High Temperature Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
