706-1-037F-A00TS-BS0
Binder MPE Socket connector 706-1 27 Pole Socket Cable Latching lug straight UL 94 V-0 IDC
%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
900 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1024 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket connector
- Connector Contact
- IDC
- Series
- 706-1
- Colour
- black
- Housing
- 2-row
- Design
- Cable
- Insulating body
- Polybutylenterephthalat (PBT)
- Number of poles
- 27
- Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Locking Type
- Latching lug
- Operating Temperature Max.
- 105 °C
- Rated current
- 3 A
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all

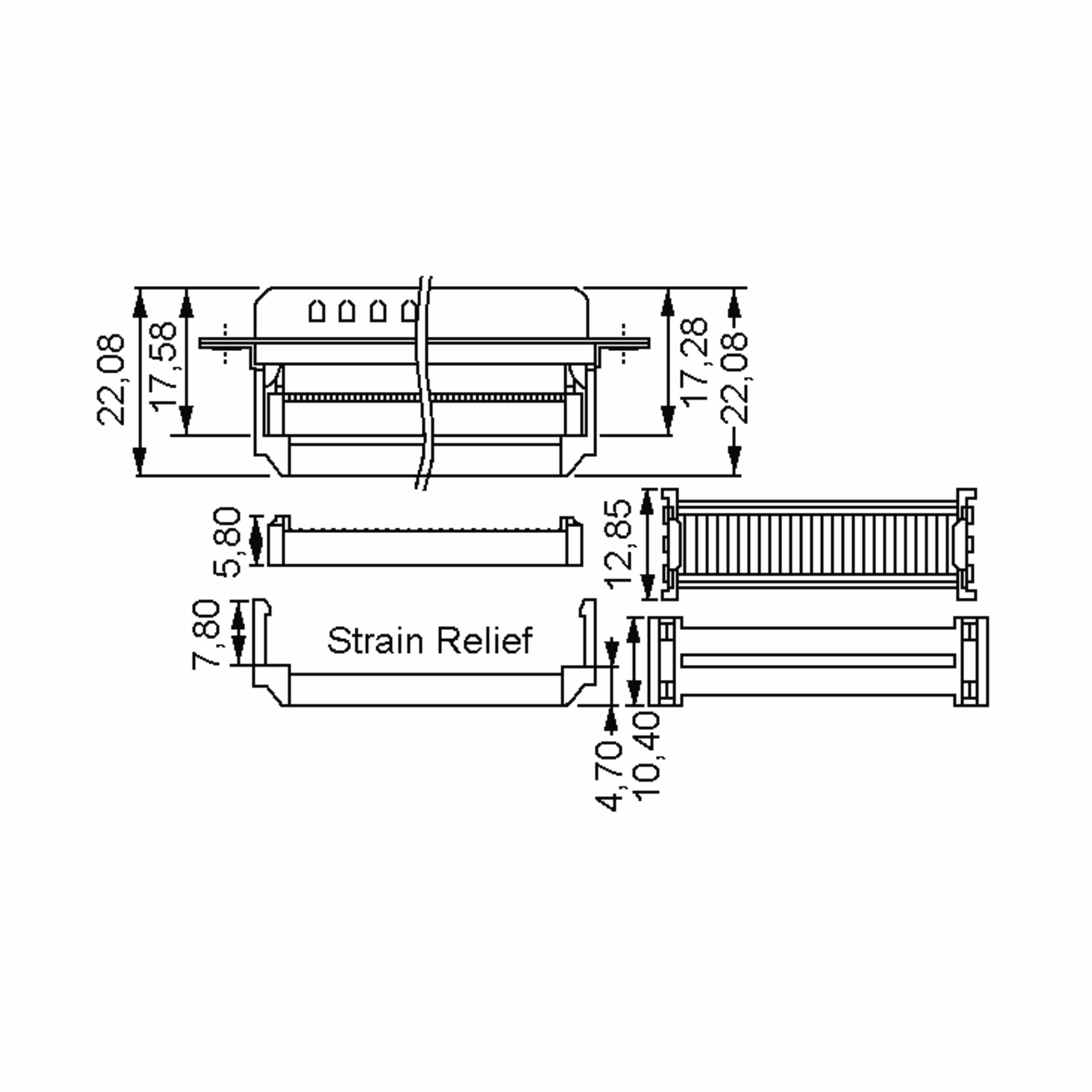

Dimensions and Weights
- Dimension: Width
- 69.32 mm
- Dimension: Height
- 17.4 mm
- Dimension: Depth
- 12.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 3 A
- Dielectric strength
- 500 V / min.
Mechanical Features
- Drilling Dimensions
- 3.05 mm
- Insulating body
- Polybutylenterephthalat (PBT)
- Contact Surface Input
- selektiv vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
Documents
PCN_706-1_17.05.2024_EN.pdf
