597-4-025F-N60NF-BS0
Binder MPE Socket connector 597-4 25 Pole Socket Panel Screw angled UL 94 V-0 Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
330 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket connector
- Connector Contact
- Solder
- Series
- 597-4
- Colour
- black
- Housing
- 2-row
- Design
- Panel
- Insulating body
- Thermoplast (TP)
- Number of poles
- 25
- Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- angled
- Locking Type
- Screw
- Operating Temperature Max.
- 105 °C
- Rated current
- 3 A
- Rated voltage DC
- 125 V DC
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all

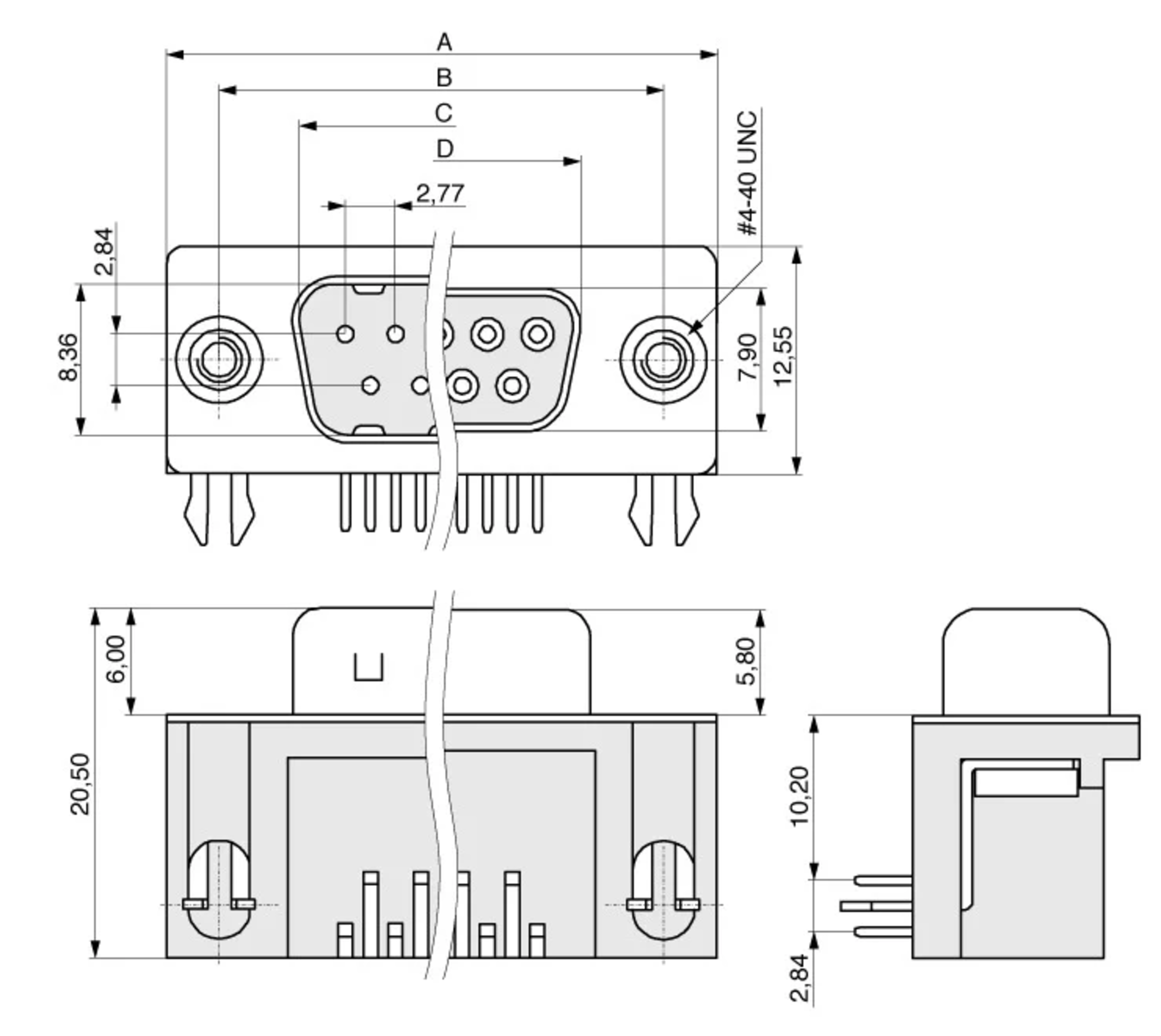

Dimensions and Weights
- Dimension: Width
- 53.04 mm
- Dimension: Height
- 12.55 mm
- Dimension: Depth
- 20.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 3 A
- Rated voltage DC
- 125 V DC
- Solderability
- 230 °C / 10 s °C / s
- Dielectric strength
- 500 V / min.
Mechanical Features
- Drilling Dimensions
- 3.2 mm
- Insulating body
- Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
