580-1-002-0-T-BS0
Binder MPE Pin header 580 2 Pole Pitch3,96mm natural UL 94 V-0 verzinnt
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 11.05.2022
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pin header
- Series
- 580
- Colour
- natural
- Housing material
- Nylon (NY)
- Number of poles
- 2
- Pitch
- 3.96 mm
- Class of Inflammability
- UL 94 V-0
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 5 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

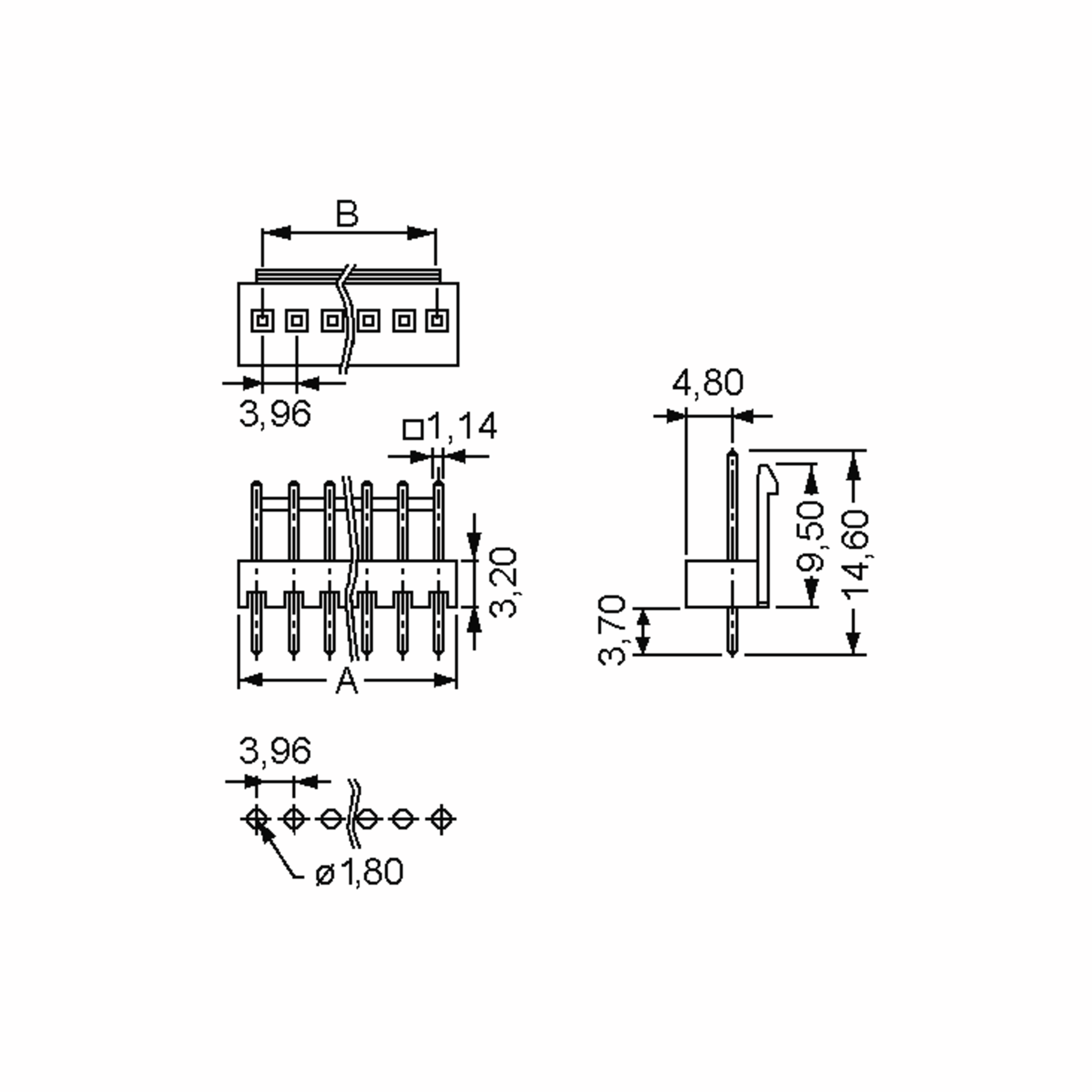

Dimensions and Weights
- Dimension: Length
- 7.92 mm
- Width (incl. pins)
- 8.6 mm
- Height (incl. pins)
- 14.6 mm
- Pitch
- 3.96 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 5 A
- Rated voltage AC
- 250 V AC
- Dielectric strength
- 1,500 V RMS
Mechanical Features
- Housing material
- Nylon (NY)
- Contact Surface Input
- verzinnt
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
