414-1-S-BS0

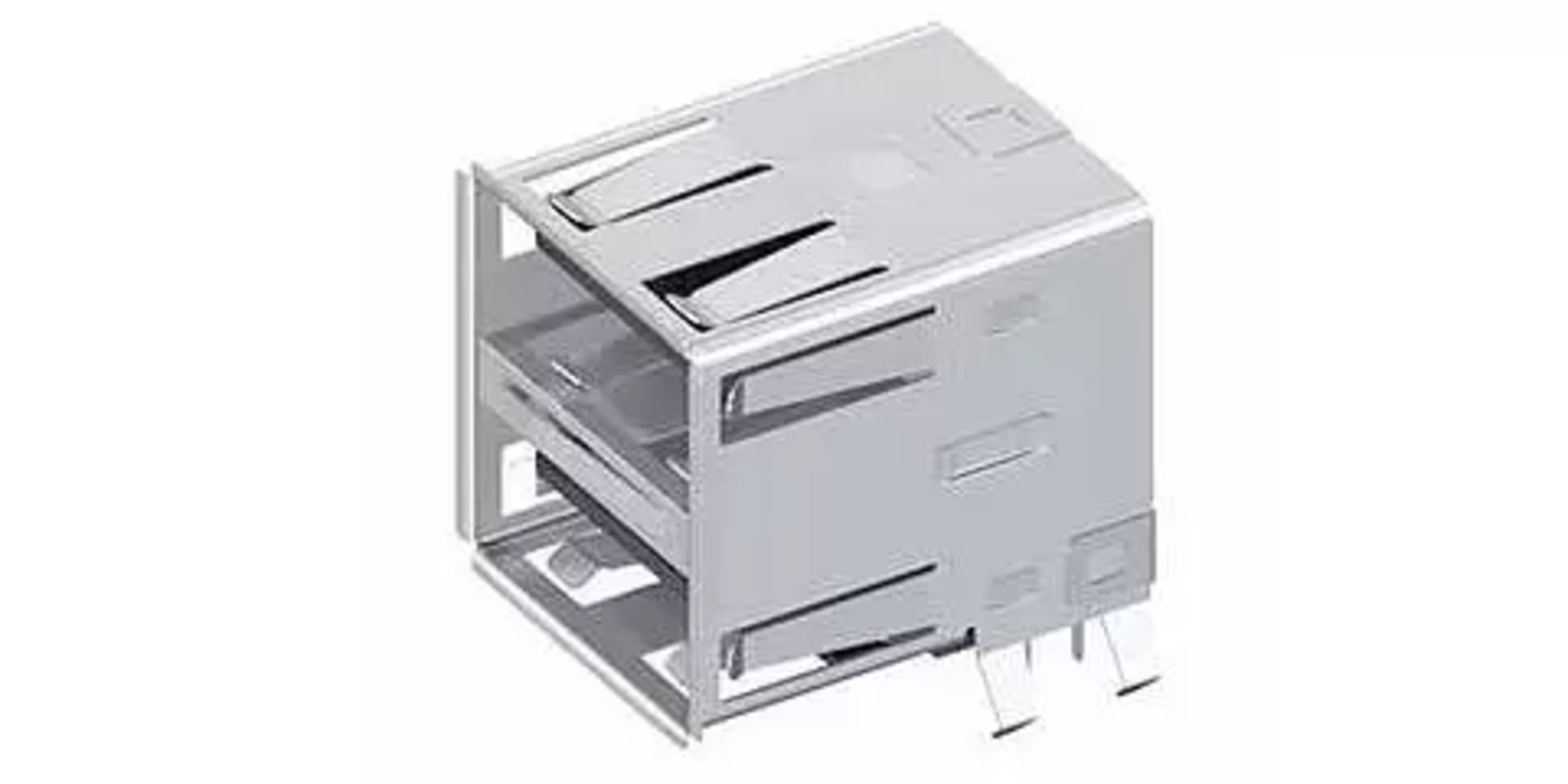

Binder MPE Socket 414-1 PCB Socket rectangular 90° Solder USB 2.0 15,1mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3000 or multiple of 3000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket
- Connector Contact
- Solder
- Series
- 414-1
- Housing
- rectangular
- Design
- PCB
- Insulating body
- Thermoplast (TP)
- Contact Type
- 2x USB A
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- 90°
- Operating Temperature Max.
- 85 °C
- Rated current
- 0.5 A
- Rated voltage DC
- 40 V DC
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

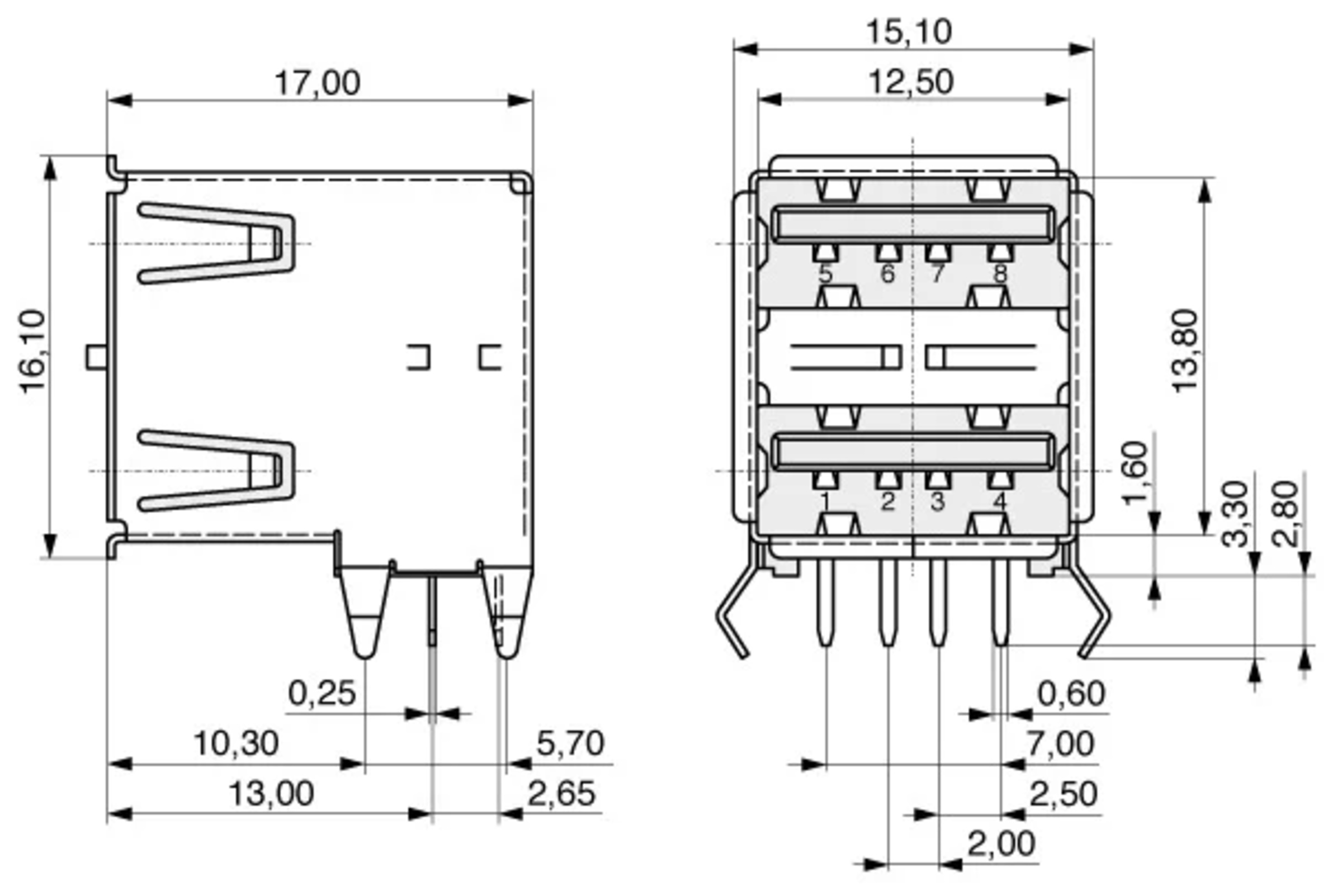

Dimensions and Weights
- Dimension: Length
- 15.1 mm
- Dimension: Width
- 17 mm
- Dimension: Height
- 16.1 mm
- Height (incl. pins)
- 19.4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 0.5 A
- Rated voltage DC
- 40 V DC
- Breakdown voltage
- 500 V RMS / min.
- Solderability
- 230 °C / 5 s °C / s
- Performance
- USB 2.0
Mechanical Features
- Insulating body
- Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
