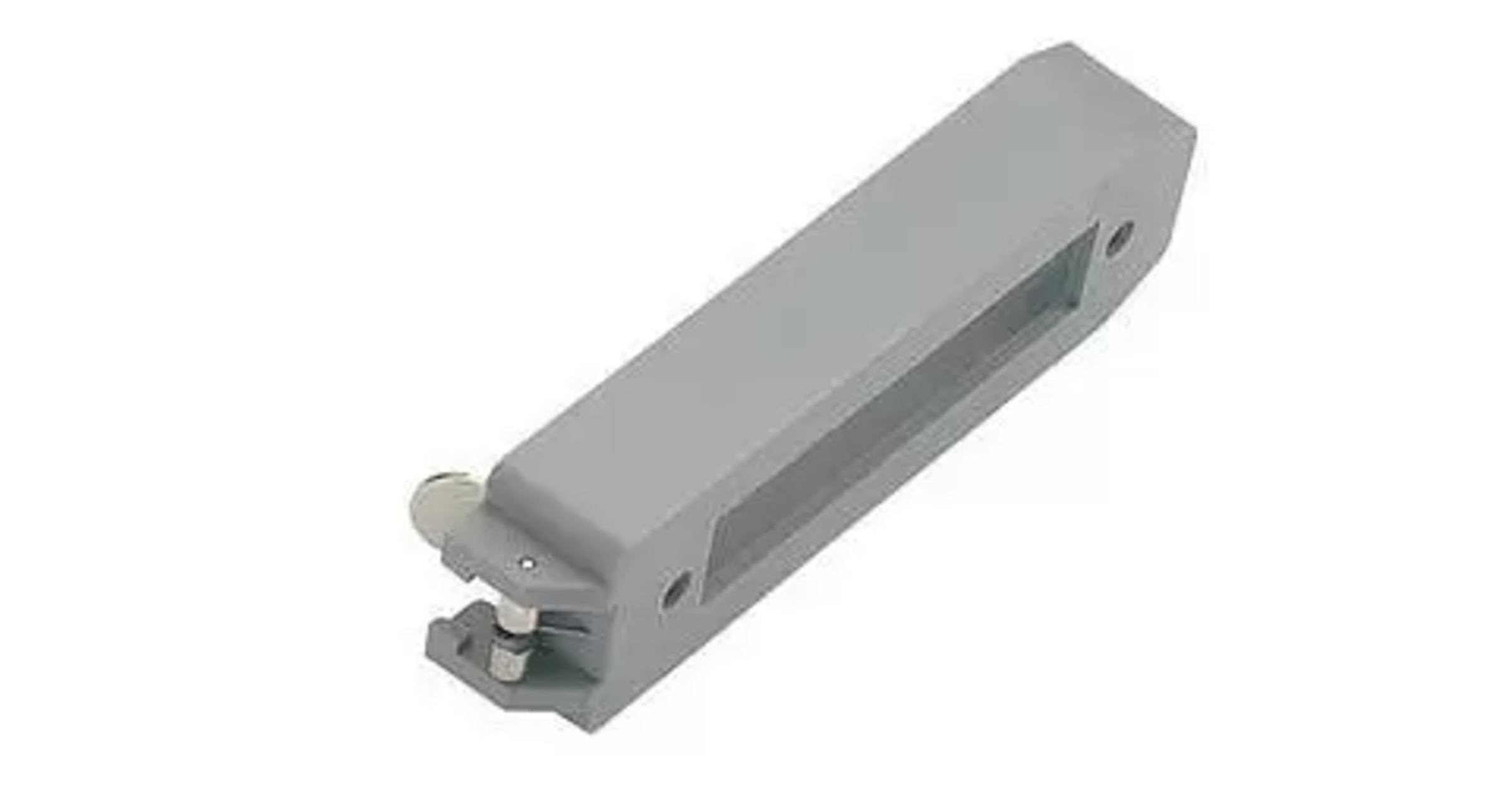

378-2-020-XXN-XS
Binder MPE Locking tray 378-2 Accessories Shackle 20 Pole
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
95 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Locking tray
- Series
- 378-2
- Housing material
- Thermoplast (TP)
- Design
- Accessories
- Number of poles
- 20
- Standards
- DIN 41618
DIN 41622 - Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Locking Type
- Shackle
- RoHS-Conform
Specifications
Open all

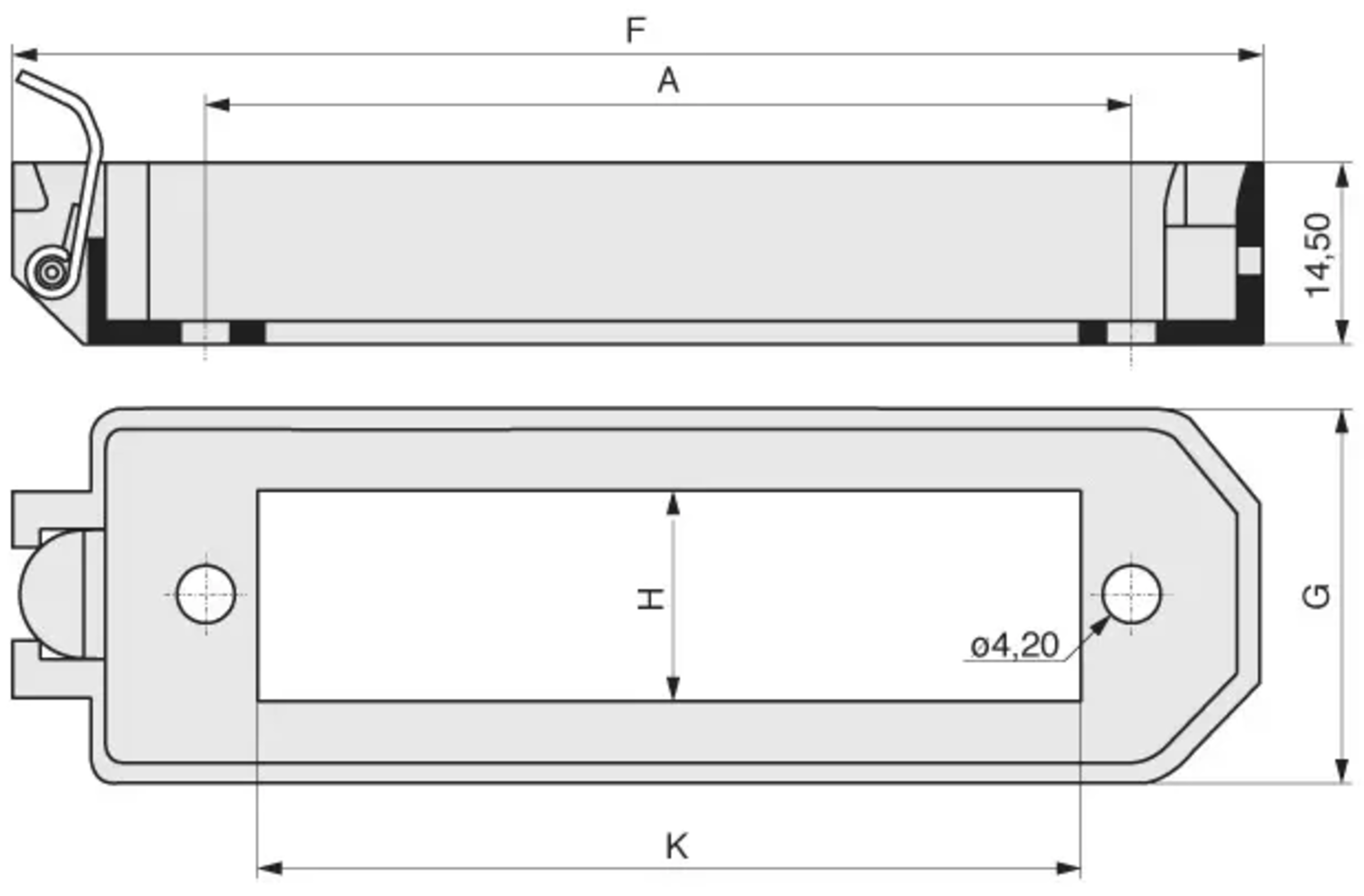

Dimensions and Weights
- Dimension: Width
- 100 mm
- Dimension: Height
- 14.5 mm
- Dimension: Depth
- 25 mm
Mechanical Features
- Drilling Dimensions
- 4.2 mm
- Housing material
- Thermoplast (TP)
Safety/Certifications
- Standards
- DIN 41618
- DIN 41622
- Class of Inflammability
- UL 94 V-0
