373-1-006-0-T-KT0

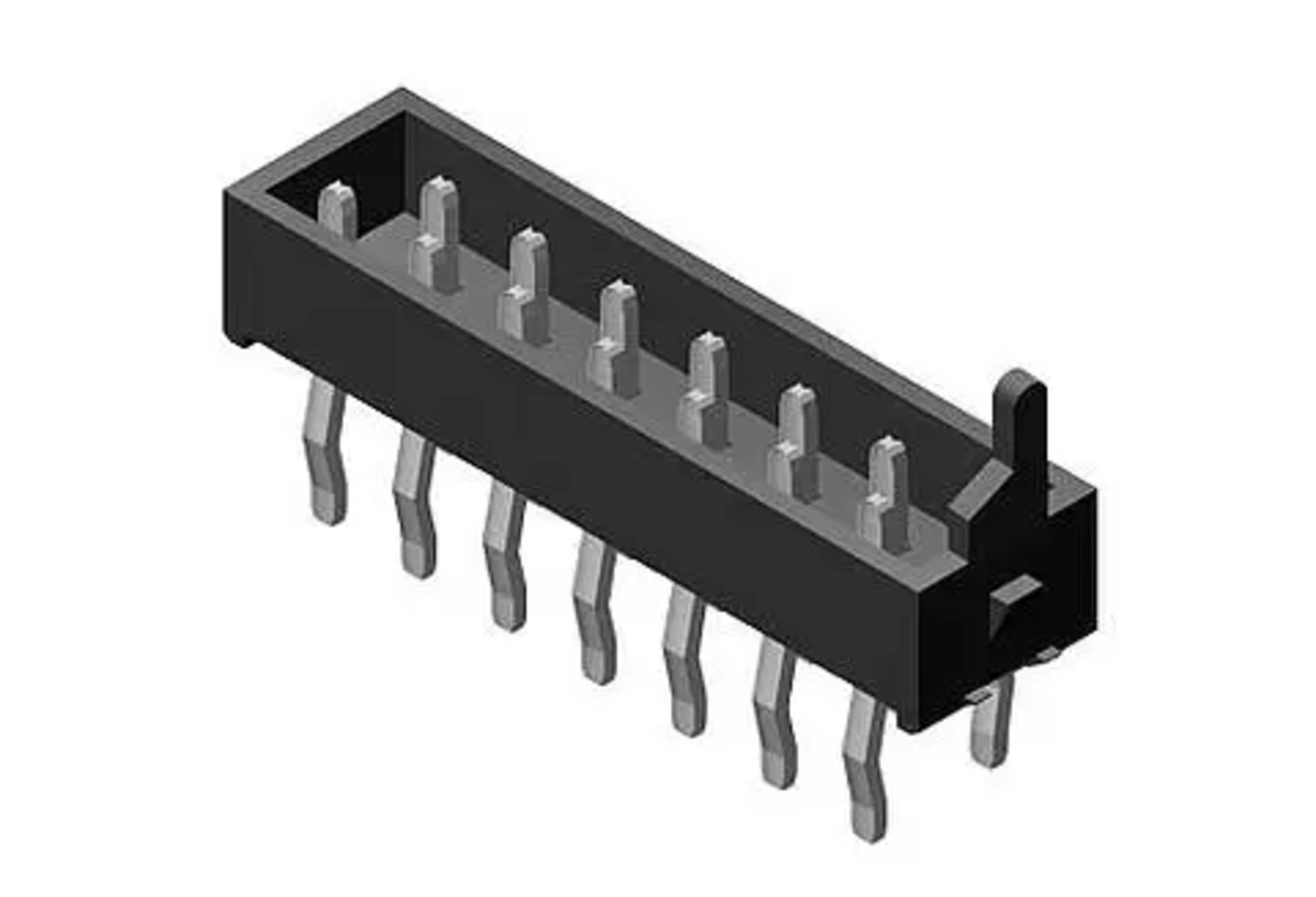

Binder MPE Tray pin strip 373-1 Pin Box Header 2-row straight 6 Pole Pitch1,27mm black verzinnt
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 58 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5046 or multiple of 5046)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Tray pin strip
- Connector Contact
- Solder
- Series
- 373-1
- Colour
- black
- Housing material
- High Temperature Thermoplast (TP)
- Housing
- 2-row
- Design
- Box Header
- Number of poles
- 6
- Pitch
- 1.27 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- Locking Type
- Latching lug
- Operating Temperature Max.
- 125 °C
- Rated current
- 1 A
- Rated voltage DC
- 230 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

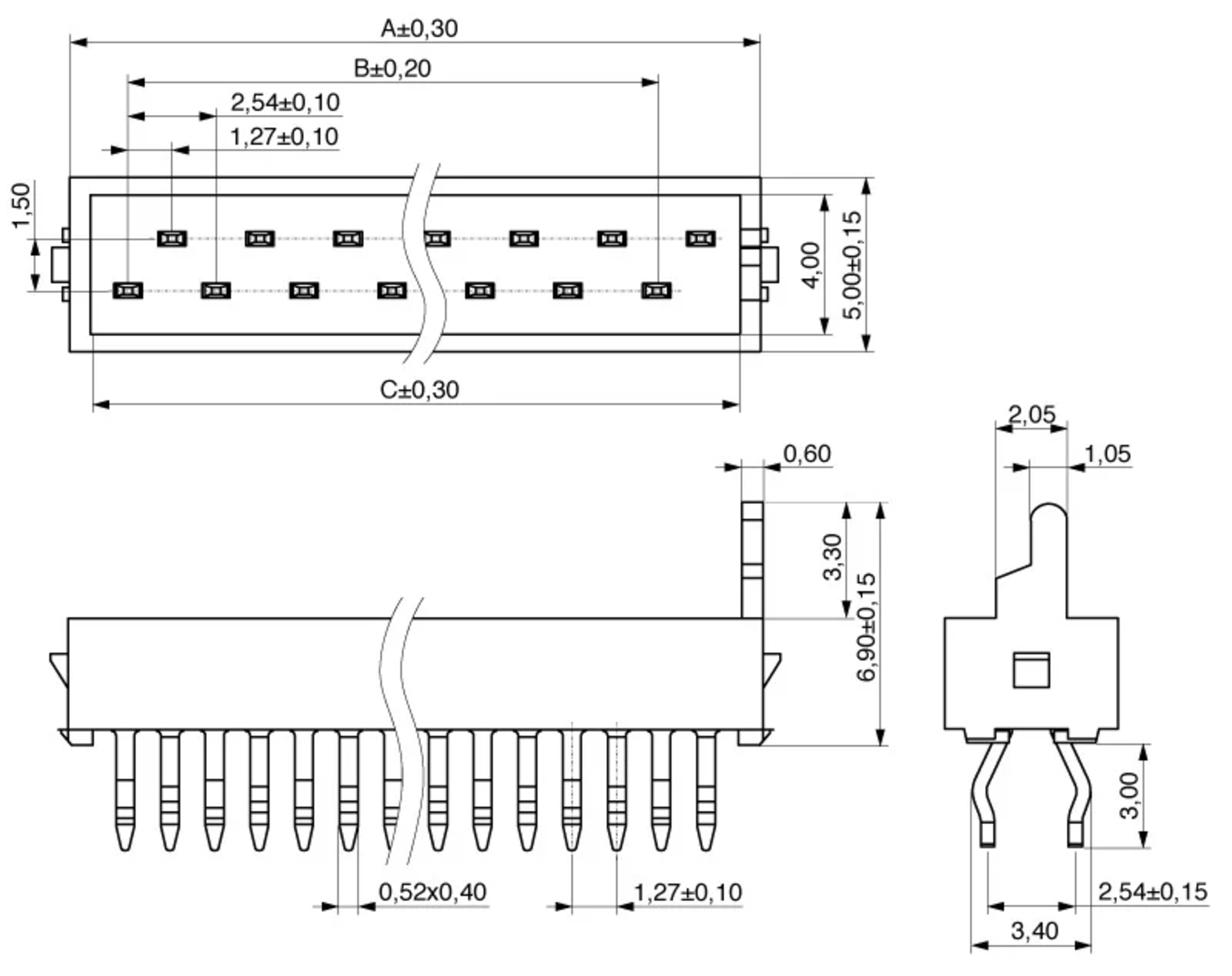

Dimensions and Weights
- Dimension: Width
- 9.74 mm
- Dimension: Height
- 9.9 mm
- Dimension: Depth
- 5 mm
- Pitch
- 1.27 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Rated current
- 1 A
- Rated voltage DC
- 230 V DC
- Breakdown voltage
- 500 V RMS / min.
- Solderability
- 230 °C / 5 s °C / s
Mechanical Features
- Housing material
- High Temperature Thermoplast (TP)
- Contact Surface Input
- verzinnt
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
