298-1-032-0-NSX-RT0

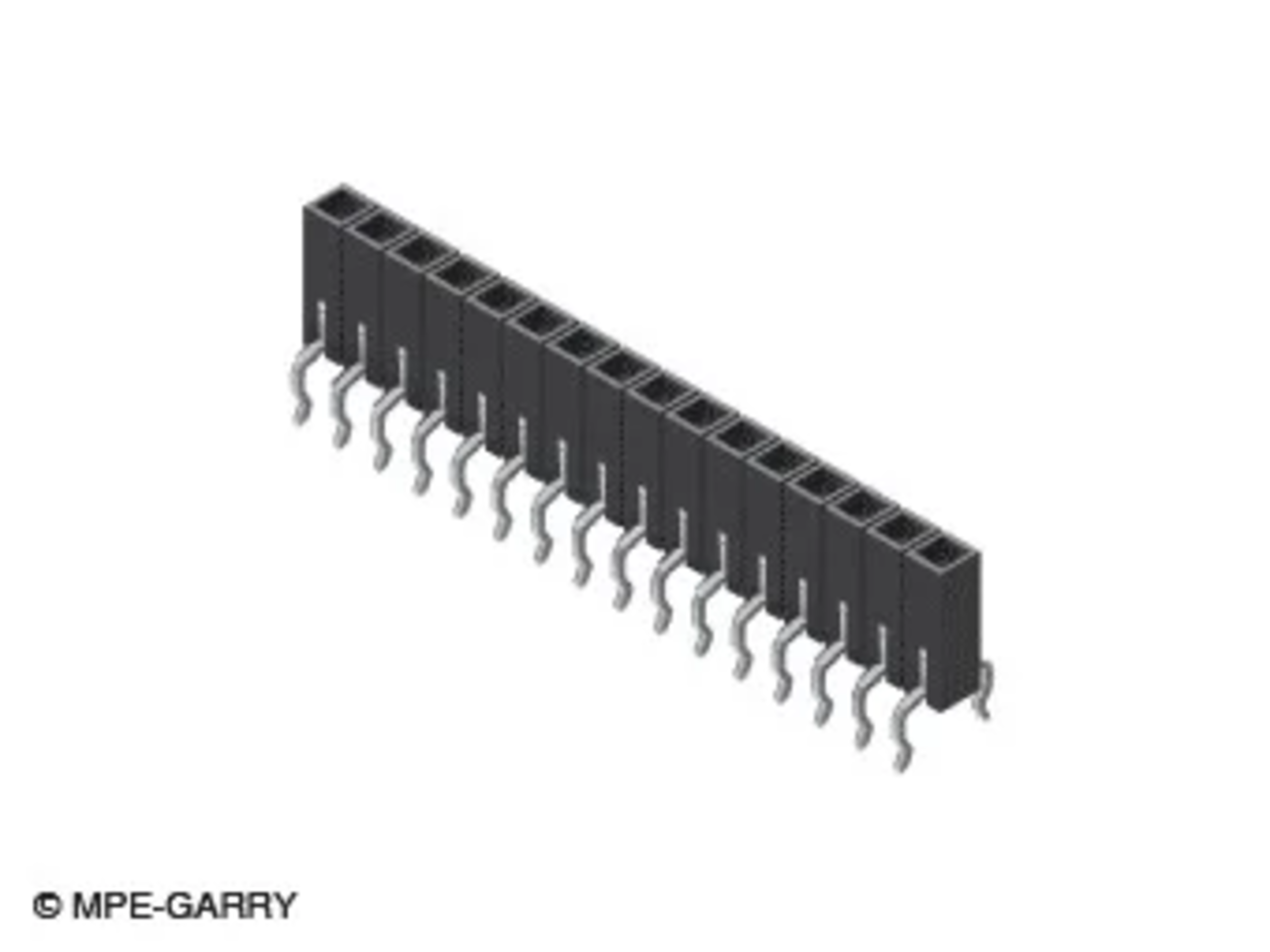

Binder MPE Socket connector 298-1 Socket Header 1-row straight 32 Pole Pitch2,54mm black selektiv vergoldet

BLD1X32TGBLD1X32TG
Manufacturer Part No.
298-1-032-0-NSX-RT0
Schukat Part No.
BLD1X32TG
Manufacturer
Binder MPE
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.064 Pcs. in stock

Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1015 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 14 or multiple of 14)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Contact Type
Socket
Type
Socket connector
Connector Contact
Solder
Series
298-1
Colour
black
Housing material
High Temperature Thermoplast (TP)
Housing
1-row
Design
Header
Number of poles
32
Pitch
2.54 mm
Class of Inflammability
UL 94 V-0
Locking
no
Alignment
straight
Operating Temperature Max.
105 °C
Rated current
3 A
Rated voltage DC
250 V DC
Operating Temperature Min.
-40 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Binder MPE
Product Family
  • 298
Type
  • Socket connector
Series
  • 298-1
Product group
  • F2825
Housing
  • 1-row
Contact Type
  • Socket
Connector Contact
  • Solder
Number of poles
  • 32
Pin diameter
  • 0.65 mm
Pluggable with
  • 0.64 mm
Alignment
  • straight
Design
  • Header
Protective conductor
Colour
  • black
Coding
  • no
Locking
  • no

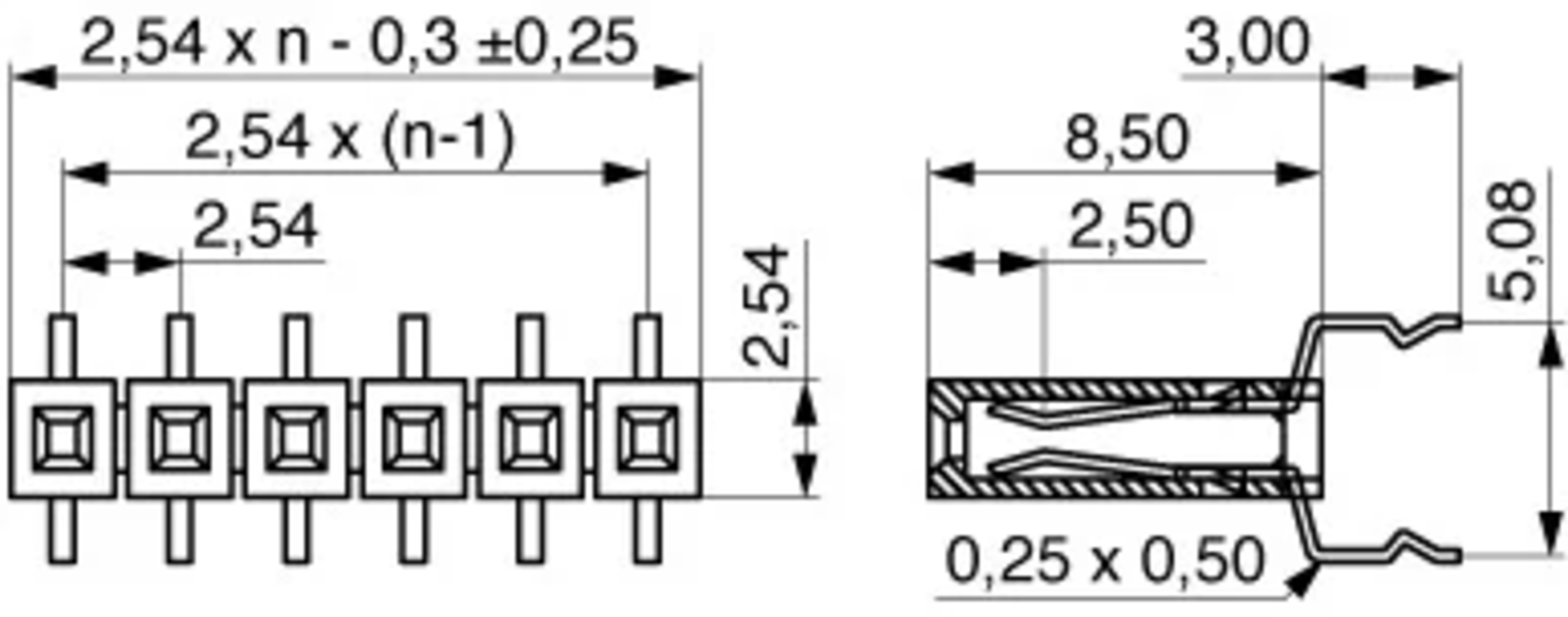

Dimensions and Weights

Dimension: Width
  • 80.98 mm
Dimension: Height
  • 11.5 mm
Dimension: Depth
  • 5.08 mm
Pitch
  • 2.54 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 105 °C

Technical Features

Rated current
  • 3 A
Rated voltage DC
  • 250 V DC
Solderability
  • 260 °C / 10 s °C / s
Dielectric strength
  • 500 V RMS

Mechanical Features

Housing material
  • High Temperature Thermoplast (TP)
Contact Surface Input
  • selektiv vergoldet

Safety/Certifications

Class of Inflammability
  • UL 94 V-0
