178-3-020-0-F-XT0-0468

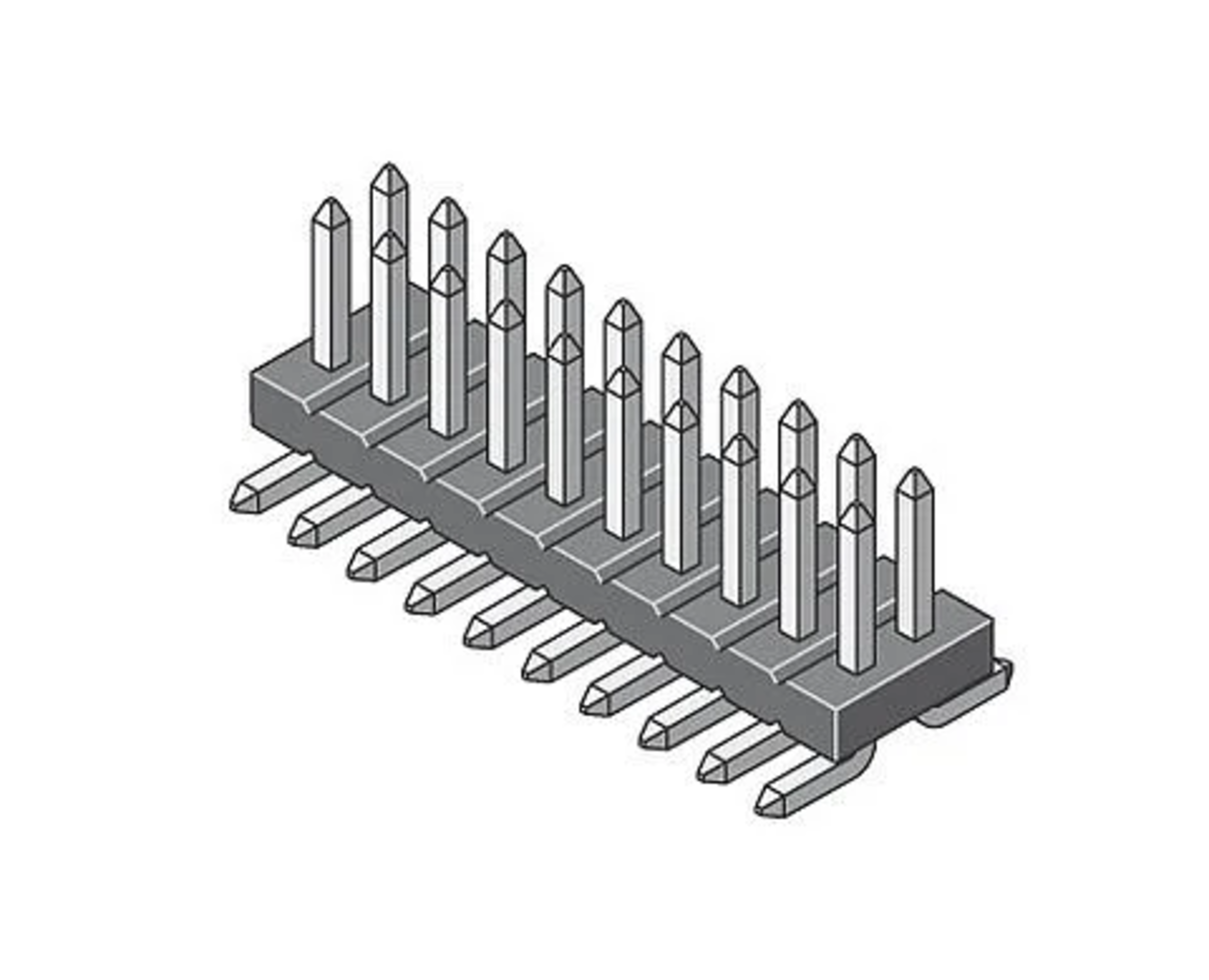

Binder MPE Pin header 178-3 Pin Header 2-row straight 20 Pole Pitch1,27mm black vergoldet
Manufacturer Part No.
178-3-020-0-F-XT0-0468
Schukat Part No.
178-3-020-0-F-XT0
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
440 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 44 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 11 or multiple of 11)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Pin header
- Connector Contact
- Gull Wing
SMD - Series
- 178-3
- Colour
- black
- Housing material
- High Temperature Thermoplast (TP)
- Housing
- 2-row
- Design
- Header
- Number of poles
- 20
- Pitch
- 1.27 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- Rated current
- 1 A
- Rated voltage DC
- 100 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 4.68 mm
- Dimension: Depth
- 5.5 mm
- Pitch
- 1.27 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 1 A
- Rated voltage DC
- 100 V DC
- Solderability
- 260 °C / 10 s °C / s
- Dielectric strength
- 300 V RMS
Mechanical Features
- Housing material
- High Temperature Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
