160-1-026-S-KS0

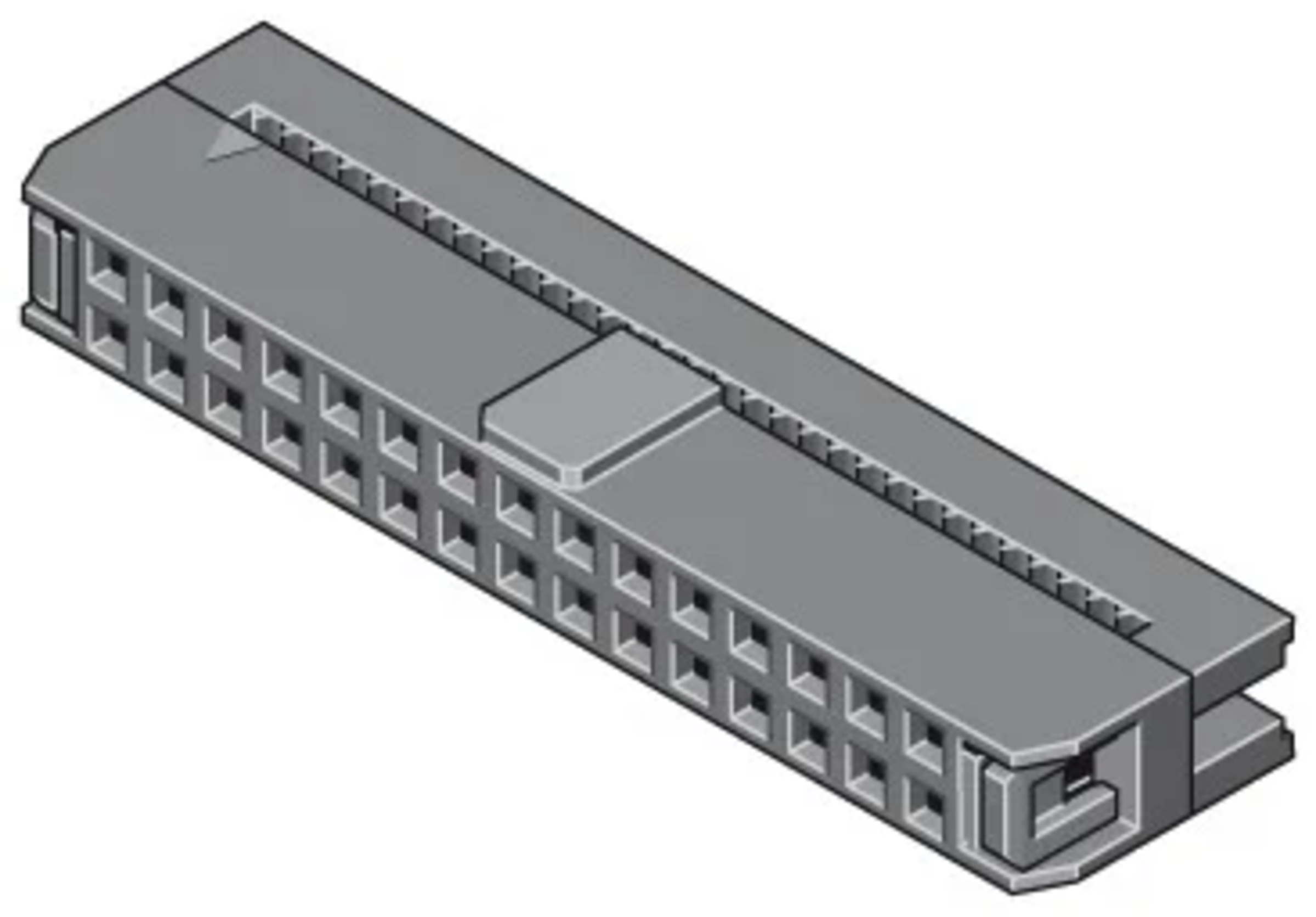

Binder MPE Post connector 160-1 Socket Header Latching lug 2-row 26 Pole Pitch2mm gray 150VDC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 96 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5088 or multiple of 5088)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Post connector
- Connector Contact
- IDC
- Series
- 160-1
- Colour
- gray
- Housing material
- Thermoplast (TP)
- Housing
- 2-row
- Design
- Header
- Number of poles
- 26
- Pitch
- 2 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Locking Type
- Latching lug
- Operating Temperature Max.
- 105 °C
- Rated current
- 1.5 A
- Rated voltage DC
- 150 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

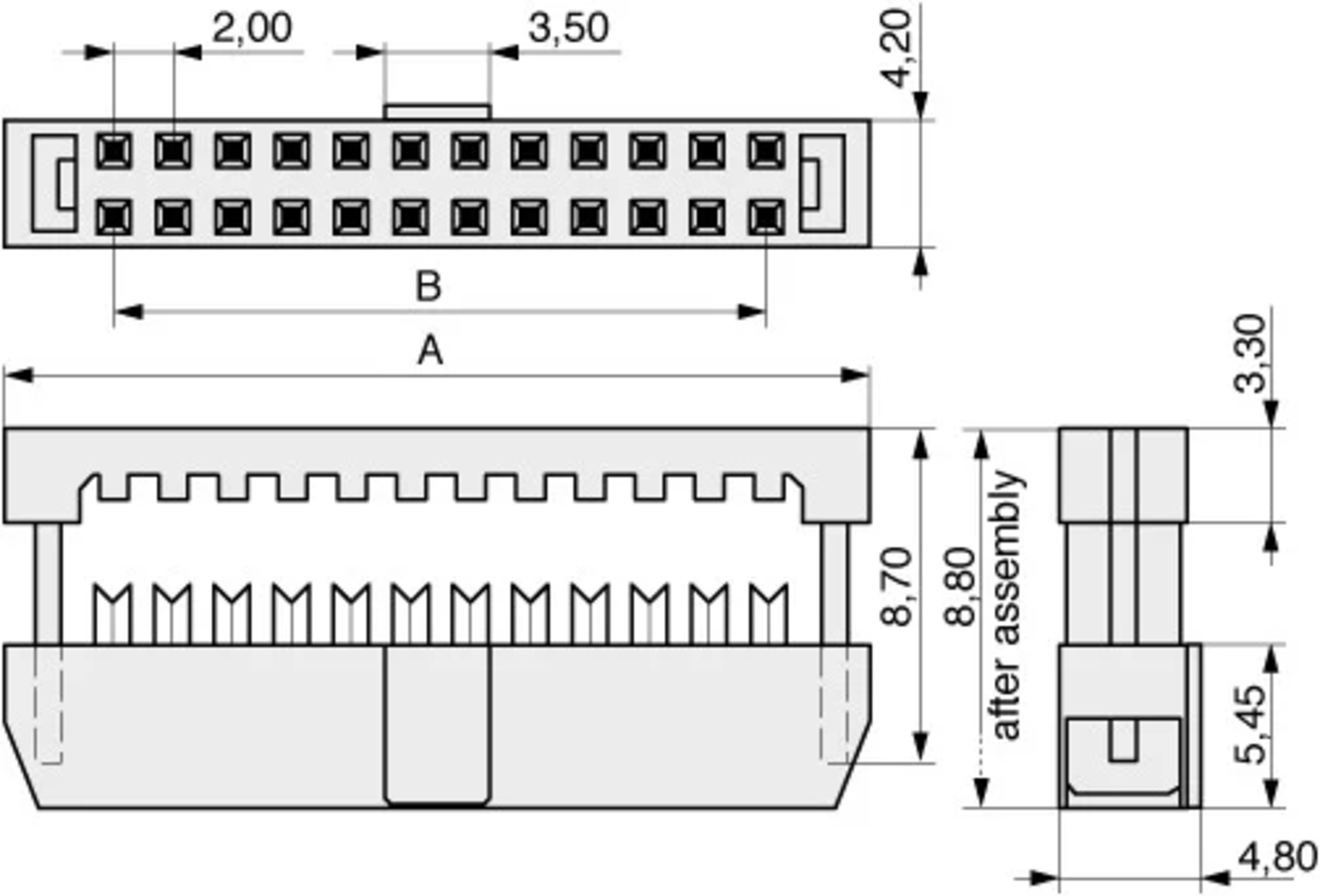

Dimensions and Weights
- Dimension: Length
- 31.2 mm
- Dimension: Width
- 4.2 mm
- Dimension: Height
- 8.8 mm
- Pitch
- 2 mm
- Conductor cross-section (AWG), min.
- 28 AWG
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 1.5 A
- Rated voltage DC
- 150 V DC
- Breakdown voltage
- 500 V RMS / min.
Mechanical Features
- Housing material
- Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
