149-1-002-F0-XS

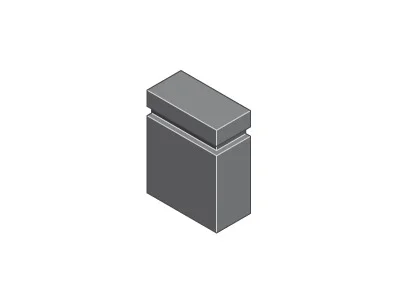

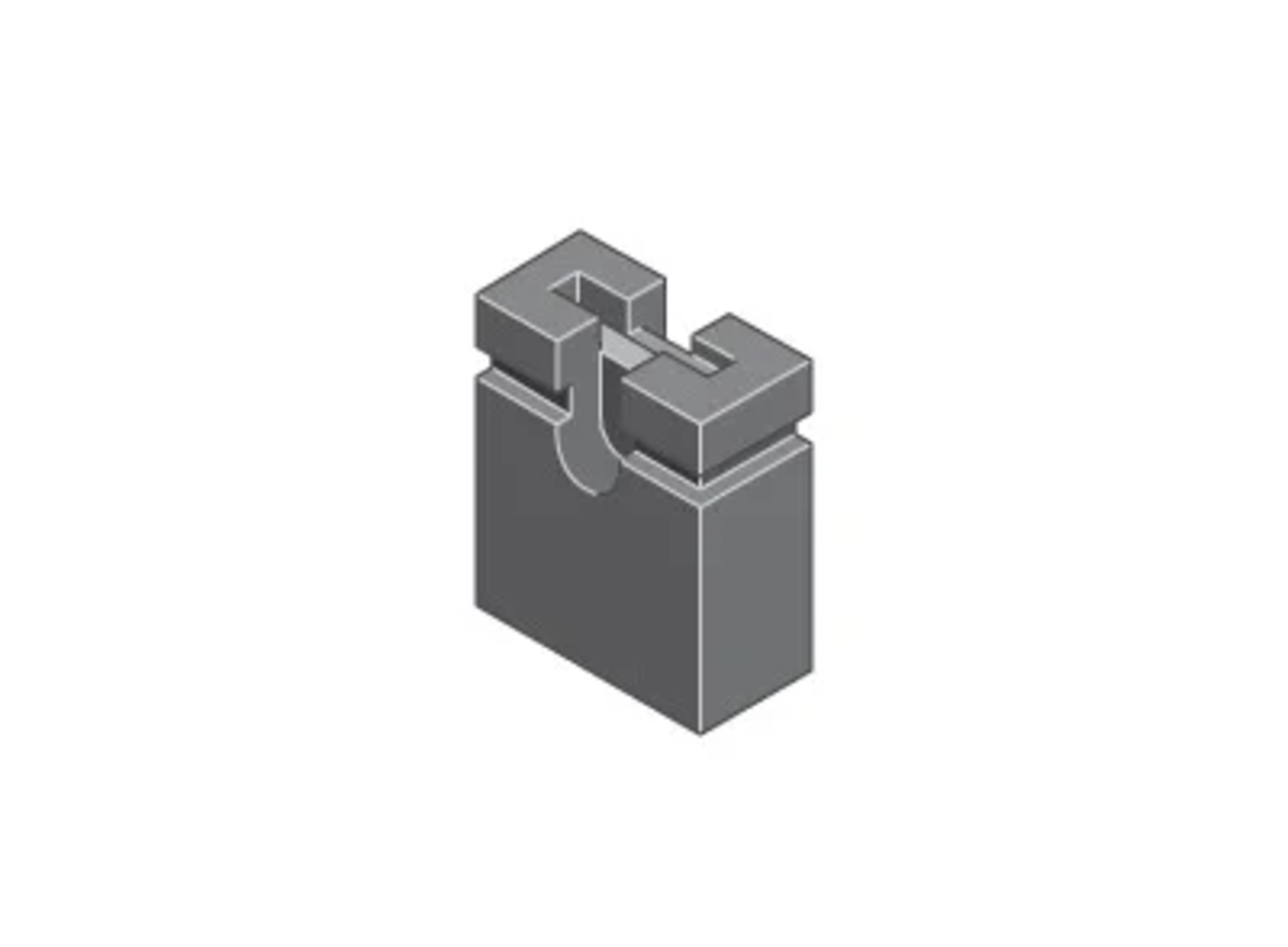

Binder MPE Jumper 149-1 Socket Housing 2-fold open straight 2 Pole Pitch2,54mm black vergoldet
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.500 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Jumper
- Series
- 149-1
- Colour
- black
- Housing
- 2-fold
open - Design
- Housing
- Insulating body
- Thermoplast (TP)
- Number of poles
- 2
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- Rated current
- 3 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

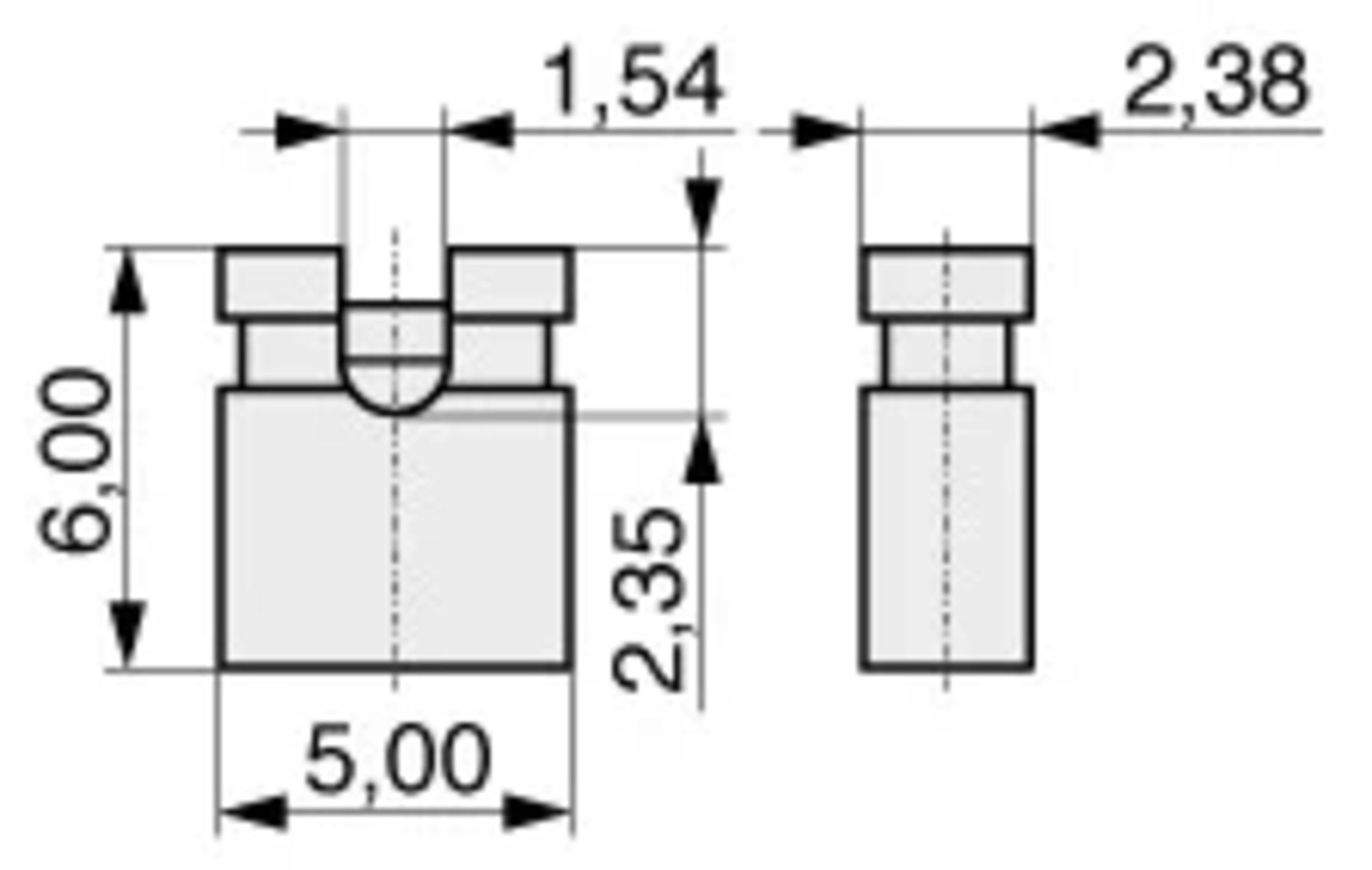

Dimensions and Weights
- Dimension: Width
- 5 mm
- Dimension: Height
- 6 mm
- Dimension: Depth
- 2.38 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 3 A
Mechanical Features
- Insulating body
- Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
