HomeProductsConnectors & Electrical Cable ConnenctionSIL, DIL, Pin/ Female Header090-3090-3-080-0-F-XT0-0960

090-3-080-0-F-XT0-0960

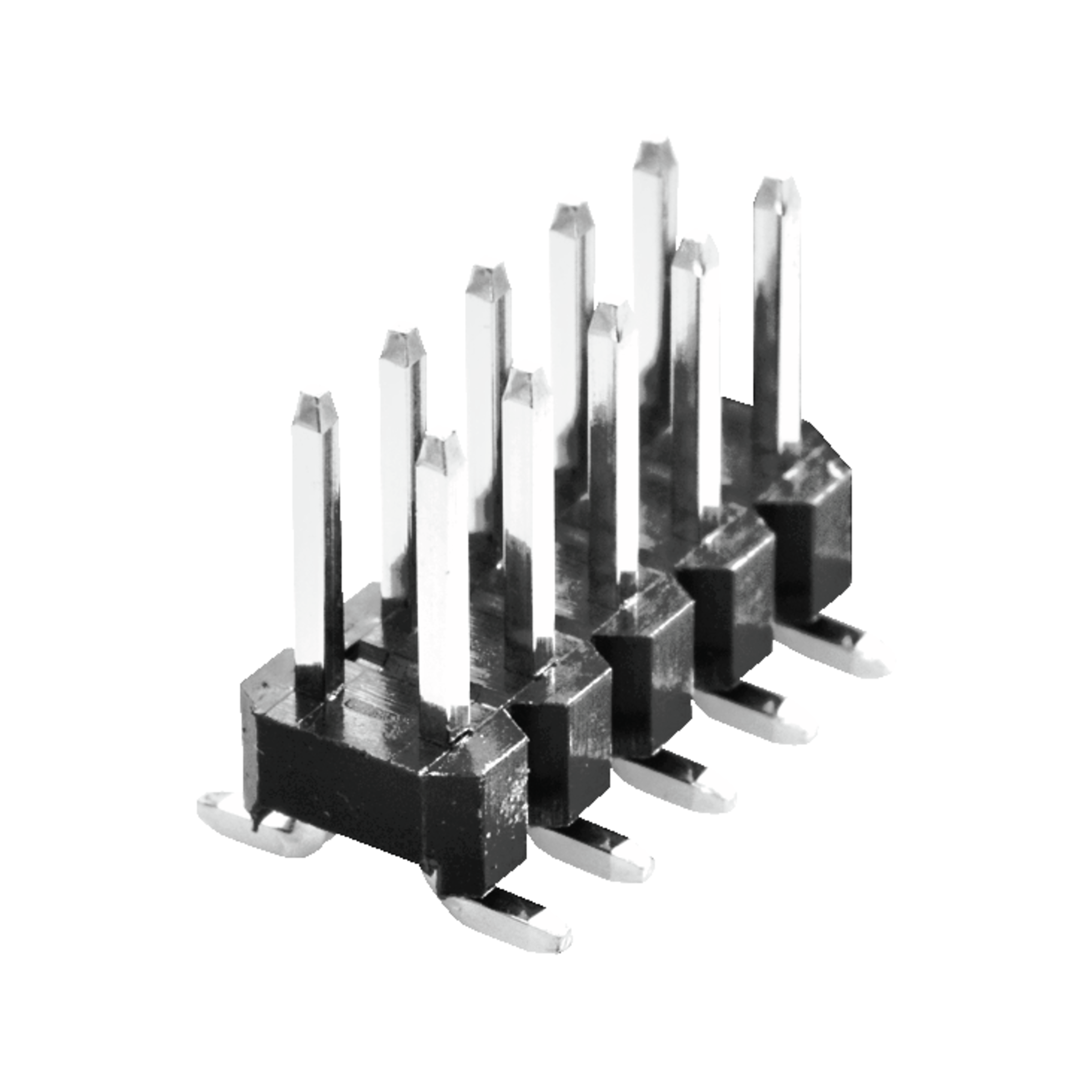

Binder MPE Pin header 090-3 Pin Header 2-row straight 80 Pole Pitch2,54mm black vergoldet

ASL80MG-SMDASL80MG-SMD
Manufacturer Part No.
090-3-080-0-F-XT0-0960
Schukat Part No.
ASL80MG-SMD
Manufacturer
Binder MPE
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

450 Pcs. in stock

Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Contact Type
Pin
Type
Pin header
Connector Contact
Gull Wing
SMD
Series
090-3
Colour
black
Housing material
High Temperature Thermoplast (TP)
Housing
2-row
Design
Header
Number of poles
80
Pitch
2.54 mm
Class of Inflammability
UL 94 V-0
Locking
no
Alignment
straight
Operating Temperature Max.
105 °C
Rated current
3 A
Rated voltage DC
250 V DC
Operating Temperature Min.
-40 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Binder MPE
Product Family
  • 090
Type
  • Pin header
Series
  • 090-3
Product group
  • F2329
Housing
  • 2-row
Contact Type
  • Pin
Connector Contact
  • Gull Wing
  • SMD
Number of poles
  • 80
Pin diameter
  • 0.64 mm
Alignment
  • straight
Design
  • Header
Protective conductor
Colour
  • black
Coding
  • no
Locking
  • no

Dimensions and Weights

Dimension: Width
  • 101.6 mm
Dimension: Height
  • 9.6 mm
Dimension: Depth
  • 7.6 mm
Pitch
  • 2.54 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 105 °C

Technical Features

Rated current
  • 3 A
Rated voltage DC
  • 250 V DC
Solderability
  • 260 °C / 10 s °C / s
Dielectric strength
  • 500 V RMS

Mechanical Features

Housing material
  • High Temperature Thermoplast (TP)
Contact Surface Input
  • vergoldet

Safety/Certifications

Class of Inflammability
  • UL 94 V-0
