082-1-032-0-XT0

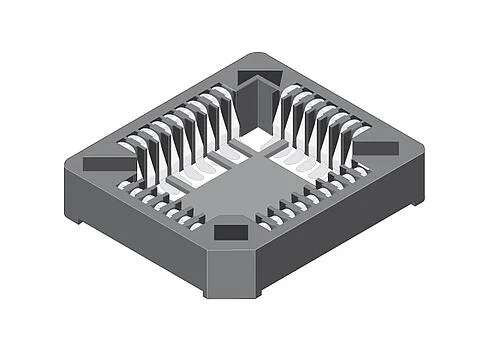

Binder MPE IC socket 082-1 32 Pole Pitch1,27mm SMD Gull Wing
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.632 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 19.01.2026
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 24 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 24 or multiple of 24)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- IC socket
- Connector Contact
- Gull Wing
SMD - Series
- 082-1
- Colour
- black
- Insulating body
- High Temperature Thermoplast (TP)
- Number of poles
- 32
- Pitch
- 1.27 mm
- Class of Inflammability
- UL 94 V-0
- Alignment
- vertical
- Operating Temperature Max.
- 85 °C
- Rated current
- 1 A
- Rated voltage DC
- 100 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 20.8 mm
- Dimension: Height
- 4.7 mm
- Dimension: Depth
- 18.19 mm
- Pitch
- 1.27 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 1 A
- Rated voltage DC
- 100 V DC
- Breakdown voltage
- 600 V RMS / min.
- Solderability
- 260 °C / 10 s °C / s
Mechanical Features
- Insulating body
- High Temperature Thermoplast (TP)
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
Documents
PCN_081-1_082-1_19.08.2024_EN.pdf
