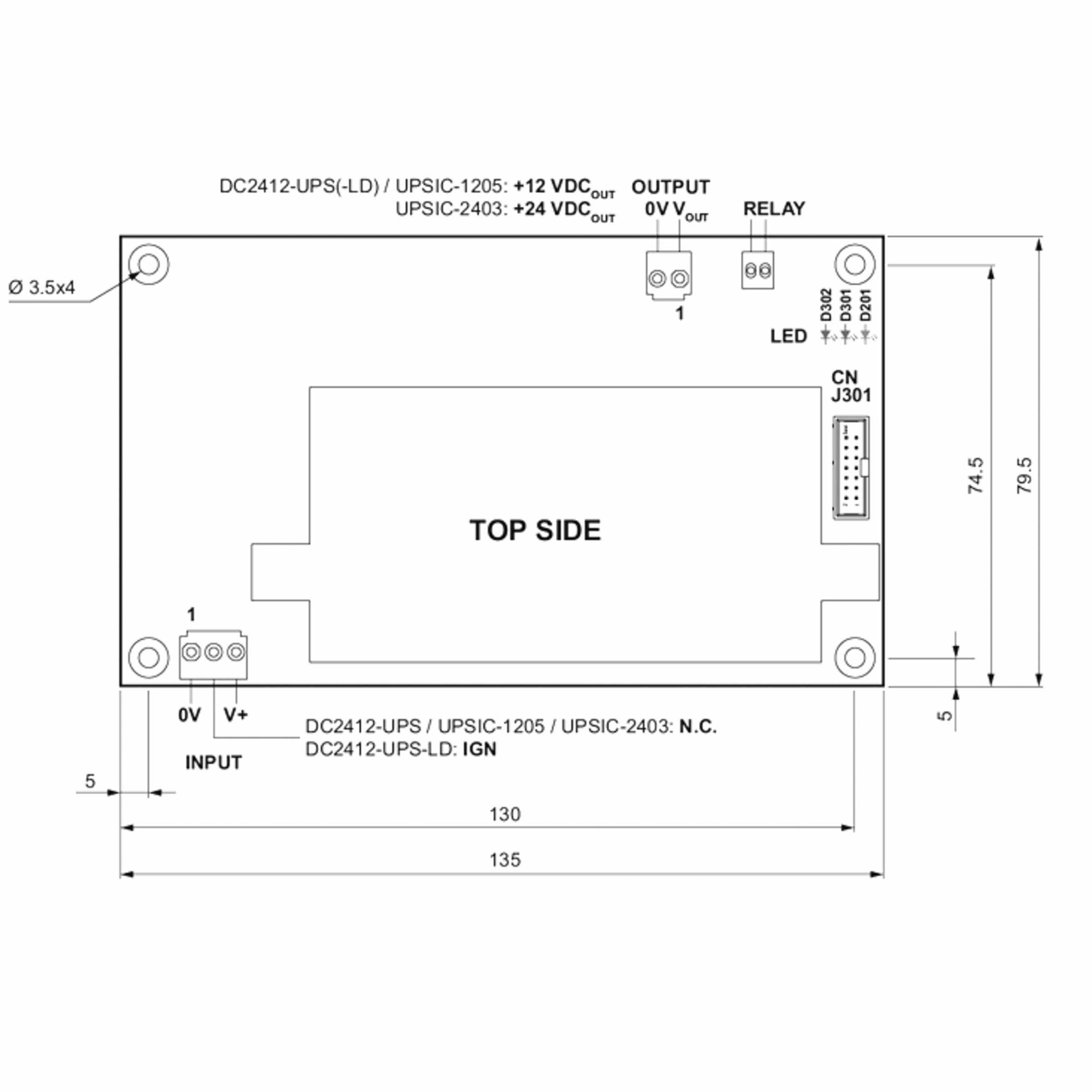

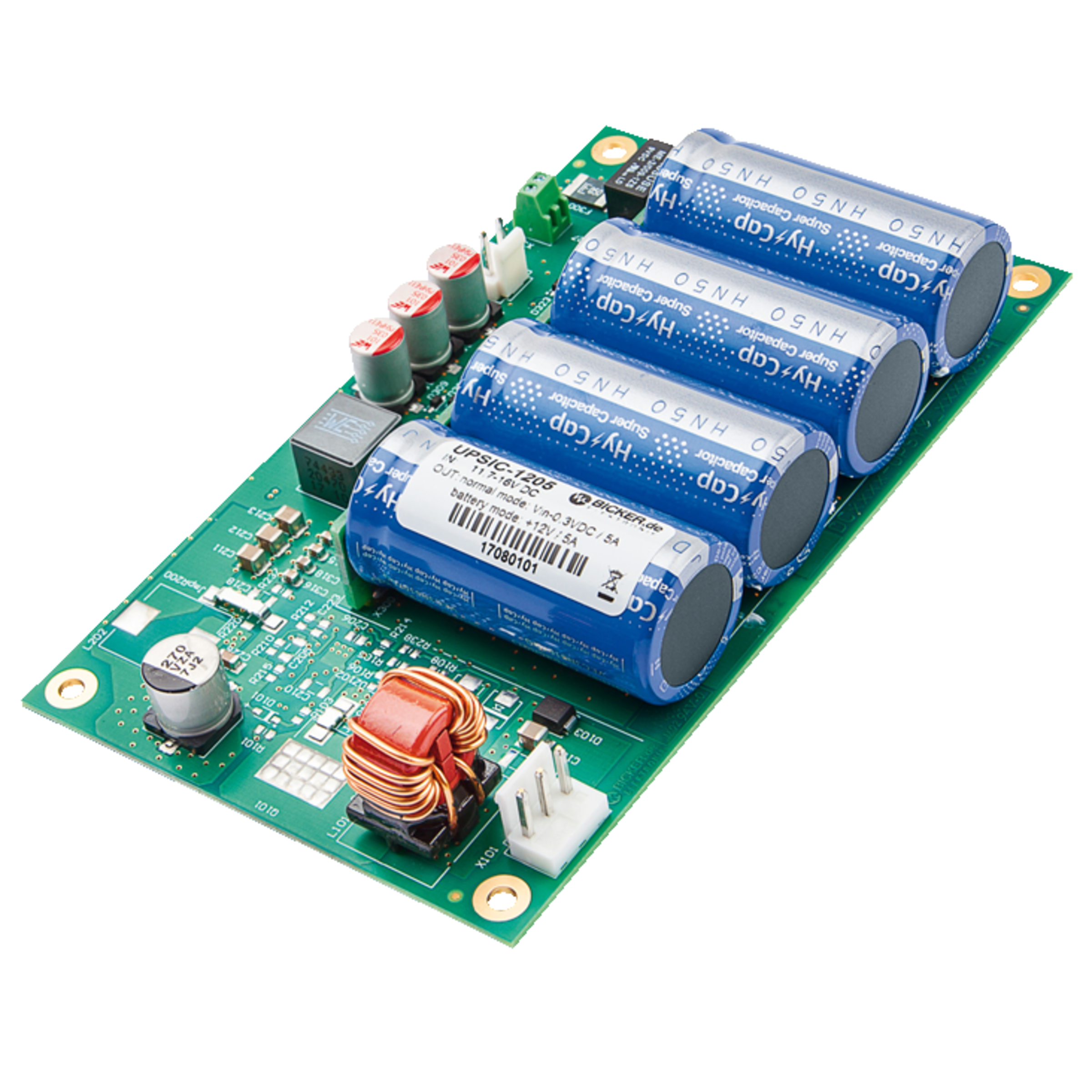

UPSIC-1205
Bicker Elektronik Uninterruptible power supply (UPS) 60W 12V 5A Integrated Energy Storage
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output Power
- 60 W
- Output voltage
- 12 V
- Output current
- 5.000 A
- Operating mode
- Integrated Energy Storage
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 70 °C
Input
- Nominal input voltage
- 12 V
- Input voltage min. DC
- 11.6 V
- Input voltage max. DC
- 16 V
- Input current
- 5.8 A
- Efficiency
- 97 %
- Power factor correction (PFC)
- Connection type, input
- Connector
- Shutdown at deeply discharged battery
- Alarm at deeply discharged battery
Output
- Number of outputs
- 1
- Output Power
- 60 W
- Output voltage
- 12 V
- Output current
- 5.000 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- Connector
- Temperature compensation
Safety/Certifications
- Protection class
- III
- Approvals
- CE
Documents
benutzerhandbuch_usersmanual_dc2412-ups_ld_upsic-1205_upsic-2403.pdf
