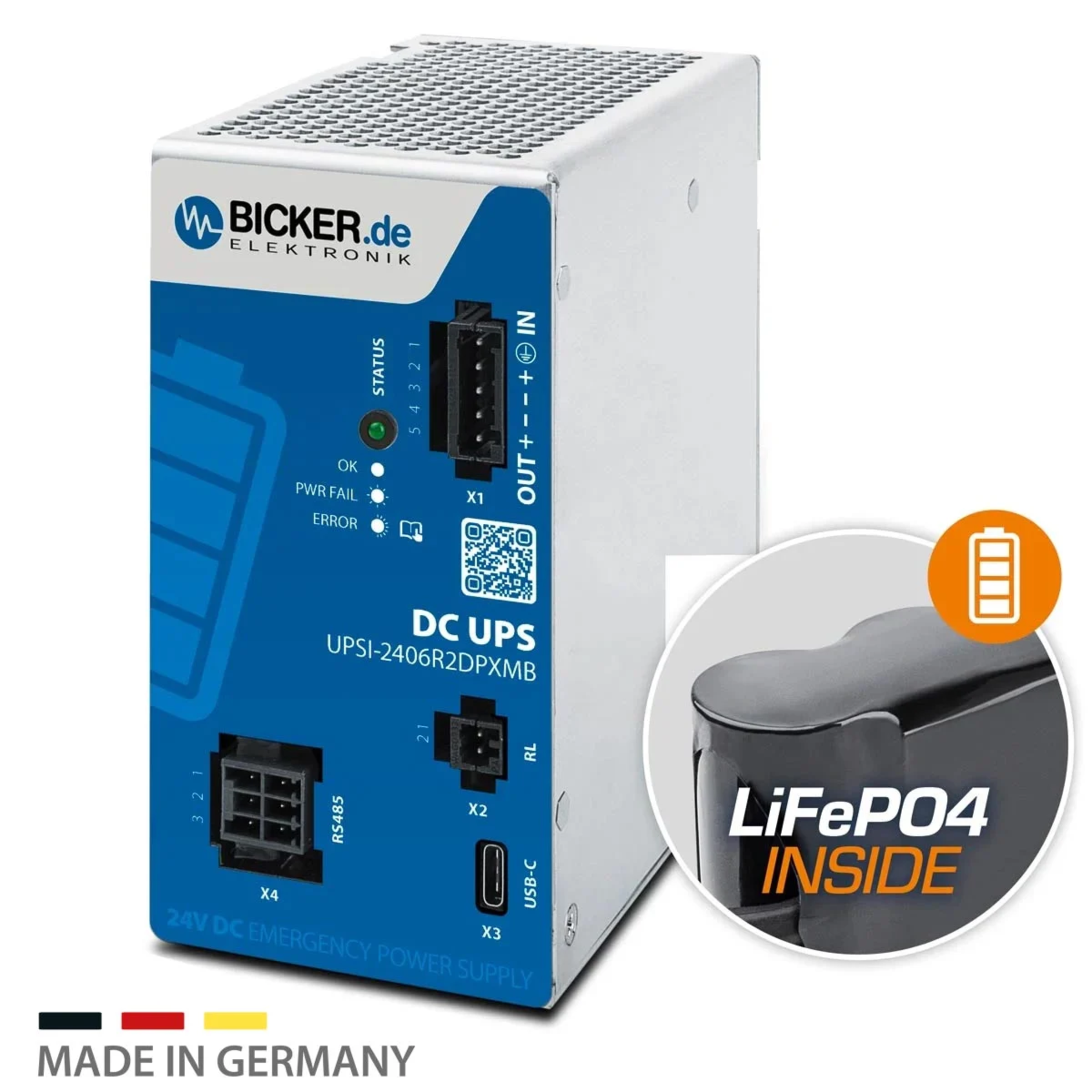

UPSI-2406R2DP3MB
Bicker Elektronik Uninterruptible power supply (UPS) 144W 24V 6A Integrated Energy Storage
NEW
Manufacturer Part No.
UPSI-2406R2DP3MB
Schukat Part No.
UPSI-2406R2DP3MB
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 39 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
- Output Power
- 144 W
- Output voltage
- 24 V
- Output current
- 6.000 A
- Operating mode
- Integrated Energy Storage
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 50 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 55 °C
Input
- Nominal input voltage
- 24 V
- Input voltage min. DC
- 23 V
- Input voltage max. DC
- 30 V
- Input current
- 6.2 A
- Power factor correction (PFC)
- Connection type, input
- Push-In Terminal
- Shutdown at deeply discharged battery
- Alarm at deeply discharged battery
Output
- Number of outputs
- 1
- Output Power
- 144 W
- Output voltage
- 24 V
- Output current
- 6.000 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- Push-In Terminal
- Temperature compensation
Safety/Certifications
- Protection class
- III
- Protection Class IP
- IP 20
- Approvals
- CE
- CSA
- IEC
- UL
- Standards (safety)
- IEC 61010-1
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
Documents
Bicker_Katalog.pdf
c_declaration_un38-3_test_bicker_bp-lfp-1325s.pdf
safety_datasheet_bp-lfp-series.pdf
