DC2412-UPSD

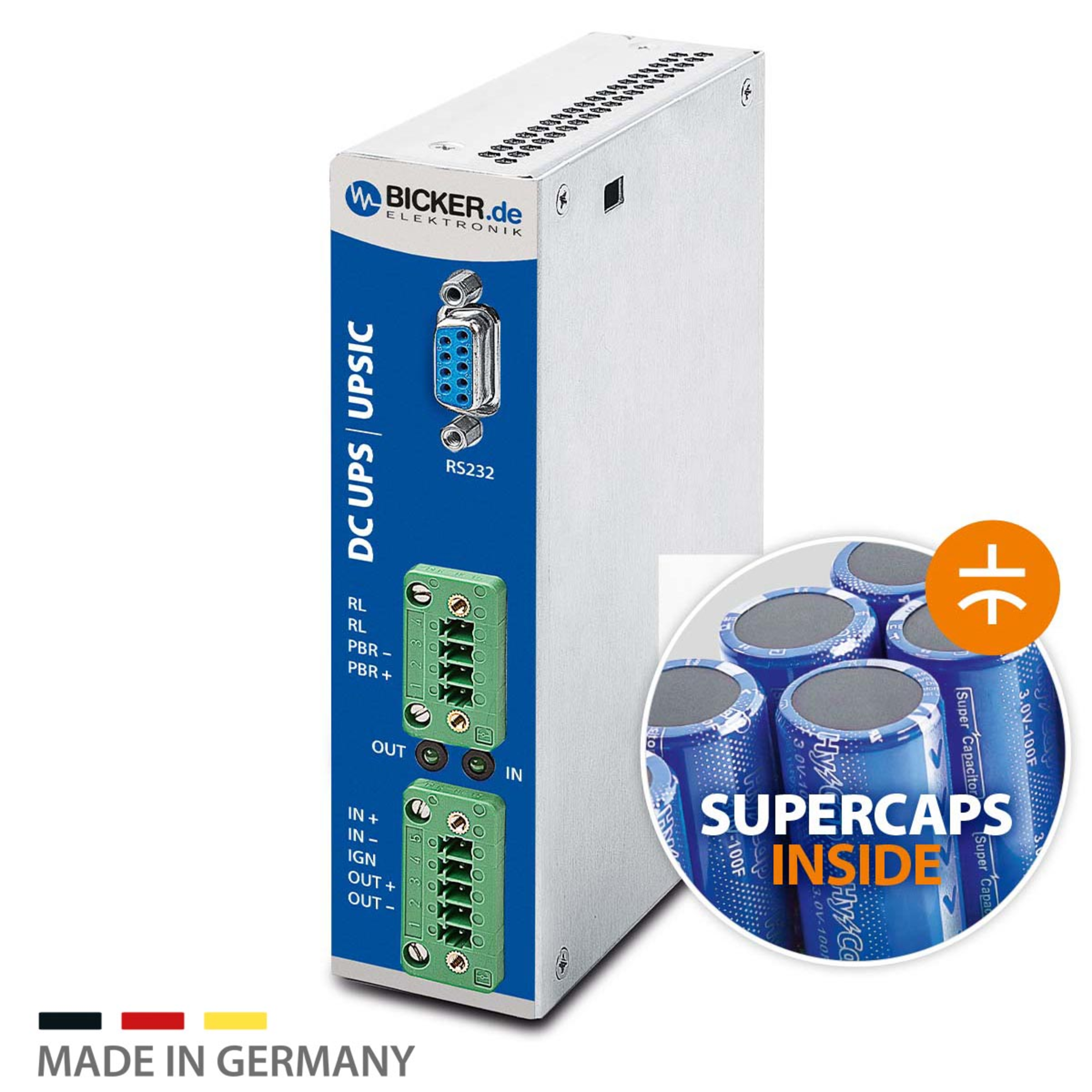

Bicker Elektronik Uninterruptible power supply (UPS) 60W 12V 5A Integrated Energy Storage

DC2412-UPSDDC2412-UPSDDC2412-UPSD
NEW
Manufacturer Part No.
DC2412-UPSD
Schukat Part No.
DC2412-UPSD
Manufacturer
Bicker Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Output Power
60 W
Output voltage
12 V
Output current
5.000 A
Operating mode
Integrated Energy Storage
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Bicker Elektronik
Series
  • DCUPS
Product group
  • M7005
Application
  • ITE
  • Industry
Operating mode
  • Integrated Energy Storage
Package/Case
  • DIN Rail

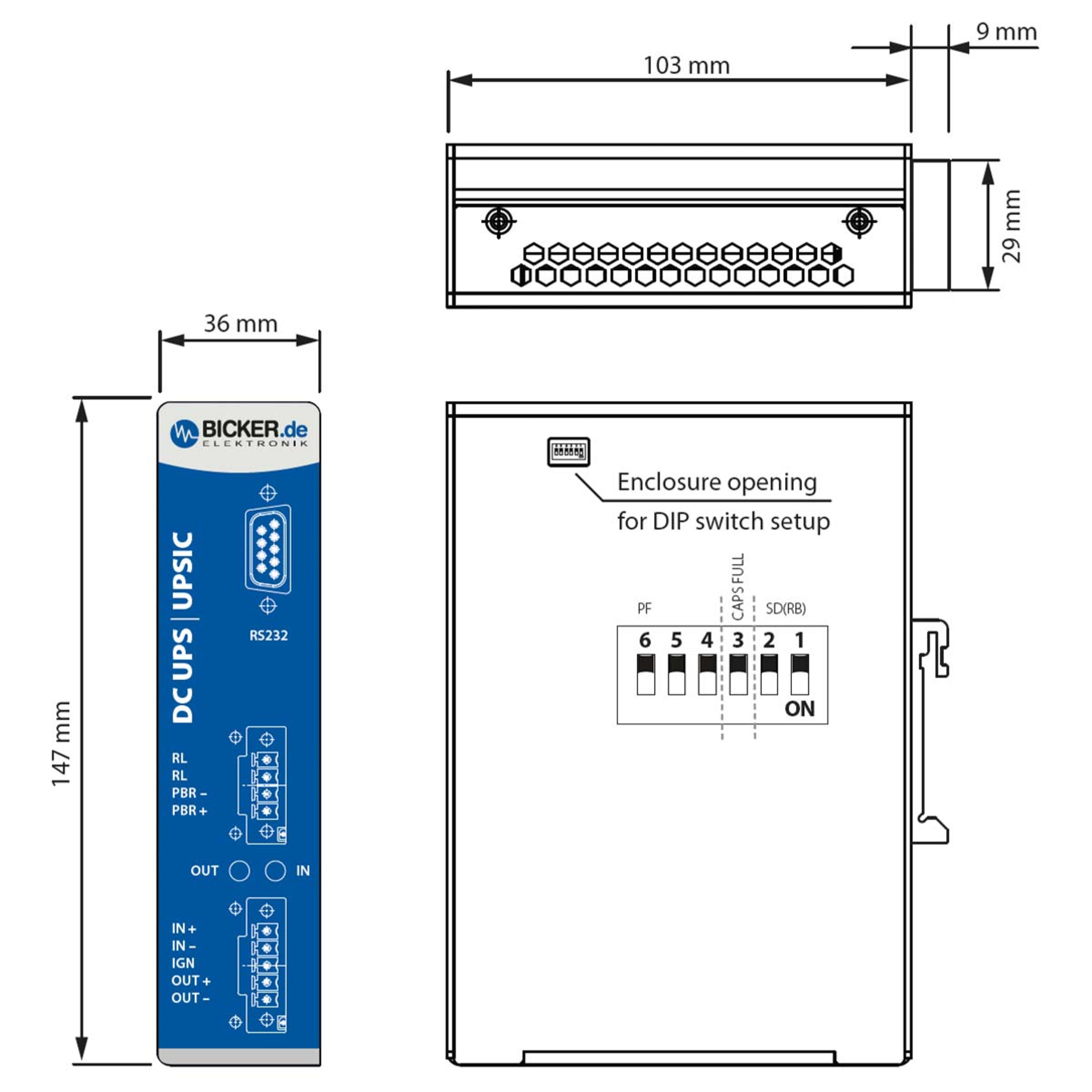

Dimension: Width
  • 36 mm
Dimension: Height
  • 147 mm
Dimension: Depth
  • 103 mm
Weight
  • 367 g
Interfaces
  • RS-232
Manufacturer's warranty (years)
  • 5
Product description
  • The Supercap DC UPS, with a wide-range input of 16–32 VDC, compensates for fluctuations, dips or failures in the connected supply voltage and provides an uninterrupted 12 VDC output. The supercapacitors are charged during normal operation and ensure the power supply is maintained when required. The highly efficient design enables fanless operation across an extended industrial temperature range. The integrated reboot function allows the system to restart if the input voltage returns during shutdown or at any other time. The start function can be activated via the BIOS when input voltage is present. In addition, a DIP switch can be used to configure the system so that the output is only enabled once the capacitors have reached 90 per cent of their charge. Operation on the host is also possible without software. The DC2412-UPSD is the fail-safe 12-volt power supply with ultra-capacitors for IoT / Industry 4.0, kiosks, POI/POS, signage, medical technology and much more!

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 65 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 70 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 16 V
Input voltage max. DC
  • 32 V
Input current
  • 2.8 A
Power factor correction (PFC)
Connection type, input
  • Push-In Terminal
Shutdown at deeply discharged battery
Alarm at deeply discharged battery

Output

Number of outputs
  • 1
Output Power
  • 60 W
Output voltage
  • 12 V
Output current
  • 5.000 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Reverse polarity protection
Connection type, output
  • Push-In Terminal
Temperature compensation

Documents

Bicker_Katalog.pdf
Download (pdf, 4.652 KB)
