Filter articles
Manufacturer
Manufacturer
Series
Series
Type
Type
Rated Voltage
Rated Voltage
Nominal capacity
Nominal capacity
Chemical system
Chemical system
IEC Code
IEC Code
Other designation
Other designation
Dimension: Diameter
Dimension: Diameter
Dimension: Height
Dimension: Height
Termination Style
Termination Style
Operating temperature min.
Operating temperature min.
Operating temperature max.
Operating temperature max.
Shelf life (years)
Shelf life (years)
Results (328)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Rated Voltage | Nominal capacity | Chemical system | IEC Code | Other designation | Dimension: Diameter | Dimension: Height | Termination Style | Operating temperature min. | Operating temperature max. | Shelf life (years) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
301 |  EOL 06.02.2026 | Manufacturers Part No. CR2430.SC(CR2430.SC) Renata Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2430 3V 285mAh | Customer Part No. Customer Project No. | 30 Pcs. Discontinued by manufacturer with replacement | (at least 10 or mul. of 10) | Renata | Button Cell | 3.0 V | 285.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2430 | 24.5 mm | -40.0 °C | 85.0 °C | 10.0 | ||||||||
302 | EOL 06.02.2026 | Manufacturers Part No. CR2450N.SC(CR2450N.SC) Renata Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2450 3V 540mAh | Customer Part No. Customer Project No. | 300 Pcs. Discontinued by manufacturer with replacement | (at least 10 or mul. of 10) | Renata | Button Cell | 3.0 V | 540.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2450 | 24.5 mm | -40.0 °C | 85.0 °C | 10.0 | ||||||||

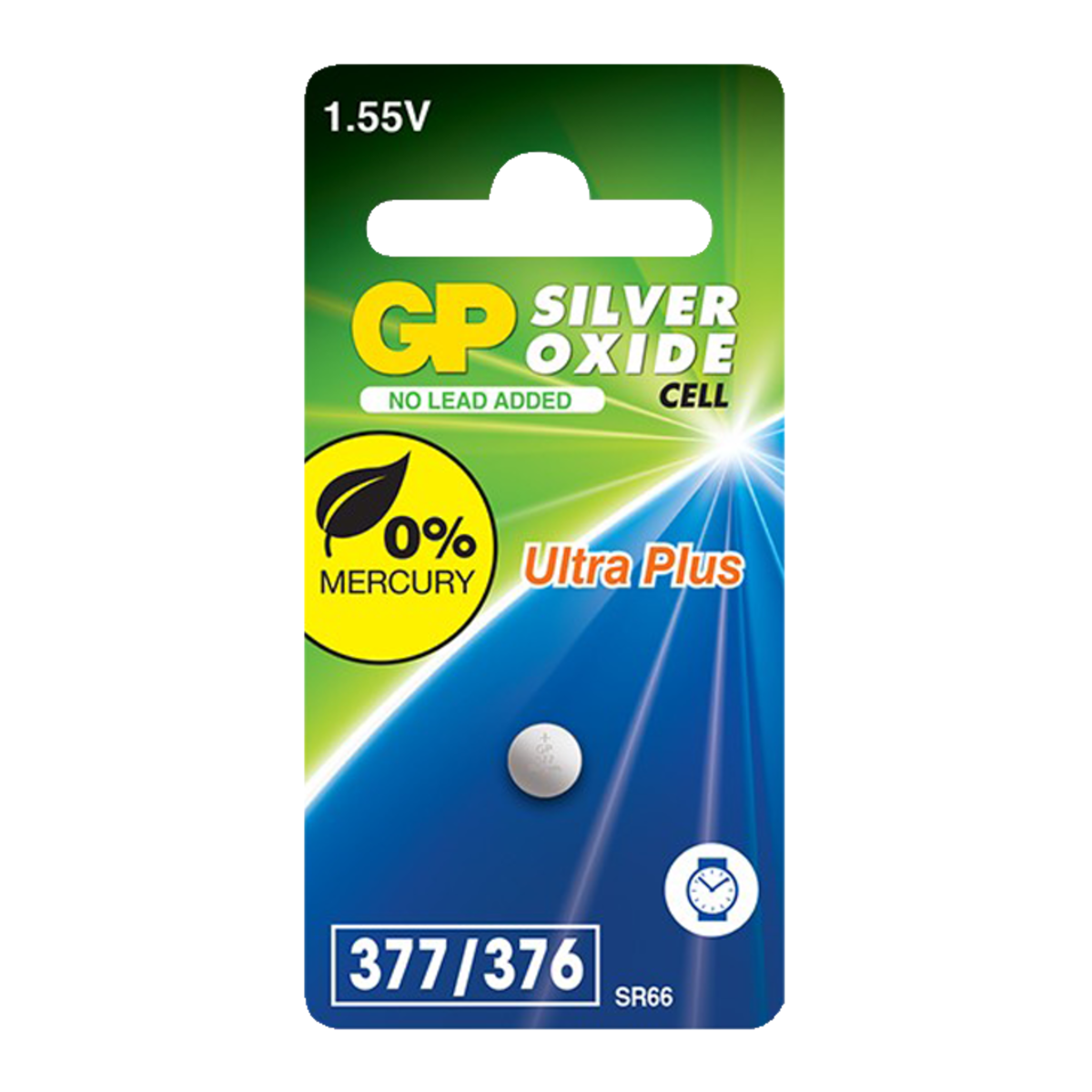

303 | EOL 07.11.2023 | Manufacturers Part No. 040UP377C1(GP377) GP Batteries Silver oxide zinc (AgO-Zn) Button Cell SR SR66 1,55V 25mAh | Customer Part No. Customer Project No. | 50 Pcs. Discontinued by manufacturer with replacement | (at least 5 or mul. of 5) | GP Batteries | Button Cell | 1.55 V | 25.0 mAh | Silver oxide zinc (AgO-Zn) | SR66 | GP377F | 6.8 mm | 2.6 mm | 2.0 | ||||||||
304 | EOL 07.11.2023 | Manufacturers Part No. 0602032C4(GP0602032C4) GP Batteries Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2032 3V 220mAh Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 4 or mul. of 4) | GP Batteries | Button Cell | 3.0 V | 220.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2032 | DL2032 ECR2032 | 20.0 mm | 3.2 mm | -10.0 °C | 60.0 °C | 5.0 | ||||||
305 | EOL 06.02.2026 | Manufacturers Part No. CR1216MFR.SC(CR1216MFR.SC) Renata Lithium manganese dioxide (LiMn2O4) Button Cell CR CR1216 3V 25mAh | Customer Part No. Customer Project No. | 300 Pcs. Discontinued by manufacturer with replacement | (at least 10 or mul. of 10) | Renata | Button Cell | 3.0 V | 25.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR1216 | 12.5 mm | -30.0 °C | 70.0 °C | 10.0 | ||||||||
306 | EOL 06.02.2026 | Manufacturers Part No. CR1220MFR.SC(CR1220MFR.SC) Renata Lithium manganese dioxide (LiMn2O4) Button Cell CR CR1220 3V 35mAh | Customer Part No. Customer Project No. | No longer available | (at least 10 or mul. of 10) | Renata | Button Cell | 3.0 V | 35.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR1220 | 12.5 mm | -30.0 °C | 70.0 °C | 10.0 | ||||||||
307 | EOL 31.08.2024 | Manufacturers Part No. PC2016(PC2016) Duracell Lithium manganese dioxide (LiMn2O4) Button Cell PC CR2016 3V 85mAh Blister pack of 5 | Customer Part No. Customer Project No. | 196 Pack ( PAK ) | (at least 1 or mul. of 1) | Duracell | Button Cell | 3.0 V | 85.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2016 | 20.0 mm | 1.6 mm | -20.0 °C | 60.0 °C | ||||||||
308 | EOL 31.08.2024 | Manufacturers Part No. PC1300(PC1300) Duracell Alkali manganese (AlMn) Round Cell Constant 1,5V LR20 D, Mono Pack of 10 | Customer Part No. Customer Project No. | 6 Pack ( PAK ) | (at least 1 or mul. of 1) | Duracell | Round Cell | 1.5 V | 19.669 mAh | Alkali manganese (AlMn) | LR20 | D Mono | 34.2 mm | 61.5 mm | -20.0 °C | 54.0 °C | 10.0 | ||||||
309 | EOL 31.08.2024 | Manufacturers Part No. PC1400(PC1400) Duracell Alkali manganese (AlMn) Round Cell Constant 1,5V LR14 C, Baby Pack of 10 | Customer Part No. Customer Project No. | 10 Pack ( PAK ) | (at least 1 or mul. of 1) | Duracell | Round Cell | 1.5 V | 9.038 mAh | Alkali manganese (AlMn) | LR14 | C Baby | 26.2 mm | 50.0 mm | -20.0 °C | 54.0 °C | 10.0 | ||||||
310 | EOL 31.08.2024 | Manufacturers Part No. PC2025(PC2025) Duracell Lithium manganese dioxide (LiMn2O4) Button Cell PC CR2025 3V 165mAh Blister pack of 5 | Customer Part No. Customer Project No. | 175 Pack ( PAK ) | (at least 1 or mul. of 1) | Duracell | Button Cell | 3.0 V | 165.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2025 | 20.0 mm | 2.5 mm | -20.0 °C | 60.0 °C | ||||||||
311 | EOL 31.08.2024 | Manufacturers Part No. PC1604(PC1604) Duracell Alkali manganese (AlMn) Round Cell Constant 9V 6LR61 E, Block Pack of 10 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | Duracell | Round Cell | 9.0 V | 692.0 mAh | Alkali manganese (AlMn) | 6LR61 | E Block | 26.5 mm | 48.5 mm | -20.0 °C | 54.0 °C | 5.0 | ||||||
312 | EOL 30.10.2025 | Manufacturers Part No. PC1500(PC1500) Duracell Alkali Manganese Round Cell Constant 1,5V LR6 AA, Mignon pack of 10 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | Duracell | Round Cell | 1.5 V | 3.125 mAh | Alkali Manganese | LR6 | AA Mignon | 14.5 mm | 50.5 mm | -20.0 °C | 54.0 °C | 10.0 | ||||||

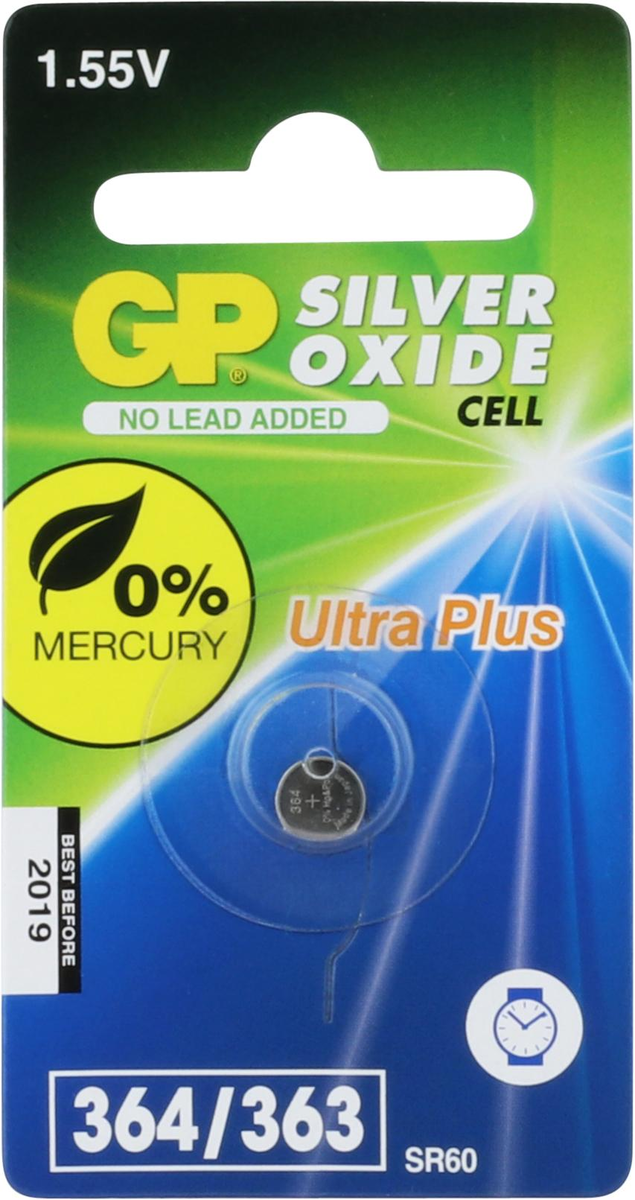

313 | EOL 19.01.2026 | Manufacturers Part No. GP364LOD805C1(GP364LOD805C1) GP Batteries Silver oxide zinc (AgO-Zn) Button Cell SR SR60 1,55V 18mAh | Customer Part No. Customer Project No. | 85 Pcs. Discontinued by manufacturer without replacement | (at least 5 or mul. of 1) | GP Batteries | Button Cell | 1.55 V | 18.0 mAh | Silver oxide zinc (AgO-Zn) | SR60 | GP364F | 6.8 mm | 2.15 mm | 2.0 | ||||||||
314 | EOL 10.10.2024 | Manufacturers Part No. GPSUP910AB(GPSUP910AB) GP Batteries Alkali manganese (AlMn) Round Cell Super Alkaline 1,5V LR1 N, Lady | Customer Part No. Customer Project No. | 210 Pcs. Discontinued by manufacturer with replacement | (at least 10 or mul. of 10) | GP Batteries | Round Cell | 1.5 V | Alkali manganese (AlMn) | GP910A MN9100 N Lady | 12.0 mm | 30.2 mm | |||||||||||
315 | EOL 10.10.2024 | Manufacturers Part No. GPCR2025STD350C4(CR2025STD350C4) GP Batteries Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2025 3V 160mAh Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Button Cell | 3.0 V | 160.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2025 | 20.0 mm | 2.5 mm | 5.0 | |||||||||
316 | EOL 10.10.2024 | Manufacturers Part No. GP24LF359C4(24LF359C4) GP Batteries Lithium iron sulfate (LiFeS2) Round Cell 070 1,5V FR03 AAA, Micro Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Round Cell | 1.5 V | Lithium iron sulfate (LiFeS2) | FR03 | AAA Micro | 10.5 mm | 44.5 mm | 10.0 | |||||||||
317 | EOL 10.10.2024 | Manufacturers Part No. GPULP24A985C4(ULP24A985C4) GP Batteries Alkali manganese (AlMn) Round Cell Ultra Plus Alkaline 1,5V LR03 AAA, Micro Blister pack of 4 | Customer Part No. Customer Project No. | 10 Pcs. Discontinued by manufacturer with replacement | (at least 1 or mul. of 1) | GP Batteries | Round Cell | 1.5 V | Alkali manganese (AlMn) | LR03 | AAA Micro | 10.5 mm | 44.5 mm | -18.0 °C | 50.0 °C | ||||||||
318 | EOL 10.10.2024 | Manufacturers Part No. GPCR2016STD329C4(CR2016STD329C4) GP Batteries Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2016 3V 90mAh Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Button Cell | 3.0 V | 90.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2016 | 20.0 mm | 1.6 mm | 5.0 | |||||||||
319 | EOL 10.10.2024 | Manufacturers Part No. GPCR2032STD381C4(CR2032STD381C4) GP Batteries Lithium manganese dioxide (LiMn2O4) Button Cell CR CR2032 3V 220mAh Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Button Cell | 3.0 V | 220.0 mAh | Lithium manganese dioxide (LiMn2O4) | CR2032 | 20.0 mm | 3.2 mm | 5.0 | |||||||||
320 | EOL 10.10.2024 | Manufacturers Part No. GPULP13A159C2(ULP13A159C2) GP Batteries Alkali manganese (AlMn) Round Cell Ultra Plus Alkaline 1,5V LR20 D, Mono Pack of 2 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Round Cell | 1.5 V | Alkali manganese (AlMn) | LR20 | D Mono | 34.2 mm | 61.5 mm | -18.0 °C | 50.0 °C | ||||||||
321 | EOL 10.10.2024 | Manufacturers Part No. GPULP14A654C2(ULP14A654C2) GP Batteries Alkali manganese (AlMn) Round Cell Ultra Plus Alkaline 1,5V LR14 C, Baby Pack of 2 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Round Cell | 1.5 V | Alkali manganese (AlMn) | LR14 | C Baby | 26.2 mm | 50.0 mm | -18.0 °C | 50.0 °C | ||||||||
322 | EOL 10.10.2024 | Manufacturers Part No. GPULP15A923C4(ULP15A923C4) GP Batteries Alkali manganese (AlMn) Round Cell Ultra Plus Alkaline 1,5V LR6 AA, Mignon Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Round Cell | 1.5 V | Alkali manganese (AlMn) | LR6 | AA Mignon | 14.5 mm | 50.5 mm | -18.0 °C | 50.0 °C | ||||||||
323 | EOL 10.10.2024 | Manufacturers Part No. GP15LF562C4(15LF562C4) GP Batteries Lithium iron sulfate (LiFeS2) Round Cell 070 1,5V FR6 AA, Mignon Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Round Cell | 1.5 V | Lithium iron sulfate (LiFeS2) | FR6 | AA Mignon | 14.5 mm | 50.5 mm | 10.0 | |||||||||

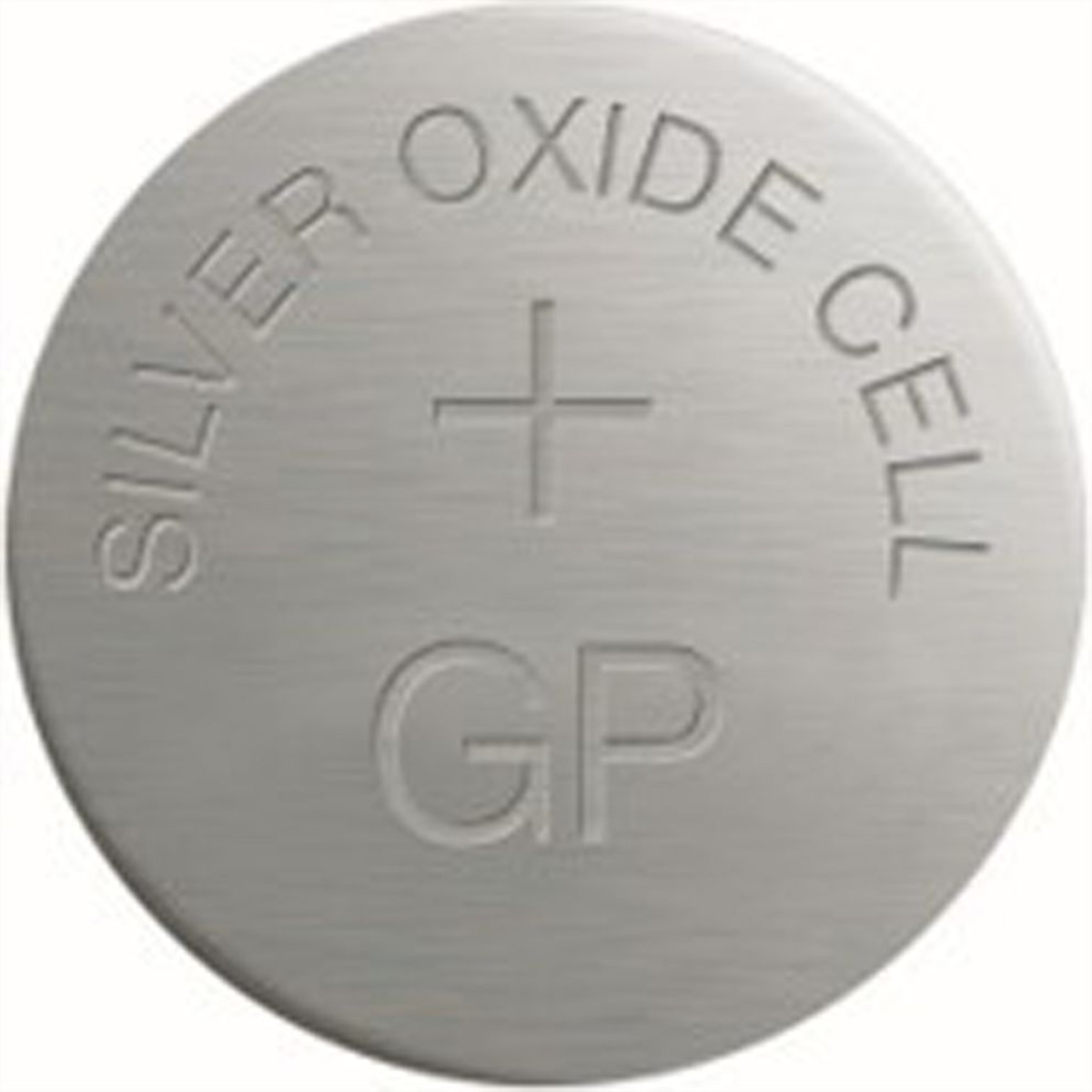

324 | EOL 19.01.2026 | Manufacturers Part No. GP392HID846C1(GP392HID846C1) GP Batteries Silver oxide zinc (AgO-Zn) Button Cell SR SR41 1,55V 42mAh | Customer Part No. Customer Project No. | 60 Pcs. Discontinued by manufacturer without replacement | (at least 5 or mul. of 1) | GP Batteries | Button Cell | 1.55 V | 42.0 mAh | Silver oxide zinc (AgO-Zn) | SR41 | GP392F | 7.9 mm | 3.6 mm | 2.0 | ||||||||
325 | EOL 10.10.2024 | Manufacturers Part No. GP23ASTD503C4(23ASTD503C4) GP Batteries Alkali manganese (AlMn) Round Cell Super Alkaline 12V 8LR932 L728 Blister pack of 4 | Customer Part No. Customer Project No. | No longer available | (at least 1 or mul. of 1) | GP Batteries | Round Cell | 12.0 V | 38.0 mAh | Alkali manganese (AlMn) | 8LR932 | L728 | 10.22 mm | 28.5 mm |
