5U220800

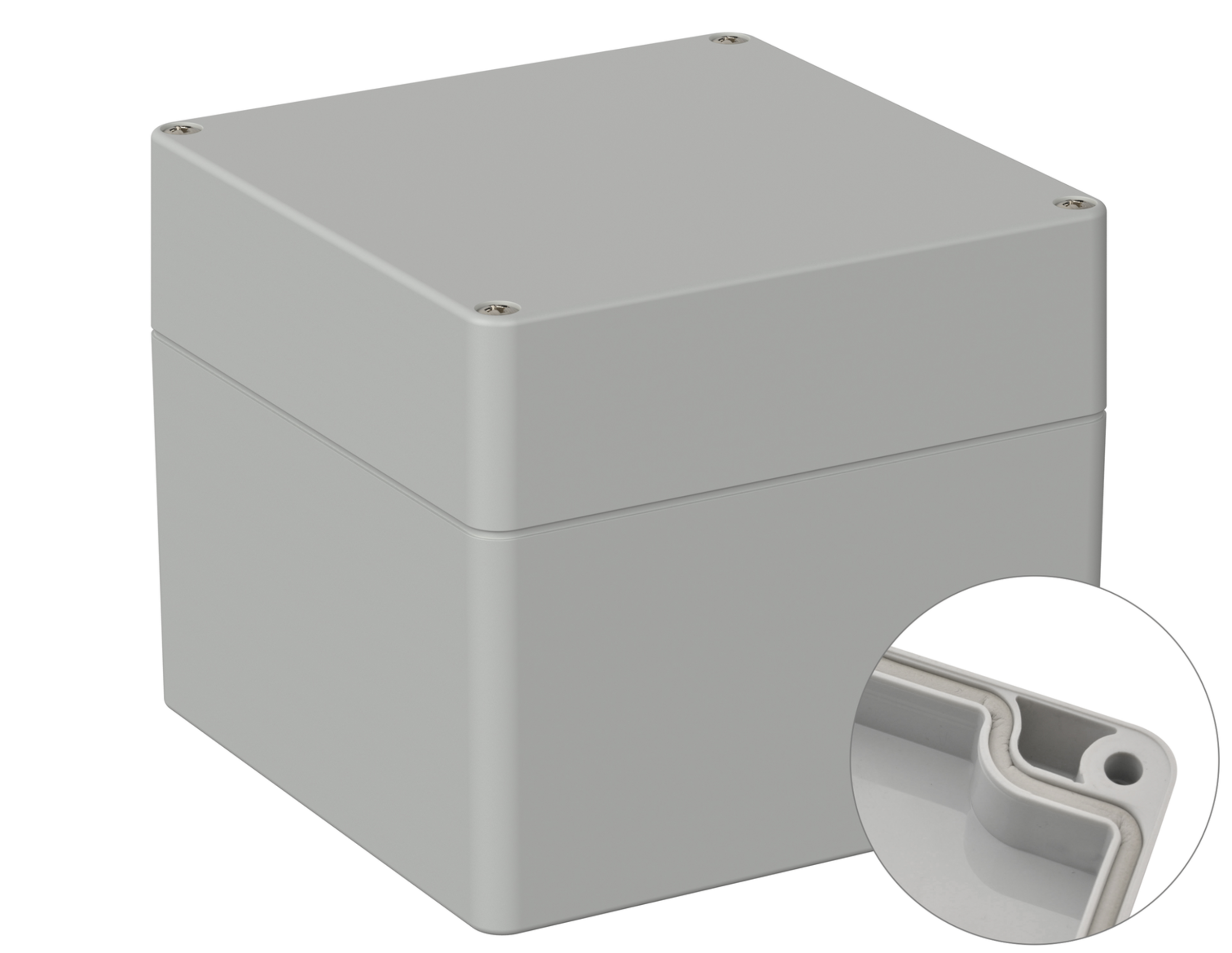

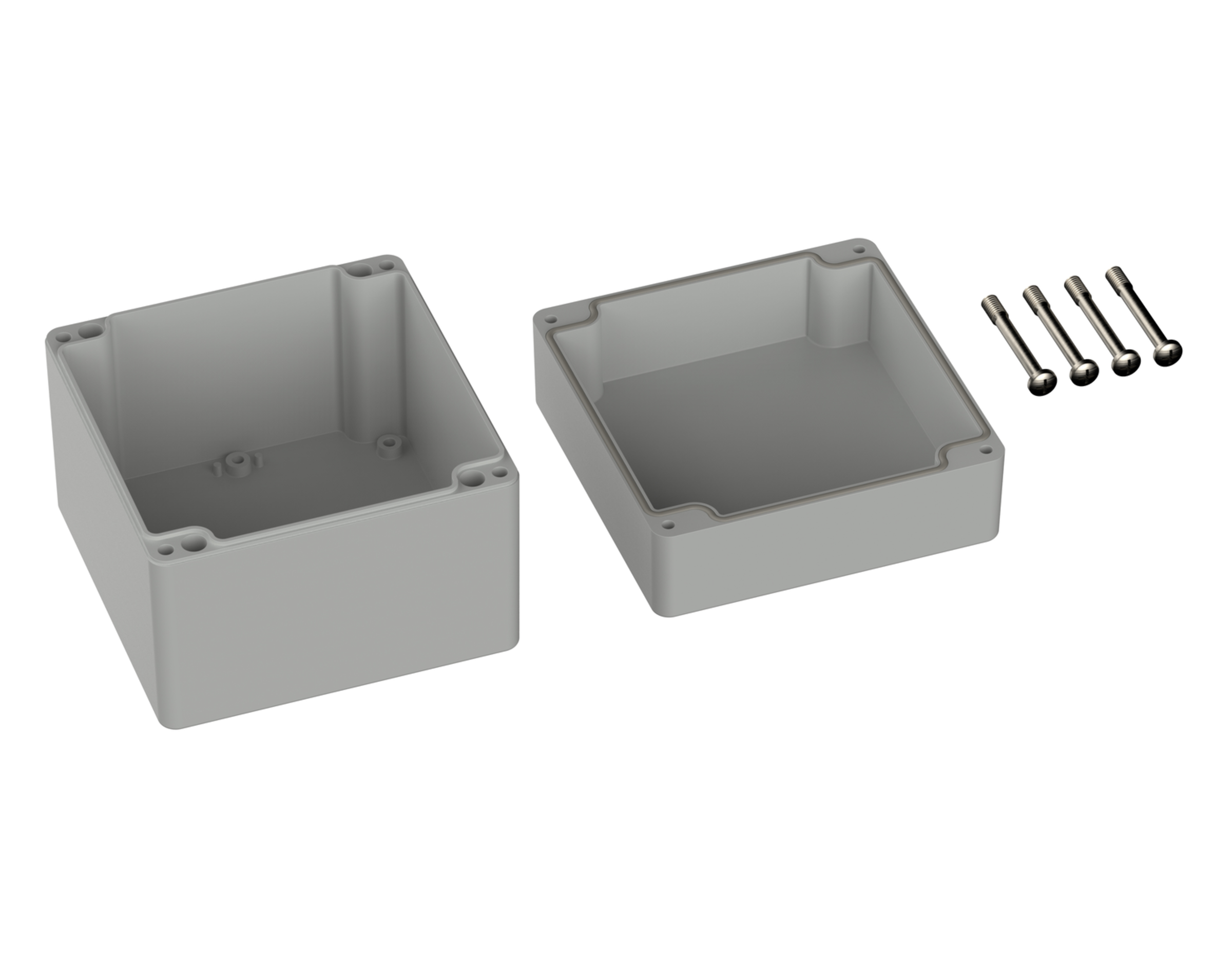

BOX4U 5U2_ Universal housing 122mm x 120mm x 105mm gray IP66
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Universal housing
- Assembly Type
- Screw mounting
- Dimension: Length
- 122 mm
- Dimension: Width
- 120 mm
- Dimension: Height
- 105 mm
- Type ( axial, radial )
- Seal
- Colour
- gray
- Colour: lid/panel/handle
- Material
- PC (Polycarbonate)
- Protection Class IP
- IP66
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 122 mm
- Dimension: Width
- 120 mm
- Dimension: Height
- 105 mm
Safety/Certifications
- Protection Class IP
- IP66
- Approvals
- cUL
Documents
Industrie Leergehäuse in ABS und Polycarbonat bis IP66 max.pdf
Industrie Leergehäuse in ABS und Polycarbonat bis IP66 max.pdf
