Results (35)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Coil: Nominal Voltage DC | Coil resistance | Contact: Switching Load (W) | Contact material | Dimension: Length | Dimension: Width | Dimension: Height | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 |  | Manufacturers Part No. FTR-P3CN012W1(FTR-P3CN012W1) FCL Components Automotive relay FTR-P3 SPDT 25A 12VDC 240Ohm 17,4mmx7,2mmx13,5mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | FCL Components | THT | SPDT | 25.0 A | 12.0 V DC | 240.0 Ohm | 350.0 W | AgSnO2/In | 17.4 mm | 7.2 mm | 13.5 mm | -40.0 °C | 85.0 °C | ||||||

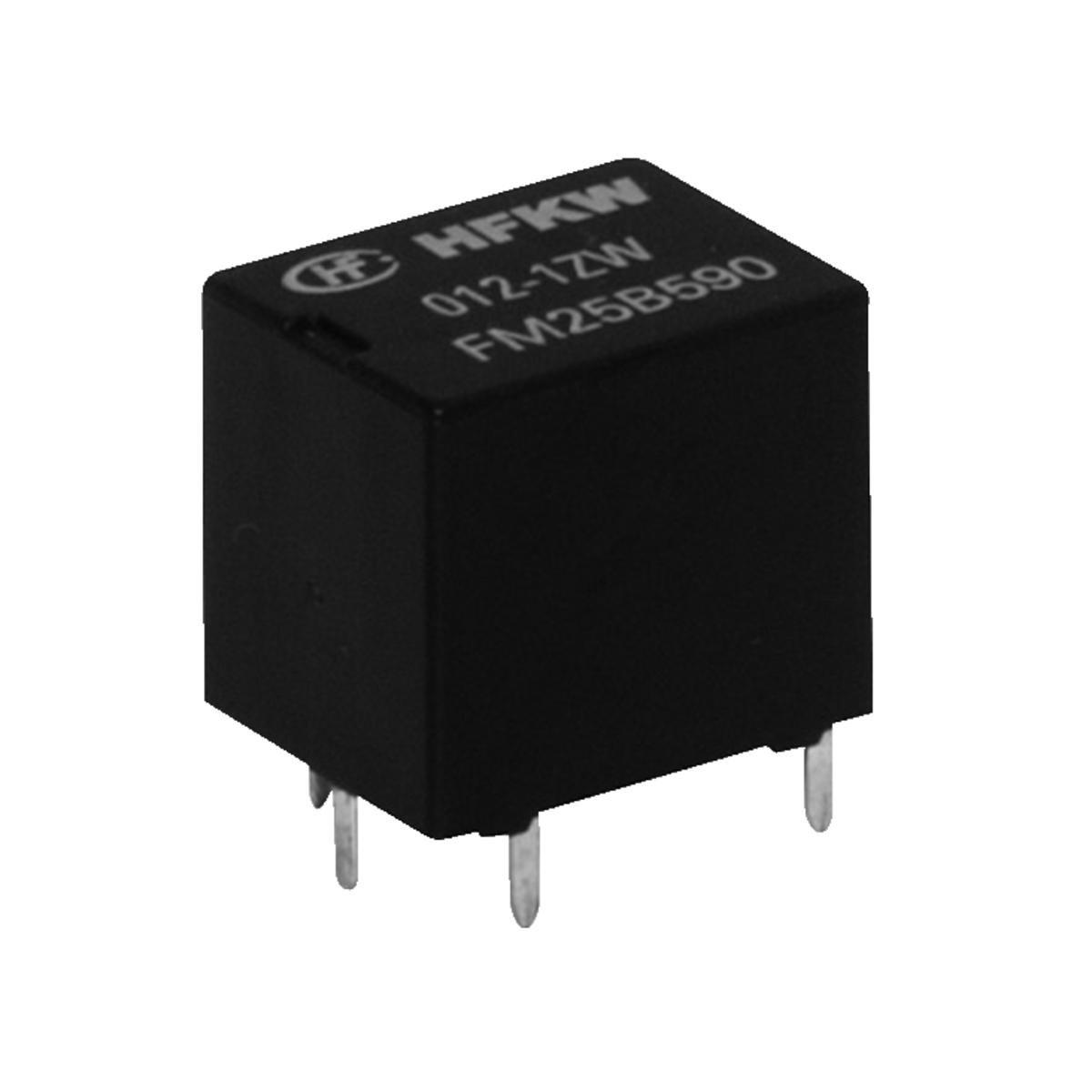

02 | | Manufacturers Part No. HFKW/012-1ZW(HFKW-012-1ZW) Hongfa Automotive relay HFKW SPDT 25A 12VDC 240Ohm 15,7mmx12,5mmx14mm | Customer Part No. Customer Project No. | 2.000 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 25.0 A | 12.0 V DC | 240.0 Ohm | AgSnO2 | 15.7 mm | 12.5 mm | 14.0 mm | -40.0 °C | 85.0 °C | |||||||
03 | | Manufacturers Part No. HFKW/024-1ZW(HFKW-024-1ZW) Hongfa Automotive relay HFKW SPDT 25A 24VDC 960Ohm 15,7mmx12,5mmx14mm | Customer Part No. Customer Project No. | 740 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPDT | 25.0 A | 24.0 V DC | 960.0 Ohm | AgSnO2 | 15.7 mm | 12.5 mm | 14.0 mm | -40.0 °C | 85.0 °C | |||||||

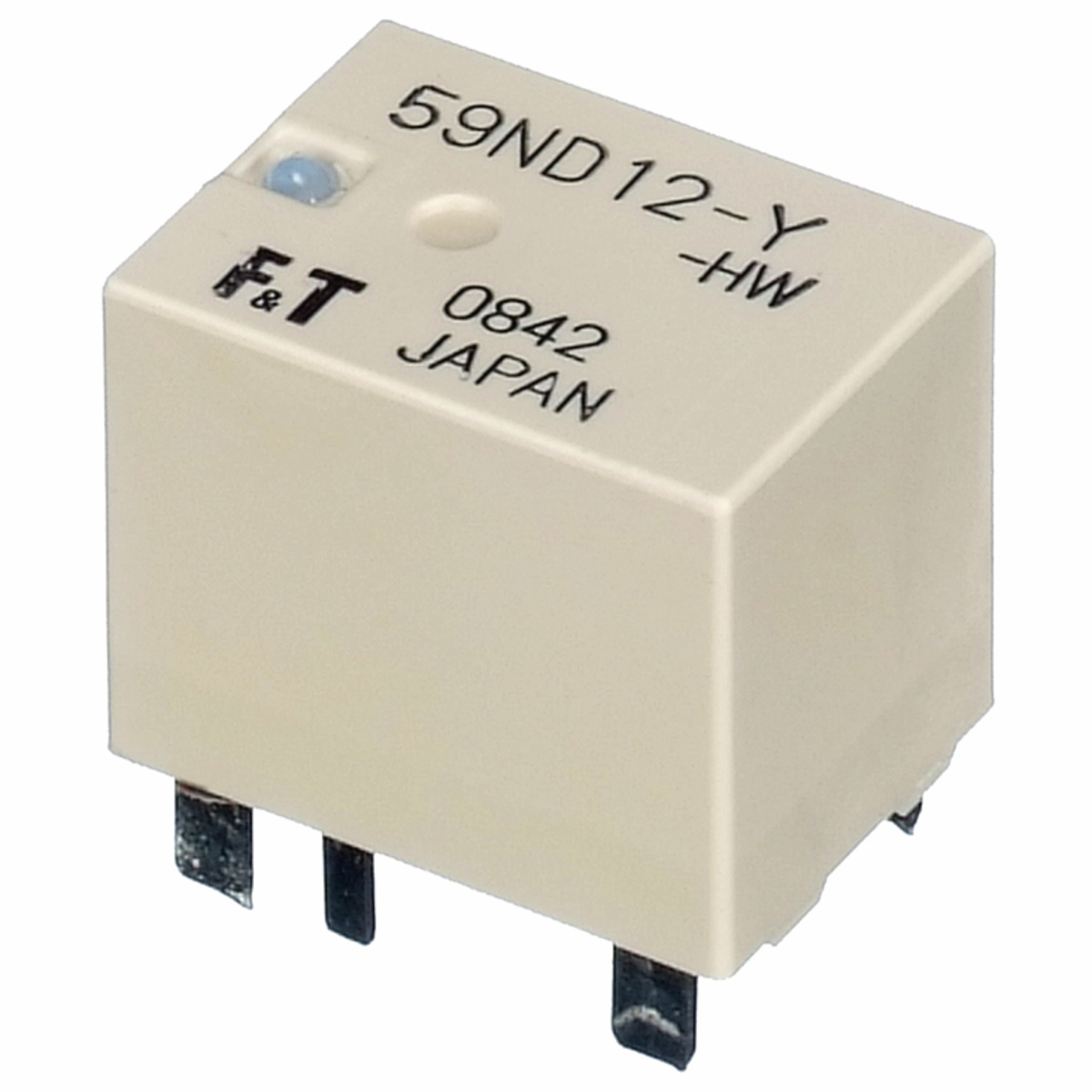

04 | | Manufacturers Part No. FBR59ND12-Y-HW-M(FBR59ND12-Y-HW) FCL Components Automotive relay FBR59 SPST-NO 70A 12VDC 320Ohm 20mmx15mmx16,8mm | Customer Part No. Customer Project No. | 840 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 10) | FCL Components | THT | SPST-NO | 70.0 A | 12.0 V DC | 320.0 Ohm | 980.0 W | AgSnO2 | 20.0 mm | 15.0 mm | 16.8 mm | -40.0 °C | 125.0 °C | ||||||

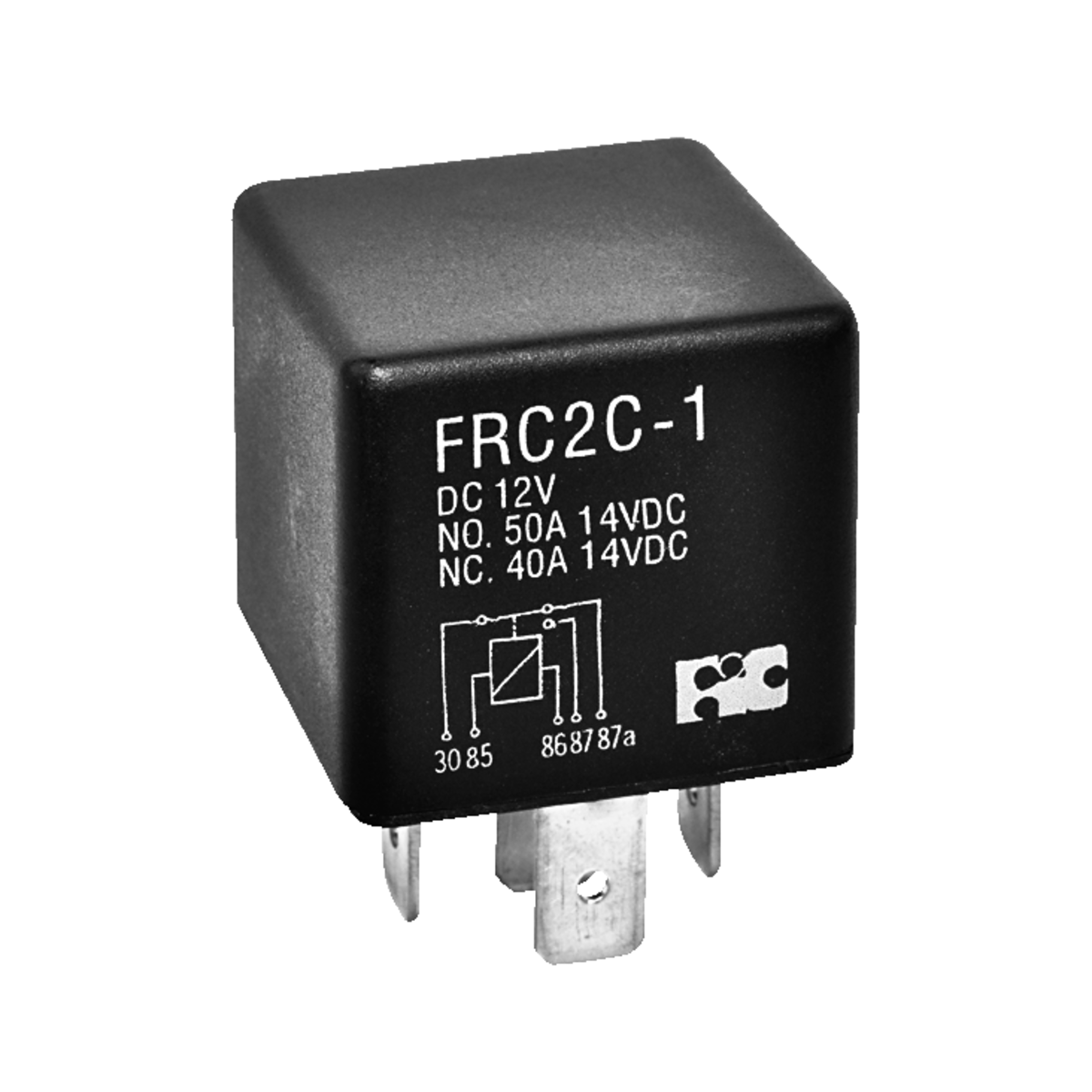

05 | | Manufacturers Part No. FRC2C-1-DC12V(FRC2C-1-DC12V) Forward Industrial Co. Automotive relay FRC2 SPDT 50A 12VDC 80Ohm 29mmx29mmx26,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock) | (at least 1 or mul. of 1) | Forward Industrial Co. | THT | SPDT | 50.0 A | 12.0 V DC | 80.0 Ohm | 700.0 W | AgSnO2 | 29.0 mm | 29.0 mm | 26.5 mm | -40.0 °C | 85.0 °C | ||||||
06 | | Manufacturers Part No. FRC2C-1-DC24V(FRC2C-1-DC24V) Forward Industrial Co. Automotive relay FRC2 SPDT 50A 24VDC 320Ohm 29mmx29mmx26,5mm | Customer Part No. Customer Project No. | 871 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock) | (at least 1 or mul. of 1) | Forward Industrial Co. | THT | SPDT | 50.0 A | 24.0 V DC | 320.0 Ohm | 700.0 W | AgSnO2 | 29.0 mm | 29.0 mm | 26.5 mm | -40.0 °C | 85.0 °C | ||||||

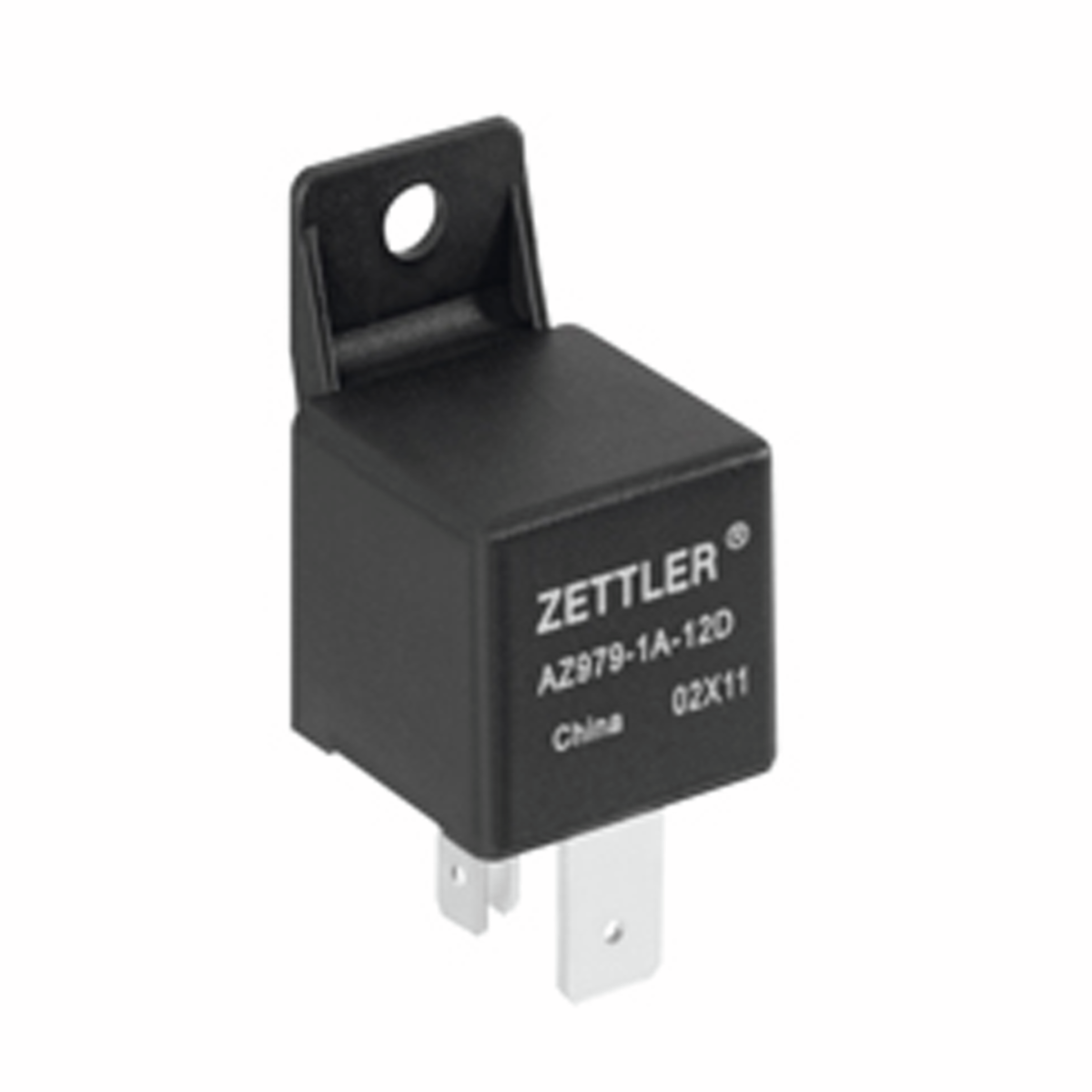

07 | | Manufacturers Part No. AZ979-1A-12D(AZ979-1A-12D) Zettler Automotive relay AZ979 SPST-NO 80A 12VDC 90Ohm 29,8mmx29,8mmx26,5mm | Customer Part No. Customer Project No. | 380 Pcs. Planned Delivery Time Ø 34 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 80.0 A | 12.0 V DC | 90.0 Ohm | 1120.0 W | AgSnO2 | 29.8 mm | 29.8 mm | 26.5 mm | -40.0 °C | 85.0 °C | ||||||
08 | | Manufacturers Part No. AZ979-1A-24D(AZ979-1A-24D) Zettler Automotive relay AZ979 SPST-NO 80A 24VDC 360Ohm 29,8mmx29,8mmx26,5mm | Customer Part No. Customer Project No. | 350 Pcs. Planned Delivery Time Ø 34 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 80.0 A | 24.0 V DC | 360.0 Ohm | 1120.0 W | AgSnO2 | 29.8 mm | 29.8 mm | 26.5 mm | -40.0 °C | 85.0 °C | ||||||
09 | | Manufacturers Part No. 1393280-5(V23086C1001A402) TE Connectivity Automotive relay K SPST-NO 30A 12VDC 254Ohm 12mmx12,9mmx9,9mm RTIII | Customer Part No. Customer Project No. | 815 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 5 or mul. of 5) | TE Connectivity | THT | SPST-NO | 30.0 A | 12.0 V DC | 254.0 Ohm | AgSnO2 | 12.0 mm | 12.9 mm | 9.9 mm | RTIII | -40.0 °C | 105.0 °C | ||||||

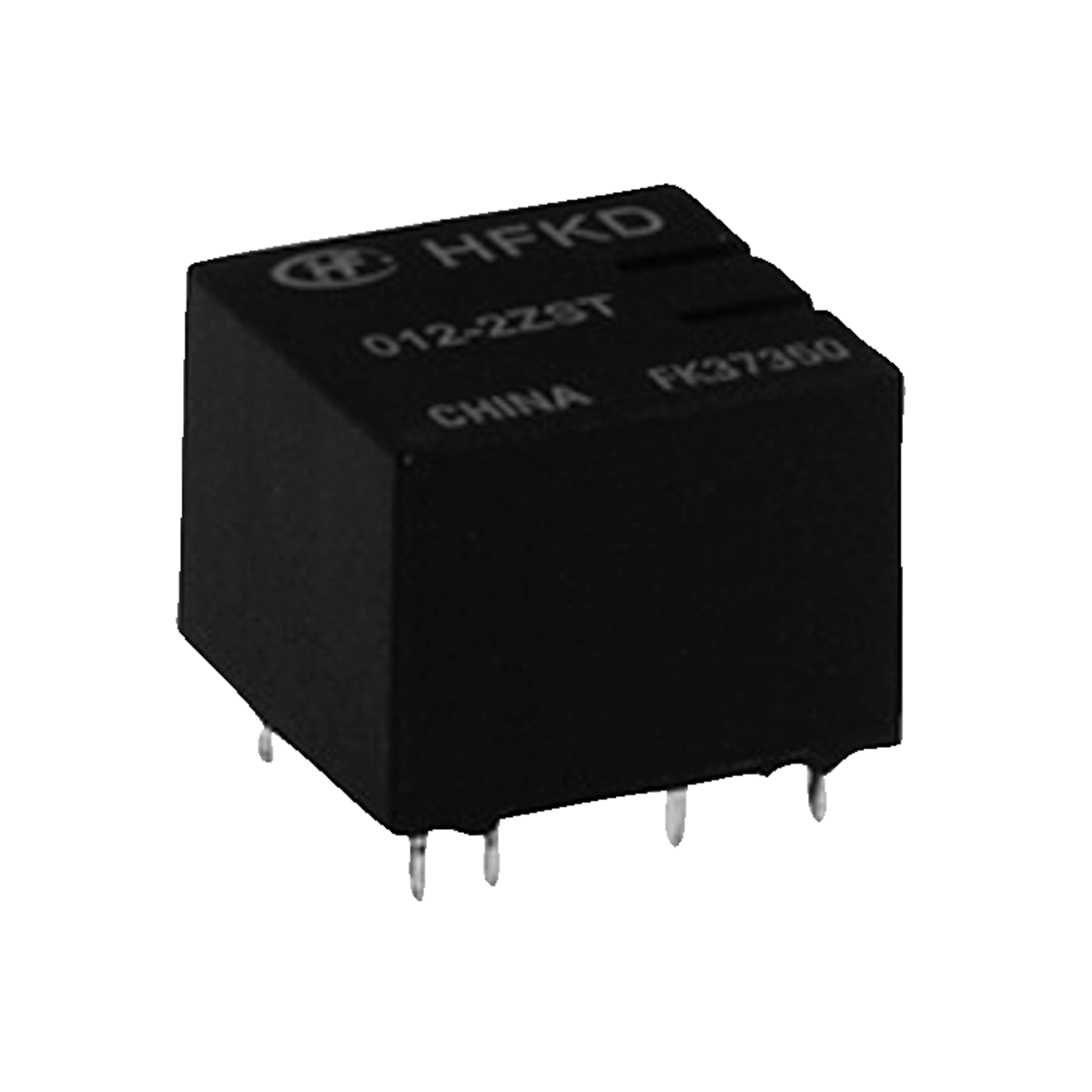

10 | | Manufacturers Part No. HFKD/012-2ZST(HFKD012-2ZST) Hongfa Automotive relay HFKD DPDT 25A 12VDC 255Ohm 17,5mmx9,2mmx13,2mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | DPDT | 25.0 A | 12.0 V DC | 255.0 Ohm | AgSnO2 | 17.5 mm | 9.2 mm | 13.2 mm | RTIII | -40.0 °C | 85.0 °C | ||||||

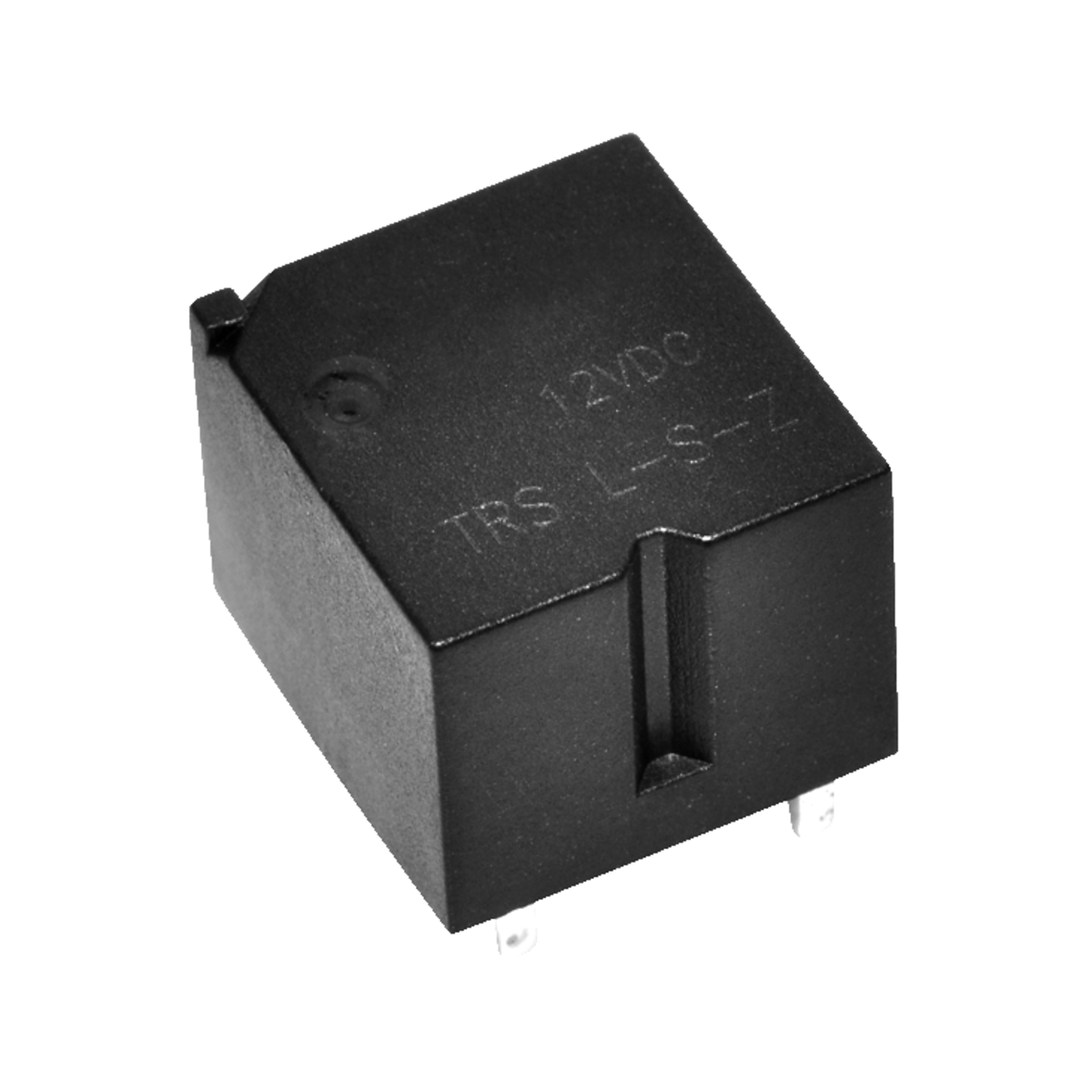

11 | | Manufacturers Part No. TRS-L-12VDC-S-Z(TRS-L-12) Tianbo Automotive relay TRS SPDT 30A 12VDC 254Ohm 13,2mmx12,3mmx9,8mm TOP | Customer Part No. Customer Project No. | 1.650 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Tianbo | THT | SPDT | 30.0 A | 12.0 V DC | 254.0 Ohm | 420.0 W | Ag alloy | 13.2 mm | 12.3 mm | 9.8 mm | -40.0 °C | 105.0 °C | ||||||

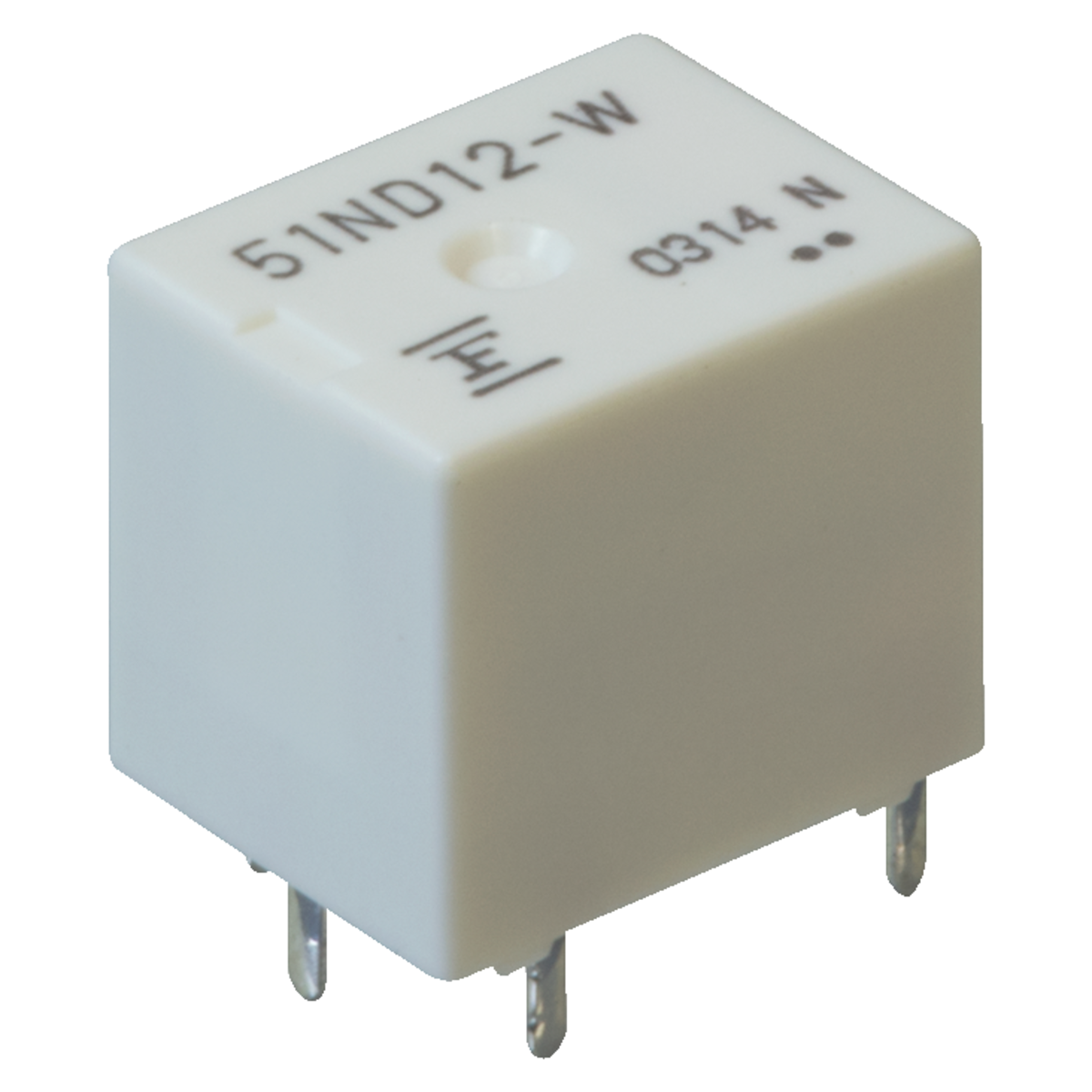

12 | | Manufacturers Part No. FBR51ND10-W1(FBR51ND10W1) FCL Components Automotive relay FBR51 SPDT 25A 9VDC 180Ohm 15,5mmx12,1mmx13,7mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPDT | 25.0 A | 9.0 V DC | 180.0 Ohm | 560.0 W | AgSnO2/In | 15.5 mm | 12.1 mm | 13.7 mm | -40.0 °C | 85.0 °C | ||||||

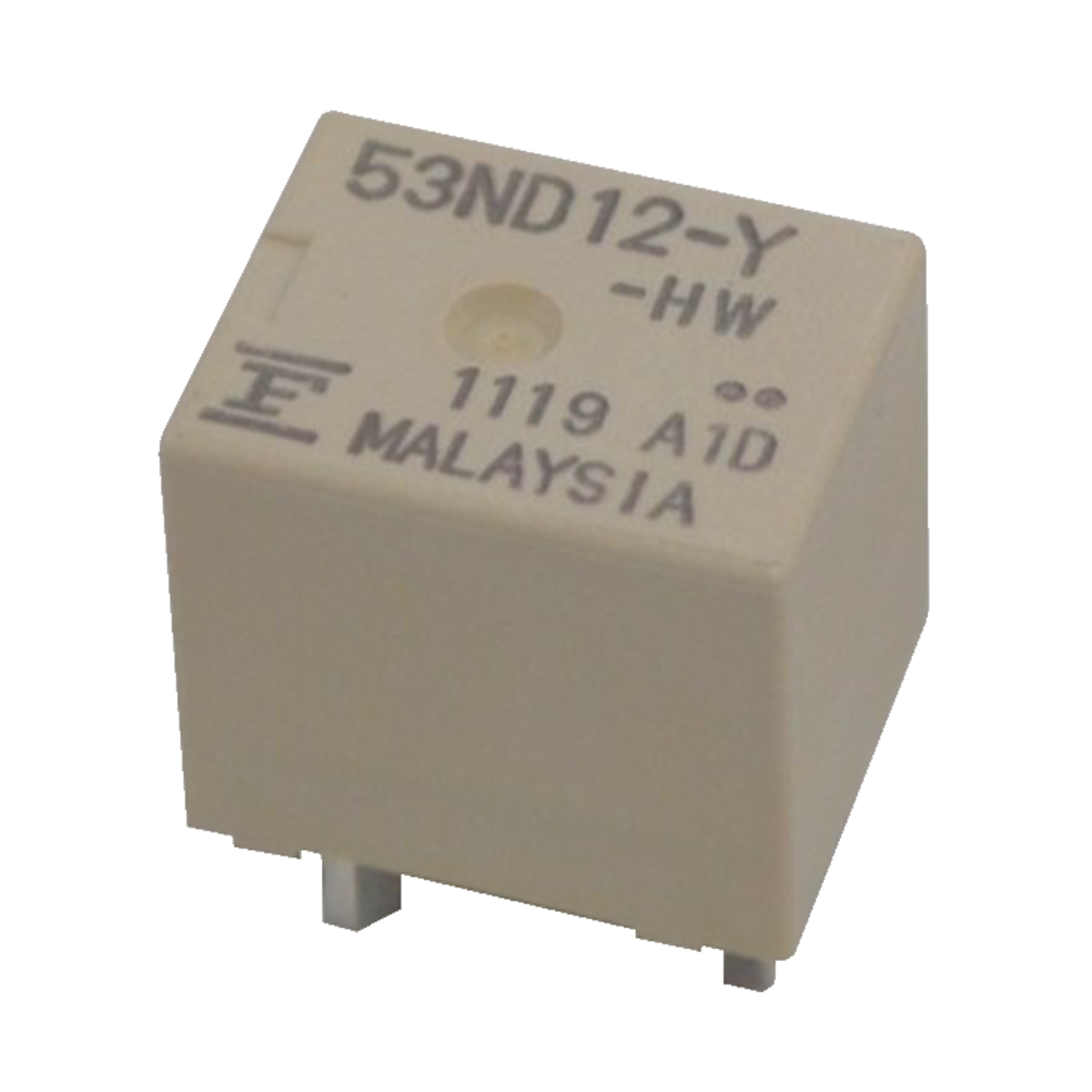

13 | | Manufacturers Part No. FBR53ND12-Y-HW(FBR53ND12Y-HW) FCL Components Automotive relay FBR53 SPST-NO 40A 12VDC 167Ohm 15,7mmx12,3mmx14mm | Customer Part No. Customer Project No. | 495 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 5 or mul. of 5) | FCL Components | THR | SPST-NO | 40.0 A | 12.0 V DC | 167.0 Ohm | 560.0 W | AgSnO2/In | 15.7 mm | 12.3 mm | 14.0 mm | -40.0 °C | 125.0 °C | ||||||
14 | | Manufacturers Part No. FBR51NL210-W1-RW(FBR51NL210W1-RW) FCL Components Automotive relay FBR51 SPDT 35A 10VDC 90Ohm 15,5mmx12,1mmx13,7mm RTIII % | Customer Part No. Customer Project No. | 1.800 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 10) | FCL Components | THR | SPDT | 35.0 A | 10.0 V DC | 90.0 Ohm | 560.0 W | AgSnO2/In | 15.5 mm | 12.1 mm | 13.7 mm | RTIII | -40.0 °C | 125.0 °C | |||||

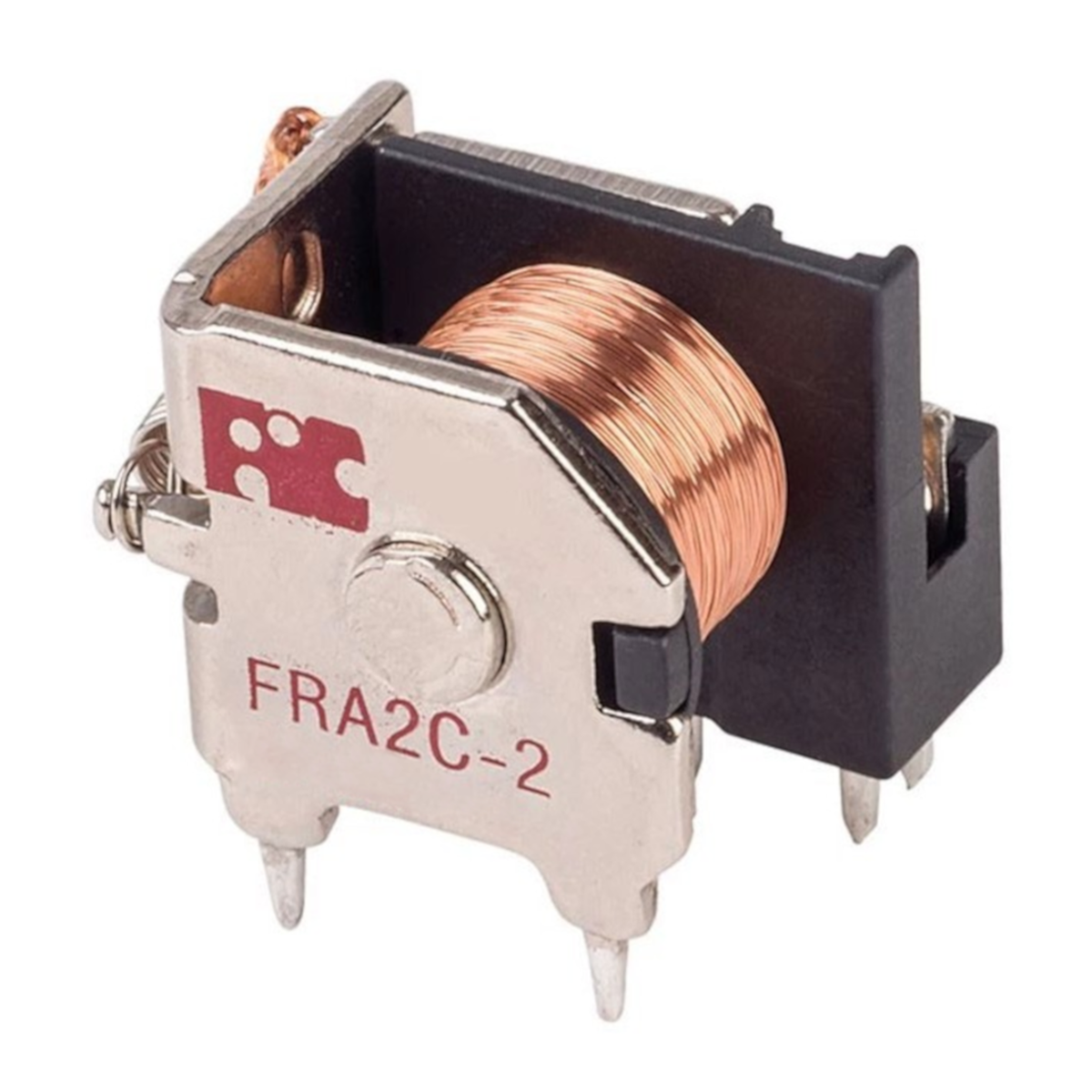

15 | | Manufacturers Part No. FRA2C-2-DC12V(FRA12-OF) Forward Industrial Co. Automotive relay FRA2 SPDT 30A 12VDC 90Ohm 19mmx24mmx20mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Forward Industrial Co. | THT | SPDT | 30.0 A | 12.0 V DC | 90.0 Ohm | 630.0 W | Ag alloy | 19.0 mm | 24.0 mm | 20.0 mm | -40.0 °C | 105.0 °C | ||||||
16 | | Manufacturers Part No. FRA2C-S2-DC12V(FRA12-WD) Forward Industrial Co. Automotive relay FRA2 SPDT 30A 12VDC 90Ohm 22mmx26,5mmx22,3mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Forward Industrial Co. | THT | SPDT | 30.0 A | 12.0 V DC | 90.0 Ohm | 630.0 W | Ag alloy | 22.0 mm | 26.5 mm | 22.3 mm | -40.0 °C | 105.0 °C | ||||||

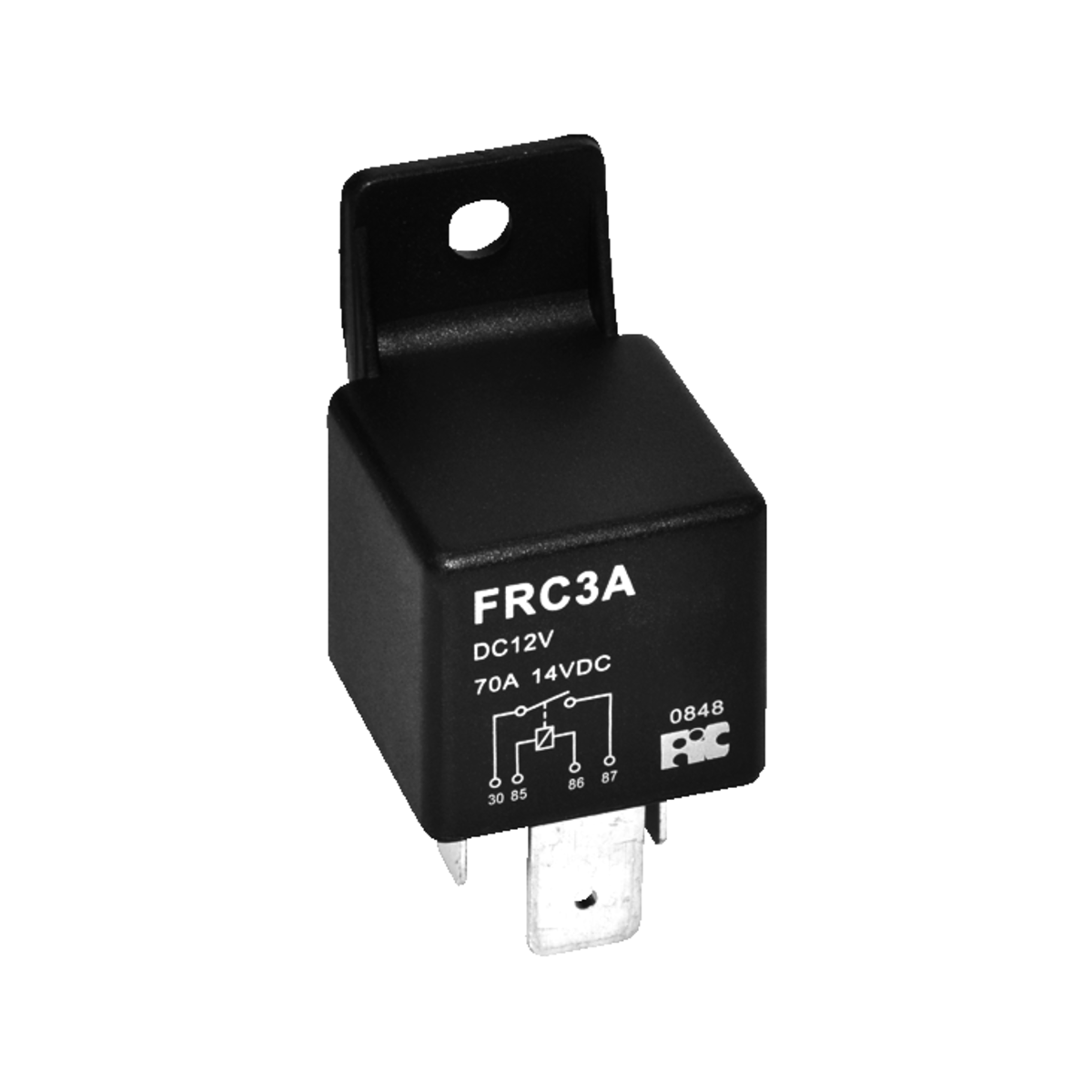

17 | | Manufacturers Part No. FRC3-A-DC12V(FRC3-12F) Forward Industrial Co. Automotive relay FRC3 SPST-NO 70A 12VDC 80Ohm 29mmx29mmx26,6mm | Customer Part No. Customer Project No. | 675 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock) | (at least 5 or mul. of 5) | Forward Industrial Co. | THT | SPST-NO | 70.0 A | 12.0 V DC | 80.0 Ohm | 980.0 W | AgSnO2 | 29.0 mm | 29.0 mm | 26.6 mm | -40.0 °C | 85.0 °C | ||||||
18 | | Manufacturers Part No. AZ977-1C-12D(AZ977-1C-12D) Zettler Automotive relay AZ977 SPDT 20A 12VDC 97Ohm 23mmx15,5mmx26mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Zettler | THT | SPDT | 20.0 A | 12.0 V DC | 97.0 Ohm | 280.0 W | AgSnO2 | 23.0 mm | 15.5 mm | 26.0 mm | -40.0 °C | 85.0 °C | ||||||

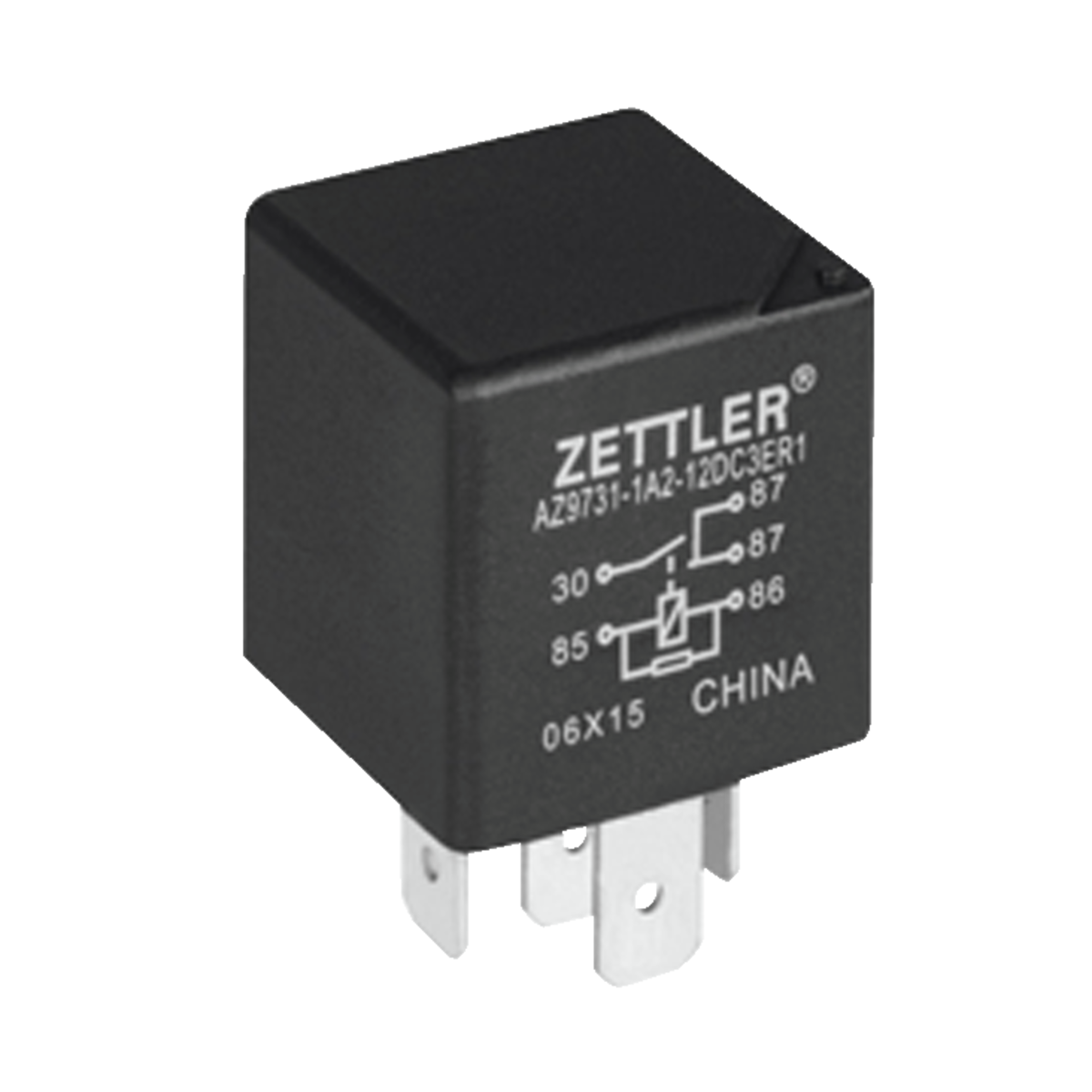

19 | | Manufacturers Part No. AZ9731-1A-12DC2(AZ9731-1A-12DC2) Zettler Automotive relay AZ9731 SPST-NO 40A 12VDC 90Ohm 26,5mmx26,5mmx24,5mm | Customer Part No. Customer Project No. | 130 Pcs. Planned Delivery Time Ø 32 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 40.0 A | 12.0 V DC | 90.0 Ohm | 560.0 W | AgSnO2 | 26.5 mm | 26.5 mm | 24.5 mm | -40.0 °C | 125.0 °C | ||||||
20 | | Manufacturers Part No. AZ9731-1C-24DC2(AZ9731-1C-24DC2) Zettler Automotive relay AZ9731 SPDT 40A 24VDC 360Ohm 26,5mmx26,5mmx24,5mm | Customer Part No. Customer Project No. | 920 Pcs. Planned Delivery Time Ø 32 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPDT | 40.0 A | 24.0 V DC | 360.0 Ohm | 560.0 W | AgSnO2 | 26.5 mm | 26.5 mm | 24.5 mm | -40.0 °C | 125.0 °C | ||||||

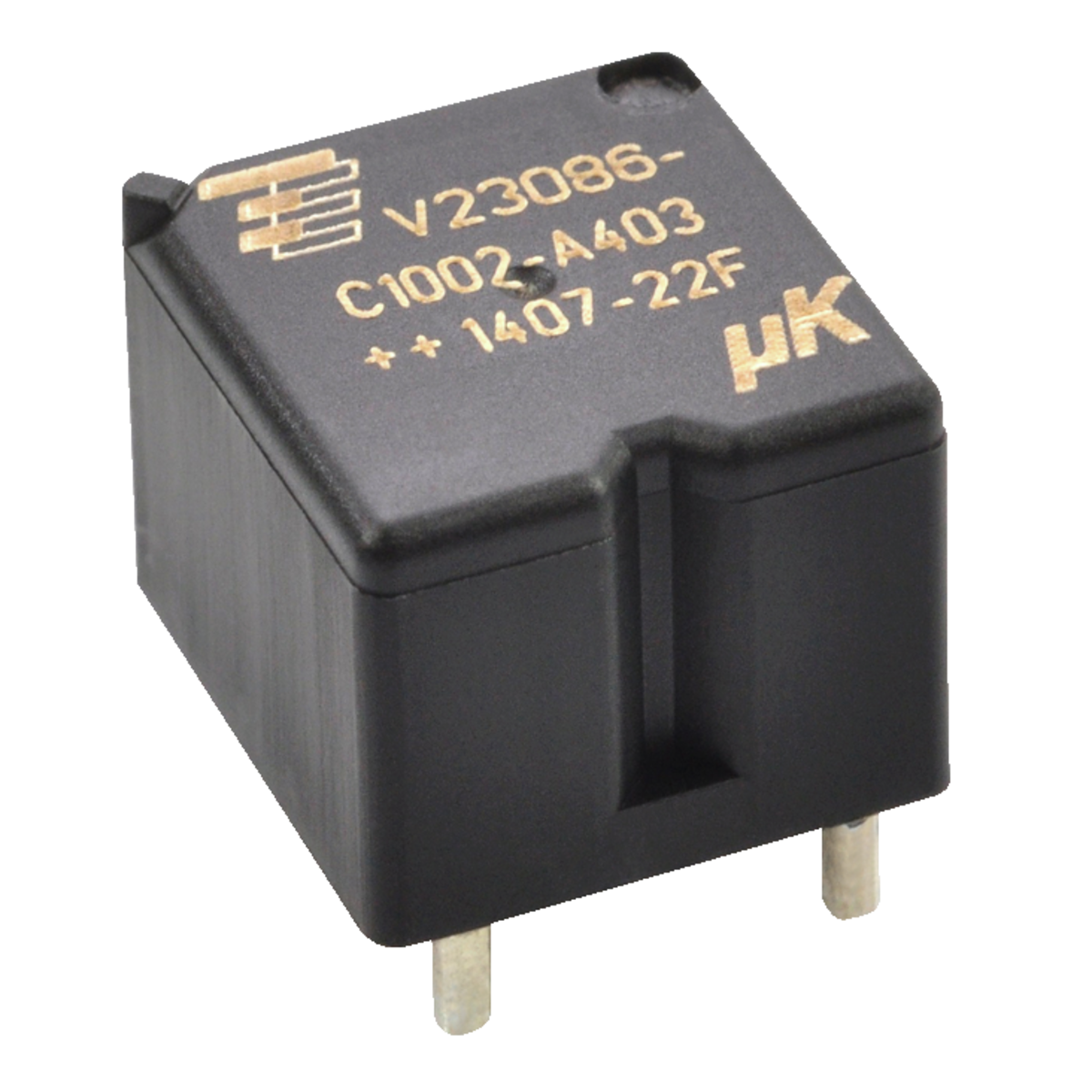

21 | | Manufacturers Part No. 1-1393280-1(V23086C1002A403) TE Connectivity Automotive relay K SPST-NO 30A 12VDC 181Ohm 12mmx12,9mmx9,9mm RTIII | Customer Part No. Customer Project No. | 715 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 5 or mul. of 5) | TE Connectivity | THT | SPST-NO | 30.0 A | 12.0 V DC | 181.0 Ohm | AgSnO2 | 12.0 mm | 12.9 mm | 9.9 mm | RTIII | -40.0 °C | 105.0 °C | ||||||
22 | | Manufacturers Part No. TRS-L-24VDC-S-Z(TRS-L-24) Tianbo Automotive relay TRS SPDT 30A 24VDC 1.010Ohm 13,2mmx12,3mmx9,8mm | Customer Part No. Customer Project No. | 700 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Tianbo | THT | SPDT | 30.0 A | 24.0 V DC | 1010.0 Ohm | 420.0 W | Ag alloy | 13.2 mm | 12.3 mm | 9.8 mm | -40.0 °C | 105.0 °C | ||||||
23 | | Manufacturers Part No. FBR51ND12-W1(FBR51ND12W1) FCL Components Automotive relay FBR51 SPDT 25A 12VDC 240Ohm 15,5mmx12,1mmx13,7mm | Customer Part No. Customer Project No. | 3.965 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPDT | 25.0 A | 12.0 V DC | 240.0 Ohm | 560.0 W | AgSnO2/In | 15.5 mm | 12.1 mm | 13.7 mm | -40.0 °C | 85.0 °C | ||||||
24 | | Manufacturers Part No. FRA2C-2-DC24V(FRA24-OF) Forward Industrial Co. Automotive relay FRA2 SPDT 30A 24VDC 360Ohm 19mmx24mmx20mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Forward Industrial Co. | THT | SPDT | 30.0 A | 24.0 V DC | 360.0 Ohm | 630.0 W | Ag alloy | 19.0 mm | 24.0 mm | 20.0 mm | -40.0 °C | 105.0 °C | ||||||

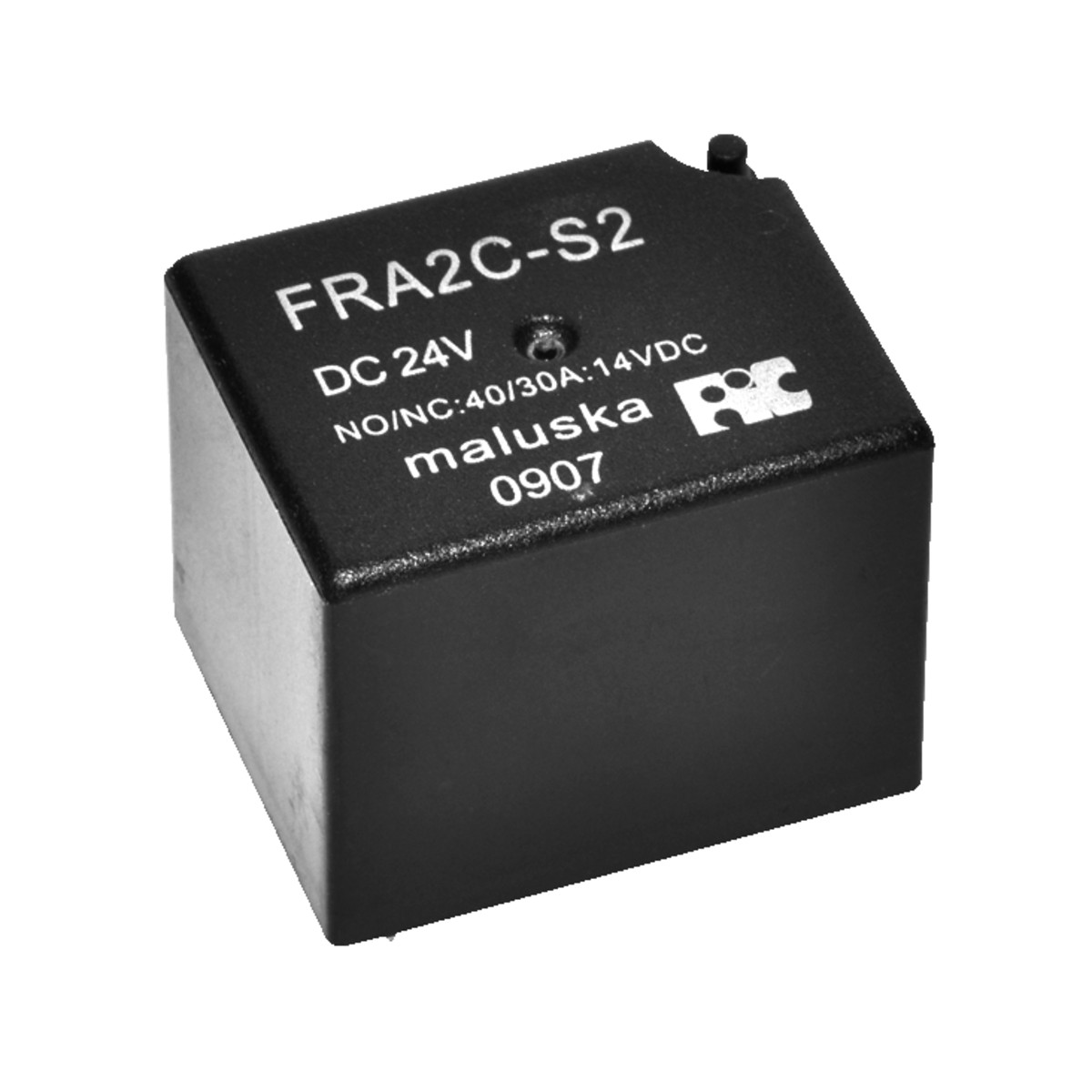

25 | | Manufacturers Part No. FRA2C-S2-DC24V(FRA24-WD) Forward Industrial Co. Automotive relay FRA2 SPDT 30A 24VDC 360Ohm 22mmx26,5mmx22,3mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Forward Industrial Co. | THT | SPDT | 30.0 A | 24.0 V DC | 360.0 Ohm | 630.0 W | Ag alloy | 22.0 mm | 26.5 mm | 22.3 mm | -40.0 °C | 105.0 °C |
