V5640A-T

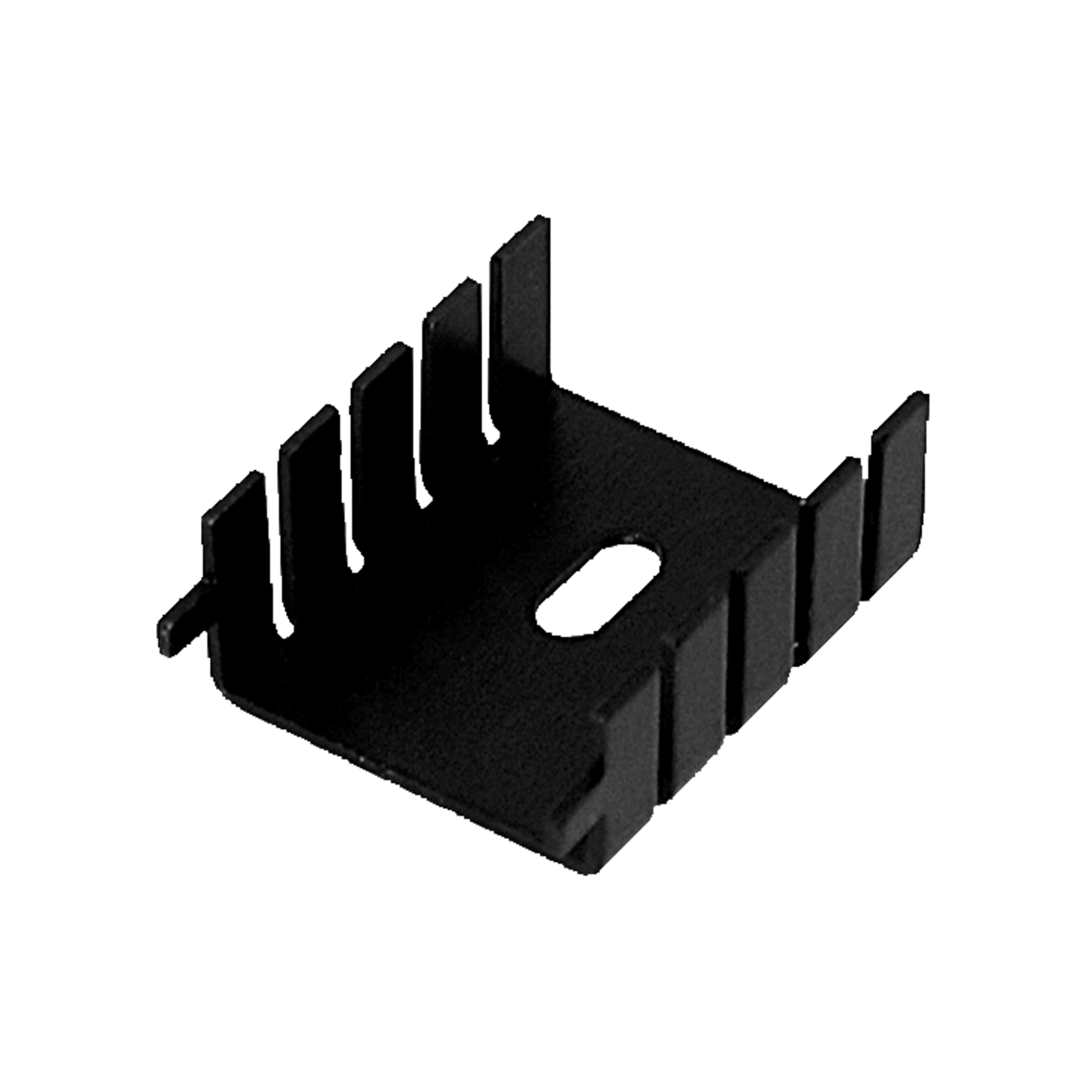

Assmann WSW Finger shaped heatsinks SK_S black Screw mounting 34mm 25,4mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
870 Pcs. in stock
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 160 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Finger shaped heatsinks
- Series
- SK_S
- Colour
- black
- Assembly Type
- Screw mounting
- Dimension: Length
- 34 mm
- Dimension: Width
- 25.4 mm
- Dimension: Height
- 12.7 mm
- Thermal resistance
- 20 K/W
- RoHS-Conform
Specifications
Open all

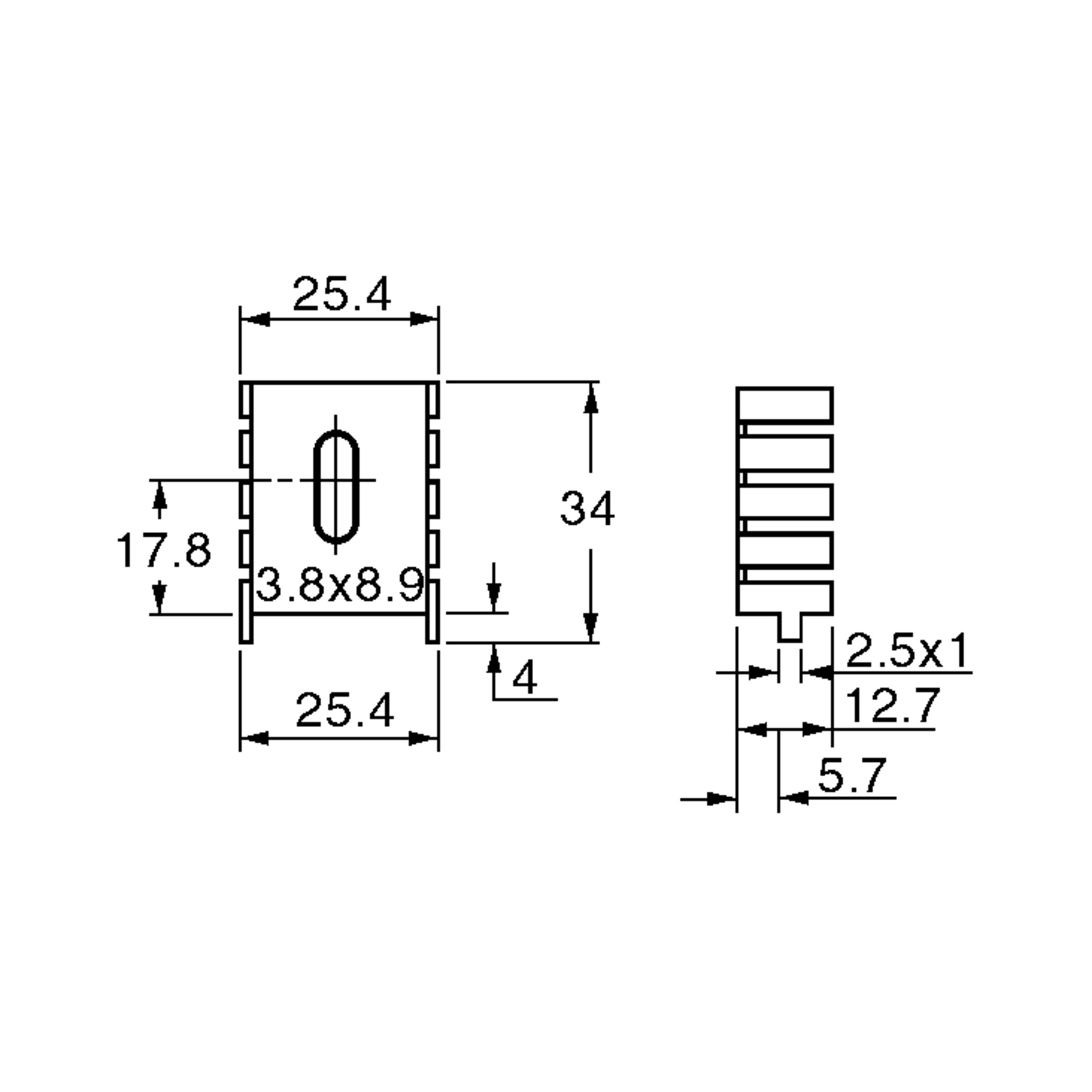

Dimensions and weights
- Dimension: Length
- 34 mm
- Dimension: Width
- 25.4 mm
- Dimension: Height
- 12.7 mm
Technical features
- Thermal resistance
- 20 K/W
