V5583E

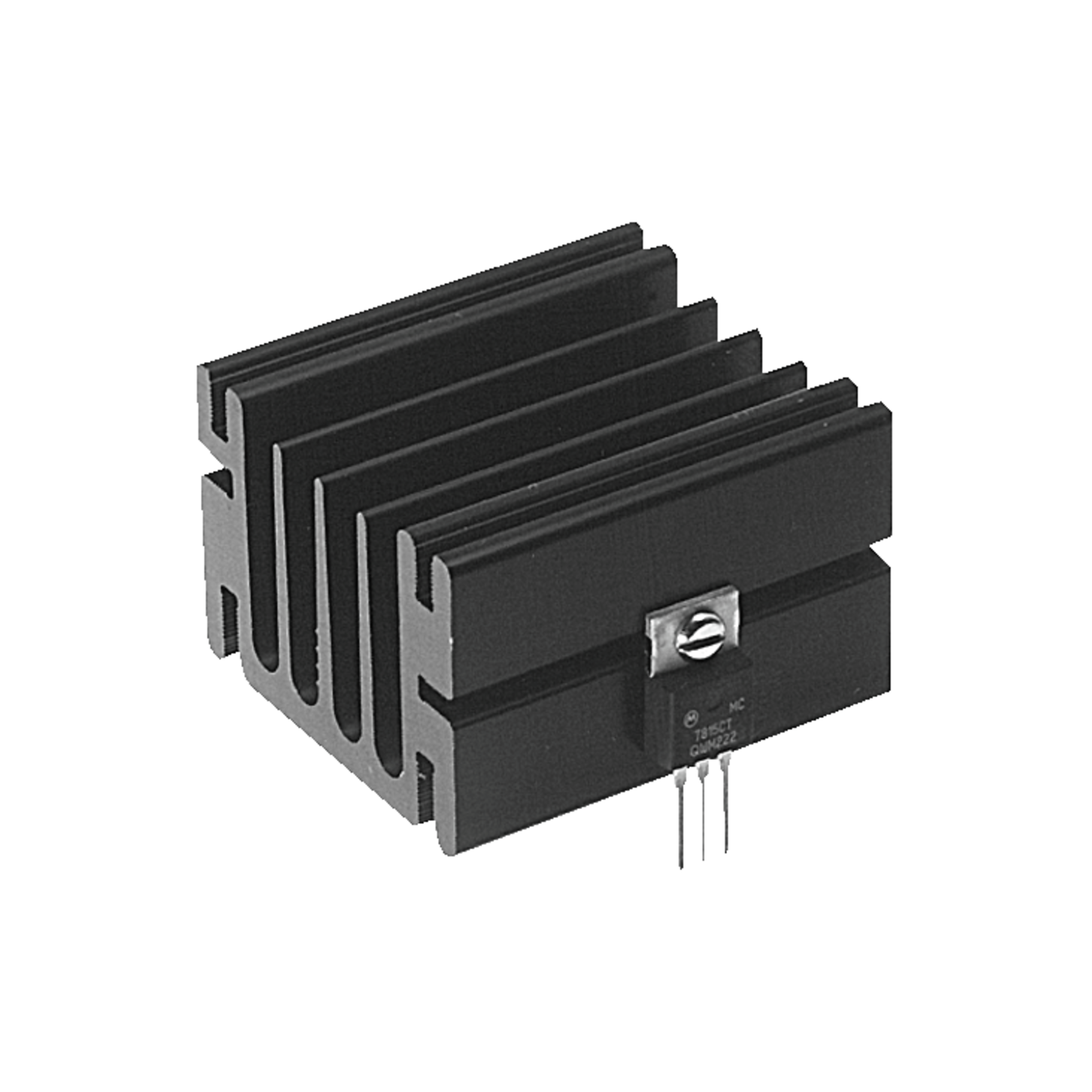

Assmann WSW Standard extrudes heatsinks V5583 Aluminum black Screw mounting 50mm 46mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Next Stock Receipt
Week 22/2026
200 Pcs.
200 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Standard extrudes heatsinks
- Series
- V5583
- Colour
- black
- Assembly Type
- Screw mounting
- Dimension: Length
- 50 mm
- Dimension: Width
- 46 mm
- Dimension: Height
- 33 mm

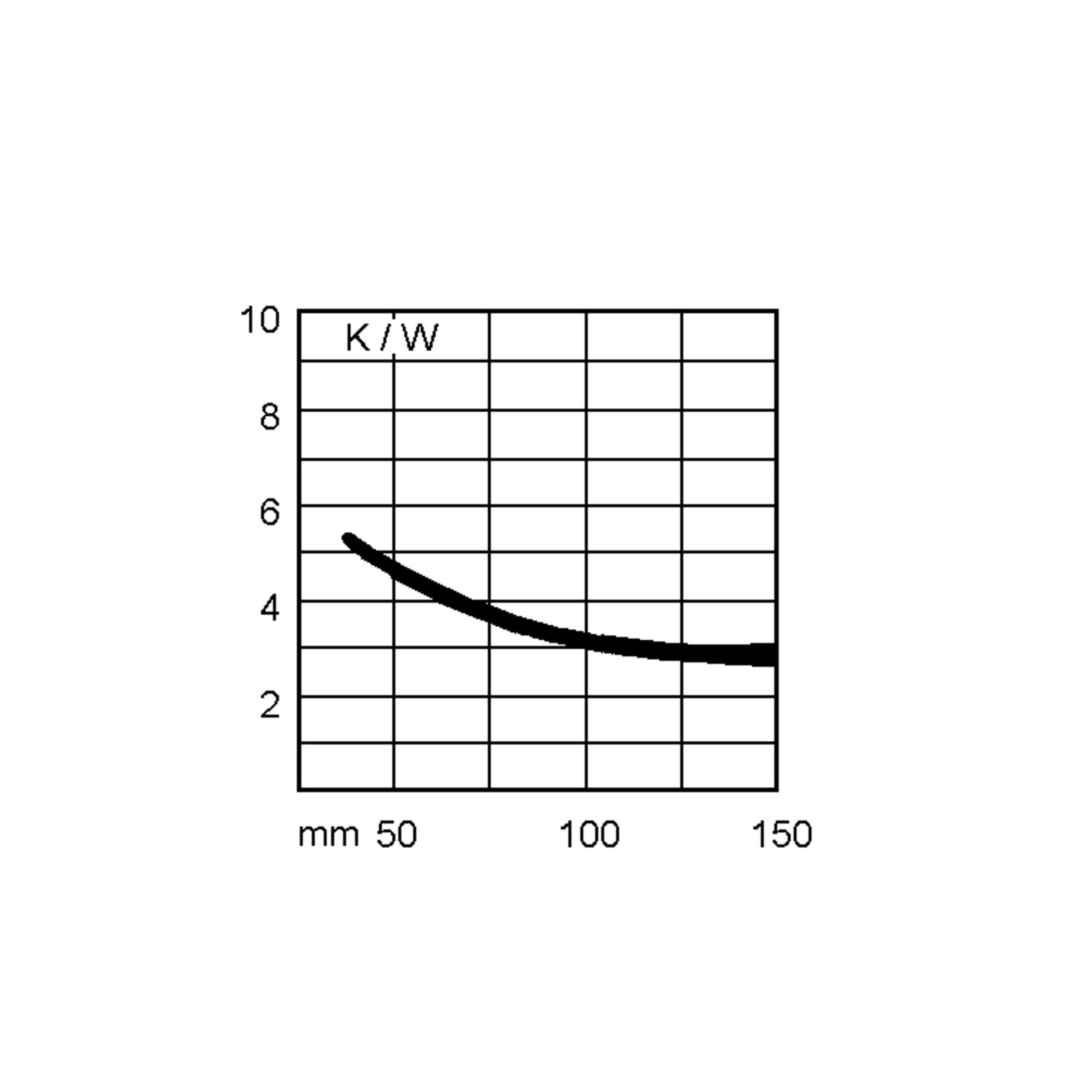

- Thermal resistance
- 4.6 K/W
- RoHS-Conform
Specifications
Open all

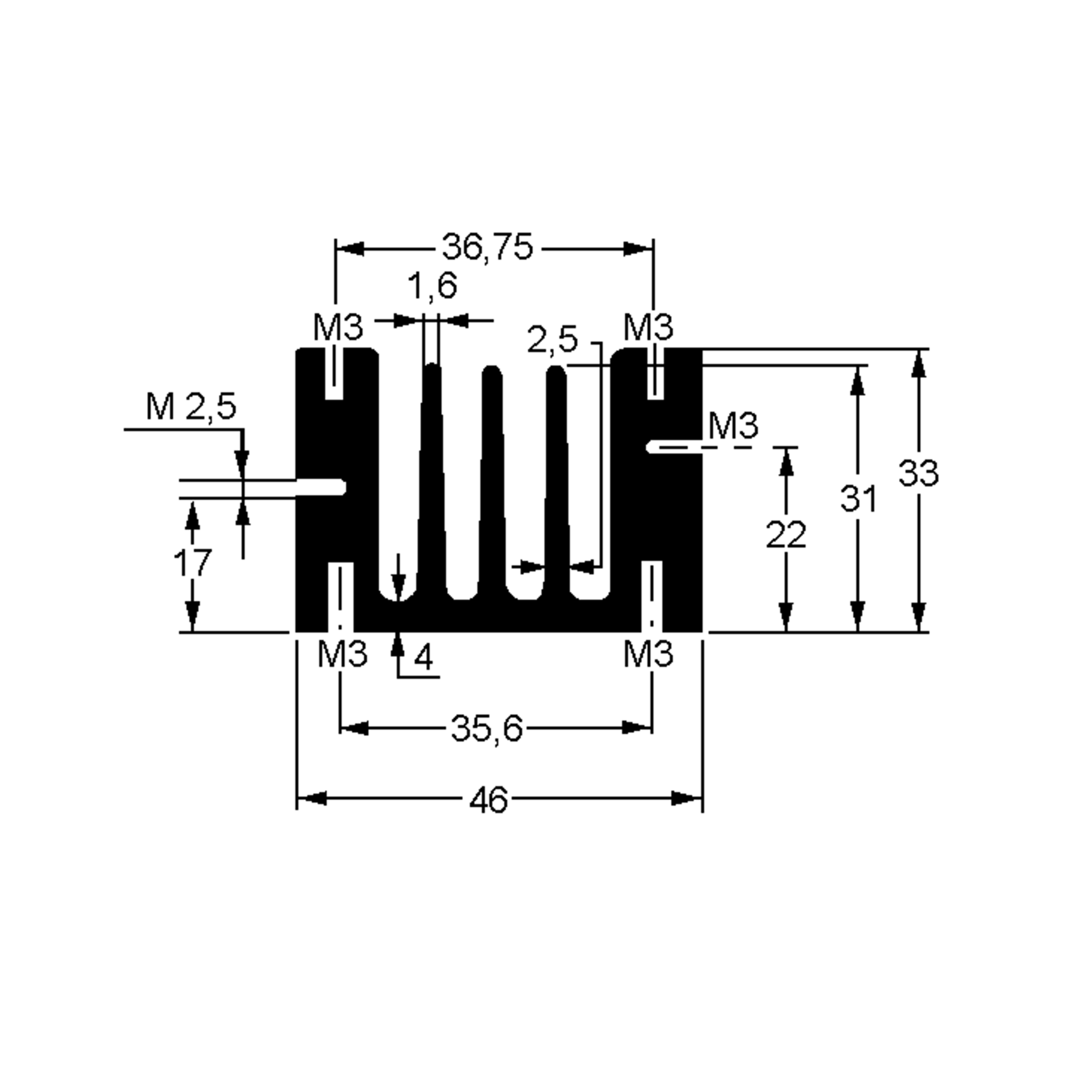

Dimensions and Weights
- Dimension: Length
- 50 mm
- Dimension: Width
- 46 mm
- Dimension: Height
- 33 mm
Technical Features
- Thermal resistance
- 4.6 K/W
