V5336

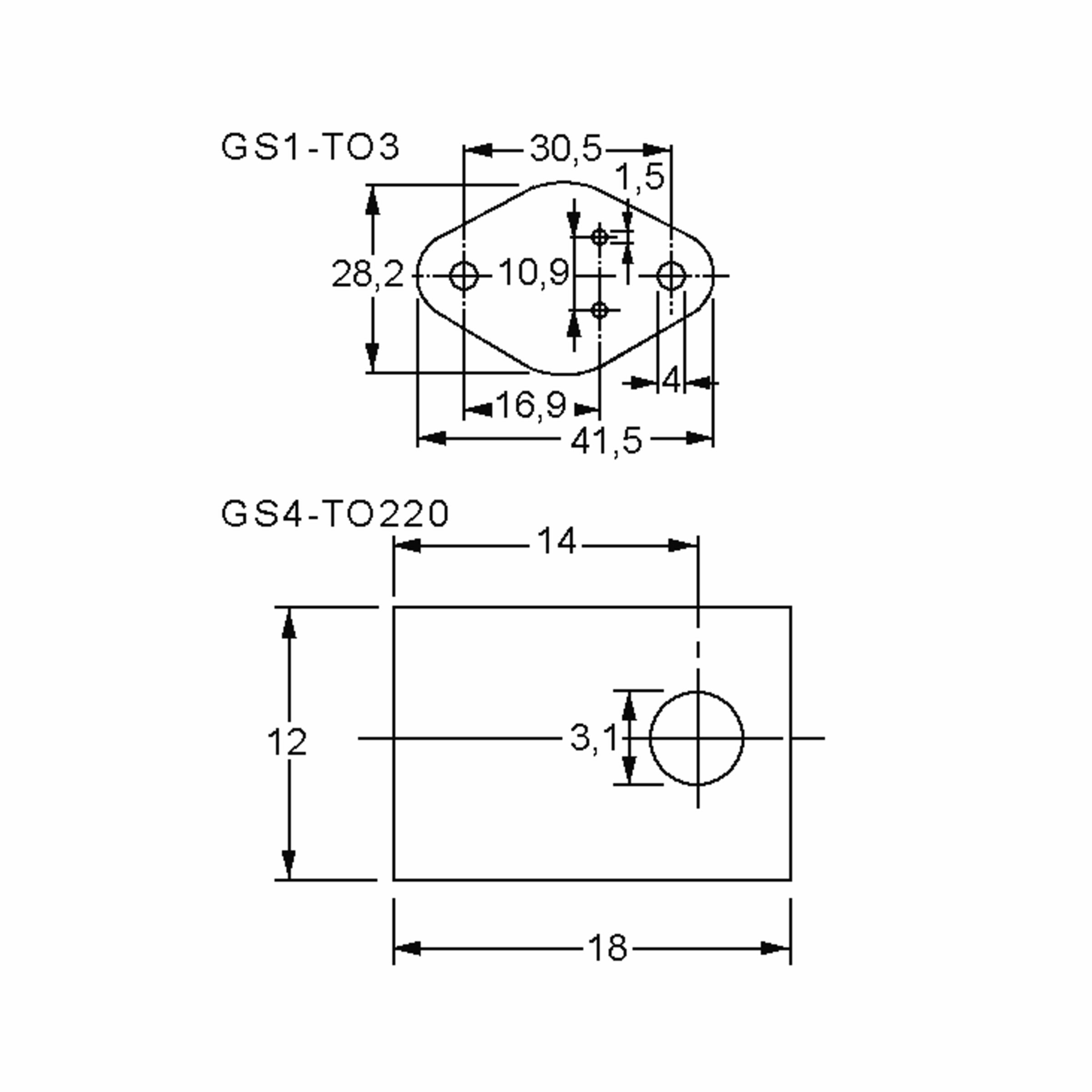

Assmann WSW Wafers V_ Mica 50µm 41,5mm 28,2mm transparent
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Wafers
- Series
- V_
- Dimension: Length
- 41.5 mm
- Dimension: Width
- 28.2 mm
- Material
- Mica
- Material thickness, max.
- 50 µm
- Colour
- transparent
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 41.5 mm
- Dimension: Width
- 28.2 mm
- Material thickness, max.
- 50 µm
Operating conditions
- Melting point
- 1,290 °C
Technical features
- Dielectric strength, min.
- 2 kV/mm
