A-RF64ACR

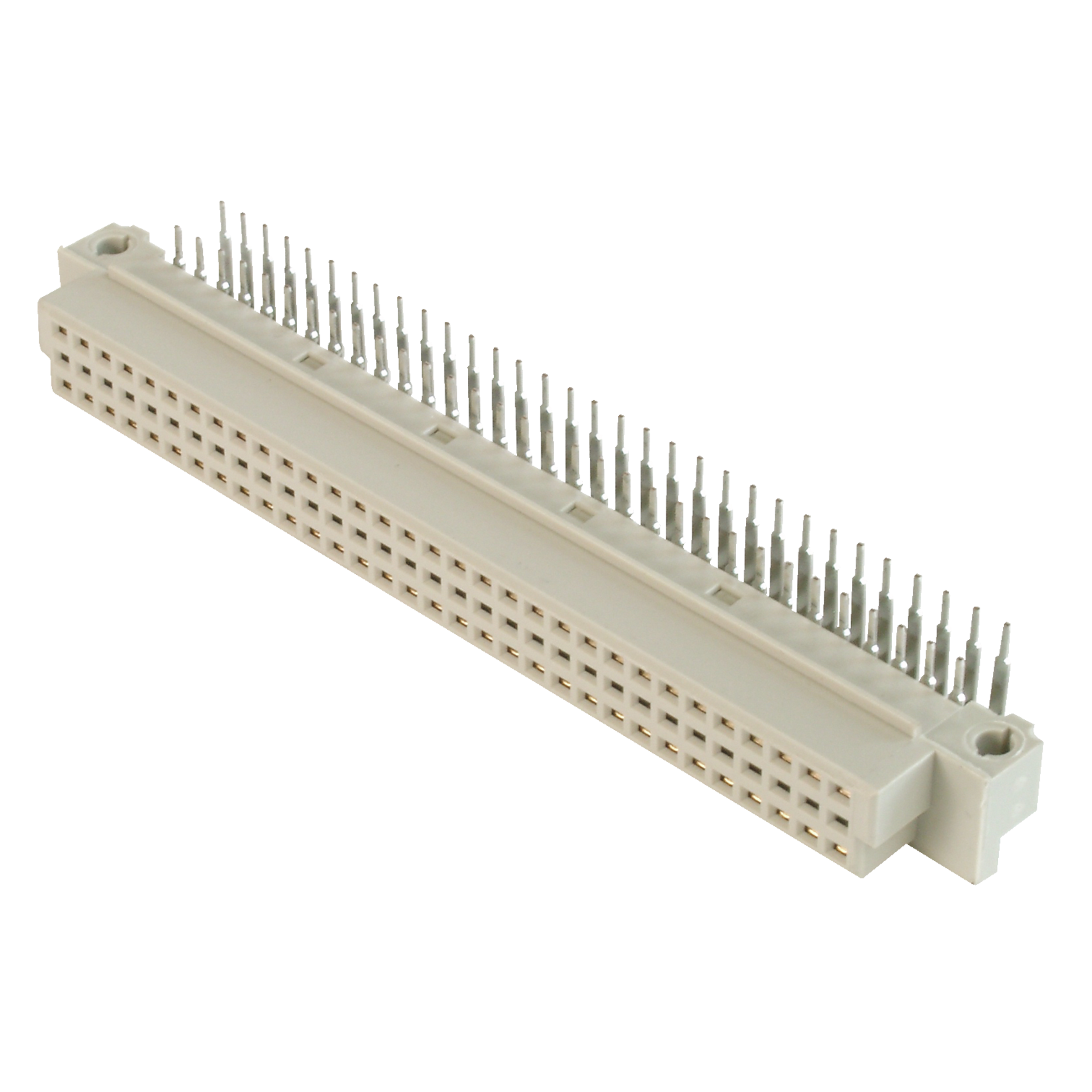

Assmann WSW Female connector A-RM_ACT Box Header 3-row 90° 64 Pole Pitch2,54mm Solder

RF64RWRF64RW
Manufacturer Part No.
A-RF64ACR
Schukat Part No.
RF64RW
Manufacturer
Assmann WSW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

340 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Contact Type
Socket
Type
Female connector
Connector Contact
Solder
Series
A-RM_ACT
Colour
gray
Housing
3-row
Design
Box Header
Insulating body
Polybutylenterephthalat (PBT) GF
Number of poles
64
Standards
DIN 41612
Pitch
2.54 mm
Class of Inflammability
UL 94 V-0
Alignment
90°
Operating Temperature Max.
105 °C
Rated voltage AC
125 V AC
Rated current
2 A
Operating Temperature Min.
-40 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Assmann WSW
Type
  • Female connector
Series
  • A-RM_ACT
Product group
  • F5173
Housing
  • 3-row
Contact Type
  • Socket
Connector Contact
  • Solder
Number of poles
  • 64
Strain Relief
  • no
Alignment
  • 90°
Design
  • Box Header
Protective conductor
Colour
  • gray

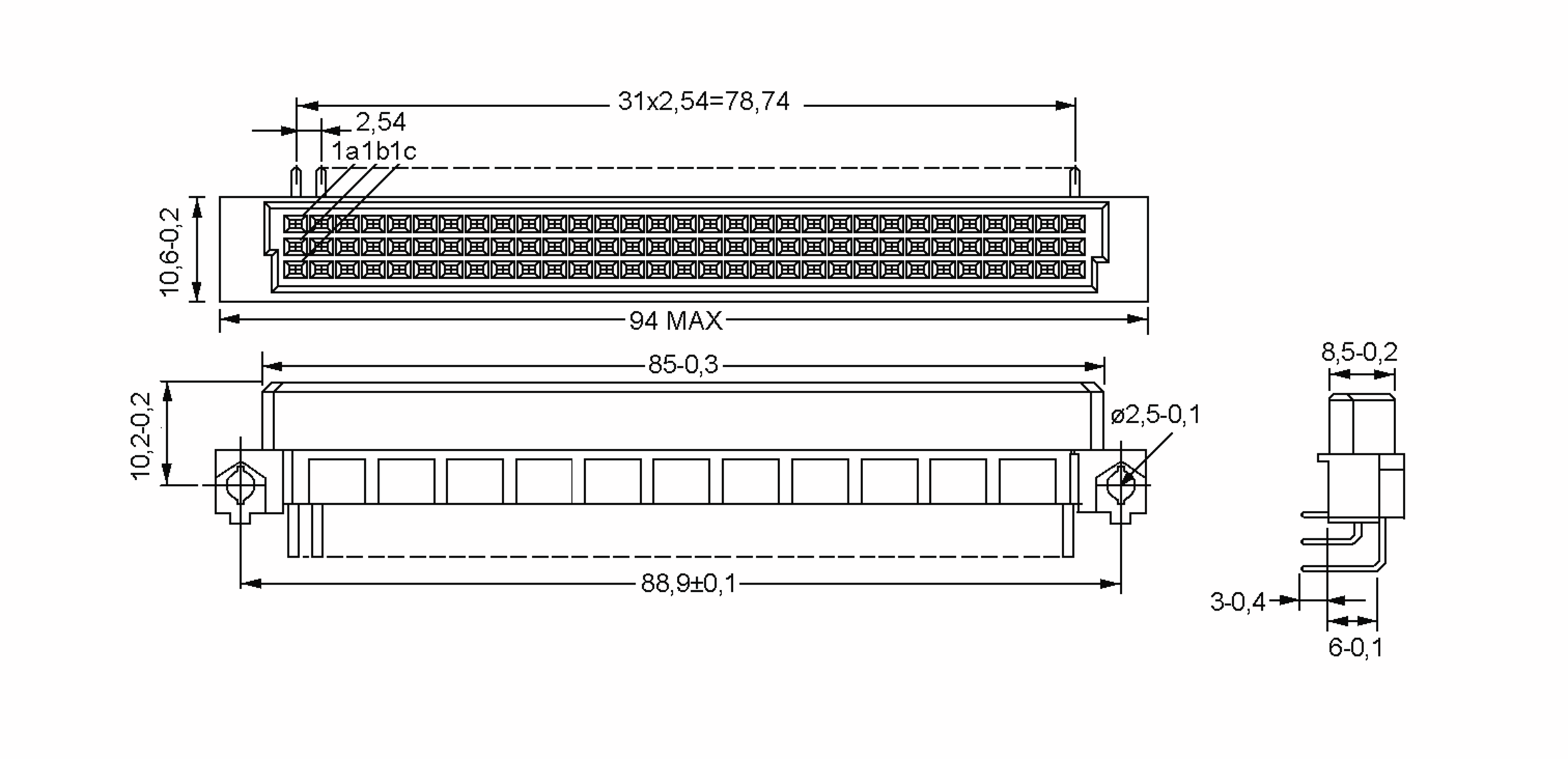

Dimensions and Weights

Dimension: Width
  • 94 mm
Dimension: Height
  • 15.6 mm
Dimension: Depth
  • 10.2 mm
Pitch
  • 2.54 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 105 °C

Technical Features

Rated current
  • 2 A
Rated voltage AC
  • 125 V AC
Insulation resistance
  • 10^12 MOhm
Contact resistance
  • 20 mOhm

Mechanical Features

Durability
  • 50
Drilling Dimensions
  • 2.5 mm
Insertion force per contact, max.
  • 60 N
Insertion force per contact, min.
  • 125 N
Clearance and creepage distances (contact/ground), max.
  • 1.2 mm
Insulating body
  • Polybutylenterephthalat (PBT) GF
Contact Surface Input
  • Nickel, vergoldet

Safety/Certifications

Approvals
  • cURus
Standards
  • DIN 41612
Class of Inflammability
  • UL 94 V-0
